City of Adelanto

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 85% · ordinance
• Is a permit required for a residential rooftop PV system? Yes 95% · published checklist
• Is there a separate electrical permit, or is it combined? Combined 70% · fee schedule
• Is a HOA or architectural approval required first? No 90% · ordinance
• Is there a historic-district review? No 70% · ordinance
• Is a wind or windstorm certification required? No third-party wind certification is required; instead the applicant self-verifies via standard engineering evaluation technique per AMC 14.38.040(E)(1), against the City-published structural wind design criterion of 110 mph, Exposure C (ASCE 7-22 CRC) for residential and solar. 78% · ordinance
• Is a Specific Use Permit or Council approval ever required? Yes, but only outside the residential rooftop 'Category Three' path: AMC 17.80.070 requires a Conditional Use Permit + Location and Development Plan for Category One (>500kW, sold power) and Category Two (≤500kW serving onsite structures, but Category Two is NOT allowed at all in single-family residential (R1/R1-.5) or Desert Living zones without a separate SECS Overlay Zone approval under 17.80.071, which itself needs a General Plan Amendment + Zone Change + CUP + Location and Development Plan). The Building Official may also require a use permit for any small residential system found to have a 'specific, adverse impact' per AMC 14.38.040(A). 82% · ordinance
• Is there a system-size cap on residential generation? Three different, non-aligned caps exist and none has been reconciled with the others: (1) Zoning AMC 17.80.070(a)(3) caps by-right residential 'Category Three' rooftop/ground-mount solar (site-plan-only, no CUP) at 25kW; above that, Category Two is not zoning-permitted in single-family/Desert Living zones without a CUP + SECS Overlay. (2) The codified building-permit chapter AMC 14.38.020(E)(1) still defines 'small residential rooftop solar energy system' (AB 2188-era, Ord. 538, 2015) as capped at 10kW AC / 30kW thermal. (3) The live SolarAPP+ page states the ministerial/automated pathway is available for systems 'under 38kW' AC. None of the three documents cross-references the others. 75% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 65% · department page
• Must the contractor be registered with this authority before applying? Yes 88% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 65% · published form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Construction plans; cover sheet/site plan/plot plan (lot size, street, easements, structures, property lines); roof plan or ground-mount plan with panel location; panel anchorage/attachment details (manufacturer mounting detail, e.g. Unirac/Tilerac; footing/structural details if ground-mounted); electrical one-line diagram (panels, inverter, main panel/disconnects, wire size; load calcs if de-rating main breaker); equipment cut sheets showing UL listing for inverter and panels; address and page numbers on every sheet; responsible designer's signature. 92% · published checklist
• How many copies, and in what format? Electronic PDF submittal only, via the SolarAPP+ platform followed by upload of approved SolarAPP+ documents into the City's Camino/Clariti permit portal (app.oncamino.com/adelanto-ca) — no paper copy count specified for solar; the general (non-solar) residential submittal handout separately specifies 24"x36" paper plan sheets for full construction-plan submittals, but that instruction is not repeated in the solar-specific checklist. 60% · department page
• Is a site plan required, and what must it show? Yes — full dimensioned site plan showing lot size, street, alley, easements, parking spaces, location/size/use of all structures on the lot, property lines, lot dimensions, and distance to property line; a Sample Site Plan is published as a template. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 92% · published checklist
• Are string and conductor calculations required? Not required as a standalone item — the checklist only requires 'electrical load calculations if de-rating main breaker,' not general string/conductor sizing calculations. 60% · published checklist
• Is a structural PE stamp required, and at what threshold? No fixed dollar/size threshold published; the Design Loads handout requires a licensed Civil/Structural Engineer or Architect only for 'commercial and 3-story or taller residential buildings,' implying standard 1-2 story rooftop PV using a manufacturer's pre-engineered mounting system (e.g. Unirac/Tilerac) does not require a project-specific PE stamp; ground-mount footing/structural details are required but a stamp is not explicitly mandated unless non-standard. 55% · department page
• Is an electrical PE stamp required, and at what threshold? Not explicitly required for standard residential PV using listed equipment and manufacturer instructions; no electrical-PE-stamp threshold is stated anywhere in the reviewed submittal or fee documents. 45% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

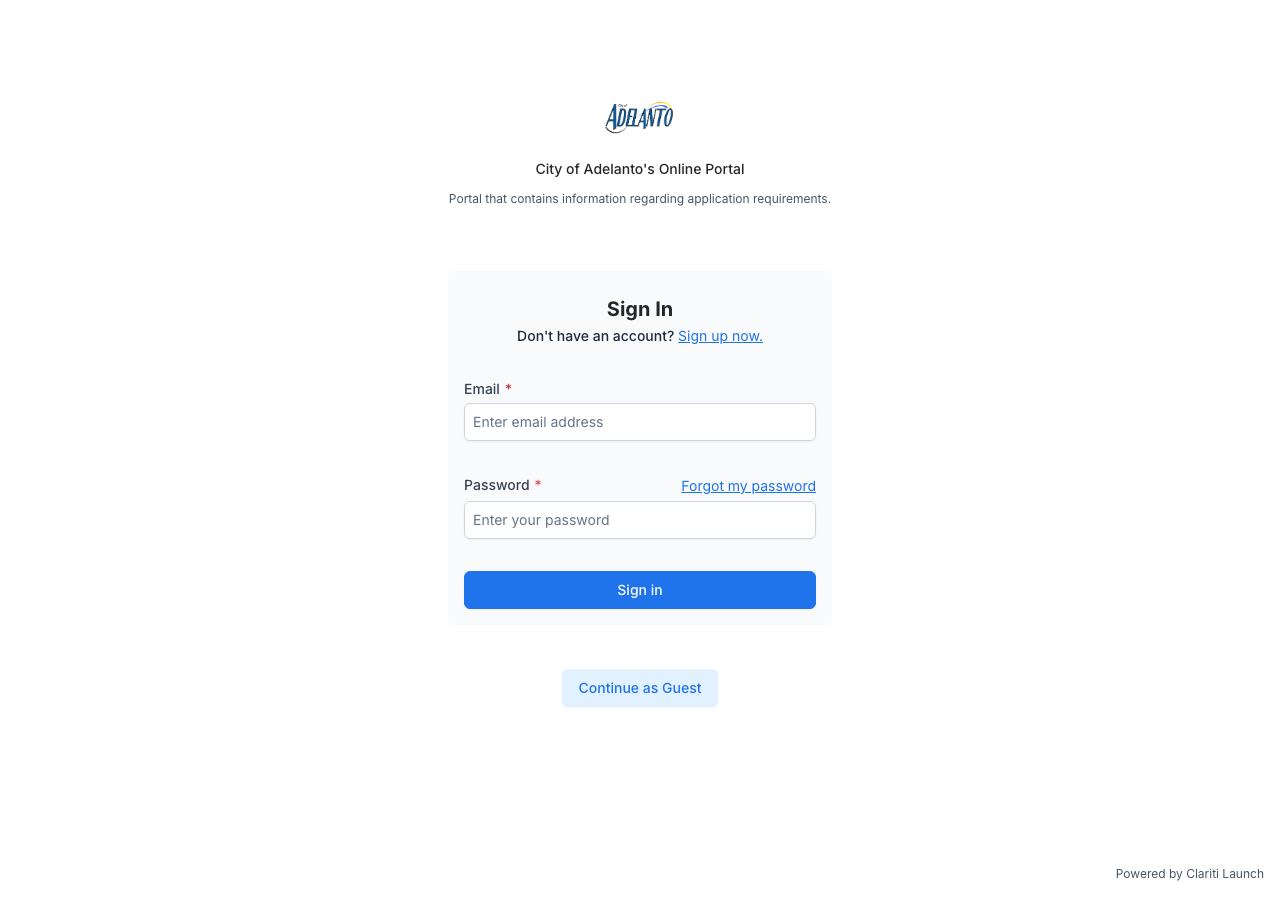

• Which permit portal does this authority use? Camino (branded 'Clariti Launch') at app.oncamino.com/adelanto-ca, used together with the SolarAPP+ platform for the residential rooftop solar path. 90% · portal landing page
• Can the whole application be completed online? Yes 88% · portal landing page
• What does a residential solar permit cost? $450 base fee for residential systems 15kW or less, plus $15 per additional kW above 15kW, plus a 15% General Plan Maintenance surcharge, 7% Technology Fee surcharge, and small state surcharges (CBSC $1/$25,000 valuation; SMIP residential $0.13/$1,000). 88% · fee schedule
• How is the fee calculated? Tiered (flat base fee below a kW threshold, then a fixed per-kW rate for capacity above it) 90% · fee schedule
• Is there a separate plan-check fee? No — no separate plan-check line appears under 'Solar Permits' in the fee schedule (unlike the square-footage building-permit categories, which explicitly split a % Plan Check Fee from the Building Permit/Inspection fee); the $450 solar base fee appears to be an all-in permit fee. 60% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Typically within 2 business days of SolarAPP+ approval for the ministerial/SolarAPP+ pathway ('permit technicians will issue your official permit — typically within 2 business days'); non-SolarAPP+-eligible projects (e.g., ground-mount, over-38kW, or historic-district) go through standard plan review with no separately stated turnaround. 70% · department page
• How long is an issued permit valid before it expires? No local amendment found to the standard California Building Code permit-expiration rule (180 days without commencement of work, or 180 days of work suspension, per unamended CBC §105.5); AMC 14.12.010's local amendments only touch §105.2 exemptions, §113.3 Board of Appeals, and §903.2 sprinklers — permit-expiration language is not among them. 55% · ordinance
• Which utility handles interconnection here? Southern California Edison (SCE) 85% · city page
• Where does the utility sit in the sequence? Parallel / No dependency for permit issuance — utility interconnection approval runs independently of the City's permit process and is the applicant's own responsibility 65% · ordinance

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 90% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (CBC), effective 1 Jan 2026 92% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code, plus the Fire Safety Standards and Fire Prevention Standards separately published by the San Bernardino County Fire Department, adopted by reference 88% · adopting ordinance
• Are there local amendments to any of the above? Yes for Building and Fire; No for Electrical 82% · ordinance
• What is the installation judged against? The 2025 California Building, Residential, Electrical, Mechanical, Plumbing, Energy, Fire, Green, Historical, Referenced Standards, and Administrative Codes as locally amended, plus AMC Ch. 14.38 (small residential rooftop solar) and SBCoFD's Fire Safety/Prevention Standards. 85% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Adelanto on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required per NEC 690.12 as incorporated into the 2025 California Electrical Code (based on the 2023 NEC), effective 1 Jan 2026; no local amendment to this requirement was found. 78% · adopting ordinance

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? WARNING placards at: the inverter output overcurrent device ('Inverter Output Connection — Do Not Relocate'), the PV AC disconnect, the PV DC disconnect, junction/combiner boxes and conduit (marked every 10 feet, 'Warning: Photovoltaic Power Source'), a dual-power-source label at the main service, and (for ungrounded systems) a DC-ungrounded shock-hazard label — per CEC Articles 690 & 705 and CRC §R331, reproduced in the City-hosted standard plan. 80% · ordinance / utility spec
• Does the authority specify placard wording of its own? No 75% · ordinance
• Does it specify letter height, colour or material? Only the state-standard-plan's informational guidance is republished by the City: a phenolic plaque with contrasting colors between text and background (to meet permanency intent), ANSI Z535.4 referenced for sign/label design, and 20-point (3/8-inch) suggested as a type-size minimum — this is guidance from the state guidebook template, not an Adelanto-authored spec. 70% · ordinance
• Is a site plan / facility map placard required, and what must it show? A permanent plaque or directory denoting all electric power sources on/in the premises is required per CEC 705.12, as referenced in the City-hosted standard plan; no additional Adelanto-specific facility/site-plan placard requirement beyond that state code citation was found. 60% · ordinance
• Where must the labels be placed? At the inverter output overcurrent device, PV AC disconnect, PV DC disconnect, junction/combiner boxes, and along conduit runs (repeated every 10 feet) — per the CEC 690/705 markings reproduced in the City-hosted standard plan. 72% · ordinance / utility spec

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 90% · published checklist
• Are batteries permitted, and under what conditions? Batteries/storage are named as eligible under the live SolarAPP+ pathway ('Only residential rooftop and storage installations' qualify), but the City's own dated 'Solar Submittal Requirements' handout addresses PV-only (ground/roof mount) and does not itself list battery/ESS-specific submittal conditions — a gap between the live SolarApp+ scope and the dedicated solar handout. 55% · department page
• Is a ground mount treated as a structure? Effectively yes for building-code purposes (footing and structural details are required, and a minimum 5-foot-high fence must surround it), even though zoning treats residential ground-mount (Category Three, ≤25kW) the same as roof-mount for approval purposes (site plan only, no CUP required). 78% · ordinance
• Is there a local rule on service upgrades or busbar sizing? No 75% · ordinance
• Is a specific mounting system or attachment spacing required? Yes — a manufacturer's mounting detail (e.g. Unirac or Tilerac) is required for roof attachment; lag screws must penetrate a minimum of 2.5 inches into structural members; ground-mount systems require separate footing and structural details. 88% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone 85% · department page
• How much notice is required? 1 business day (must call by 5:00 PM the day before the requested date, Monday-Thursday; Thursday requests roll to the following Monday since the office runs a 4-day week) 85% · department page
• Are same-day or AM/PM windows offered? AM/PM windows offered but not guaranteed (morning ~8:00-11:30 AM, afternoon ~1:00-3:00 PM); no specific time slot is granted; no inspections are conducted on Fridays (4-day, Mon-Thu work week). 82% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 82% · ordinance
• If delegated, to whom? Not applicable (not delegated) — City Building & Safety performs the final inspection itself; San Bernardino County Fire's Fire Marshal may only join as part of a consolidated inspection, not as a delegate replacing the City. 75% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Roof-mount PV: one final inspection only. Ground-mount PV: two inspections — a footing inspection, then a final inspection. For systems over 15kW, a separate roof-mount structural inspection may be required before panel installation begins. 85% · published checklist
• Is a rough-in or mid-roof inspection required? Not for a standard roof-mount system (only one final inspection is required); a footing inspection is required for ground-mount systems, and for systems over 15kW a separate roof-mount inspection may be required before panel installation. 75% · published checklist

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No solar-specific inspection checklist is published; a general (non-solar) 'General Inspection Information' bulletin (IB-8) covers scheduling and inspector-contact practices across all trades. 62% · department page
• What must be on site at inspection? SolarAPP+-approved plans, the City-issued permit, and the job card. 82% · department page
• Does the inspector verify labels and listings? Yes 55% · department page / practice

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (final inspection sign-off/approval on the permit) — a rooftop PV addition to an existing single-family home does not trigger a new Certificate of Occupancy. 55% · department page
• Who notifies the utility for PTO? Installer / Applicant 80% · ordinance
• Is there a re-inspection fee? $182 per hour 82% · fee schedule
• How are corrections issued and cleared? The Building Official issues a written correction notice detailing all deficiencies; upon a failed inspection, a subsequent (re-)inspection is authorized, though it need not conform to the same procedural requirements as the original expedited inspection. 70% · ordinance
