City of Anaheim

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 90% · municipal code section (indexed snippet; live page Cloudflare-blocked)
• What does this authority permit itself, and what does it delegate? Both 80% · department plan-check guideline
• Is a permit required for a residential rooftop PV system? Yes 85% · municipal code section (indexed snippet)
• Is there a separate electrical permit, or is it combined? Combined 55% · department plan-check guideline
• Is there a system-size cap on residential generation? No hard cap on residential system size, but the streamlined/expedited permitting track under AMC 15.04.060 applies only to a 'small residential rooftop solar energy system,' defined as no larger than 10kW AC nameplate rating (or 30kW thermal); larger residential systems go through standard (non-expedited) plan check instead of being barred 65% · municipal code section (indexed snippet)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 70% · department plan-check guideline
• Must the contractor be registered with this authority before applying? Yes 55% · department form (dated June 2010)
• Is a homeowner permitted to self-install and self-permit? No 45% · department plan-check guideline

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Site plan to scale; dimensioned roof plan with array layout; complete single-line electrical schematic (panels/arrays, raceways, combiner/junction boxes, disconnects, inverters, subpanels, service, overcurrent devices with manufacturer ratings); structural calcs/details per thresholds below; equipment manufacturer spec sheets printed on the plan sheets (not attached loose 8.5x11); code-required signage note; DC grounded-conductor polarity note 80% · department plan-check guideline (dated Oct 2011, currently linked)
• How many copies, and in what format? 3 sets of plans, minimum 18"x24" paper, stamped/signed by the system designer 65% · department plan-check guideline
• Is a site plan required, and what must it show? Yes — site plan drawn to scale showing the dimensioned roof plan with array layout, overall installed height referenced from grade, and (for ground-mount) a complete dimensioned site plan 80% · department plan-check guideline
• Is a one-line / three-line diagram required? Yes 90% · department plan-check guideline
• Are string and conductor calculations required? Yes 90% · department plan-check guideline
• Is a structural PE stamp required, and at what threshold? Yes for most systems: structural calcs by a CA-licensed civil/structural engineer or architect required for wind (if array area >=2000 sq ft, or on a flat roof with tilt racking) and seismic (if combined array area >=2000 sq ft). Exception: for detached single-family dwellings, no structural calcs are required at all if panels weigh <4 lb/sq ft and racking is supported at max 4 ft o.c. spacing. 75% · department plan-check guideline (dated Oct 2011, currently linked)
• Is an electrical PE stamp required, and at what threshold? No PE stamp specifically required for electrical design under the standard plan-check track (plans need only be signed/dated by the 'system designer'); an electrical-engineer stamp IS required only under the separate, small-system (<=3.8kW AC) Self-Certification program, because that program waives city inspection entirely 60% · department plan-check guideline

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

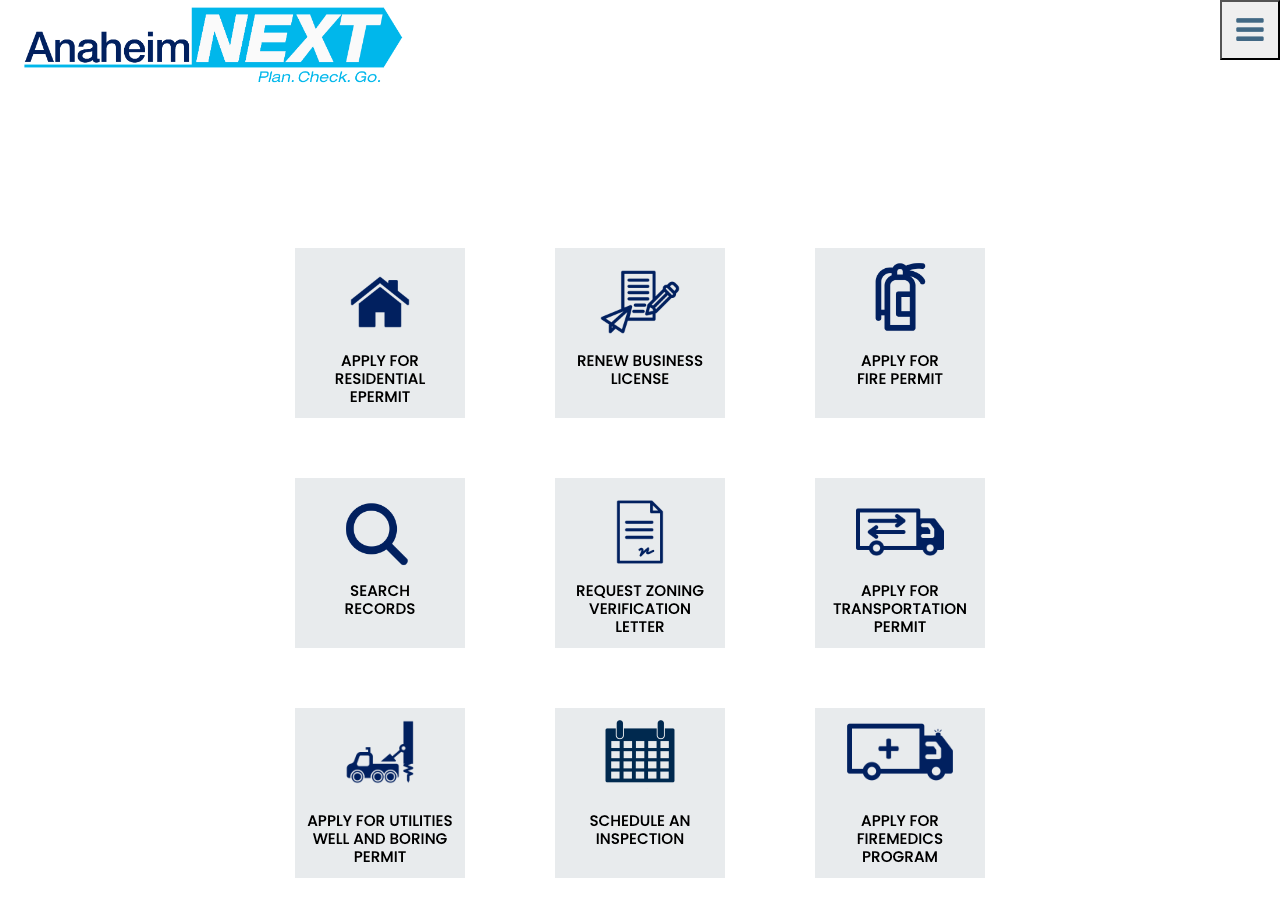

• Which permit portal does this authority use? Accela Citizen Access, branded 'Anaheim Next' (aca-prod.accela.com/anaheim) 90% · department page
• Can the whole application be completed online? Yes 65% · department page
• What does a residential solar permit cost? Approximately $350-500 for a typical residential rooftop system (Minimum Electrical Permit Fee $182.00 + Service/Meter/Panel/Disconnect fee $138.00-$548.00 tiered by ampacity + Inverter (Photovoltaic) fee $30.18, per current fee resolution Exhibit C; add ESS Battery fee $138.00 each if storage is included) 80% · fee resolution (city council agenda item)
• How is the fee calculated? Tiered 80% · fee resolution
• Is there a separate plan-check fee? No 50% · fee resolution

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 1 calendar year from date of issuance 55% · municipal code section (indexed snippet; live page Cloudflare-blocked)
• Which utility handles interconnection here? Anaheim Public Utilities (APU) — a municipally owned electric utility; CPUC Electric Rule 21 does not apply here 95% · department page
• Where does the utility sit in the sequence? Depends on system size: for typical residential systems on a main service panel of 200A or less, APU pre-approval is NOT required before the Building Division permit — plan check proceeds directly, and APU's separate Interconnection Agreement for Net Energy Metering is mailed to the customer only AFTER the building/electrical permit is issued (After permit). For non-residential sites or any main service panel over 200A, APU Electrical Engineering interconnection approval IS required BEFORE Building/Fire plan check can begin (Before permit). 80% · department plan-check guideline + department page + standard agreement

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 90% · department page
• Which building code edition is in force? 2025 California Building Code and 2025 California Residential Code, both with City of Anaheim amendments (AMC Chapter 15.03), effective for projects submitted on or after 1 Jan 2026 90% · department page
• Which fire code edition is in force? 2025 California Fire Code, with Anaheim amendments in AMC Chapter 16.08 85% · department page
• Are there local amendments to any of the above? Yes 90% · adopting ordinance (2022 cycle; extracted with pdftotext)
• What is the installation judged against? The currently adopted 2025 California Building/Residential/Electrical/Fire Codes as locally amended under AMC Title 15 (Chapter 15.03 building, 15.04 solar) and Title 16 (Chapter 16.08 fire) 80% · department page

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Per Anaheim Fire Department's 'Specifications and Requirements for PV Solar Systems': hip-roof residences need one 3-ft-wide clear access pathway from eave to ridge per roof slope with panels; single-ridge residences need two 3-ft pathways per slope; panels no closer than 1.5 ft to a hip/valley if placed on both sides; panels no higher than 3 ft below the ridge (ventilation). Ground-mounted arrays: no roof-pathway setback applies, but a 10-ft clear brush area is required. 55% · fire department guideline (2010 Wayback capture of a now-404 city URL)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required under NEC 690.12 as incorporated by the 2023 NEC (via the 2025 California Electrical Code); no amendment removing or modifying this requirement was found in the reviewed CEC amendment table 65% · department page + adopting ordinance amendment table

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Per Anaheim Fire Dept guideline: (1) main service disconnect marking, (2) DC-circuit marking on all interior/exterior DC conduit/raceway/enclosures/junction boxes every 10 ft, at turns, and above/below penetrations, and (3) remote-disconnect-control marking. No marking is required on the inverter itself. 55% · fire department guideline (2010 Wayback capture)
• Does the authority specify placard wording of its own? Yes 55% · fire department guideline (2010 Wayback capture)
• Does it specify letter height, colour or material? Yes: minimum 3/8" letter height, all capital letters, Arial or similar non-bold font, white lettering on red background, reflective/weather-resistant material meeting UL 969 weather-rating standard (UL listing of the marking itself not required) 55% · fire department guideline (2010 Wayback capture)
• Where must the labels be placed? Main service disconnect marking is placed within/on the disconnect cover (residential) or immediately adjacent and visible from the operating lever (commercial); DC-circuit marking every 10 ft along all interior/exterior DC conduit/raceways/enclosures, at turns, above/below penetrations, and at every combiner/junction box; remote-disconnect marking is placed immediately next to the remote-disconnect control, which itself must be within 5 ft of the main electrical panel 55% · fire department guideline (2010 Wayback capture)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, listed equipment (UL-listed modules, inverters, disconnects, etc.) is required per standard CEC/CFC adoption; the plan check guideline requires manufacturer spec sheets and full electrical ratings on the plans for exactly this verification, but no separate Anaheim-specific approved-products list was found 55% · department plan-check guideline
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted; Anaheim's own current fee schedule has a dedicated 'ESS Battery (Each) $138.00' electrical-permit line item, implying routine permitting under the standard 2025 CFC/CRC energy-storage provisions (no Anaheim-specific ESS bulletin was located) 60% · fee resolution
• Is a ground mount treated as a structure? Likely yes for zoning/site-plan purposes (the plan-check guideline requires 'a complete, dimensioned site plan' specifically for ground-mount systems, treating it as a sited improvement), but the Fire Dept guideline explicitly exempts ground-mount arrays from the roof-pathway setback rules that apply to structures, substituting a 10-ft brush-clearance requirement instead 50% · department plan-check guideline
• Is there a local rule on service upgrades or busbar sizing? No Anaheim-specific local amendment on service upgrades/busbar sizing beyond the standard CEC 705.12 supply-side/load-side rules was found; the plan-check guideline requires the busbar ratings of the utility service and any intermediate load centers to be shown on plans, but does not impose a different numeric rule than the state code 50% · adopting ordinance (2022 cycle)
• Is a specific mounting system or attachment spacing required? For the small-system Self-Certification track only (<=3.8kW AC, single inverter <=16A): panels must be conventionally roof-mounted, parallel to and within 8 inches of the roof plane, and NOT on an engineered-truss roof system. No general city-wide mounting/spacing spec was found for standard (non-self-cert) systems beyond the structural-calculation thresholds in q13. 60% · department program document (dated June 2010)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

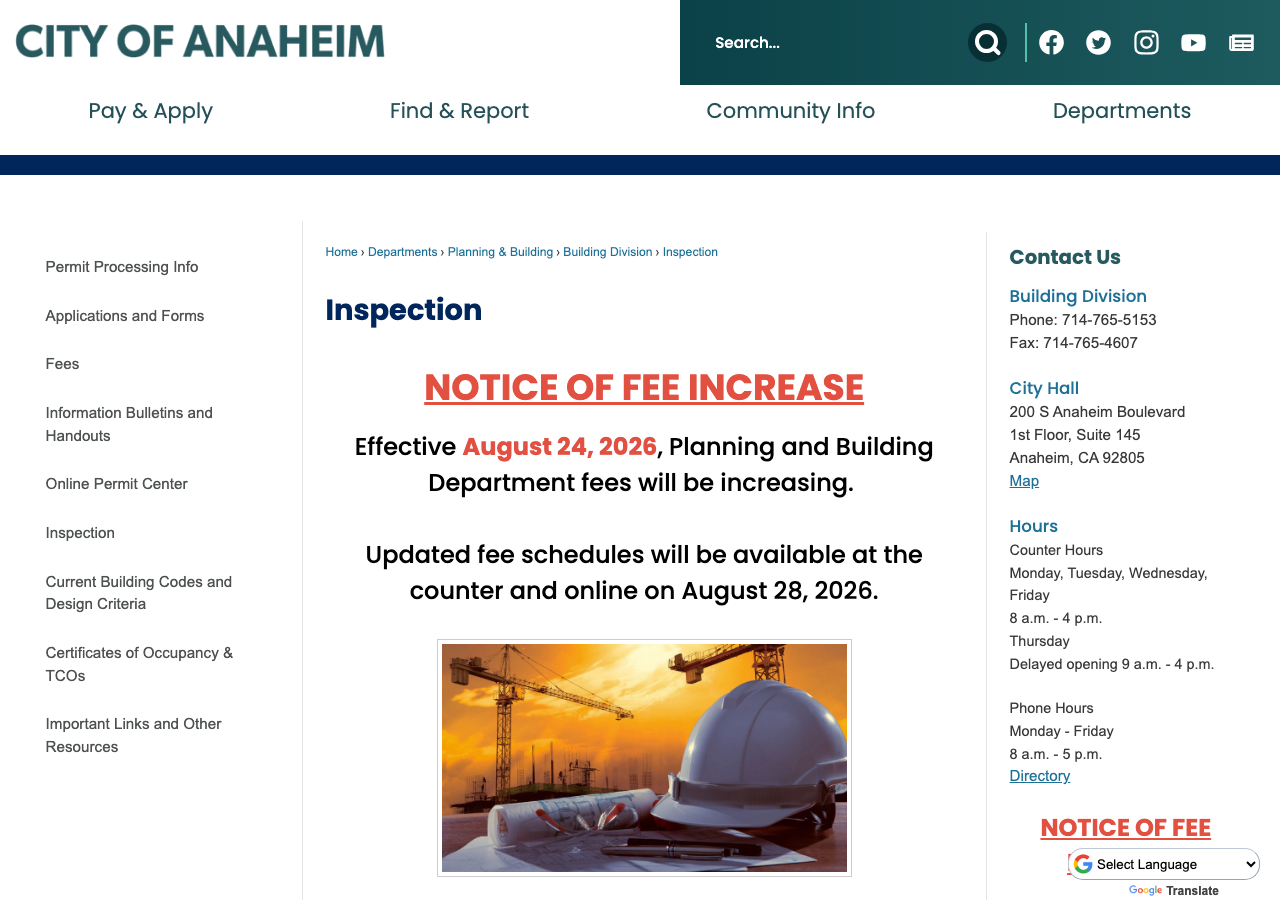

• How is an inspection booked? Portal 70% · department page
• How much notice is required? 1 business day (by 5:00pm the prior business day) 75% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 70% · department program document

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Final electrical inspection and final building inspection are the two stages named in the Self-Certification program forms; the current standard-track plan-check guideline references Building (structural+electrical) plan check followed by Fire Department review, with final inspection(s) to follow construction, but does not itself enumerate a numbered inspection sequence 55% · department program document

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Approved job-card/permit set on site; per general Building Division guidance, COVID-19-era jobsite guidance is also referenced on the Inspection page, but no PV-specific 'what must be on site' checklist was found 40% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 60% · department program document
• Who notifies the utility for PTO? AHJ 65% · department page
• Is there a re-inspection fee? $182.00 per hour (minimum) 65% · fee resolution
