City of Anderson

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · department handout + department page
• Is a permit required for a residential rooftop PV system? Yes 95% · fee schedule
• Is there a separate electrical permit, or is it combined? Combined 70% · fee schedule
• Is there a system-size cap on residential generation? No absolute residential size cap found; the SolarAPP+ streamlined-review PATHWAY is gated at 10kW AC ('The City of Anderson only utilizes this program for residential roof-mount PV installs under 10kW'), and the general expedited Eligibility Checklist independently states the same 10kW AC CEC-rating threshold as a GATE into that self-certification path, not a hard ceiling -- larger residential systems and multi-family PV (fee-schedule tiers exist up to and beyond 16kW) simply route to standard full plan review. 75% · department checklist + fee schedule

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 75% · department bulletin
• Is a homeowner permitted to self-install and self-permit? Yes, with caveat 72% · department form + department bulletin

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For the general/AB2188-style expedited path: a completed 'Solar APP Eligibility Checklist' (general requirements, electrical requirements, structural requirements, solar-array requirements, fire-safety requirements) plus a 'Solar PV Standard Plan and supporting documentation'. For the SolarAPP+ path: a SolarAPP-issued approval ID/report, manufacturer specification sheets, single-line diagram, and a plot plan (site plan). For projects outside either expedited path (battery/ESS, ground-mount, >10kW, panel upgrade/derate, commercial): a standard Building Permit Application, Contractor Declaration or Owner-Builder Declaration, and full plan set per the general Submittal Checklist (site plan, structural details/calcs where mounting/weight exceeds standard thresholds, electrical plan). 92% · department checklist
• How many copies, and in what format? Digital/electronic submission via the City's iWorq permitting portal 70% · department checklist
• Is a site plan required, and what must it show? Yes 80% · department handout
• Is a one-line / three-line diagram required? Yes 95% · department bulletin
• Are string and conductor calculations required? Yes, implicitly 62% · department checklist
• Is a structural PE stamp required, and at what threshold? No blanket PE-stamp mandate stated for PV; the general residential Submittal Checklist requires 'Engineering stamped and signed (if applicable)' and full structural calculations only 'as required based on building design.' For PV specifically, the eligibility checklists imply exceeding standard mounting parameters (weight >4 psf PV/5 psf thermal, non-parallel mounting, overhang past ridge/hip/gable/eave, or a roof not verified structurally sound) routes the project out of the expedited/self-certified path and into standard plan review, where a stamp may then be required. 60% · department checklist
• Is an electrical PE stamp required, and at what threshold? No PV-specific threshold found; the general residential Submittal Checklist states 'One line diagram and electrical calculations for all services over 400 amps. Services over 400 amps will require plans, calculations, and one-line diagram to be prepared by an Electrical Engineer' -- a general (not solar-specific) 400A threshold that would apply to any PV job involving a service at or above that rating. 62% · department checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

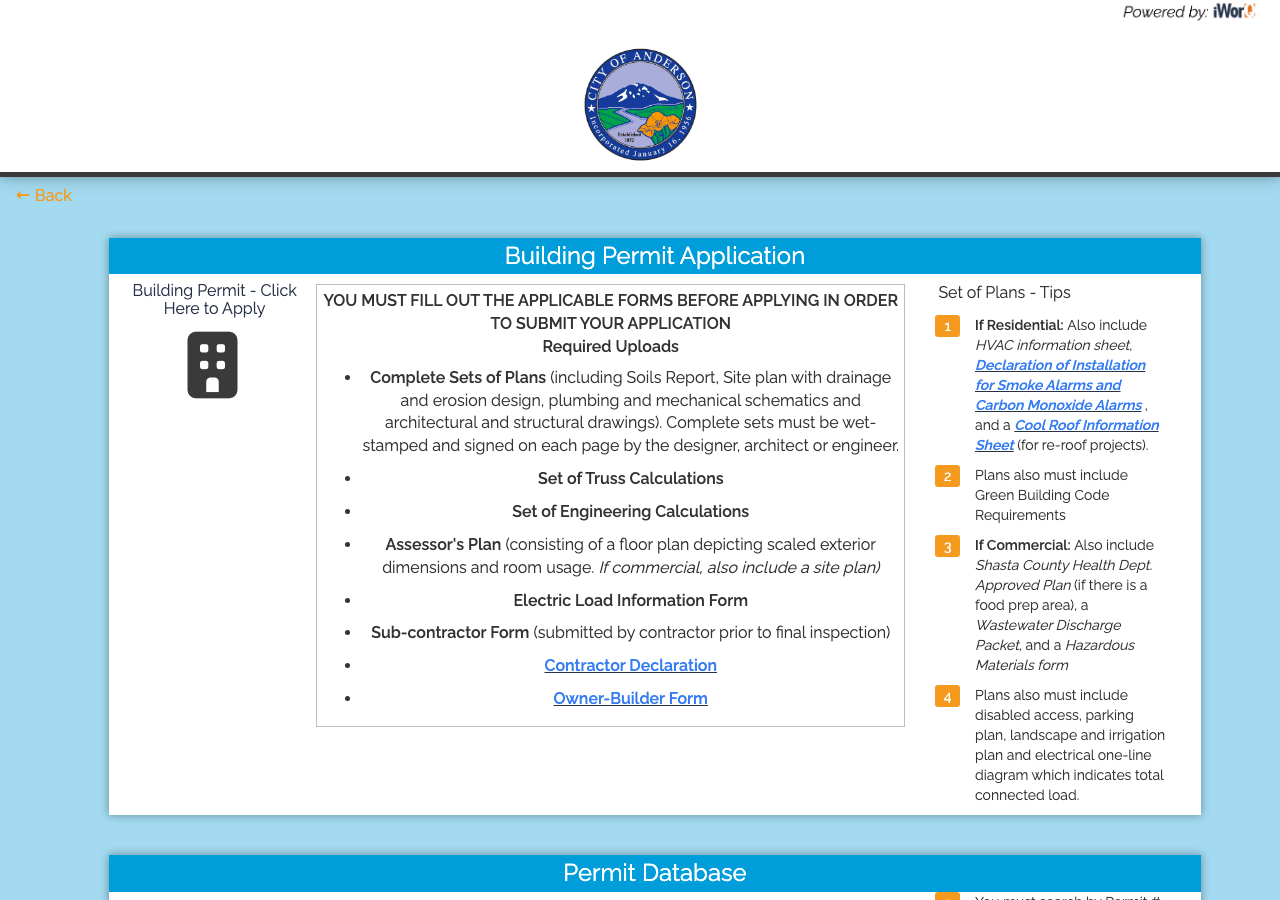

• Which permit portal does this authority use? iWorq (portal.iworq.net/ANDERSON, also andersonca.portal.iworq.net) 90% · portal landing page
• Can the whole application be completed online? Yes, for SolarAPP+-eligible residential PV (<10kW, no ESS): the entire application, including uploading SolarAPP's own approval documents, is completed on the City's iWorq portal. For ineligible/larger/ESS projects, the same iWorq portal is used but without the automated SolarAPP+ code-compliance check. 75% · department page
• What does a residential solar permit cost? $450 flat (New Solar: Single Family Residential) 92% · fee schedule
• How is the fee calculated? Flat 88% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? Plan review is void 6 months after application if no permit is issued (plans may be destroyed) per AMC 15.02.060(A)(1); an issued permit expires if work is not completed within 2 years of issuance or is abandoned, per AMC 15.02.060(B); after expiration the permit must be renewed before work may resume. 88% · department form (citing AMC 15.02.060)
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 95% · department page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 (inferred) 62% · department checklist (inferred code-cycle pairing)
• Which building code edition is in force? 2025 California Building Code 90% · department checklist
• Are there local amendments to any of the above? Yes 85% · department form (citing AMC 15.02.060)
• What is the installation judged against? The 2025 California Building/Residential Code as locally amended (AMC Title 15, Ch. 15.02), plus the City's own 'Solar APP Eligibility Checklist' and 'SolarAPP Eligibility and Process' bulletins, which restate CEC-equivalent electrical, structural and fire-pathway parameters directly. 85% · department checklist

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 3 feet of clear access pathway required from the ridge, and 18 inches from hips/valleys on both sides. 90% · department checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Required as a matter of state electrical code (NEC/CEC Article 690.12), but the City's own two PV-specific documents never name 'rapid shutdown' or cite '690.12' anywhere -- a control-checked absence (searched the combined 4-document PV/site-plan corpus: 'electrical' 12 hits, 'permit' 12 hits, 'zzqqx' 0 hits, 'rapid shutdown' 0 hits, '690.12' 0 hits). The closest the City's own documents come is item D under Fire Safety Requirements, requiring 'a diagram of the roof layout of all panels, modules, clear access pathways and approximate locations of electrical disconnecting means and roof access points.' 75% · department checklist (control-checked absence)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No single itemized placard list published; the City's Fire Safety Requirements section requires generically that 'all required markings and labels are provided' and a roof diagram marking 'approximate locations of electrical disconnecting means.' No discrete list of which placards (e.g. main service disconnect, PV disconnect, ESS disconnect) is enumerated in either PV document. 55% · department checklist
• Does the authority specify placard wording of its own? No 82% · department checklist (control-checked absence)
• Does it specify letter height, colour or material? No 80% · department checklist (control-checked absence)
• Is a site plan / facility map placard required, and what must it show? Yes: a roof-layout diagram is required showing all panels, modules, clear access pathways, and the approximate locations of electrical disconnecting means and roof access points. 88% · department checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Permitted, but only outside the two expedited/self-certification pathways: both the general Solar APP Eligibility Checklist (item C, 'The PV system does not have a new or an existing battery or ESS system') and the SolarAPP+ bulletin (item 4, 'No battery storage') require the ABSENCE of a battery/ESS to qualify for streamlined review. A system with batteries is not barred outright -- it is simply routed to standard plan review -- and the City's own Master Fee Schedule prices 'Alternative Power Source (Generator, Batteries, Etc.)' as its own $338.75 line under Electrical Permit Fees, confirming a battery permit pathway exists. 82% · department bulletin + fee schedule
• Is there a separate ESS permit or inspection? No clear separate ESS-only permit type found; batteries appear to be reviewed/fee'd as a distinct line item ('Alternative Power Source (Generator, Batteries, Etc.)' $338.75) within the same Electrical Permit Fees section as solar, rather than under a standalone 'ESS Permit' application or checklist. 55% · fee schedule
• Is there a local rule on service upgrades or busbar sizing? No general busbar/service-upgrade rule found; only pathway-eligibility THRESHOLDS exist: the general Solar APP Eligibility Checklist caps the expedited path at a 225A-or-less, single-phase 120/220V bus bar with no MPU/derate, while the SolarAPP+-specific bulletin caps its own path at 400A maximum, single phase only, with 'No panel upgrades or derating' (though it notes upgrades/derates 'may be permitted separately'). 68% · department bulletin
• Is a specific mounting system or attachment spacing required? Standoff height 2-10 inches under each module; module plane parallel to the roof plane; no overhang of modules past ridges, hips, gable ends or eaves; modules and support components no more than 4 psf (PV) or 5 psf (solar thermal); support-component manufacturer's project-specific worksheets/tables required; roof must have a single roof covering with no reroof overlay and be verified structurally sound. 88% · department checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (with phone as a stated alternative) 78% · department bulletin

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · department page
• If delegated, to whom? N/A -- the City of Anderson's own Building Division performs the final solar inspection itself (see Q52); no delegation to another agency was found for a standard residential rooftop PV job. 80% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? At minimum, a single final inspection: the SolarAPP+ Eligibility and Process bulletin describes only 'Once the installation is complete, schedule inspection' as the sole listed inspection step after permit issuance -- no rough-in or intermediate stage is described for the streamlined pathway. 68% · department bulletin
• Is a rough-in or mid-roof inspection required? No (for the SolarAPP+ streamlined pathway) 60% · department bulletin

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 75% · department checklist
• What must be on site at inspection? A printed copy of the issued permit, the approved SolarAPP documents, the single-line diagram, and the plot plan -- and the City warns that 'Information on all documents must correlate or inspection delays will occur.' 90% · department bulletin
• Does the inspector verify labels and listings? Likely yes 65% · department bulletin

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Is there a re-inspection fee? $162 per inspection, minimum one hour 85% · fee schedule
