City of Arcata

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · department page + adopting ordinance
• What does this authority permit itself, and what does it delegate? Both 82% · department page + fee schedule
• Is a permit required for a residential rooftop PV system? Yes 95% · adopting ordinance
• Is there a separate electrical permit, or is it combined? Combined 68% · department bulletin (2015) vs. current fee schedule/portal
• Is a HOA or architectural approval required first? No. 92% · adopted Land Use Code
• Is there a historic-district review? Unresolved conflict between two of the City's own current Land Use Code provisions. LUC Sec.9.20.040(B)(6) exempts 'solar collectors' (roof- or side-mounted, and ground-mounted subject to setback/height compliance) from ALL 'planning permit requirements' of the Land Use Code, citywide, in every zoning district — this section is not scoped to exclude Design Review. But the Historic Resource Preservation chapter (LUC Sec.9.53.030(C)(3), added by Ord.1513 eff.3/8/2019) separately and unconditionally requires 'Design Review approval... for any exterior alteration of a Noteworthy Structure... when or if alterations require a Building Permit,' and the whole of Chapter 9.53 (reviewed in full; positive control 'alteration'/'exempt' present, 'solar'/'photovoltaic' = 0 hits) contains no PV-specific carve-out from that Design Review trigger. If Design Review is required, the City's own fee schedule prices it at $788.44 as a standalone permit (plus $1,971.10 for a new Historic Designation/Landmark/Mills Act action, where applicable). 65% · adopted Land Use Code (internal conflict)
• Is a wind or windstorm certification required? No separate 'certification' is required; the City's own locally-amended CRC climatic table (AMC Sec.8004(E), Table R301.2 as amended) sets a baseline Wind Design Speed of 90 mph with 'Special wind region: No' and 'Windborne debris zone: No' for Arcata — i.e., the City is NOT in a designated special wind region, so standard prescriptive/ASCE-7 wind design (as embedded in the Structural Criteria checklist's anchor-spacing Table 1) governs rather than any added local wind-certification step. 82% · adopted ordinance (CRC amendment)
• Is a Specific Use Permit or Council approval ever required? Conditionally yes, not routine: AMC Sec.8302(7) allows the Building Official to require a Use Permit only 'In the event the Building Official finds, based on substantial evidence, that the solar energy system could have a specific, adverse impact upon the public health and safety,' with any conditions imposed 'at the lowest cost possible'; denial (Sec.8302(8)) likewise requires the same finding plus no feasible mitigation. Appeal of either decision goes to the Planning Commission within 10 days (Sec.8302(9)) — a different appeal body from the general Board of Appeals ($500 deposit) used for ordinary Building Code disputes (Sec.8009). 90% · adopting ordinance
• Is there a system-size cap on residential generation? 10 kW AC (CEC/nameplate) or 30 kW thermal, for a system to qualify as a 'small residential rooftop solar energy system' eligible for the City's expedited/streamlined review process under Gov. Code §65850.5 — the system must also be installed on a single- or duplex-family dwelling and not exceed the maximum legal building height. Note: Arcata's solar chapter cites ONLY Gov. Code §65850.5 throughout (control-checked: the whole of Ch.3 read in full) — SB 379's automated-permitting statute, Gov. Code §65850.52, is never cited or implemented locally. 92% · adopting ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

Nothing recorded for City of Arcata on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the City's own 'Submittal Requirements — Solar Photovoltaic Installations 10kW or Less' bulletin: (a) completed permit application form; (b) demonstrated compliance with the Eligibility Checklist for expedited permitting; (c) a completed Standard Electrical Plan (or, if not used, a full electrical plan showing disconnect locations, module/string counts, inverter make/model, one-line diagram, grounding/bonding and conductor/conduit specs, battery locations/venting if applicable, equipment cut sheets, and CEC 690/705 labeling); (d) a roof plan showing panel layout and fire-safety items (access point, pathways, fire classification, label locations); and (e) completed expedited Structural Criteria (or, for non-qualifying systems, engineer-stamped structural drawings/calcs). 90% · department bulletin
• How many copies, and in what format? Not specified as a copy count; the bulletin states applications may be submitted electronically to permits@cityofarcata.org or in person at 736 F Street, Arcata (no PDF/paper format or copy-count requirement stated). 55% · department bulletin
• Is a site plan required, and what must it show? Yes. A site diagram is required showing the arrangement of panels (roof or ground), north arrow, lot dimensions, and distance from property lines to adjacent buildings/structures; a separate roof plan must show panel layout plus fire-safety items (roof access point, code-compliant access pathways, PV fire classification, and locations of required labels/markings). 88% · department bulletin
• Is a one-line / three-line diagram required? Yes, conditionally. If the City's pre-approved 'Solar PV Standard Plan' is not used, the applicant must submit a full electrical plan that includes a 'One-line diagram of system' (the Standard Plan itself is effectively a pre-approved one-line diagram for qualifying systems). 85% · department bulletin
• Are string and conductor calculations required? Yes, conditionally, for non-Standard-Plan submittals: the electrical plan must specify total module count, modules per string, total strings, grounding/bonding, and conductor/conduit type and size. The pre-approved Standard Plan pre-specifies these for qualifying (≤10kW, single-phase, ≤225A bus, no battery) systems. 80% · department bulletin
• Is a structural PE stamp required, and at what threshold? A stamped/signed structural PE (civil or structural, CA-licensed) is required ONLY if the system fails any item on the City's prescriptive Eligibility Checklist structural section — e.g., array weight exceeding 4 psf (PV) / 5 psf (thermal), roof coverage exceeding 50% of total roof area, anchor spacing exceeding the Table 1 prescriptive spacing for the given roof slope/rafter spacing, or a roof judged not structurally sound on visual review. Systems passing all checklist items need no engineer stamp. 90% · published eligibility checklist
• Is an electrical PE stamp required, and at what threshold? No electrical PE-stamp threshold found; the solar ordinance (Sec.8302.3.b) instead requires only that the applicant self-verify, 'at the applicant's cost, using standard electrical inspection techniques,' that the existing service is adequate for the new PV load — no licensed-engineer stamp is specified even for non-Standard-Plan submittals in the documents checked. 65% · adopting ordinance (by omission)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

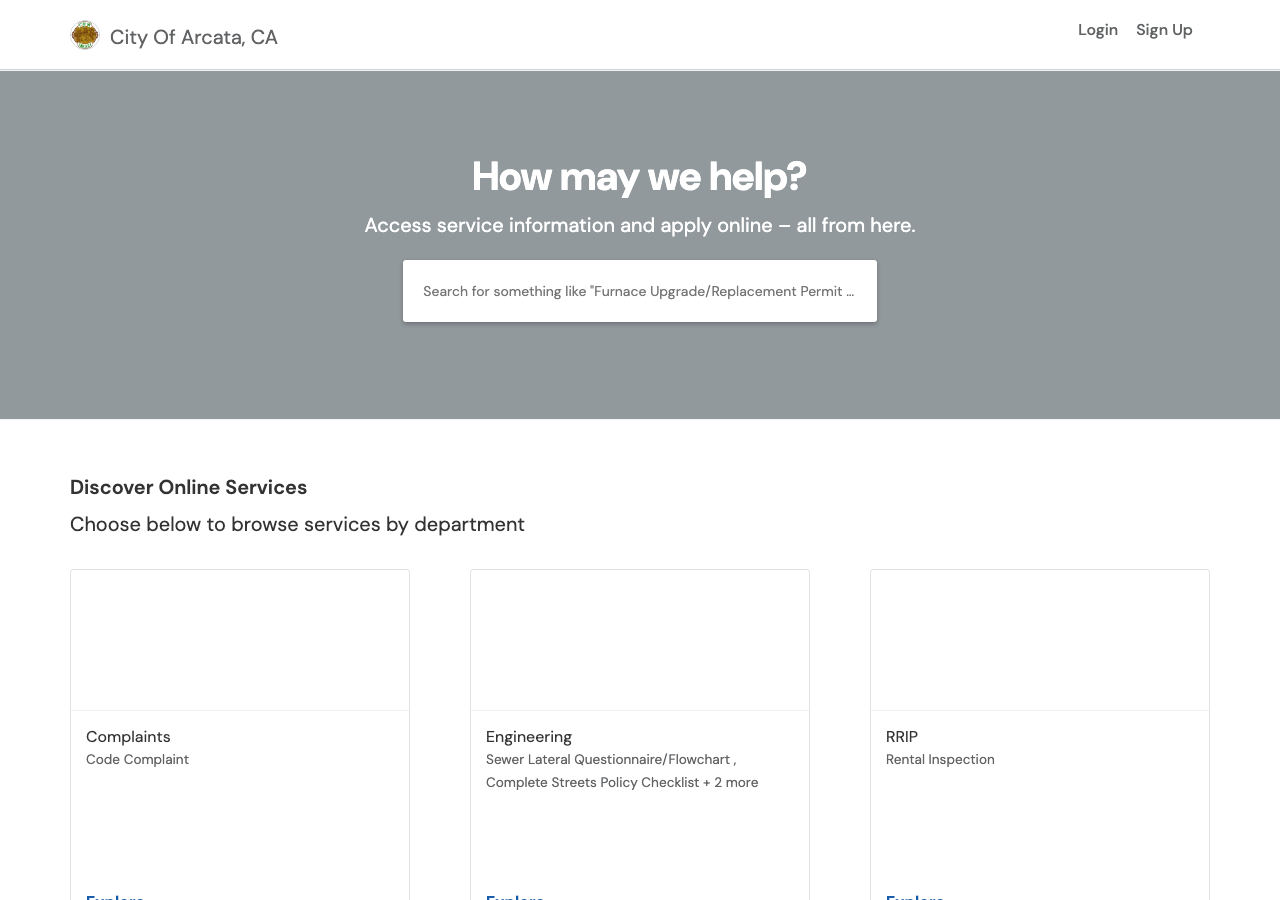

• Which permit portal does this authority use? ViewPointCloud (OpenGov), at arcataca.viewpointcloud.com — linked directly from the Building Permits page as 'Click Here to Apply for a Building Permit,' with a dedicated 'PV/EV/Battery Backup Permit' record type under the 'Building' category. 92% · department page + portal
• Can the whole application be completed online? Conflicting: the live ViewPointCloud/OpenGov 'Apply Online' portal (a modern SaaS permitting platform) appears able to accept online applications for the 'PV/EV/Battery Backup Permit' record type. However, the CITY'S OWN CODIFIED SOLAR ORDINANCE — Sec.8302(2), current through the chapter's most recent revision stamp ('Revised 3/26', i.e. reflecting Ord.1583 eff.1/16/2026) — still states verbatim: 'The City is currently unable to accept permit signatures and fee payment through electronic submittal due to bank account, computer software and administrative restrictions... The City shall implement complete electronic submittal services... at such time when the capability to offer such services is available.' This 2015-drafted limitation clause has survived every codification through March 2026 without being struck, even though the portal itself looks capable of full online processing. 60% · adopting ordinance vs. live portal
• What does a residential solar permit cost? Conflicting figures across the City's own documents: a 2015 departmental bulletin states a flat '$121.18' fee for solar PV installations 10kW or less in 1-2 family dwellings ('This fee is subject to change'); the CURRENT FY2027 Master Fee Schedule (effective 7/1/2026, pdfinfo CreationDate 16 Jun 2026) has NO solar/PV-specific fee line at all (control-checked: 'solar'/'photovoltaic' = 0 hits, 'zzqqx' = 0, 'permit' = 124 hits) and instead applies the general valuation-based Building Permit Fee table (e.g., $186.32 base + $27.61/$1,000 over $2,000 for the $2,001-$25,000 valuation tier; $862.68 base +$18.69/$1,000 over $25,000 for $25,001-$50,000), plus a Plan Review Fee at 65% of the Building Permit Fee and several small state-mandated surcharges (SMIP, BSC, CASp). For a typical ~$15,000-$30,000 residential PV valuation this computes to several hundred dollars, well above the stale $121.18 figure. 65% · fee schedule (current) vs. department bulletin (2015)
• How is the fee calculated? Valuation-based under the CURRENT Master Fee Schedule (general Building Permit Fee table, tiered by construction valuation, plus a 65%-of-permit-fee Plan Review Fee); a now-likely-superseded 2015 departmental bulletin instead quoted a flat $121.18 fee for ≤10kW residential PV. 65% · fee schedule
• Is there a separate plan-check fee? Yes. Master Fee Schedule line 227: 'Building - Plan Review Fee - collected at time of application ... 65% of Building Permit Fee' is a distinct, separately-collected fee line from the Building Permit Fee itself. 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 1-3 business days for permits not approved 'over-the-counter'; Standard-Plan submittals may be approved over-the-counter same-day at the counter (736 F Street) or via electronic submittal to permits@cityofarcata.org. 75% · department bulletin
• How long is an issued permit valid before it expires? 180 days to commence construction / call for a first inspection, or the permit expires; may be renewed once for 1/2 the original fee up to 1 year after issuance (beyond that, a new application and full fee are required). The Building Official may also grant one extension of up to 180 days on written request. 92% · department page
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E). 92% · city page (franchise-tax administration)
• Where does the utility sit in the sequence? After permit. AMC Sec.8302(6): city permit issuance 'does not authorize an applicant to connect the small residential rooftop energy system to the local utility provider's electricity grid. The applicant is responsible for obtaining such approval or permission from the local utility provider' — i.e., utility interconnection/PTO is sought and granted only after the City permit process (and, per PG&E's own Rule 21 §D.13.b, only after the AHJ's final-inspection clearance is furnished to PG&E). 82% · adopting ordinance + utility tariff

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, incorporated via the 2025 California Electrical Code (Title 24, Part 3), which Arcata adopts as part of its 2025 California Building Standards Code (AMC Sec.8001(A)(3), Ord.1583 eff.1/16/2026). Statewide, the 2025 Title 24 cycle (effective 1 Jan 2026) is based on the 2023 NEC; the City's ordinance adopts 'the California Electrical Code' by Title-24-Part reference without separately re-stating the NEC edition. 85% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code and 2025 California Residential Code (Title 24, Parts 2 and 2.5), per AMC Sec.8001(A)(1)-(2), Ord.1583 eff.1/16/2026 — the City's most recently codified building-code adoption ('Revised 3/26'). 95% · adopting ordinance
• Which fire code edition is in force? Conflicting cycles between two of the City's own adopting bodies. The City's own building-code chapter (AMC Sec.8001(A)(9)) nominally adopts the '2025 California Fire Code' as part of its 2025 CBSC package (Ord.1583, eff.1/16/2026). But AMC Sec.8008 (Fire Code amendments section) states: 'Any inconsistent regulations and ordinances adopted pursuant to applicable law by the Arcata Fire District shall control within the Arcata Fire District's jurisdictional area' — and the Arcata Fire District's OWN most recent fire-code-adoption ordinance (Ord.22-21, adopted 8 Nov 2022) adopts only the 2022 California Fire Code (2021 IFC base), with no more recent fire-code-adoption ordinance found on the District's own 'Ordinances' page. The District's Fire Prevention page states plan review is 'provided through the plan submittal and review processes in conjunction with the County and City of Arcata building departments,' consistent with a lagging, District-controlled fire-code edition operating alongside the City's newer nominal adoption. 78% · adopting ordinance (city) vs. adopting ordinance (independent fire district)
• Are there local amendments to any of the above? Yes. AMC Ch.1 amends the CBC (Sec.8003), CRC (Sec.8004, including the local climatic-design-criteria table and a stricter-than-model-code R309.2 finding explicitly flagged as an 'exception to AB 130 because it relates to home hardening'), Mechanical Code (Sec.8005), Plumbing Code (Sec.8006) and WUI Code (Sec.8007). By contrast, there is NO section at all amending the California Electrical Code — the numbered sections run 8003 (CBC) → 8004 (CRC) → 8005 (CMC) → 8006 (CPC) → 8007 (WUI) → 8008 (CFC, which itself contains no direct amendment text, only the District-controls clause) — a control-checked absence (positive control 'amend' = 30 hits in the chapter; 'zzqqx' = 0; 'Electrical Code' appears only once, in the adoption list). 88% · adopted ordinance
• What is the installation judged against? The 2025 California Building Standards Code (CBC, CRC, CEC/2023 NEC, CMC, CPC, CFC — Title 24) as locally amended by AMC Title VIII, Ch.1 (Secs.8000-8014) and the codified Solar Energy Systems chapter (AMC Ch.3, Secs.8300-8302), together with LUC Ch.9.56 (Solar Siting and Solar Access). Note the Fire Code cycle lag described at Q31. 88% · adopted ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 3 feet from eaves and 3 feet from ridge (State Fire Marshal setback standard, expressly adopted by reference in the City's own submittal guidance): the City's 'Submittal Requirements' bulletin states 'Fire Department approval is not required for solar PV installations of this size if setbacks are followed according to State Fire Marshal requirements (3 feet from eaves and 3 feet from ridge).' Access pathways are separately required and shown on the roof-layout plan; the bulletin references the (California) State Fire Marshal's Solar PV Installation Guideline for pathway examples. No Arcata-specific numeric pathway width beyond the State Fire Marshal default was found. 85% · department bulletin

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per NEC §690.12 as incorporated by the 2023-NEC-based 2025 California Electrical Code; no local modification or exemption was found (the Electrical Code adoption chapter has no amendment section at all — control-checked absence). Flag: the City's own solar-specific documents (2015 Eligibility Checklist, Standard Plans, Submittal Requirements bulletin) never mention rapid shutdown or §690.12 by name anywhere (control-checked: 0 hits across all of them) — they predate the widespread adoption of expanded module-level rapid-shutdown requirements and have not been updated to reference it, even though they remain the City's only published solar-permitting guidance as of this run. 75% · adopted ordinance (by omission) + dated department documents

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The City's own 'Solar PV Standard Plan' document reproduces the CEC/CRC/CFC-required placards verbatim for a qualifying system: a 'PV SYSTEM AC DISCONNECT' rating sign (CEC 690.54); a 'PV SYSTEM DC DISCONNECT' rating sign (CEC 690.53); 'WARNING: PHOTOVOLTAIC POWER SOURCE' markings at junction/combiner boxes and along conduit runs (CRC R331.2 / CFC 605.11.1); a 'DUAL POWER SOURCES' plaque with rated AC current/voltage (CEC 690.54 & 705.12(D)(4)); an inverter-output-connection 'DO NOT RELOCATE THIS OVERCURRENT DEVICE' warning (CEC 705.12(D)(7)); and electric-shock-hazard warnings at ungrounded DC conductors (CEC 690.35(F)), ground-fault-indicated conditions (CEC 690.5(C)), and dual-energized terminals (CEC 690.17). 88% · published standard plan
• Does the authority specify placard wording of its own? No — the wording reproduced by the City's Standard Plan document is the statutory CEC/CRC/CFC-required label text itself (with code-section citations), not a custom Arcata-only wording. 78% · published standard plan
• Does it specify letter height, colour or material? Partially, as a recommendation rather than a strict mandate: the City's Standard Plan document includes an informational note that 'a phenolic plaque with contrasting colors between the text and background would meet the intent of the code for permanency... No type size is specified, but 20 point (3/8") should be considered the minimum,' citing ANSI Z535.4 for safety-sign design guidance. 70% · published standard plan
• Is a site plan / facility map placard required, and what must it show? Yes. A roof plan/facility-map-style diagram is required showing the roof layout of all panels/modules, clear access pathways, the PV system's fire classification, and the approximate locations of electrical disconnecting means and roof access points. 88% · department bulletin
• Does the UTILITY specify placards beyond the AHJ's? Yes, generically (PG&E's own tariff, not Arcata-specific): PG&E Electric Rule 21 §H.1.d requires a visible AC disconnect with open/closed position markings, lockable, reachable 24/7, and shown on the interconnection single-line diagram — a utility-side signage requirement independent of any AHJ placard spec. 68% · utility tariff
• Where must the labels be placed? At the PV system AC disconnect, PV system DC disconnect, the inverter output-connection overcurrent device, and on/at junction or combiner boxes and along DC conduit runs at intervals of every 10 feet (per CRC R331.2), per the City's own Standard Plan markings diagram. 82% · published standard plan

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes. The City's Standard Plan states: 'Listed and labeled equipment shall be installed and used in accordance with any instructions included in the listing or labeling,' and the Submittal Requirements bulletin requires 'Equipment cut sheets including inverters, modules, AC and DC disconnects, combiners and wind generators' as part of a complete non-Standard-Plan submittal. 80% · published standard plan + department bulletin
• Are batteries permitted, and under what conditions? Batteries/ESS ARE permitted in Arcata but are explicitly excluded from the City's expedited/simplified permitting pathway: the Eligibility Checklist requires the system be 'utility interactive and without battery storage' to qualify, and both Standard Plan documents state they are 'not intended for... systems that utilize storage batteries.' A system with batteries must instead go through the standard (non-expedited) full-plan-review path, where the required electrical plan must 'include them in the diagram and show their locations and venting.' The City's live permitting portal groups PV, EV charging, and battery backup into one combined 'PV/EV/Battery Backup Permit' application category, confirming batteries are a recognized, routinely-permitted use. 85% · published eligibility checklist + department bulletin + portal
• Is there a separate ESS permit or inspection? No separate ESS-specific permit TYPE was found — batteries are processed under the same combined 'PV/EV/Battery Backup Permit' application category on the City's ViewPointCloud portal as PV and EV charging, rather than a distinct standalone Energy Storage System permit. 68% · portal
• Is a ground mount treated as a structure? Yes. LUC Sec.9.30.090(B)(3): 'A detached deck, freestanding solar device, steps, terrace, or other site design element that is placed directly upon the grade, and that exceeds a height of 18 inches above the surrounding grade at any point, shall comply with the setback requirements of this Land Use Code for detached accessory structures.' A ground-mounted ('freestanding') solar array is thus explicitly named and treated as a detached accessory structure for setback purposes. 88% · adopted Land Use Code
• Is there a local rule on service upgrades or busbar sizing? No general local codified amendment to service-upgrade/busbar sizing was found (the Electrical Code adoption carries no amendment section at all — see Q32). However, the City's own 2015 Eligibility Checklist / Standard Plan documents set a 225A bus-bar rating as an ELIGIBILITY CEILING for the expedited/simplified permitting path only ('The PV system is interconnected to a single-phase AC service panel of nominal 120/240 Vac with a bus bar rating of 225 A or less') — this is a document-level administrative threshold for fast-track eligibility, not a codified minimum busbar requirement (distinct from Palm Springs' codified 225A MINIMUM rule). 78% · published eligibility checklist
• Is a specific mounting system or attachment spacing required? Yes — a detailed prescriptive mounting/attachment-spacing standard, localized for Arcata: array weight capped at 4 psf (PV) / 5 psf (thermal); flush-mount modules must sit 2"-10" above the roof surface, parallel to the roof plane, not overhanging any roof edge; roof coverage capped at 50% of total roof area; a 'Table 1 — Maximum Horizontal Anchor Spacing' sets prescriptive anchor spacing by roof slope (flat-6:12, 7:12-12:12, 13:12-24:12) crossed with rafter spacing (16"/24"/32" o.c.); anchor fasteners must be 5/16" lag screws or hanger bolts with 2.5" rafter embedment (or per manufacturer's tested guidelines). Any system failing these prescriptive limits must submit engineer-stamped structural calculations instead. 82% · published structural criteria (city-adapted from statewide toolkit)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone: the Building Division's dedicated inspection line, (707) 822-5956, per the City's own Submittal Requirements bulletin ('On-site inspections can be scheduled by contacting the Building Department by telephone'). The ViewPointCloud/OpenGov portal may also support inspection requests for general permit types, but this was not independently confirmed for solar inspections this run. 75% · department bulletin
• How much notice is required? Typically next business day: 'Inspection requests received within business hours are typically scheduled for the next business day. If next business day is not available, inspection should happen within a five-day window.' 78% · department bulletin

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes. The Building Division performs its own final solar inspection in-house: the Submittal Requirements bulletin routes inspection scheduling directly to 'the Building Department' at a city phone number; Building Official Joe Bishop is named on the Building Division page with only city contact information; no contract inspection firm is named anywhere in the Building Division page, the Master Fee Schedule, or the ViewPointCloud portal checked this run. 85% · department page
• If delegated, to whom? N/A — not delegated (self-performed by the City Building Division; see Q52). 82% · department page (absence)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Final inspection only. AMC Sec.8302(4): 'For a small residential rooftop solar energy system eligible for expedited review, only one (1) inspection shall be required, which shall be done in a timely manner. If a small residential rooftop solar energy system fails inspection, a subsequent inspection is authorized.' (This near-verbatim 'only one inspection... performed by the Building Division/Department' phrasing recurs at other CA cities — e.g. Claremont CMC §15.50.060.E and La Verne LVMC §18.106.060(F) — suggesting a shared model-ordinance ancestor.) 90% · adopting ordinance
• Is a rough-in or mid-roof inspection required? No — confirmed by the same 'only one (1) inspection shall be required' codified language for expedited-eligible systems (Sec.8302(4)); no separate rough-in or mid-roof inspection stage is described anywhere in the City's solar documents. 85% · adopting ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes. Beyond the inspection-checklist overview embedded in the Submittal Requirements bulletin, the City separately publishes a standalone 'Inspection Guide for PV Systems in One- and Two-Family Dwellings (For Rooftop Photovoltaic Systems meeting the Standard Plan),' with a one-page Field Inspection Guide section and a longer Comprehensive Reference section. 85% · published inspection guide
• What must be on site at inspection? The bulletin states permit holders 'must be prepared to show conformance with all technical requirements in the field at the time of inspection' — i.e., approved plans/specification sheets, the completed Standard Plan or engineered structural calcs, and equipment cut sheets should be available; a specific 'permit card must be posted on site' requirement was not separately stated. 62% · department bulletin
• Does the inspector verify labels and listings? Yes. The City's own inspection-checklist overview (in the Submittal Requirements bulletin) lists, among common inspection checks: 'Appropriate signs are properly constructed, installed and displayed' (naming the DC-disconnect sign, AC-point-of-connection sign, and alternative-power-source switch sign specifically) and 'Equipment ratings are consistent with application and installed signs on the installation.' 85% · department bulletin

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (a final inspection sign-off/approval on the existing-dwelling permit, not a new Certificate of Occupancy): the Submittal Requirements bulletin states the system 'must be inspected before final approval is granted for the solar system.' No document uses a literal 'Final' tag/document name. 62% · department bulletin (inference)
• Who notifies the utility for PTO? Installer/applicant. AMC Sec.8302(6): City permit approval 'does not authorize an applicant to connect the small residential rooftop energy system to the local utility provider's electricity grid. The applicant is responsible for obtaining such approval or permission from the local utility provider' — i.e., the applicant/installer, not the AHJ, is responsible for the PG&E interconnection/PTO application. 75% · adopting ordinance
• Is there a re-inspection fee? $159.42 per half hour — the general 'Building Re-inspection fee, or inspections for which no fee is specifically indicated' line in the current Master Fee Schedule. A separate $250 'Code compliance/re-inspection fee' applies specifically to re-inspections requested more than three years after permit issuance. 85% · fee schedule
• How are corrections issued and cleared? By a written correction notice: AMC Sec.8302(5) requires that 'Upon receipt of an incomplete application, the Building Official shall issue a written correction notice detailing all deficiencies in the application and any additional information required to be eligible for expedited permit issuance.' Field-inspection corrections are cleared via re-inspection (a fee applies if the deficiency is not corrected by the next scheduled visit — see Q59). 80% · adopting ordinance
