City of Arroyo Grande

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own department page + municipal code
• What does this authority permit itself, and what does it delegate? Both (Building + Electrical) — but plan check and inspection are contracted to JAS Pacific; fire code enforcement is delegated by ordinance to the Five Cities Fire Authority (FCFA), a 2-city JPA 85% · authority's own department page + municipal code
• Is a permit required for a residential rooftop PV system? Yes 98% · municipal code
• Is there a separate electrical permit, or is it combined? Combined — fee schedule prices Photovoltaic Systems only under the ELECTRICAL permit fee category (plan check $228 + inspection $181); no separate Building valuation-based PV fee line was found. 65% · fee schedule
• Is a HOA or architectural approval required first? No for the standalone solar chapter (AGMC 15.07.060(f): 'The City ... shall not condition approval of an application on the approval of an association'), but this directly conflicts with the City's own still-posted 2011 'Residential Submittal Requirements' handout, which states generally that 'When the proposed construction is located within a Homeowner's Association, approval from that association is required prior to permit issuance.' 75% · municipal code vs. dated department handout (conflict)
• Is there a historic-district review? Yes, but narrowly scoped — a discretionary Minor Use Permit is required for 'any exterior alteration' to a designated historic resource or a property within the Historic Character Overlay (HCO) district (AGMC 16.16.135(E)); ordinary houses outside the HCO overlay and without individual historic designation are not subject to it. Routine Architectural Review (16.16.130) itself is scoped only to new construction in commercial/industrial zones, new construction in the HCO district, and multi-family — not to an ordinary single-family retrofit. 88% · municipal code
• Is a Specific Use Permit or Council approval ever required? Yes, conditionally — a Building Official may require a discretionary use permit if the system 'could have a specific, adverse impact upon the public health and safety,' appealable to the City's Appeals Board. 90% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate / 30 kW thermal — this is an ELIGIBILITY GATE for the nondiscretionary expedited-review chapter, not a hard citywide cap; it is also scoped to single- or duplex-family dwellings only, and the array may not exceed the maximum legal building height. 92% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed contractor, or the homeowner as owner-builder 70% · authority's own department page
• Must the contractor be registered with this authority before applying? No — no city-specific contractor pre-registration requirement was found 50% · municipal code (inference from absence)
• Is a homeowner permitted to self-install and self-permit? Yes 75% · authority's own department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No dedicated small-residential-solar submittal checklist is published. AGMC 15.07.050(d) legally requires the Building Department to 'adopt a standard plan and checklist' for expedited solar review, but no such document is reachable on the City's site; the only posted 'Residential Submittal Requirements' PDF (dated 2011) is a generic room-addition/new-construction checklist (site plan, floor plan, electrical plan showing meter/switches/outlets/grounding, structural and Title 24 energy calculations) with no PV-specific content. 65% · authority's own document + site search (proved absence)
• Is a site plan required, and what must it show? A site plan is required generally (property lines, setbacks, structure outline, easements — per the generic 'Residential Submittal Requirements' handout and its attached sample site plan), but no solar-specific site-plan/array-layout content was found. 55% · authority's own document (dated, general, not solar-specific)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? CitizenServe (www2.citizenserve.com/arroyogrande) 95% · authority's own department page
• Can the whole application be completed online? Yes 80% · authority's own department page
• What does a residential solar permit cost? $409 total for a system up to 15 kW AC (Electrical plan check $228 flat + Electrical inspection $181 flat), plus $15 for every kW over 15kW (added to the plan-check line only). Figures are identical in FY2025-26 and the FY2026-27 schedule already published. 90% · fee schedule
• How is the fee calculated? Flat per-system fee (plan check + inspection), with a per-kW add-on above 15 kW AC on the plan-check fee only 85% · fee schedule
• Is there a separate plan-check fee? Yes 92% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Over-the-counter: permit issued the next business day; electronic applications: within 3 business days of a complete submittal. (General Building Division page separately states 0-3 days for minor/OTC work and ~10 days for standard plan review.) 92% · municipal code
• How long is an issued permit valid before it expires? Not locally amended — governed by the unamended CBC/CRC default (180 days) since the City's own Building/Residential Code amendment ordinance (Ord. No. 2025-011) contains no permit-expiration provision. 55% · municipal code (inference from absence of local amendment)
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 82% · council agenda record
• Where does the utility sit in the sequence? After permit for Permission-to-Operate — PG&E Rule 21 §D.13.b requires evidence of the AHJ's final electrical inspection clearance before PTO is granted; NEM interconnection application itself can run in parallel with the building permit. 70% · utility tariff

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 (the 2025 California Electrical Code, effective statewide 1 Jan 2026, is based on the 2023 NEC) 90% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code 95% · adopting ordinance
• Are there local amendments to any of the above? Yes — but the local amendments to Building/Fire/Electrical/Residential codes (sprinkler thresholds, investigation fees, Knox-box/gate rules, driveway standards, FCFA Fire-Code-Official designation) contain NO solar/PV/battery/rapid-shutdown content anywhere; this was control-checked by reading the full amendment text of AGMC 8.04.010 and 15.01.020.1/15.02.010.1 (zero hits for 'solar', 'photovoltaic', '690.12', 'battery', 'energy storage'). 90% · municipal code (read in full, control-checked)
• What is the installation judged against? The unamended 2023 NEC (via the 2025 CEC), plus UL/IEEE standards and CPUC safety/reliability rules for PV-producing systems, and accredited-listing-agency certification for solar water heating. 88% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Arroyo Grande on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, by inference — the unamended 2023 NEC §690.12 applies via the 2025 CEC adoption; no local amendment addresses rapid shutdown one way or the other (confirmed absent from the local electrical/fire amendments). 75% · municipal code (inference)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Does the authority specify placard wording of its own? No 80% · municipal code + JPA documents (control-checked absence)
• Does it specify letter height, colour or material? No 80% · municipal code + JPA documents (control-checked absence)
• Does the UTILITY specify placards beyond the AHJ's? PG&E Rule 21 §H.1.d requires a utility-visible AC disconnect with open/closed markings, reachable 24/7 and shown on the one-line diagram — a utility-wide requirement, not specific to this authority. 65% · utility tariff

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 85% · municipal code
• Are batteries permitted, and under what conditions? Not addressed by any local ordinance — AGMC ch. 15.07 (the City's solar chapter), the full local fire-code amendment text, and the FCFA's own fee schedule and JPA documents were all checked and contain zero mentions of 'battery,' 'batteries,' 'energy storage,' or 'ESS.' Battery/ESS installations would fall back entirely on the unamended 2025 CFC/CRC/CEC. 70% · municipal code + fee schedules (control-checked absence)
• Is there a separate ESS permit or inspection? No dedicated ESS permit or inspection line exists in either the City's fee schedule or FCFA's fee schedule — same control-checked absence as Q45. 70% · fee schedule (control-checked absence)
• Is there a local rule on service upgrades or busbar sizing? No — the City's Electrical Code amendment (15.02.010.1) contains only a 'disconnected-90-days' reconnection-permit rule; no Palm-Springs-style minimum-busbar or attic-ambient-derating amendment exists. 85% · municipal code (read in full, control-checked)
• Is a specific mounting system or attachment spacing required? No numeric spacing spec found; AGMC 16.48.140(B)(1)(b) (citywide Solar Energy Design standard) requires only that, 'when feasible, collectors shall be integrated into the design of the building' and that structural support be 'screened in a manner that is compatible with the design of the building.' 70% · municipal code

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

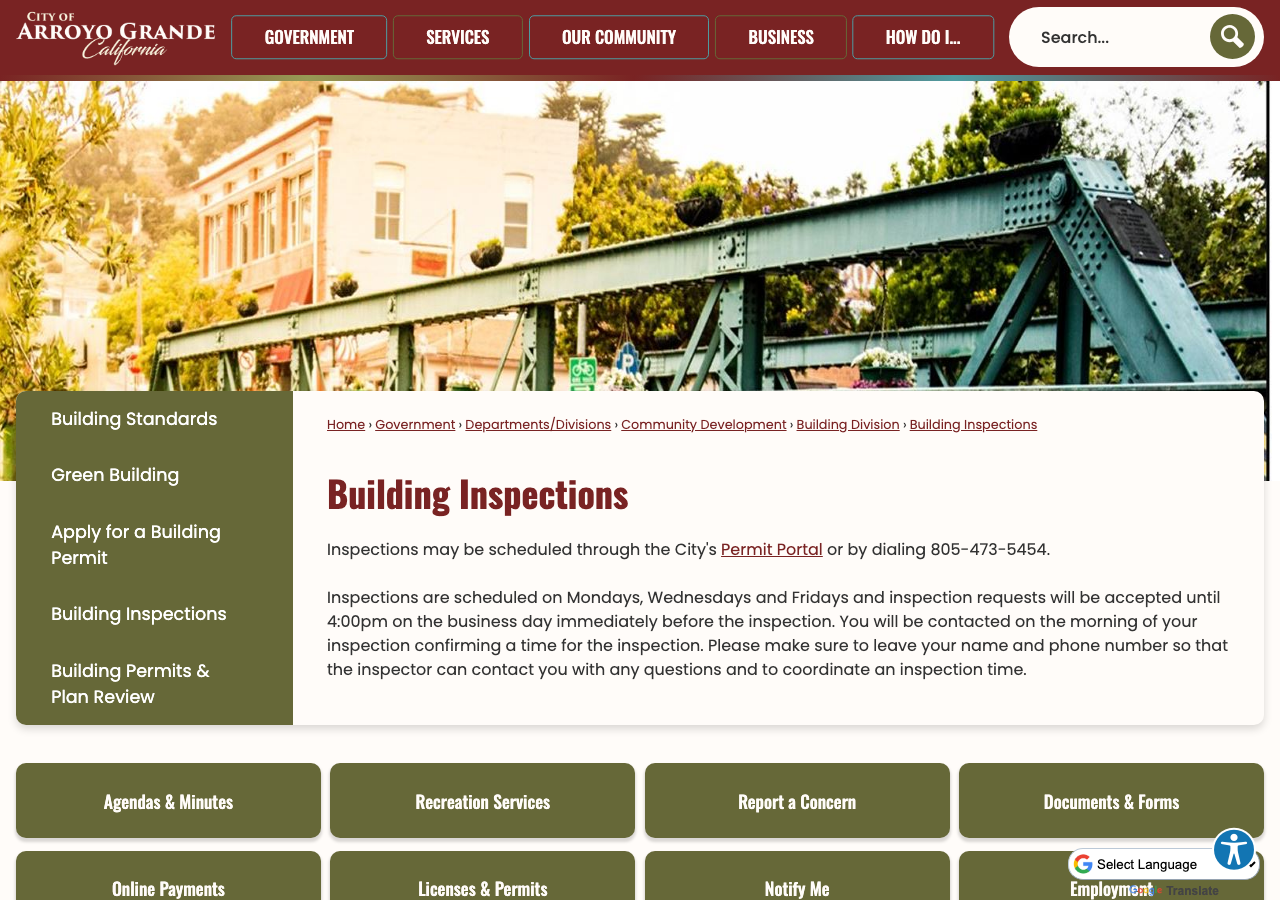

• How is an inspection booked? Portal (CitizenServe) or Phone 90% · authority's own department page
• How much notice is required? Effectively about 1 business day — inspection requests are accepted 'until 4:00pm on the business day immediately before the inspection.' 85% · authority's own department page
• Are same-day or AM/PM windows offered? No fixed AM/PM window is published; the City calls the property owner on the morning of the scheduled inspection to confirm an appointment time. Inspections only occur Mon/Wed/Fri. 75% · authority's own department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 80% · authority's own department page
• If delegated, to whom? JAS Pacific (contracted Building Official/plan-check/inspection firm) for the single Building inspection; the Five Cities Fire Authority for an optional additional fire inspection if FCFA deems one required. 78% · authority's own department page + municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? One consolidated Building Department inspection is required for a small residential rooftop solar system; a separate fire inspection may additionally be performed only 'if deemed required by the Arroyo Grande Fire Department' (FCFA). 90% · municipal code
• Is a rough-in or mid-roof inspection required? No 90% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No — the standard plan and checklist that AGMC 15.07.050(d)/15.07.060 requires the Building Department to adopt is not published anywhere on the City's site (site search for 'solar'/'photovoltaic' controlled against 'electrical' [21 hits] and a fabricated term ['No results'] found no such checklist). 80% · site search + document review (proved absence)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer — under PG&E's standard NEM interconnection process the applicant/installer submits the AHJ's final inspection clearance to PG&E to trigger Permission to Operate; no City document assigns this task to the City itself. 60% · utility tariff (inference)
• Is there a re-inspection fee? $399.00 (FY2025-26) / $411.00 (FY2026-27) — the general 'Compliance Inspections/Reinspections' inspection fee (not solar-specific; no PV-specific re-inspection line exists). 60% · fee schedule
• How are corrections issued and cleared? For the initial application-review stage: AGMC 15.07.060(g) requires 'a written correction notice detailing all deficiencies ... sent to the applicant for resubmission' if an application is deemed incomplete. Post-inspection correction/clearance procedure is not separately documented for solar. 70% · municipal code
