City of Atwater

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both — Building and Electrical, performed in-house (not delegated to a contract plan-check firm) 90% · budget document
• Is a permit required for a residential rooftop PV system? Yes 97% · ordinance
• Is there a separate electrical permit, or is it combined? Combined — one 'Solar Building Permit' issued through Cloudpermit covers the PV install (structural+electrical); a main electrical panel upgrade done at the same time requires its own SEPARATE application, permit and fee 80% · authority's own page
• Is a HOA or architectural approval required first? No local requirement found that HOA/architectural approval be obtained before the City will issue a permit 60% · ordinance
• Is there a historic-district review? No 80% · code table of contents
• Is a wind or windstorm certification required? No 65% · authority's own page
• Is there a system-size cap on residential generation? Codified cap: 10 kW AC nameplate / 30 kW thermal, AND scoped to single- or duplex-family dwellings only (the AB2188-era figure). Separately and independently, for any address interconnecting through Merced Irrigation District, MID's own Net-Metering program caps allowable generation at 120% of the customer's trailing 24-month average annual consumption (or an estimate at 2 W/sq ft for new construction / no history) — a load-based cap layered on top of the size cap. 90% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed contractor — a C-46 (Solar) or C-10 (Electrical) CSLB-licensed contractor registered with SolarAPP+; C-10 specifically required for any main panel upgrade; 'permit runners' are explicitly barred from requesting SolarAPP+ permits 85% · authority's own page
• Must the contractor be registered with this authority before applying? Yes, in two separate senses — (a) the contractor must be registered/approved on the NREL SolarAPP+ platform before the city will accept a SolarAPP+ submittal, and (b) MC Ch.5.08.090 sets a City of Atwater business-license tax schedule specifically for 'Contractor', implying any contractor performing work in the city must hold an Atwater business license 65% · ordinance

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For SolarAPP+ track: the NREL SolarAPP+ approval package (approval ID number) plus supporting design documents uploaded into Cloudpermit; for a simultaneous main panel upgrade, a separate application/plan set. No Atwater-specific itemized submittal checklist (beyond the generic national NREL eligibility list) was found published on the city's own site. 70% · authority's own page
• Is a one-line / three-line diagram required? Yes (inferred) — a single-line diagram is a standard, unavoidable input field in the SolarAPP+ software Atwater uses, and Merced Irrigation District's own residential PV interconnection application independently requires a 'Single Line Diagram and Site Plan' for any MID-served address 70% · utility document

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

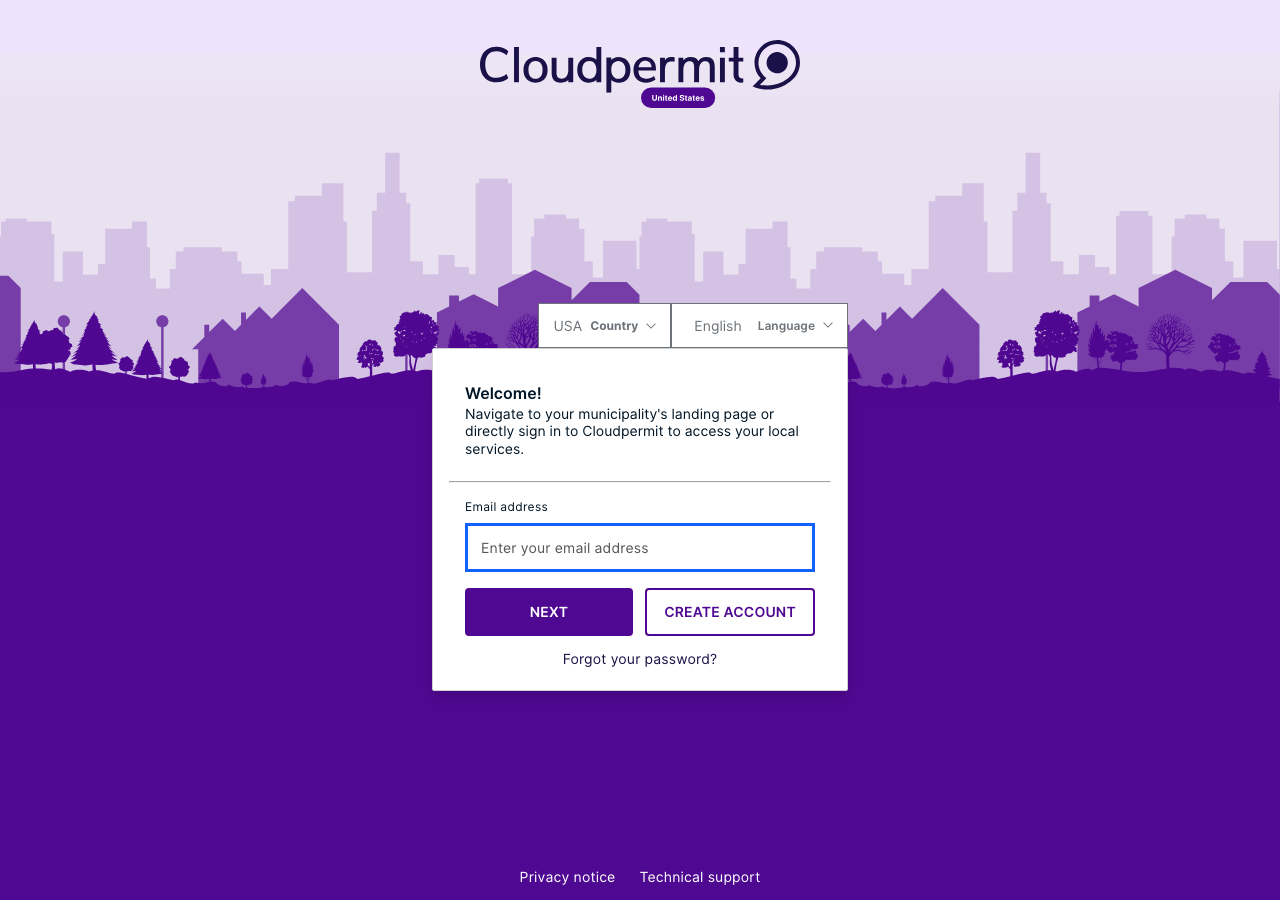

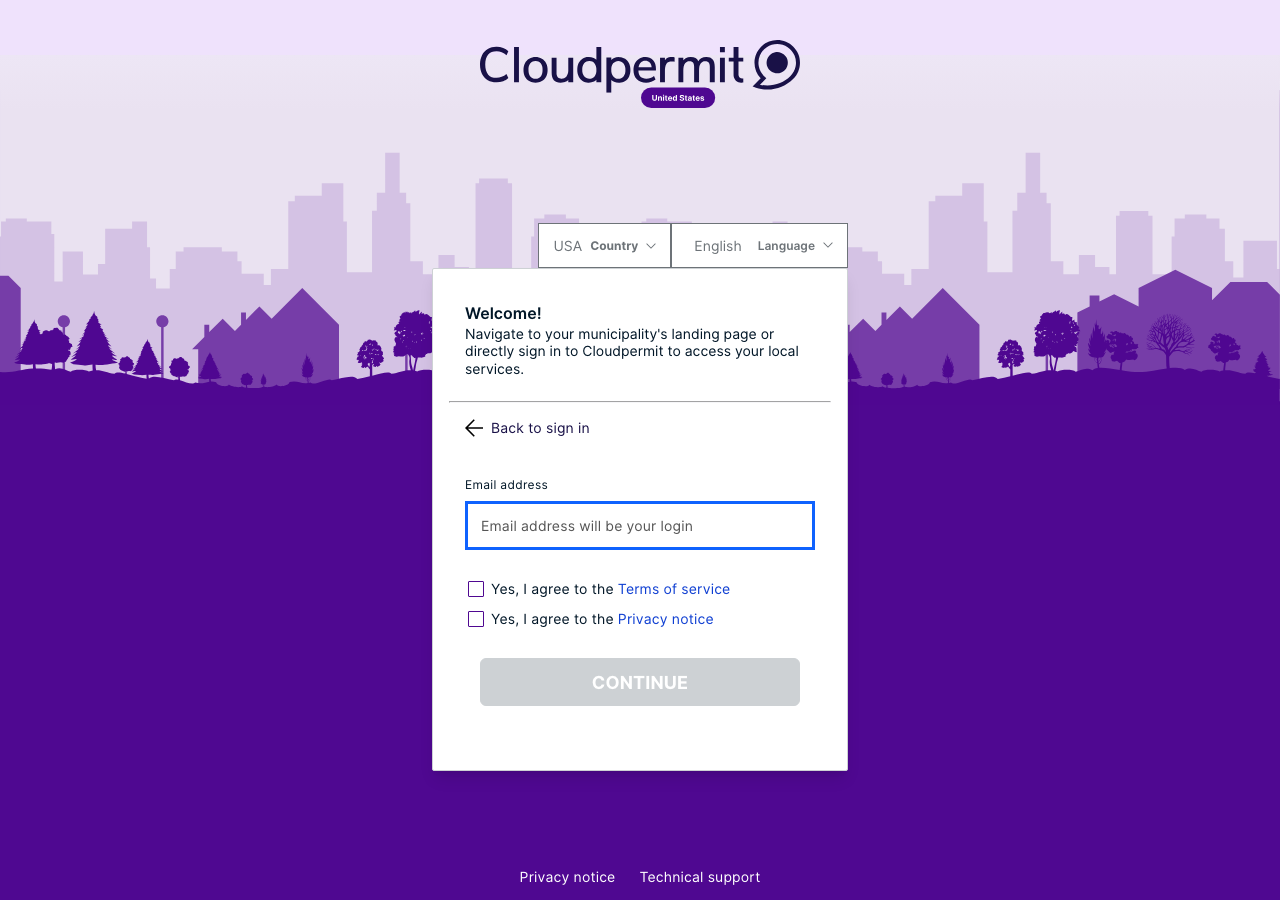

• Which permit portal does this authority use? SolarAPP+ (solarapp.nrel.gov) for the automated plan-review/permit step, feeding into Cloudpermit (us.cloudpermit.com) — the City's own permitting/inspection portal — for permit issuance and inspection scheduling 95% · authority's own page
• Can the whole application be completed online? Yes 90% · authority's own page
• What does a residential solar permit cost? Not itemized as a distinct dollar figure for residential solar. The FY2026-27 Miscellaneous Fee Schedule (the 'separate resolution' referenced by MC 15.04.060/15.04.080) has no PV/solar line; the applicable published components are 'Building Inspection Fee (minimum 1 hour) — $130/hour' and a Planning-Division time-tiered 'Building Permit Application Plan Review' fee of $59 (≤15 min), $118 (16-30 min), or $236 (>30 min). Separately, SolarAPP+ itself charges a non-city $25 processing fee. 50% · fee schedule
• How is the fee calculated? Not a published valuation-based table for residential solar; the components found are hourly/time-tiered rather than a percent-of-valuation schedule 50% · fee schedule
• Is there a separate plan-check fee? Yes 80% · ordinance

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? Governed by the unamended base rule in 2025 CBC §105.5 / 2025 CRC §R105.5 (the standard permit-expiration period, generally 180 days industry-wide); Atwater's only local change is procedural — it allows the Building Official to grant MORE THAN ONE extension (rather than just one) where delay is due to economic conditions or causes beyond the applicant's control 70% · ordinance
• Which utility handles interconnection here? SPLIT utility territory, not clean single-utility PG&E as briefed — Pacific Gas & Electric AND Merced Irrigation District (MID), a public-power irrigation district, both serve electric load inside the Atwater city limits 80% · budget document
• Where does the utility sit in the sequence? After permit / after the AHJ's final inspection, for both utilities — sequence is not parallel or utility-first 90% · utility document

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 97% · ordinance
• Which building code edition is in force? 2025 California Building Code (based on the 2024 IBC) and 2025 California Residential Code (based on the 2024 IRC), both effective 1-1-2026 per Ord. CS 1075 97% · ordinance
• Which fire code edition is in force? 2025 California Fire Code (based on the 2024 IFC), effective 1-1-2026, including Appendices C, D, I and J 97% · ordinance
• Are there local amendments to any of the above? No substantive local technical amendments to the Electrical, Green, or Fire codes; the Building and Residential codes carry only ONE local amendment each, a procedural one (permit-extension count, see Q19) — not a technical/solar-relevant change 85% · ordinance
• What is the installation judged against? The unamended 2025 CBC/CRC/CGBSC, 2025 CEC (2023 NEC), and 2025 CFC as adopted by reference, plus MC 15.04.130's own checklist-based expedited-review criteria for systems that qualify (≤10kW AC/30kW thermal, single/duplex-family) 90% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Not locally elaborated — governed solely by whatever the state-adopted, unamended 2025 CFC prescribes (no Atwater-specific ridge-setback or access-pathway rule found) 65% · ordinance

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per NEC 690.12 as incorporated by the adopted 2023 NEC/2025 CEC; no local amendment narrows or restates it 80% · ordinance

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No Atwater-specific placard list found beyond what the unamended 2025 CFC/2025 CEC already require (e.g. NEC 690.56, CFC 605.11 disconnect/rapid-shutdown labeling); for the subset of addresses interconnected through Merced Irrigation District, MID's own construction standard additionally mandates two specific 'Dual Power Supply' placards (see Q42) 70% · authority's own page
• Does the authority specify placard wording of its own? No, the City itself does not specify its own placard wording; MID (for its interconnected customers) does specify exact wording 75% · ordinance
• Does it specify letter height, colour or material? Not specified by the City; MID (for MID-interconnected customers) specifies: red reflective, weather-resistant material; white lettering; minimum 3/8-inch letter height; permanently attached 75% · utility document
• Does the UTILITY specify placards beyond the AHJ's? Yes — for MID-interconnected addresses. MID's own Net-Metering Construction Standard (55010) requires two specific placards beyond anything the City requires: 'WARNING! DUAL POWER SUPPLY SOLAR ELECTRIC SYSTEM' attached to the exterior of the net-meter panel, and 'DUAL POWER SUPPLY SOLAR ELECTRIC SYSTEM DISCONNECT' attached to the exterior of the AC-disconnect enclosure 90% · utility document
• Where must the labels be placed? Per MID: on the exterior of the net-meter panel and the exterior of the AC-disconnect enclosure, with both devices located within 10 ft of the main service panel/disconnect and on the street-side of any fencing/gates 88% · utility document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Per MID (for MID-interconnected addresses): the AC disconnect and the dedicated MID 'performance meter' must be located within 10 ft of the main service panel/disconnect and within 10 ft of each other, on the street-side of fencing/gates, 4-6 ft above grade 85% · utility document
• Must equipment be on a specific approved list? Yes, by default — UL-listing/NEC-compliance is inherent in the adopted 2025 CEC (2023 NEC); no additional Atwater-specific approved-equipment list was found 55% · ordinance
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted, under the unamended 2025 CFC's ESS provisions and a Fire Department 'Battery System' operational permit ($284 per the current fee schedule). For addresses interconnected through MID specifically, MID additionally requires that any single-line diagram for a system including an ESS carry the mandatory note 'The Energy Storage System (ESS) will only be charged by the PV system' (i.e., MID does not allow grid-charging of the battery on its net-metering tariff), and MID does not offer virtual net metering 75% · fee schedule
• Is there a separate ESS permit or inspection? Yes 80% · fee schedule
• Is a ground mount treated as a structure? Yes, by inference — treated as a 'Structure' under the general zoning definition, subject to the applicable zoning district's ordinary setbacks; there is no dedicated solar/ground-mount zoning chapter and no PV carve-out from the Structure definition 65% · ordinance
• Is there a local rule on service upgrades or busbar sizing? No 90% · ordinance

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 90% · authority's own page
• How much notice is required? 24 hours 85% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes (self-performed, in-house) 90% · authority's own page
• If delegated, to whom? Not delegated — the Building Division performs the final inspection itself; N/A 85% · budget document

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a system eligible for the expedited small-residential-solar path: only ONE inspection is required, which 'may include a consolidated inspection by the Building Official and Fire Chief' 85% · ordinance
• Is a rough-in or mid-roof inspection required? No 80% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 80% · authority's own page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? For MID-interconnected addresses: the CONTRACTOR/installer submits the AHJ's Final Inspection Card plus voltage-measurement photos to MID; MID then performs its own field inspection and directly notifies the CONTRACTOR that PTO has been granted; the contractor (not the AHJ or MID) is responsible for actually energizing the system 80% · utility document
• Is there a re-inspection fee? Not itemized as a distinct 'solar re-inspection' fee; the general 'Building Inspection Fee (minimum 1 hour) — $130/hour' is the only Building Division mechanism that would apply, absent a dedicated line (Code Enforcement's separate $57 re-inspection fee is a nuisance/code-enforcement program, not a construction-permit one) 50% · fee schedule
• How are corrections issued and cleared? For the application-completeness stage: MC 15.04.130.G requires the Building Official to 'issue a written correction notice detailing all deficiencies in the application and any additional information required'; the ordinance does not separately describe an inspection-stage correction/re-inspection workflow beyond authorizing a subsequent inspection if the first fails (15.04.130.F) 55% · ordinance
