City of Avenal

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · department page
• What does this authority permit itself, and what does it delegate? Both 85% · department page + job postings
• Is a permit required for a residential rooftop PV system? Yes 95% · department page + zoning ordinance
• Is there a separate electrical permit, or is it combined? Combined 62% · SolarApp+ instructions + fee schedule
• Is a HOA or architectural approval required first? No (HOA/architectural approval cannot be required as a precondition) 72% · zoning ordinance, Ch. 9.66
• Is there a historic-district review? No 75% · zoning ordinance (control-checked absence)
• Is a wind or windstorm certification required? No 70% · codified ordinance (control-checked absence)
• Is a Specific Use Permit or Council approval ever required? Only if the Building Official makes an affirmative finding, based on substantial evidence, that the proposed system would have a 'specific, adverse impact' on public health or safety -- otherwise no Conditional Use Permit or City Council approval is required; review is administrative/ministerial. 90% · zoning ordinance, Ch. 9.66
• Is there a system-size cap on residential generation? No numeric kW/thermal cap is stated in Avenal's own code. Chapter 9.66 defines its scope entirely by cross-reference to the state statutory definition -- 'small residential rooftop solar energy system' has 'the same meaning set forth in Government Code section 65850.5(j)(3)' -- rather than restating a local kW figure. Systems outside that state definition are not barred, they simply fall outside this expedited chapter and would be permitted through the standard (non-expedited) building-permit process. 78% · zoning ordinance, Ch. 9.66

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · department handout (general, not solar-specific)
• Must the contractor be registered with this authority before applying? Yes 62% · fee schedule (inference)
• Is a homeowner permitted to self-install and self-permit? Yes 80% · department handout (general, not solar-specific)

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For the standard SolarAPP+ path: (1) an automated SolarAPP+ design submittal, resulting in a downloadable 'SolarAPP+ Approval Document'; (2) a City permit application completed through OpenGov Citizen Services ('Building Permit Inspectional Services') with the SolarAPP+ Approval Document attached. For a general (non-SolarAPP+-eligible) building permit, the City's Homeowner's Guide separately calls for at least two complete sets of plans including a site/plot plan. 75% · department page + department handout
• How many copies, and in what format? General (non-solar) policy: at least two (2) complete sets of plans submitted for plan check; one set is returned to the applicant at permit issuance. The SolarAPP+ path is submitted electronically/online rather than as physical plan sets. 55% · department handout (general, not solar-specific)
• Is a site plan required, and what must it show? Yes -- a site/plot plan showing all property lines, all structures on the property, the street, the driveway, and the location of the proposed work (a sample site plan is provided by the Building Division). 62% · department handout (general, not solar-specific)
• Is a one-line / three-line diagram required? Likely yes, via the SolarAPP+ platform's own standard design-submittal requirements (one-line diagrams are part of SolarAPP+'s national design-entry process), but Avenal has published no separate local document stating this requirement for its own permit process. 55% · inference from platform adoption

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

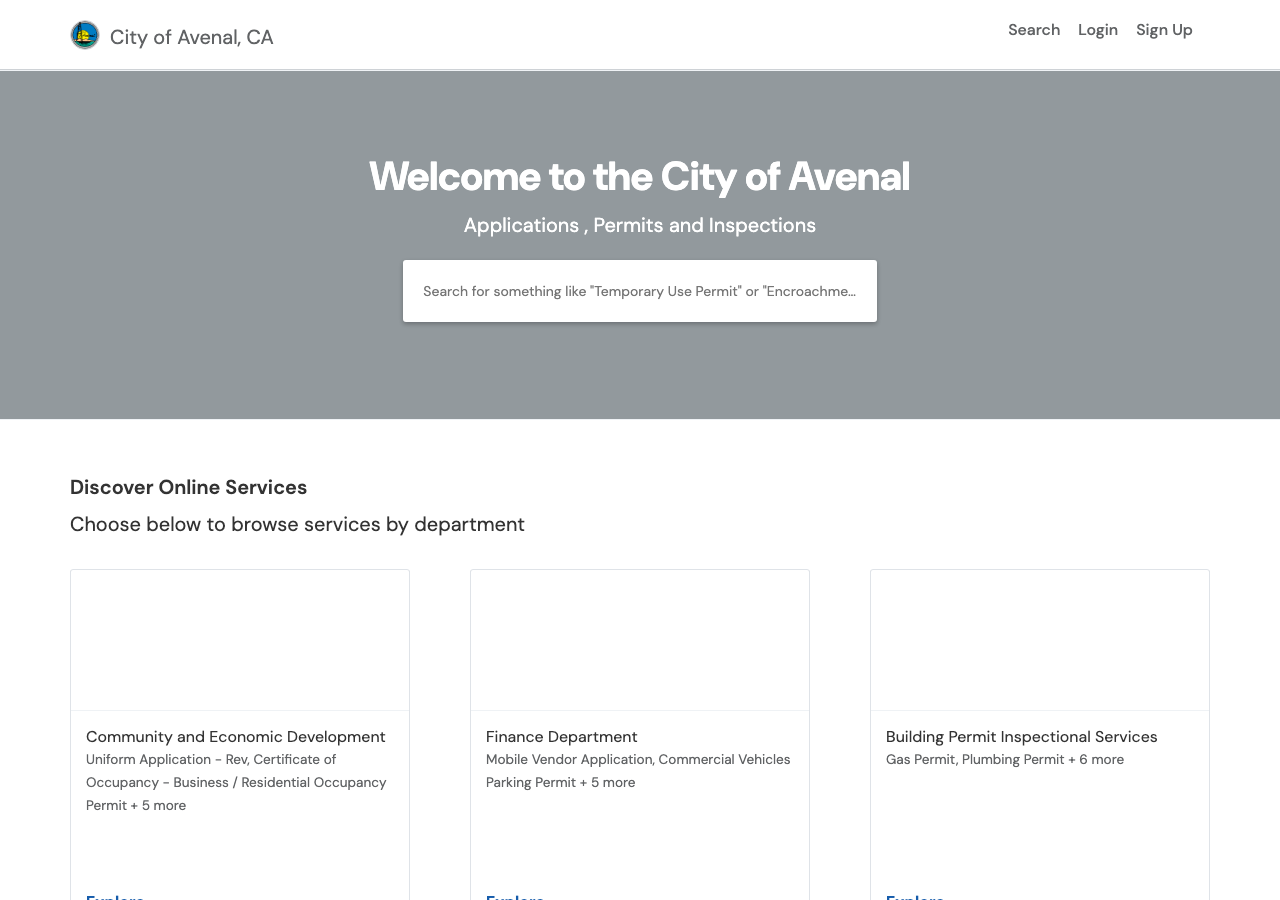

• Which permit portal does this authority use? SolarAPP+ (automated design review/approval) feeding into OpenGov Citizen Services / ViewPointCloud (avenalca.viewpointcloud.com) for the City permit application itself; the City's public notice states ALL building, land-use/zoning and land-division permits must now be submitted online through this portal. 90% · department page
• Can the whole application be completed online? Yes 75% · department page
• What does a residential solar permit cost? No solar-specific flat fee line exists. General Building Fees (FY2021-2022): Building Permit 'Per CBC Valuation'; Electrical Permit 'Per CEC, CBC Valuation + Issuance Fee' (issuance fee $41.25); Building Plan Check 65% of Building Permit Fee. Separately, the SolarAPP+ platform itself charges a $35 administrative fee per project (paid directly to SolarAPP+, not the City). 72% · fee schedule + department page
• How is the fee calculated? Valuation 78% · fee schedule
• Is there a separate plan-check fee? Yes 85% · fee schedule + department handout

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days -- an issued permit expires if work is not commenced within 180 days of issuance, or if no inspection is obtained within 180 days; one 180-day extension may be granted on written request prior to expiration. 78% · department handout (general, not solar-specific)
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) -- no municipal electric utility; no CCA found 85% · department page (city-side confirmation)
• Where does the utility sit in the sequence? After permit 85% · utility tariff (Electric Rule 21)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? Other -- codified text still names the 2010 California Electrical Code 50% · codified ordinance (stale -- flagged)
• Which building code edition is in force? Codified text names the 2010 California Building Code 50% · codified ordinance (stale -- flagged)
• Which fire code edition is in force? Codified text names the 2013 California Fire Code (added by Ord. 2013-02, adopted 1/9/14), superseding the original 2010-cycle Fire Code adoption in the same chapter. 55% · ordinance list (city's own comprehensive index)
• Are there local amendments to any of the above? Yes 70% · codified ordinance
• What is the installation judged against? The installation must satisfy 'all applicable health and safety standards and requirements enacted by the State and the City' -- i.e., the codified (if stale) California Building/Electrical/Fire Codes plus Chapter 9.66's own procedural requirements; final inspection confirms code compliance and that installed equipment/wiring matches the approved plans. 75% · zoning ordinance, Ch. 9.66

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Avenal on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown is required as a matter of the currently-effective NEC/CEC (in force nationally since the 2014 NEC cycle and continuously since), but no Avenal document found this run cites '690.12' or 'rapid shutdown' by name, and Avenal's own codified electrical chapter still names the 2010 CEC -- an edition that PREDATES NEC/CEC 690.12 rapid-shutdown requirements entirely. 55% · codified ordinance (silent on 690.12; control-checked)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Does the UTILITY specify placards beyond the AHJ's? Yes -- PG&E requires a visible, manually-operated interconnection disconnect near the Point of Interconnection that must 'include markings or signage that clearly indicates open and closed positions' and be capable of being locked in the open position. 75% · utility tariff (Electric Rule 21)
• Where must the labels be placed? Near the Point of Interconnection, for the PG&E-required visible disconnect (per Rule 21); no Avenal-specific label-placement requirement was found for any other placard. 55% · utility tariff (Electric Rule 21)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Is there a separate ESS permit or inspection? No 60% · fee schedule (control-checked absence)
• Is a ground mount treated as a structure? Not addressed for solar specifically -- Chapter 9.66 is titled and scoped to 'Small Residential ROOFTOP Solar Energy Systems' only, with no ground-mount solar provision anywhere in the 334-page Zoning Ordinance (control-checked). By inference, a ground-mounted array would default to each zone's general 'Accessory structures' provisions (e.g., permitted within a required rear/side setback subject to a minimum 10-foot separation from other structures), the same treatment any other accessory structure receives, though this is not a stated PV-specific rule. 50% · zoning ordinance (inference from general accessory-structure rules)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Written request, by phone ((559) 386-5766), in person at the Building counter, or online via the City's Inspection Request Page / OpenGov Citizen Services portal. 75% · department handout (general) + zoning ordinance
• How much notice is required? For a qualifying small residential rooftop solar system: the inspection will be scheduled within five (5) business days after the City receives a written request, absent extraordinary circumstances. 88% · zoning ordinance, Ch. 9.66
• Are same-day or AM/PM windows offered? No same-day guarantee; the City instead guarantees a three-hour inspection window once scheduled. 85% · zoning ordinance, Ch. 9.66

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 60% · zoning ordinance, Ch. 9.66 (ambiguous post-transition)
• If delegated, to whom? Building inspection: performed by the City's Building Division (day-to-day staffing/inspection currently contracted to Willdan Engineering per the Building Division page). Fire-safety inspection (if triggered): performed by the City's own, newly-established Avenal Fire Department / Fire Prevention Bureau -- NOT Kings County Fire Department, which is no longer the city's fire-service provider as of the 2025-2026 transition. 70% · department pages

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a qualifying expedited residential rooftop solar system: a single consolidated inspection performed by the Building Official (with a separate fire-safety inspection layered in only if no fire-authority consolidation arrangement exists), scheduled within 5 business days of a written request, in a 3-hour window; the Building Official must issue or deny the permit within 2 business days of completing the (later of the building or fire) inspection. 85% · zoning ordinance, Ch. 9.66
• Is a rough-in or mid-roof inspection required? No 75% · zoning ordinance, Ch. 9.66

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 65% · zoning ordinance duty vs. absent implementing document
• What must be on site at inspection? The approved plans and the inspection 'Job card' must be kept at the job site and available for the inspector at every inspection. 65% · department handout (general, not solar-specific)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (inferred label) -- the ordinance and handout both describe 'final approval'/permit issuance/denial after the passing inspection, but no Avenal document names the specific document type (CO / Final / Green Tag / Letter) issued. 55% · zoning ordinance + department handout (inferred label)
• Who notifies the utility for PTO? AHJ (with a follow-up step for the applicant/utility) 65% · department handout (general, not solar-specific) + utility tariff
• Is there a re-inspection fee? $90.00 per hour of inspection 82% · fee schedule
• How are corrections issued and cleared? The inspector leaves a written 'correction notice' briefly outlining what must be completed before that portion of the project is approved; the applicant corrects the work and requests a re-inspection. 65% · department handout (general, not solar-specific)
