City of Bell

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 90% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code (eCode360/BE4903, current through Ord. 1295, 10/8/2025)
• Is there a separate electrical permit, or is it combined? Combined 80% · authority's own page
• Is a HOA or architectural approval required first? No 90% · municipal code
• Is there a historic-district review? No 80% · municipal code (chapter table of contents, controls: full chapter list enumerated)
• Is a wind or windstorm certification required? No 70% · municipal code
• Is a Specific Use Permit or Council approval ever required? Yes — the Building Official may require a discretionary Use Permit if the system “could have a specific adverse impact upon the public health and safety”; denials/use-permit decisions are appealable to the Board of Appeals under BMC §17.92.050. 90% · municipal code
• Is there a system-size cap on residential generation? No hard cap on system size, but only systems ≤10kW AC nameplate / 30kW thermal on a single- or duplex-family dwelling qualify for the mandatory expedited/ministerial permit path (BMC §15.16.010.B); larger residential systems fall outside that definition and would go through standard (non-expedited) plan review rather than being prohibited outright. 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 55% · municipal code
• Must the contractor be registered with this authority before applying? No 55% · municipal code
• Is a homeowner permitted to self-install and self-permit? Yes 65% · municipal code + inference from comparable LA County process

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? SolarAPP+ automated approval document + the SolarAPP+-generated checklist + a single-line drawing, emailed to Buildingandsafety@cityofbell.org and the Building Permit Technician along with the SolarAPP+ permit itself 90% · authority's own page
• How many copies, and in what format? Electronic only — SolarAPP+ approval PDF, checklist and single-line diagram submitted by email; no physical copies specified for the solar path (contrast: the City's generic non-SolarApp building-permit process still asks for 2 physical plan sets). 75% · authority's own page
• Is a one-line / three-line diagram required? Yes 90% · authority's own page
• Is a structural PE stamp required, and at what threshold? No stamped PE letter required for a system meeting the “small residential rooftop solar” definition (≤10kW AC/30kW thermal, single/duplex dwelling): applicant self-certifies structural adequacy via “standard engineering evaluation techniques” under BMC §15.16.010.F.7.a. No separate threshold above which a stamp is required is stated in this section. 85% · municipal code
• Is an electrical PE stamp required, and at what threshold? No stamped electrical PE letter required for a qualifying small residential system — applicant self-verifies existing electrical system capacity via “standard electrical inspection techniques” under BMC §15.16.010.F.7.b. 85% · municipal code

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

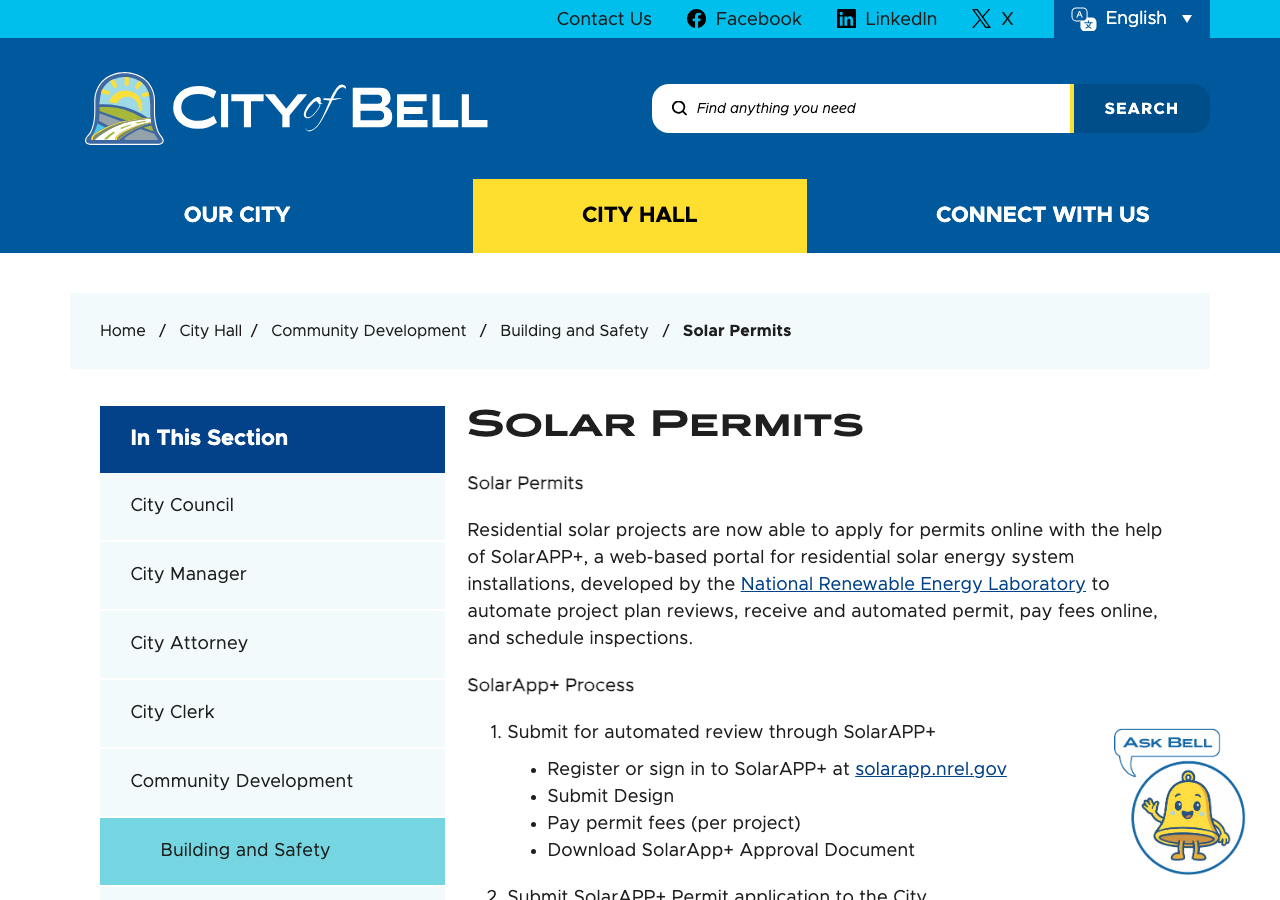

• Which permit portal does this authority use? SolarAPP+ (solarapp.nrel.gov) for residential solar design review/fee payment; a Transtech-operated eplan portal (gopost-transtech.eplansoftreview.com, portal=bell) for general Building Division plan-check submittal. 90% · authority's own page
• Can the whole application be completed online? No 80% · authority's own page
• How is the fee calculated? Valuation — fees for building, residential and electrical permits (including solar) are set at 115% of the Los Angeles County Schedule of Fees in effect at time of application, and the City's own Ch.15.02.050 (Valuation) directs the Building Official to use the ICC Building Valuation Data tables. 90% · municipal code (fee ordinance)
• Is there a separate plan-check fee? Yes 60% · authority's own page + inference

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days from a complete, checklist-compliant expedited solar application (BMC §15.16.010.F.1); for non-SolarApp/general building plan review the City states 15 business days for new construction, 14 for other reviews, with 10 business days per re-submittal. 90% · municipal code
• How long is an issued permit valid before it expires? Issued permit voids if work not commenced within 1 year of issuance, or if no required inspection is approved within 1 year of the last approved inspection; extensions up to 180 days each, cumulative cap 2 years from original expiration. 92% · municipal code
• Which utility handles interconnection here? Southern California Edison (SCE) 60% · inference (absence proven on city site; utility not independently confirmed from a Bell document)
• Where does the utility sit in the sequence? No dependency / after permit 80% · municipal code

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 88% · municipal code (adopting ordinance)
• Which building code edition is in force? 2025 California Building Code (Title 24 Part 2) and 2025 California Residential Code (Title 24 Part 2.5), both adopted by Ord. 1295, effective 10/8/2025 92% · municipal code
• Which fire code edition is in force? 2016 California Fire Code as locally amended by LA County (cited in Bell's own code as the “2017 County of Los Angeles Fire Code, based on the 2015 International Fire Code”) — codified at BMC §8.16.010, last amended by Ord. 1219 §11 in 2017. This is a significant code-cycle lag: LACoFD's own current live guidance (Expedited PV/ESS Checklist and Guide, both dated 2023-09-01) already administers under the 2023 LACFC (a locally amended 2022 CFC), i.e. two full code cycles ahead of what is still codified in Bell's own municipal code. 85% · municipal code
• Are there local amendments to any of the above? Yes 85% · municipal code
• What is the installation judged against? The 2025 CBC/CRC/CEC (Title 24, all adopted by Ord. 1295, 10/8/2025) as locally amended, administered through Ch.15.02's unified permit/inspection/valuation administration provisions; for qualifying small systems, compliance is judged against the checklist/standard-plan required by BMC §15.16.010.E.4 which must “substantially conform” to the current California Solar Permitting Guidebook. 80% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Bell on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — rapid shutdown is required (2023 NEC §690.12 via the 2025 CEC), and LACoFD's own Expedited PV/ESS checklist separately treats “Rapid-Shutdown attenuation devices, and associated placarding” as an item it inspects on every PV job. 88% · AHJ (fire) own current document

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? LACoFD's “F.D. – Electrical / Bldg Disconnect / #X of Y” placard system covers every power-source disconnect (utility, PV, ESS, generator, etc.) at the service equipment on every PV/ESS job in Bell, since Bell is an LACoFD contract city; the City's own code specifies no additional placard. 92% · AHJ (fire) own current document
• Does the authority specify placard wording of its own? Yes 92% · AHJ (fire) own current document
• Does it specify letter height, colour or material? Exterior placard: min. 2in x 3.5in weather-resistant plastic, red letters engraved into yellow background, solid all-caps Arial, min font size 24 (“F.D.” and “#X of Y” bold min. size 28), attached with permanent epoxy. Panel-interior placard: min. 7/16in x 3/4in, same color scheme, solid all-caps Arial bold min. size 24, epoxy-mounted. 92% · AHJ (fire) own current document
• Is a site plan / facility map placard required, and what must it show? Not found in Bell's own code or in LACoFD's Guide/Checklist as a distinct “facility map” placard requirement beyond the disconnect placarding system and NEC 705.10 baseline; LACoFD's checklist references only the disconnect placarding system (Section IV) and does not describe a separate site-plan/facility-map placard. 45% · AHJ (fire) own current document
• Where must the labels be placed? Exterior placards: on the wall or exterior of electrical panels/enclosures, at the disconnect location itself, within 6 feet of the main service panel on the same wall plane per 2023 LACFC §509.3; panel-interior placards: on/inside the panel to identify the specific breaker/switch. 88% · AHJ (fire) own current document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Yes, with conditions: individual ESS units capped at 20kWh; aggregate 80kWh max per site and per location (garage/outdoor/ground); 3ft ESS-to-ESS spacing, 3ft from openings, 5ft from lot lines/other buildings/combustibles, 10ft from vegetation; impact protection required if subject to vehicular impact; detection/notification required if in an attached garage; UL 9540 (unit) and UL 1741 (inverter) listing required; ESS listed solely for utility/commercial use may not be used residentially. 90% · AHJ (fire) own current document
• Is there a separate ESS permit or inspection? Yes 88% · AHJ (fire) own current fee ordinance
• Is a ground mount treated as a structure? Not found in Bell's own zoning code 45% · municipal code (absence proven with controls)
• Is there a local rule on service upgrades or busbar sizing? No local amendment found 80% · municipal code (absence proven — full chapter text reviewed)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Email 85% · authority's own page
• How much notice is required? 2 business days 85% · municipal code

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 85% · authority's own page
• If delegated, to whom? Los Angeles County Fire Department (LACoFD), Fire Prevention Division 90% · authority's own page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? 1) SolarAPP+ automated design review and permit issuance; 2) one consolidated City building/electrical inspection (BMC §15.16.010.F.8: “Only one inspection shall be required” for expedited-eligible systems); 3) mandatory LACoFD Fire Prevention final inspection of ESS/disconnects/rapid-shutdown placarding, required prior to use of the system. 85% · municipal code + authority's own page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Digital proof of the construction permit (SolarAPP+/expedited-permit approval) and any inspection checklist provided with it; disconnect placarding must already be in place; LACoFD fees must be paid, per LACoFD's own pre-inspection checklist. 88% · AHJ (fire) own current document

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (City building final) plus a separate LACoFD-issued operational sign-off for the fire/ESS/disconnect scope, which LACoFD's checklist calls “an Operational Permit” for the R-3/R-4 PV/ESS installation. 80% · AHJ (fire) own current document
• Who notifies the utility for PTO? Installer 75% · municipal code
• Is there a re-inspection fee? $98 (LACoFD, “Additional inspections after initial inspection and one reinspection”) 88% · AHJ (fire) own current fee ordinance
