City of Bellflower

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 90% · department page / plan-check contractor
• Is a permit required for a residential rooftop PV system? Yes 95% · published checklist
• Is there a separate electrical permit, or is it combined? Combined 80% · department page
• Is a wind or windstorm certification required? No 70% · inference — absence in published materials + no such CA program exists

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 80% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 90% · published handout

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Plan-check application (emailed to obtain a plan-check #), plans uploaded to the Willdan GeoCivix portal in landscape orientation as multi-page PDFs broken down by discipline (with a cover sheet/drawing index), separate PDFs for calculations/specifications, Building Permit Application, Property Owner's written Letter of Authorization, description of existing roof structural components, structural verification the roof will support the new PV system (with framing plan/details if strengthening is needed), and Pre-Certification of the existing roof by a C-39 Roofing Contractor (waived if a complete re-roof permit was finalized within the past 5 years). 95% · published checklist
• How many copies, and in what format? Digital PDF submittal via the GeoCivix portal during plan check (multi-page PDFs by discipline, not single sheets or one giant multi-page file); once approved, two (2) hard-copy sets of the stamped approved plans must be printed and brought to the counter to obtain the issued permit/job card. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 60% · published checklist
• Are string and conductor calculations required? Yes 55% · inference from plan-check contractor's standard practice
• Is a structural PE stamp required, and at what threshold? Structural verification required, no explicit PE/SE stamp or numeric weight threshold stated 60% · published checklist
• Is an electrical PE stamp required, and at what threshold? No electrical PE stamp requirement stated for typical residential PV 65% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Willdan GeoCivix (https://willdan.geocivix.com/secure/) for plan submittal/review/tracking; in-person/mail for fee payment and physical permit issuance at City Hall 95% · department page
• Can the whole application be completed online? No 85% · published checklist
• Is there a separate plan-check fee? Yes 85% · department page

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Approximately 10 business days for residential projects 95% · department page
• How long is an issued permit valid before it expires? 180 days (California Building Code §105.5 default — work must commence within 180 days of issuance or the permit expires; suspension/abandonment for 180 days also voids it) 55% · California Building Code default (local amendment unverifiable)
• Which utility handles interconnection here? Southern California Edison (SCE) 60% · inference — utility's own city-name enumeration not locatable this session
• Where does the utility sit in the sequence? Parallel (utility interconnection application can be filed independently of the City permit; formal Permission to Operate (PTO) from the utility is granted only after the City's final inspection) 55% · published form

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (via the 2025 California Electrical Code, part of the current 2025 California Building Standards Code triennial cycle) 75% · published handout (cross-referenced to statewide CBSC cycle)
• Which building code edition is in force? 2025 California Building Code 90% · published handout
• Which fire code edition is in force? 2023 Los Angeles County Fire Code (LACFC) — a locally-amended version of the 2022 California Fire Code 75% · delegated fire agency's own published checklist
• Are there local amendments to any of the above? Yes 70% · delegated fire agency's own published checklist
• What is the installation judged against? The 2025 California Building Code / (2025-cycle) California Electrical Code, plus the 2023 Los Angeles County Fire Code for PV/ESS fire-safety aspects (disconnects, rapid shutdown, ESS) 70% · department page + delegated fire agency checklist

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Bellflower on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required (NEC 690.12 rapid shutdown), enforced via the 2023/2025-cycle California Electrical Code 80% · delegated fire agency's own published guide + statewide NEC adoption

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? LACoFD Electrical Power Source Disconnect Placards: an 'Exterior Placard' at/near each disconnect-bearing panel/enclosure, and 'Panel-Interior Placards' inside a panel identifying specific switches/breakers, per the LACoFD Electrical Power Source Disconnect Placarding System 95% · delegated fire agency's own published guide
• Does the authority specify placard wording of its own? Yes 95% · delegated fire agency's own published guide
• Does it specify letter height, colour or material? Yes: Exterior Placards min. 2" tall x 3.5" wide, weather-resistant plastic, engraved, red letters on yellow background, solid all-caps Arial, min. 24-pt font (min. 28-pt bold for 'F.D.' and '#X of Y'); Panel-Interior Placards min. 7/16" tall x 3/4" wide, same material/color, all-caps Arial bold min. 24-pt; attachment by permanent, material/weather/surface-compatible epoxy 95% · delegated fire agency's own published guide
• Where must the labels be placed? Exterior placards on/immediately adjacent to the exterior of each panel/enclosure or standalone disconnect switch that must be operated; Panel-Interior placards inside the panel next to the specific switch/breaker they identify 90% · delegated fire agency's own published guide

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, for the fire-inspected components 85% · delegated fire agency's own published checklist
• Are batteries permitted, and under what conditions? Yes, subject to detailed conditions: max. 20 kWh per individual ESS unit; max. 80 kWh aggregate per site in any combination of (a) attached/detached garages, (b) outer side of exterior walls, or (c) outdoors on the ground; 3 ft minimum spacing between individual units; 3 ft minimum from doors/windows/openings/HVAC inlets into habitable space; 5 ft minimum from lot lines, public ways, other buildings, and combustibles; 10 ft minimum from vegetation; UL 9540 listing required; ESS prohibited inside dwelling units, sleeping units, closets, bathrooms, basements, and non-garage accessory structures absent an AHJ Alternate Materials/Methods Request 95% · delegated fire agency's own published guide
• Is there a separate ESS permit or inspection? Yes 90% · delegated fire agency's own published checklist
• Is there a local rule on service upgrades or busbar sizing? No Bellflower-specific service-upgrade/busbar rule found; the NEC 120%-rule (or the equivalent supply-side/load-side interconnection limits in the then-current NEC edition, e.g. NEC 705.12) would apply as the state-adopted default 50% · inference — statewide NEC default, local amendment unverifiable

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

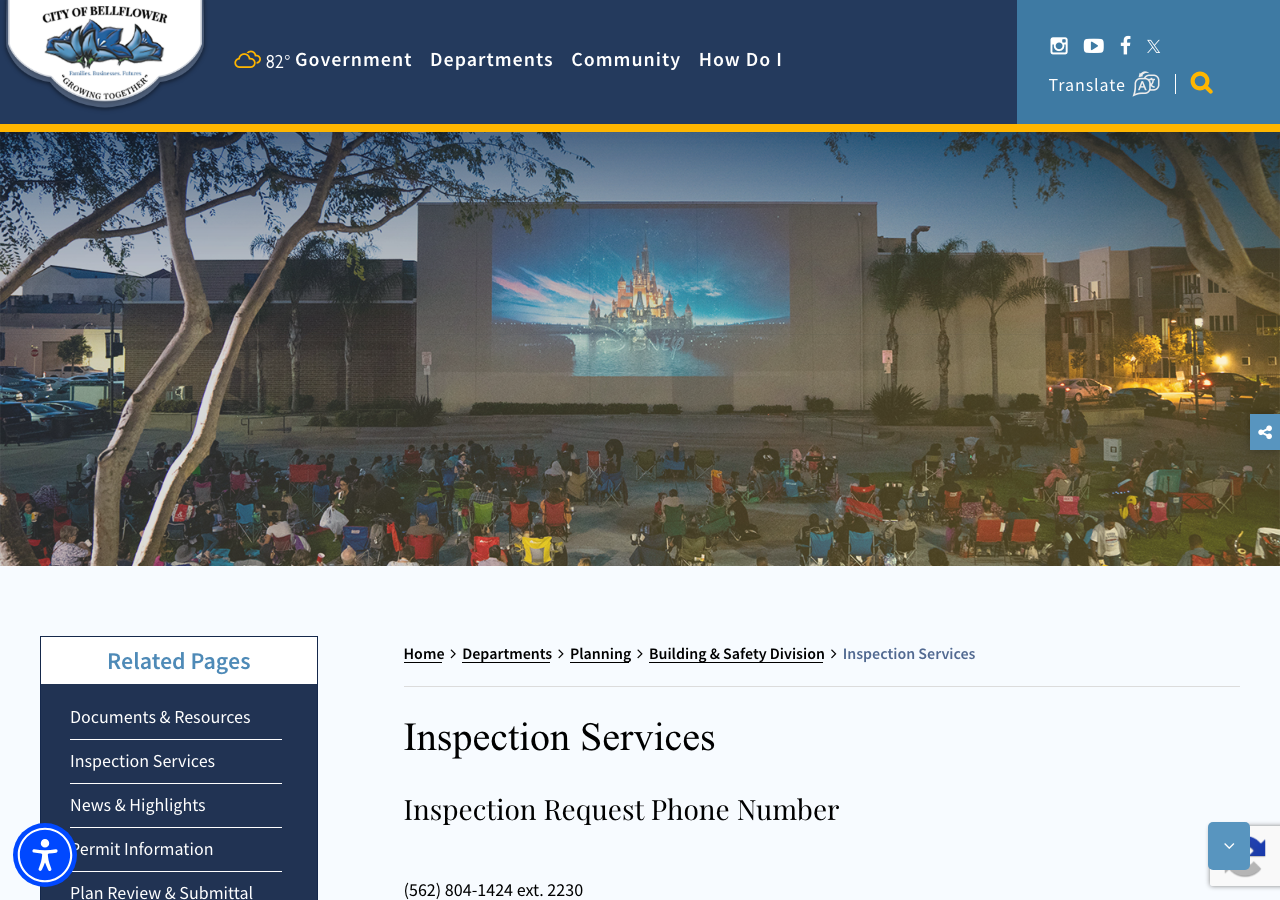

• How is an inspection booked? Phone 95% · department page
• How much notice is required? By 3:00 p.m. the prior business day, for next-business-day scheduling (not guaranteed) 90% · department page
• Are same-day or AM/PM windows offered? Not specified as AM/PM windows; inspection staff keep limited office hours of 8:00-9:00 a.m. and 4:00-5:00 p.m. 70% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated (split) 85% · department page + delegated fire agency's own published checklist
• If delegated, to whom? Los Angeles County Fire Department (LACoFD), Fire Prevention Division — for PV/ESS disconnect placarding, rapid-shutdown, and any ESS >3 kWh only; the City's own Building & Safety Division retains the general building/electrical final inspection 90% · delegated fire agency's own published materials

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? (1) City rough electrical inspection if new wiring/panel work is performed; (2) City final building/electrical inspection of the completed PV system; (3) separately-scheduled LACoFD inspection of disconnect placarding, rapid shutdown, and any ESS >3 kWh, which the applicant must book directly with LACoFD after obtaining the City's construction permit and before final sign-off 80% · published checklist + delegated fire agency checklist
• Is a rough-in or mid-roof inspection required? Yes, if service-panel/wiring work is performed (generic 'Electrical Service — Rough Inspection and Final Inspection' and 'Re-Wire — Rough Wiring and Final Electrical' categories); not clearly required as a distinct 'mid-roof' inspection for a straightforward panel-mounted PV retrofit with no panel changes 50% · department page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 95% · delegated fire agency's own published checklist
• What must be on site at inspection? Digital proof of the construction permit obtained via the City's expedited-permitting process, occupancy classification and project address, cut/specification sheets for all ESS units and inverters (UL 9540/1741 listings), and contractor/billing information for LACoFD's inspection invoice 85% · delegated fire agency's own published checklist
• Does the inspector verify labels and listings? Yes 85% · delegated fire agency's own published checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (signed-off Permit/Job Card); no formal Certificate of Occupancy is issued for an alteration to an existing single-family dwelling 50% · inference from standard CA residential-alteration practice
• Who notifies the utility for PTO? Installer (as the homeowner's authorized agent) 80% · published form
• How are corrections issued and cleared? Corrections are emailed to the applicant as a comment letter through the GeoCivix portal; all resubmittals must go back through GeoCivix using the email link provided with that comment letter 90% · published checklist
