City of Brea

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page

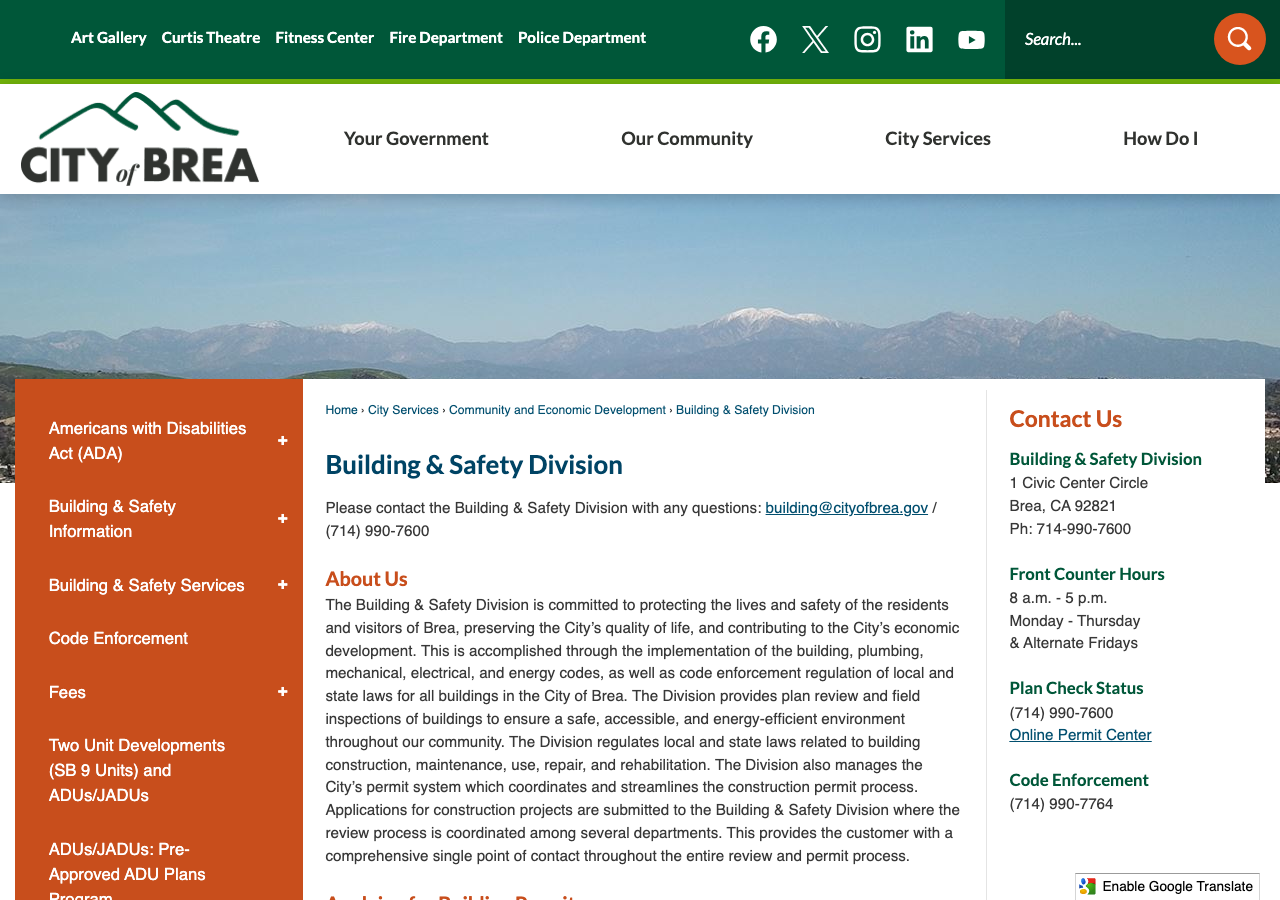

• What does this authority permit itself, and what does it delegate? Both (Building and Electrical) via the Building & Safety Division; Brea Fire Department separately reviews/permits fire-code items for Photovoltaic and Battery Systems via its own Fire Permit Application 85% · department page + form
• Is a permit required for a residential rooftop PV system? Yes 95% · ordinance/checklist
• Is there a separate electrical permit, or is it combined? Combined 80% · portal + fee schedule
• Is a HOA or architectural approval required first? No city-required architectural/HOA approval found as a permit precondition; CA Solar Rights Act (Civil Code §714) limits HOA authority to restrict solar generally 55% · municipal code (checked absence)
• Is there a historic-district review? Yes, but only for locally designated historic resources — BMC §20.60 requires plan review for exterior alterations to a 'designated historic resource'; this would apply to solar on a designated property but not to ordinary residential parcels 78% · municipal code
• Is a wind or windstorm certification required? Not applicable — California does not use a TDI-style windstorm certification; wind design is handled through the locally-amended CRC Table R301.2 (wind speed/exposure figures) as part of the standard structural plan check 55% · municipal code
• Is a Specific Use Permit or Council approval ever required? Not required for a standard residential rooftop PV system 55% · department page (inference)
• Is there a system-size cap on residential generation? No system-size cap found; BMC Ch. 20.08 (Development Standards) contains zero mentions of solar or photovoltaic (checked directly against working positive ('setback', 11 hits) and fabricated ('zzqqx', 0 hits) controls), so any residential generation-size limit is not a Brea zoning creation — sizing is governed by state NEM/interconnection rules and by the plan-check structural/lateral-calc thresholds in Q13 68% · municipal code (checked absence)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 75% · checklist + form
• Must the contractor be registered with this authority before applying? Yes 65% · permit form
• Is a homeowner permitted to self-install and self-permit? Yes, outside the SolarAPP+ track 65% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Two sets of plans (min. 11x17"), manufacturer spec sheets, installation instructions and UL listings; roof plan on a site plan showing PV equipment/array location & dimensions and 3-ft clearance to ridges/eaves; partial roof framing plan (or waiver if ≤4 ft support spacing); structural/lateral calcs (or waiver under size thresholds); full electrical submittal (one-line diagram, inverter/module cut sheets, array/OCD/wiring info, rapid-shutdown per NEC 690.12, signage, grounding, disconnect location, VOC/ISC calcs) 90% · published checklist
• How many copies, and in what format? Two (2) sets minimum, sheet size 11" x 17" 90% · published checklist
• Is a site plan required, and what must it show? Yes — a roof plan projected on a site plan, showing location/dimensions of all PV equipment and arrays and a minimum 3-ft-wide clearance from roof ridges and gable-end eaves for fire department access 90% · published checklist
• Is a one-line / three-line diagram required? Yes 95% · published checklist
• Are string and conductor calculations required? Yes 90% · published checklist
• Is a structural PE stamp required, and at what threshold? Yes, conditionally: a licensed PE or architect must provide lateral calculations (existing lateral elements no more than 10% overstressed per CBC) unless total array area is under 250 sq ft over a second-story roof or 350 sq ft over a first-story roof; framing calcs are waived entirely if array support spacing is 4 ft or less 90% · published checklist
• Is an electrical PE stamp required, and at what threshold? No PE stamp threshold specified — plans may be signed by the licensed contractor (A/B/C-46/C-10) or by a licensed electrical engineer; no separate PE-stamp trigger for electrical scope is stated 60% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

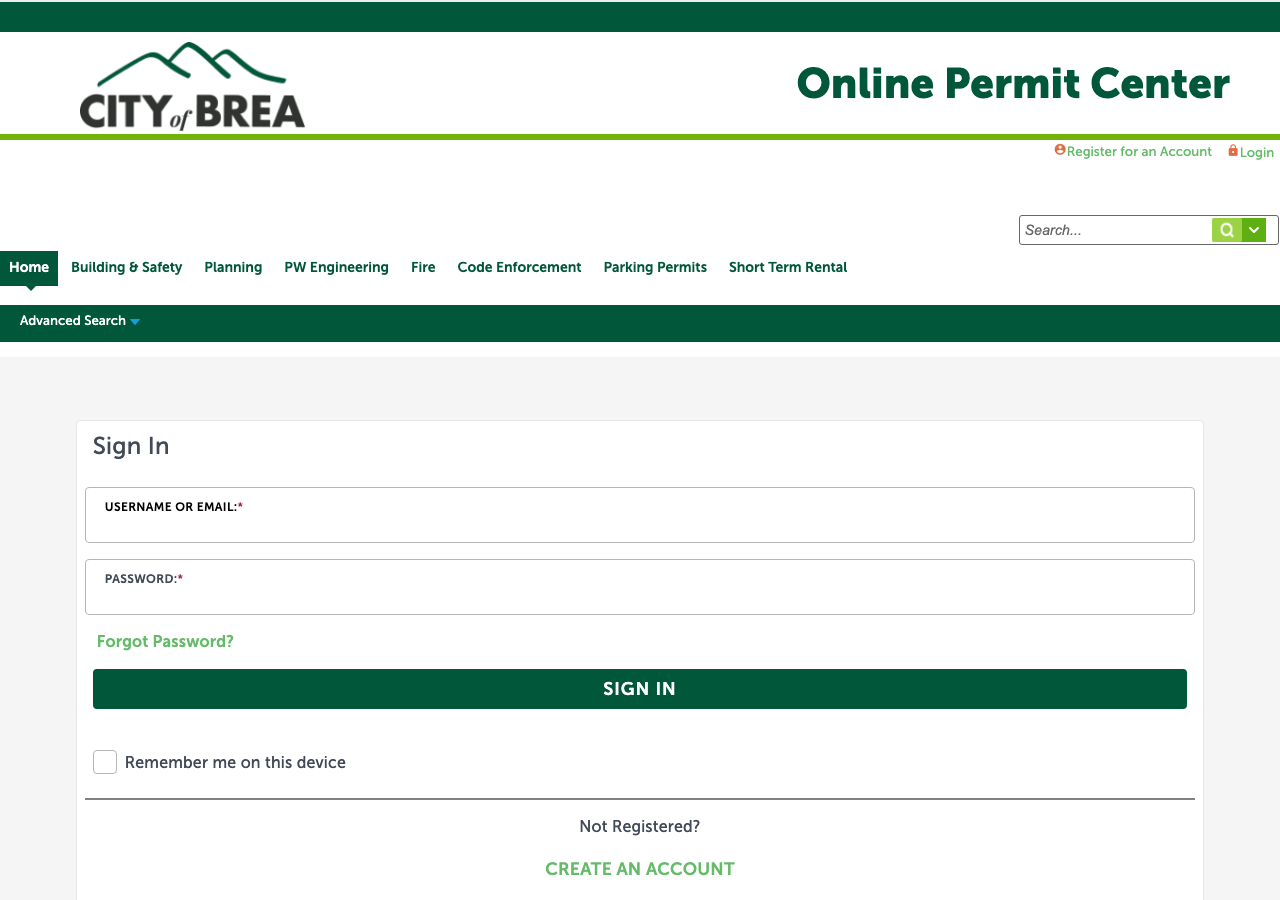

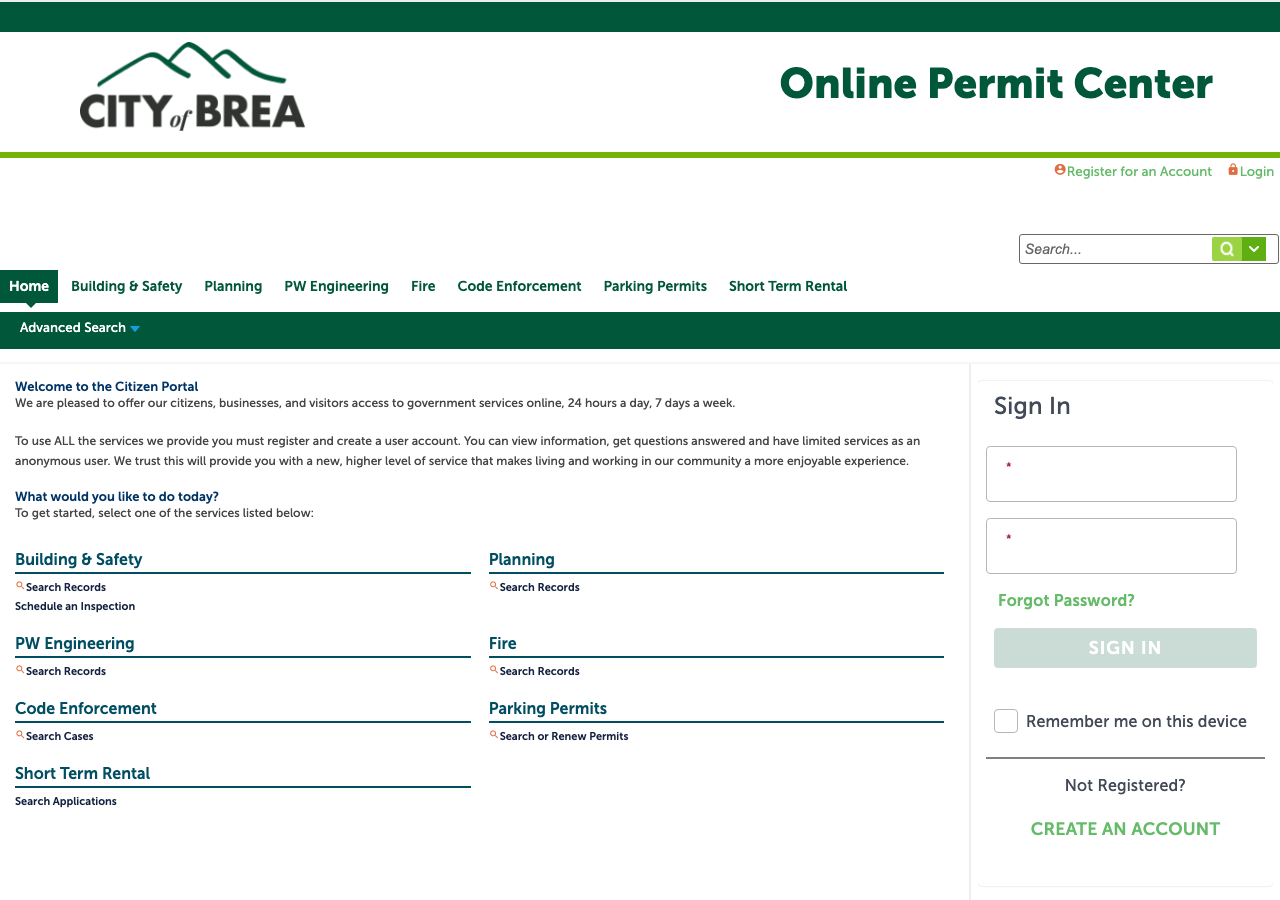

• Which permit portal does this authority use? Accela Citizen Access ('Brea Online Permit Center', aca-prod.accela.com/BREA) for permit application/payment/inspection scheduling; SolarAPP+ (gosolarapp.org) for the automated PV plan-review step 95% · portal landing page
• Can the whole application be completed online? Yes 88% · portal landing page
• What does a residential solar permit cost? $450 flat (Residential Solar App+ Project) 95% · fee schedule
• How is the fee calculated? Flat 95% · fee schedule
• Is there a separate plan-check fee? No separate city plan-check fee for the residential SolarAPP+ track — the $450 appears to be a single all-inclusive fee (unlike other permit types in the same schedule, which are explicitly split into separate 'Plan Check' and 'Inspection' columns); SolarAPP+ itself charges its own external plan-review fee on the SolarAPP+ platform 70% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? SolarAPP+ track: automated/instant approval upon eligible submittal. No published business-day turnaround was found for the standard (non-SolarAPP+) plan-check track 65% · department page
• How long is an issued permit valid before it expires? 12 months to commence work from permit issuance (renewable once, without plan changes, for one additional inspection fee); plan check itself expires after 6 months if no permit is issued 82% · department page
• Which utility handles interconnection here? Southern California Edison (SCE) 68% · city page (indirect)
• Where does the utility sit in the sequence? After permit / before activation (utility notified for interconnection/PTO after the system is installed, inspected, and prior to activation) 55% · checklist (inference)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (as the basis for the 2025 California Electrical Code) 95% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (based on the 2024 IBC) and 2025 California Residential Code (based on the 2024 IRC), effective 1 Jan 2026 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code (based on the 2024 IFC), plus the 2025 California Wildland-Urban Interface Code, effective 1 Jan 2026 92% · adopting ordinance
• Are there local amendments to any of the above? Yes for Building and Residential Code (e.g., amended §105.2 permit-exemption list, amended Table R301.2 wind/seismic table) and for the Fire Code (local amendment chapters covering IFC/CFC Chapters 1,2,3,4,5,9,11,56,57 and 80); No current local amendments to the Electrical Code — BMC §15.12.020 is explicitly '[Reserved for future amendments]' 90% · adopting ordinance
• What is the installation judged against? The 2025 California Electrical Code (2023 NEC basis) for electrical work and the 2025 CBC/CRC for structural work, per BMC Ch.15; the city's own Solar PV submittal handout still directs plan preparers to the superseded 2022 CBC/CEC — an internal contradiction between the current adopting ordinance and the still-linked 2024-dated solar checklist that installers should be aware of 80% · ordinance + checklist (contradiction noted)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Minimum 3-ft-wide clearance path between PV arrays and roof ridges and gable-end eaves for fire department access 82% · published checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required per NEC 690.12; the currently adopted edition is the 2023 NEC (via the 2025 California Electrical Code, effective 1/1/2026) 82% · ordinance (current) vs. stale checklist (flagged)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? NEC Art. 690 system labels/warnings at service equipment and disconnects, plus a PV roof-layout placard mounted at/on the electrical panel 78% · policy/checklist
• Does the authority specify placard wording of its own? No 72% · published checklist (checked absence)
• Does it specify letter height, colour or material? No Brea-specific letter height, color or material specification found — the handout only cross-references NEC/CEC Article 690's own default labeling requirements 55% · published checklist (checked absence)
• Is a site plan / facility map placard required, and what must it show? Yes — a PV roof-layout placard must be mounted on/at the electrical panel showing the as-built array layout; inspectors check re-installed panels against this placard at final 88% · policy document
• Where must the labels be placed? At the electrical/service panel (roof-layout placard) and at the AC/DC disconnects and PV system service equipment per NEC Article 690 72% · checklist + policy

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 85% · published checklist
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted (a dedicated 'Residential Energy Storage System' permit fee exists); no Brea-specific amendment to the Fire Code's Energy Systems chapter was found, so ESS conditions follow the unamended 2025 CFC/2024 IFC provisions 68% · fee schedule + ordinance
• Is there a separate ESS permit or inspection? Yes 80% · fee schedule
• Is there a local rule on service upgrades or busbar sizing? No local rule found — BMC §15.12.020 (Electrical Code Amendments) is explicitly reserved with no amendments, so service-upgrade/busbar sizing follows the unamended 2023 NEC (e.g., §705.12) with no Brea-specific overlay 82% · adopting ordinance (checked absence)
• Is a specific mounting system or attachment spacing required? No fixed universal mounting-spacing mandate, but the submittal-review shortcut (skipping framing/lateral calculations) is only available if the array attachment spacing is 4 ft or less 75% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 88% · department page
• How much notice is required? Requests made before 12:00 p.m. are considered for next-business-day inspection (approx. 1 business day notice); current stated turnaround is 'typically twenty-four (24) hours' 85% · department page
• Are same-day or AM/PM windows offered? AM/PM windows are offered (AM 8:00 a.m.-12:30 p.m.; PM 1:00 p.m.-4:00 p.m.); not a guaranteed exact time 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · department page
• If delegated, to whom? N/A — not delegated; Building & Safety Division performs its own final inspection 85% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Not fully documented for a standalone new installation; the closest published sequence (from the re-roof-with-existing-PV policy) is: (1) rack-anchor/rough inspection to confirm structural attachment, then (2) final inspection of all completed components 55% · policy document (adjacent scenario)
• Is a rough-in or mid-roof inspection required? Yes, in the re-roof/modification scenario ('an initial inspection of the rack anchors is required to ensure they are properly attached to structural framing members'); not confirmed as a requirement for a standalone new install 55% · policy document

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Does the inspector verify labels and listings? Yes (by inference) 58% · checklist (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (permit 'finaled') 68% · policy document
• Who notifies the utility for PTO? Installer 55% · checklist (inference)
• Is there a re-inspection fee? $146/hour (Callback Building Inspections/Re-Inspection rate) 72% · fee schedule (general rate)
