City of Calipatria

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? No -- City of Calipatria is not the AHJ for building/electrical plan check and inspection of residential solar; that authority is held by Imperial County Planning & Development Services, Building Division under a service contract. The City retains zoning/planning approval and its own Fire Department retains fire approval. 92% · adopted state housing element filing
• What does this authority permit itself, and what does it delegate? Delegated -- City permits/retains zoning (Planning Dept) and fire approval (Calipatria Fire Dept) itself; Building AND Electrical permit issuance, plan check, and inspection are delegated by service contract to Imperial County Planning & Development Services, Building Division. 90% · county department handout (PDF, extracted with pdftotext)
• Is a permit required for a residential rooftop PV system? Yes 90% · department page
• Is there a separate electrical permit, or is it combined? Combined 68% · fee schedule (PDF, extracted with pdftotext)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 75% · county permitting checklist (PDF, extracted with pdftotext)
• Must the contractor be registered with this authority before applying? Yes 78% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · county department handout (PDF, extracted with pdftotext)

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the SRR-SES checklist: (1) Checklist of Eligibility form, (2) Rooftop Solar Approvals form (signed by City Planning/Zoning Authority AND City or County Fire Authority), (3) Permit Application (signed by owner and contractor, with Workers' Comp declaration), (4) Owner's Acknowledgement form, (5) Owner's Affidavit if applicant is not titleholder, (6) Site Plan, (7) Electrical/Structural (and Plumbing if thermal) plans stamped/signed by a licensed engineer, contractor, or designer, (8) current Workers' Compensation insurance on file. 90% · county permitting checklist (PDF, extracted with pdftotext)
• How many copies, and in what format? 2 hard copies of plans/site plan if submitting in person or by mail; electronic submittal accepted with no hard copy required (must be Doc-U-Sign certified if applying electronically). 85% · department page
• Is a site plan required, and what must it show? Yes -- must show property lines with dimensions, location of all existing/proposed structures (above and below ground), location of utility lines (electrical, water, sewer, gas, phone -- above/below ground noted), north orientation, drawing scale, all structure dimensions, distances from property lines, distances between structures, adjacent streets and property entrances; 3 copies required if not using the County's own site-plan form. 92% · county form/instructions (PDF, extracted with pdftotext)
• Is a one-line / three-line diagram required? Yes -- a single-line diagram is required, and for utility interconnection it must additionally be stamped/approved by the AHJ and stamped by a Professional Electrical Engineer. 85% · county permitting checklist (PDF, extracted with pdftotext)
• Is a structural PE stamp required, and at what threshold? Not required as a blanket rule for the streamlined SRR-SES path -- plans may be prepared and signed by 'a licensed Engineer(s), Contractor or designer' (i.e. a PE stamp is one option, not mandatory), unless the Building Official determines the installation falls outside standard prescriptive conditions (e.g., unusual roof/structural conditions or ground-mount). 60% · county permitting checklist (PDF, extracted with pdftotext)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Tyler EnerGov 'Civic Access' self-service portal (imperialcountyca-energovweb.tylerhost.net), linked directly from ICPDS's Building page as 'Building Civic Access'; SolarAPP+ is used specifically for automated residential rooftop PV design review/approval before the County permit is issued. 82% · department page
• Can the whole application be completed online? Yes 65% · department page
• What does a residential solar permit cost? $500 flat (residential rooftop PV up to 15kW; +$15/kW for each kW above 15kW). Residential ground-mount is a separate flat fee of $646.55. Solar battery add-on: $150 (with a solar application) or $450 (battery only, residential). 93% · fee schedule (PDF, extracted with pdftotext)
• How is the fee calculated? Tiered 88% · fee schedule (PDF, extracted with pdftotext)
• Is there a separate plan-check fee? No 60% · fee schedule (PDF, extracted with pdftotext)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Minimum 2 weeks for standard building permits generally; SolarAPP+ path offers instant automated approval of the design, after which the County still processes the permit (a minimum of 2 weeks is stated as the general county permit-processing floor). 75% · department page
• Which utility handles interconnection here? Imperial Irrigation District (IID) 96% · authority's own department page
• Where does the utility sit in the sequence? After permit (AHJ approval feeds the utility process, and final interconnection/Parallel Operation authorization comes after AHJ final inspection clearance) 85% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC (via the 2022 California Electrical Code) 65% · department page (dated content uncertain)
• Which building code edition is in force? 2022 California Building Code (per ICPDS's own 'Latest Updates' page); same staleness caveat as q29 applies given the statewide 2025 CBC cycle effective 1/1/2026. 62% · department page (dated content uncertain)
• Which fire code edition is in force? Presumed 2022 California Fire Code (paired triennial cycle with the stated 2022 CBC), but the county's own posted 'Rooftop Solar Clearances' handout reproduces text captioned '2013 CALIFORNIA FIRE CODE, JULY 1, 2015 SUPPLEMENT' Section 605.11 -- an inconsistency that was not resolved. 45% · county handout (image-only PDF, OCR extracted)
• Are there local amendments to any of the above? Yes -- Imperial County Title 9, Division 32 ('Permit Streamline Ordinance,' adopted 22 Sep 2015, amended 18 Apr 2017) is a local ordinance implementing AB 2188's expedited residential rooftop solar permitting requirement; this is a local procedural amendment layered on the state code rather than a technical amendment to the CBC/CEC itself. 60% · county ordinance (PDF, extracted with pdftotext)
• What is the installation judged against? The California Building Code, California Electrical Code, and California Fire Code as adopted/amended by Imperial County, per Imperial County's SRR-SES eligibility criterion: 'must conform to all applicable state fire, structural, electrical, and other building codes as adopted or amended by the County of Imperial and paragraph (3) of subdivision (c) of Section 714 of the Civil Code.' 82% · county permitting checklist (PDF, extracted with pdftotext)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Per the county's posted (2013 CFC-captioned) clearances handout: Group R-3 hip-roof layouts need a 3-ft-wide clear pathway eave-to-ridge on each slope with panels; single-ridge roofs need two 3-ft pathways; panels must stay >=18 in. from a hip or valley (where placed on both sides); panels must be set back >=3 ft from the ridge for smoke ventilation (exception if fire chief approves an alternative); ground-mounted arrays require a 10-ft clear, brush-free area and are not subject to the roof setback rules. 55% · county handout (image-only PDF, OCR extracted)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown (NEC 690.12) applies as part of the 2020 NEC embedded in the stated 2022 California Electrical Code; no county-specific rapid-shutdown amendment or exception was found. 55% · inference from adopted code edition

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Does the UTILITY specify placards beyond the AHJ's? Yes -- IID's Rules for Interconnection (Attachment 1, Energy Storage) impose labeling requirements beyond the AHJ's own code minimums: exterior-panel and main-panel-breaker labeling indicating DG/ESS connection; placards/directories at all disconnect locations when the ESS disconnect is not within sight of the PV AC/DC disconnects; one-line drawings must label equipment locations (e.g., 'inside garage'); multiple disconnects must be labeled '1 of 2', '2 of 2' etc., preferably engraved; and the visible utility disconnect must have permanent signage at the PCC/meter describing its location if not adjacent. 88% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)
• Where must the labels be placed? Per IID: labeling/markings must be on the visible disconnect itself (open/closed position markings), on the exterior of all panels and the breaker in the main panel where DG/ESS is connected, and as permanent signage at the PCC/meter location if the disconnect is not adjacent to it. IID's general rule: 'Labels shall conform to the current California Electric Code, NEC, and Authority Having Jurisdiction' -- i.e. the AHJ's own placement requirements default to CEC/NEC (e.g. NEC 690/705/706) since no distinct city or county placard-location spec beyond IID's was found. 78% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? No fixed rule that the disconnect must be away from the meter -- IID's own definition states 'There is no specific requirement that the device be located away from the PCC/revenue meter.' The visible/manual disconnect must be installed within 15 ft of the Point of Interconnection (or at IID's discretion) and within sight of the main panel; its location must be shown on the single-line diagram and, if not adjacent to the meter, permanent signage must mark its location at the PCC/meter. 88% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted. Conditions per IID's Rules for Interconnection Attachment 1: a Smart Contactor between main panel and Critical Load Panel; NEC ESS requirements apply in addition to standard DG requirements; disconnecting means and overcurrent protection required at the ESS end; a second disconnect required at connected equipment if the primary disconnect is not within sight; placards/directories required at all disconnect locations if the ESS disconnect is not within sight of the PV AC/DC disconnects; the ESS disconnect must be within 15 ft of (or within sight of) the main panel unless IID agrees otherwise. 85% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)
• Is a ground mount treated as a structure? Yes 80% · fee schedule (PDF, extracted with pdftotext)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

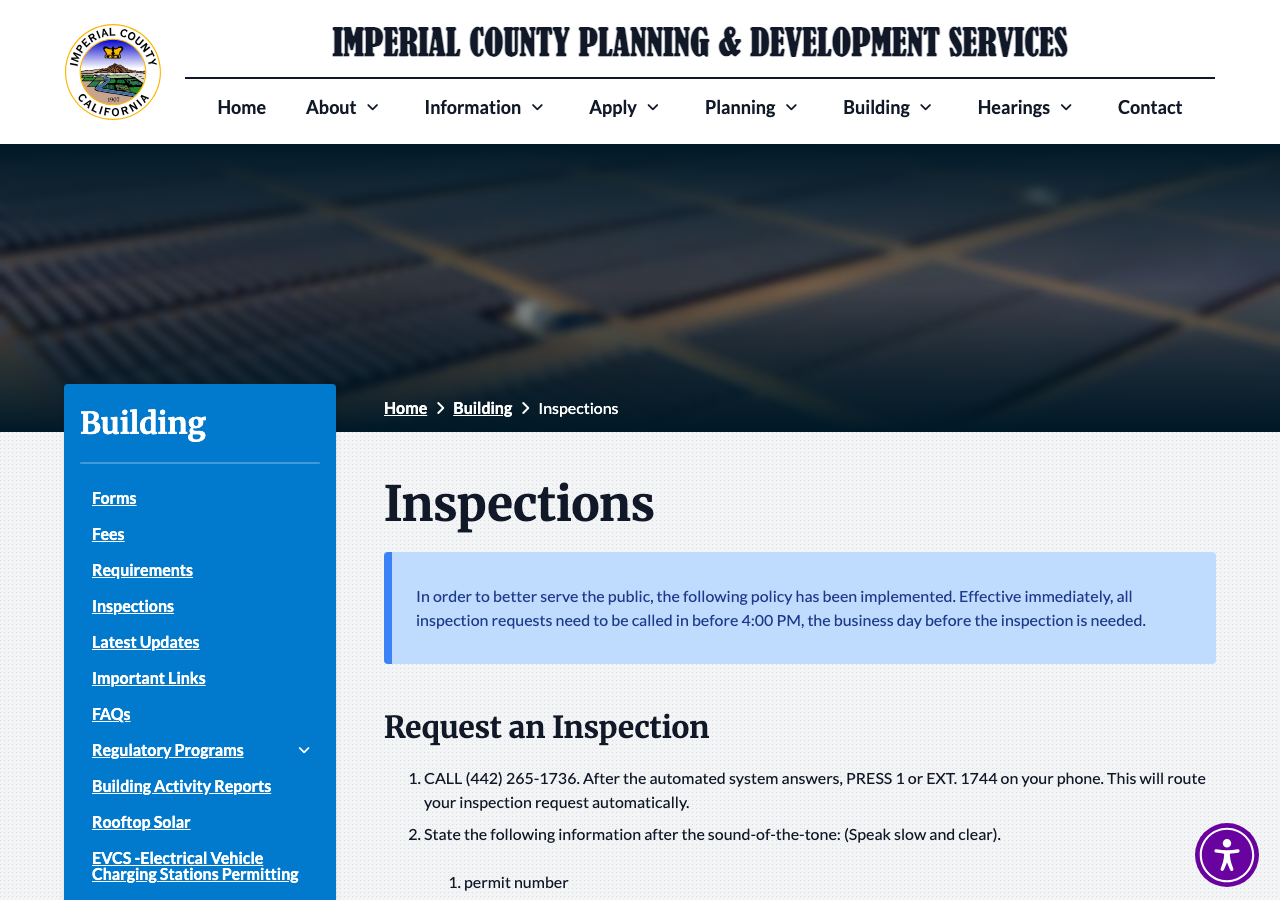

• How is an inspection booked? Phone 92% · department page
• How much notice is required? 1 business day (request must be called in before 4:00 PM the business day before the requested inspection date) 92% · department page
• Are same-day or AM/PM windows offered? No fixed AM/PM window; a specific time can only be requested by calling the Building Division between 7:30-8:30 a.m. on the day of the inspection and discussing directly with the inspector -- the automated phone system itself cannot schedule a specific time. 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 90% · county department handout (PDF, extracted with pdftotext)
• If delegated, to whom? Imperial County Planning & Development Services, Building Division 92% · county department handout (PDF, extracted with pdftotext)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? A pre-inspection is required at/before permit submittal for all solar permits; a final inspection is then performed, and evidence of that final inspection clearance from the AHJ is what IID requires before authorizing interconnection/Parallel Operation. 68% · department page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

Nothing recorded for City of Calipatria on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 78% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)
• Who notifies the utility for PTO? Installer 82% · utility interconnection rules (PDF via Wayback raw capture, extracted with pdftotext)
