City of Calistoga

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page / ordinance
• What does this authority permit itself, and what does it delegate? Both 90% · ordinance + department page
• Is a permit required for a residential rooftop PV system? Yes 95% · department page (quoting CBC §105.1)
• Is there a separate electrical permit, or is it combined? Combined 55% · fee schedule + portal permit-type list (inference)
• Is a HOA or architectural approval required first? No 55% · ordinance (absence checked) + design review chapter (municipal caveat)
• Is there a historic-district review? No, not for an ordinary residential parcel 65% · ordinance (absence of a historic-district chapter; narrow trigger confirmed)
• Is a wind or windstorm certification required? No 80% · ordinance (absence checked, controlled)
• Is a Specific Use Permit or Council approval ever required? No — not found as a requirement for typical residential rooftop PV 55% · ordinance (absence of a solar-specific Use Permit trigger)
• Is there a system-size cap on residential generation? No codified cap found — Calistoga has not codified a small-residential-rooftop-solar ordinance (an AB 2188/Gov. Code §65850.5-style local ordinance) at all. 85% · ordinance (comprehensive, controlled absence)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 50% · State CSLB pamphlet, linked from the city's own Building Division page as its 'Owner-Builder Checklist'
• Must the contractor be registered with this authority before applying? Yes 70% · published checklist (PDF, dated 04/27/26)
• Is a homeowner permitted to self-install and self-permit? Yes, under CA's general owner-builder rules 55% · State CSLB pamphlet, linked as the city's own Owner-Builder Checklist

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No solar-specific checklist exists; solar permits use the City's general 'Building Permit Application Checklist,' which (per its Abbreviated Submittal Requirements table) requires: completed building permit application; application deposit; owner/builder form (if applicable); site plan; floor plans; roof plans; building elevations; structural framing/foundation details; cross sections; plumbing/electrical/mechanical plans; Title 24 energy compliance documents; manufacturer's specification sheets; structural calculations; and (for ground-disturbing work) drainage/erosion/sedimentation plans and a soils report. 80% · published checklist (PDF)
• How many copies, and in what format? Primarily electronic, via the CitizenServe online permit portal (a companion checklist for a comparable permit type instructs applicants to upload 'Full plan set (combined into one PDF file)' plus supporting materials uploaded individually); the general paper-based checklist alternatively calls for 3 physical copies of site/floor/roof plans and 2 copies of energy-compliance, spec-sheet and structural-calculation documents if submitted in person or by mail. 60% · published checklist (portal instructions) + general checklist (paper copy counts)
• Is a site plan required, and what must it show? Yes — a general Site Plan is required showing: locations of existing/proposed buildings and architectural features; dimensioned front/rear/side setbacks; existing/proposed grading and contours; protected-tree locations (CMC §19.010.40) and any proposed removals; location/type of fencing; underground and above-ground utility equipment/connections including electric; and a vicinity map. No PV-array-specific layout, panel setback, or fire-pathway item is itemized on this general checklist. 80% · published checklist (PDF)
• Is a one-line / three-line diagram required? Not stated specifically for a solar permit; the general checklist requires 'Locations of electric service, panels, switches, lights and receptacles' and 'Electrical loading calculations' under its Plumbing/Electrical/Mechanical Plans item, and a companion Generator & Transfer Switch checklist explicitly requires an 'Electrical plan – single line diagram' for its own (different) permit type — suggesting a one-line diagram would likely be expected for a solar job too, but no Calistoga document states this for PV specifically. 55% · published checklists (inference)
• Is a structural PE stamp required, and at what threshold? No numeric valuation/weight threshold is stated; 'Structural calculations' (2 copies) are listed as a required submittal item on the general checklist across all project types shown in its table, with the Building Official evidently determining case-by-case whether a PE-stamped calculation is needed based on plan review. 55% · published checklist (PDF)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

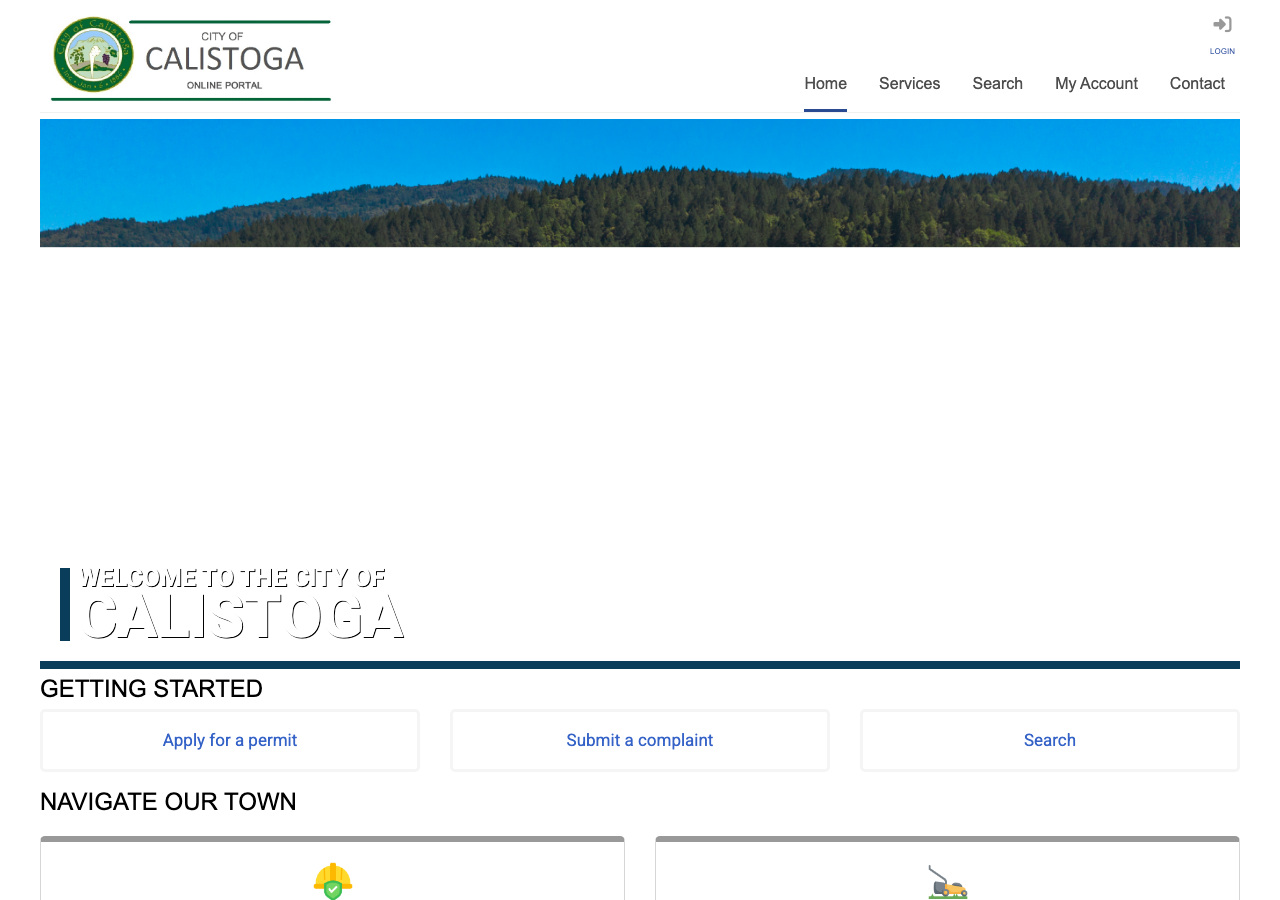

• Which permit portal does this authority use? CitizenServe Online Permit Portal 95% · department page
• Can the whole application be completed online? Yes 80% · department page
• How is the fee calculated? Flat 70% · department page (current)
• Is there a separate plan-check fee? Yes, functionally 60% · department page (current)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Over-the-counter permits (which solar often qualifies for) are typically issued the same day or by the next business day; projects requiring full plan review run approximately 20 working days for the initial review and 10 working days for each subsequent review/resubmittal cycle. 80% · department page (current)
• How long is an issued permit valid before it expires? No local amendment to permit-expiration rules was found in Chapter 15.08 (Building Code) or Chapter 15.12 (Residential Code) amendment sections (both fully extracted; neither contains 'expir', '105.5', '180 days' or similar language) — the unamended 2025 CBC/CRC §105.5 default therefore governs: a permit expires if work is not commenced within 180 days of issuance, or if work is suspended/abandoned for 180 days, subject to Building Official extensions. 55% · ordinance (absence of local amendment; state default inferred)
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 85% · department page (city-side reference to PG&E)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 95% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (2024 IBC base) and 2025 California Residential Code (2024 IRC base), Title 24 Parts 2 and 2.5 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code (2024 IFC base), Title 24 Part 9 95% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? 2025 CBC/CRC/CEC (2023 NEC base)/CFC/Green Building Standards Code, all as locally amended — with no PV-specific local standard anywhere; a residential rooftop solar installation is judged purely against the unamended state model-code provisions for PV (CEC Art. 690, CFC Ch. 12/§605), since Calistoga has added no solar-specific amendment of its own. 85% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No local amendment to CFC §605.11 (rooftop PV access pathways/setbacks) or any equivalent CBC/CRC provision was found; Calistoga's Fire Code amendment list contains zero Section 605 or 1200-series (Ch. 12 Energy Systems) amendments at all — the unamended 2025 CFC's standard pathway and ridge-setback figures apply by default, and ground-mounted arrays are not addressed by any local vegetation-clearance rule either. 75% · ordinance (comprehensive absence, enumerated by section number)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per the unamended NEC 690.12 (Rapid Shutdown), incorporated via the 2023 NEC / 2025 CEC adoption at §15.16.010 80% · adopting ordinance (no local Art. 690 amendment found)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No AHJ-specific placard is required; only the unamended NEC's standard PV disconnect/warning labeling provisions (e.g. 690.13, 690.56) and the unamended CFC §605.11 rooftop marking would apply by default. Unlike Napa County, Calistoga's code contains no chapter adopting a CAL FIRE/OSFM 'Solar Photovoltaic Installation Guideline' or any AB 2188 ordinance to reference for placard content. 65% · ordinance (absence checked)
• Does the authority specify placard wording of its own? No 80% · ordinance (comprehensive, controlled absence)
• Does it specify letter height, colour or material? No 80% · ordinance (comprehensive, controlled absence)
• Where must the labels be placed? No local rule beyond the unamended NEC Article 690 default label-placement provisions; Chapter 15.16 (Electrical Code) contains no local label-placement amendment of any kind (its sole addition, §15.16.020, concerns EV charging stations, not PV). 60% · ordinance (absence checked)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Not explicitly stated in a codified solar provision (none exists), but implicit via the unamended CEC/NEC's general listing requirements (e.g., NEC 110.3(B)) that apply to all electrical equipment installed under the adopted code, including PV modules, inverters and disconnects. 55% · ordinance (inference from unamended base code)
• Are batteries permitted, and under what conditions? Permitted, governed entirely by the unamended 2025 California Fire Code Chapter 12 (Energy Storage Systems) provisions — Calistoga has made zero local amendments to the ESS sections; its Fire Code amendment list (enumerated section-by-section) contains no 1206- or 1207-series entries at all. 70% · ordinance (comprehensive, controlled absence — unamended base code governs)
• Is there a separate ESS permit or inspection? No 55% · ordinance + department page (absence checked)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (primary), also Phone or Email 90% · department page (current)
• How much notice is required? At least 1 business day 85% · department page (current)
• Are same-day or AM/PM windows offered? No same-day option; two fixed windows are offered — mornings 9 a.m.–12 p.m. and afternoons 1 p.m.–3 p.m., Monday through Thursday only (no Friday inspections) 85% · department page (current)

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 75% · department page (inference from absence of any delegation evidence)
• If delegated, to whom? Not delegated — the City's own in-house Building Division performs building/electrical inspection for solar; the separate, also in-house Calistoga Fire Department (CMC §15.36.030 §103.1) would handle any fire-alarm/suppression-permit inspections, though the Fire Code contains no PV/ESS-specific inspection trigger for it to act on. 65% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Calistoga on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 75% · department page (absence checked)
• Does the inspector verify labels and listings? Likely yes, though not stated as a discrete checklist item 50% · published checklist (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 55% · ordinance (inference)
• How are corrections issued and cleared? Corrections are handled through the same portal/phone/email inspection-request channel used for scheduling; CMC §109.7 authorizes a re-inspection fee to be assessed 'when such portion of work for which inspection is called is not complete or when corrections called for are not made.' No separate formal written-correction-notice process specific to solar is described. 60% · ordinance + department page
