City of Camarillo

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · department handout (OCR'd, image-only PDF)
• Is a permit required for a residential rooftop PV system? Yes 97% · fee schedule
• Is there a separate electrical permit, or is it combined? Combined 65% · department handout (OCR'd, image-only PDF)
• Is a HOA or architectural approval required first? No 60% · department handout (OCR'd, image-only PDF)
• Is a wind or windstorm certification required? No 55% · structural criteria worksheet
• Is a Specific Use Permit or Council approval ever required? No -- for a standard eligible residential rooftop or compliant ground-mount install, only an administrative Zone Clearance and a Building & Safety permit are required; there is no Council or Specific-Use-Permit step referenced in any of the city's own PV-specific documents. 55% · department handout (OCR'd, image-only PDF)
• Is there a system-size cap on residential generation? No hard ordinance cap found on residential system size; the SolarAPP+ automated-permitting path is capped at 10 kW AC (CEC rating) per the city's own Solar Eligibility Checklist -- systems above that, or with battery storage or a main panel upgrade, are routed to the standard (non-automated) permit process rather than being barred. 75% · checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · department handout (OCR'd, image-only PDF)
• Must the contractor be registered with this authority before applying? Yes 55% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · department handout (OCR'd, image-only PDF)

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Zone Clearance from Community Development; Photovoltaic Electrical Permit application; UL listings for inverter (UL1741) and module (UL1703); panel count, system kW, and unit weight (psf); two complete sets of plans (legacy handout) now submitted digitally via OpenGov; for the SolarAPP+/expedited path, the completed Eligibility Checklist and, if any item fails, a Structural Criteria worksheet or stamped engineering calculations; a roof/site diagram showing panel layout, access pathways, disconnect locations and roof access points. 85% · checklist + handout

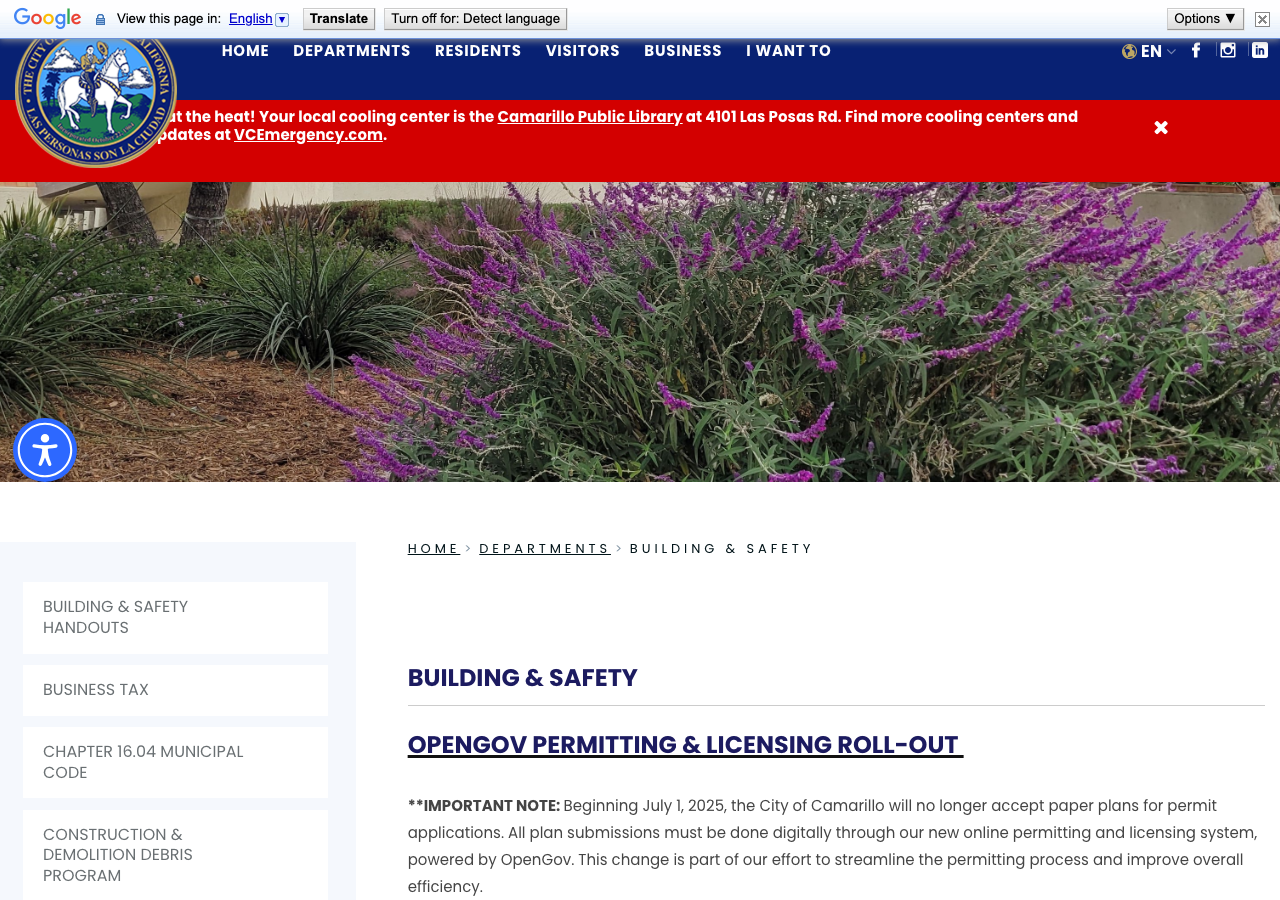

• How many copies, and in what format? Digital only, submitted through the OpenGov customer portal -- as of 1 Jul 2025 the City 'will no longer accept paper plans for permit applications. All plan submissions must be done digitally.' The predecessor PV handout (2021) had called for 'two complete sets of plans,' which is superseded by this policy. 88% · department page (policy notice)
• Is a site plan required, and what must it show? Yes -- a roof/site plan showing the panel/module layout, clear access pathways, and approximate locations of electrical disconnecting means and roof access points (Eligibility Checklist, Fire Safety Requirement D); ground-mount installs additionally require a plan reflecting footing/engineering per the PV handout. 85% · checklist
• Is a one-line / three-line diagram required? Yes 75% · checklist
• Are string and conductor calculations required? Yes 75% · checklist
• Is a structural PE stamp required, and at what threshold? Required whenever the flush-mount prescriptive Structural Criteria are not fully met (any 'N' answer triggers 'project-specific drawings and calculations stamped and signed by a California licensed civil or structural engineer'), and always for elevated/tilt-mounted roof arrays and for any ground-mounted system ('Requires engineering to reflect proper footings' -- PV handout item 9). 90% · structural criteria worksheet

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

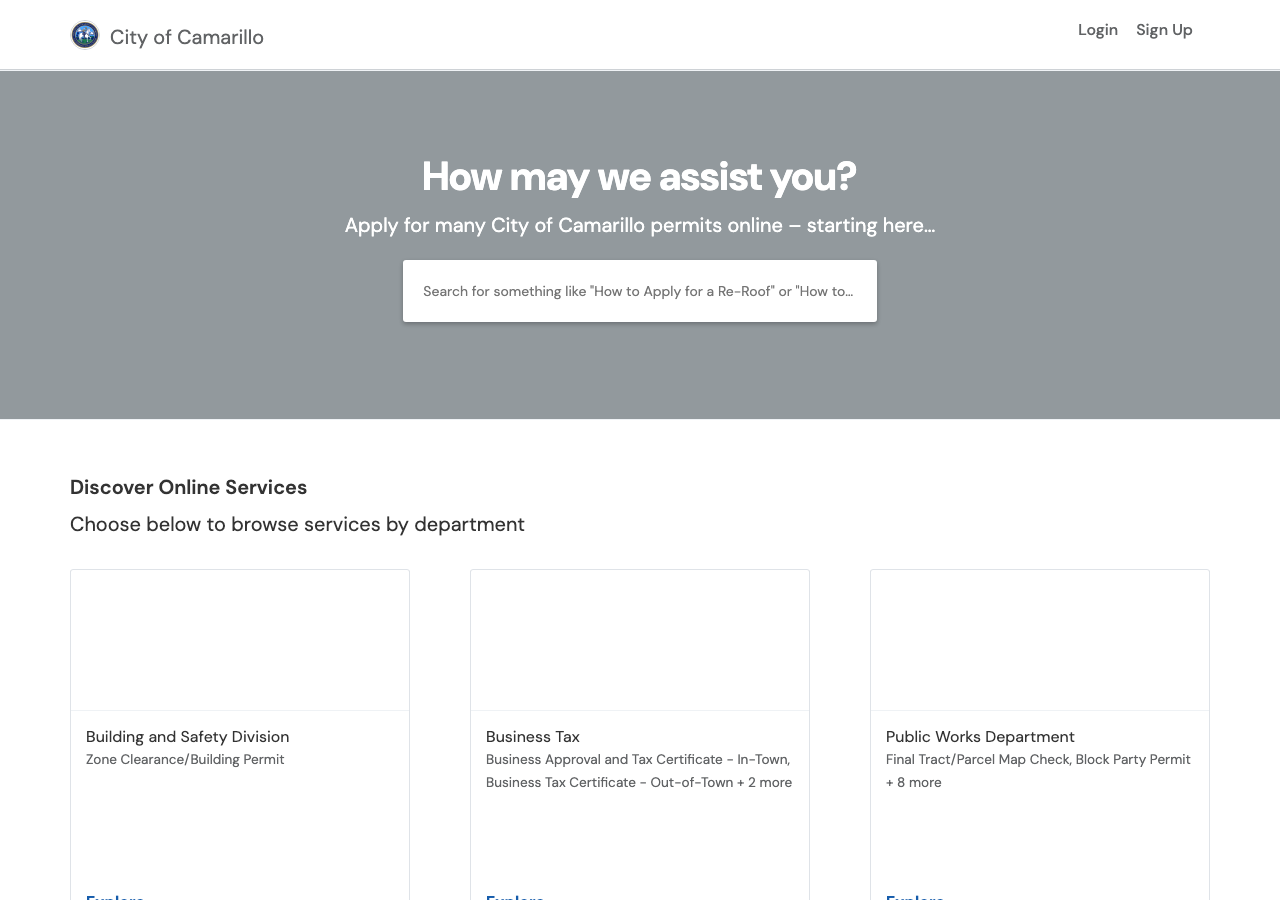

• Which permit portal does this authority use? OpenGov (camarilloca.portal.opengov.com) for standard applications, plan submission, payment, inspection scheduling and business tax; SolarAPP+ (gosolarapp.org) for eligible new residential rooftop PV systems under the automated path. 92% · portal landing page
• Can the whole application be completed online? Yes 90% · portal landing page
• What does a residential solar permit cost? $450 flat for residential up to 15 kW, plus $15 per additional kW over 15 kW (Fee Schedule Exhibit F, Item 16, 'Photovoltaic (Solar) - per GC 66015,' effective 7/1/25; prior fee was $257 + $16/kW). A General Plan Maintenance Surcharge (17.89%) and Technology Surcharge (11.34%) may also apply to this line item per Exhibit G -- the surcharge exemption language only carves out 'nonresidential alterations' and 'residential alterations (nonstructural),' which a new PV install is not -- which would put the effective total near $580 for a base <=15kW system, but the applicability to this specific stand-alone item is not stated explicitly. 80% · fee schedule
• How is the fee calculated? Tiered 82% · fee schedule
• Is there a separate plan-check fee? No 62% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Southern California Edison (SCE) 90% · department page
• Where does the utility sit in the sequence? Parallel 50% · inference (utility manual gated)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (as the 2025 California Electrical Code, Title 24 Part 3) 55% · inference (state code cycle; local ordinance unreadable)
• Which building code edition is in force? 2025 California Building Code / California Residential Code (Title 24 Parts 2 and 2.5), statewide cycle effective 1 Jan 2026 50% · structural criteria worksheet (stale code-cycle citation)
• Which fire code edition is in force? 2025 California Fire Code (with Appendix Chapters D and P), plus portions of the 2024 IFC, the 2025 California WUI Code, the 2024 IWUIC and Title 19 CCR 95% · adopting ordinance
• Are there local amendments to any of the above? Yes 85% · adopting ordinance
• What is the installation judged against? The 2025 CBC/CRC/CEC (Title 24) as adopted statewide, the 2025 California Fire Code as locally amended by VCFD Ordinance 34, and the city's own Structural Criteria / Eligibility Checklist worksheets for the prescriptive/expedited path. 70% · composite / ordinance + handout

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Clear access pathways are required and checked at submittal (Eligibility Checklist, Fire Safety Requirement A: 'Clear access pathways provided'), but neither the checklist, the PV handout, nor VCFD Ordinance 34 restates specific ridge-setback/pathway-width dimensions -- VCFD's ordinance does not amend CFC 605.11 (rooftop PV access), so the unamended 2025 CFC model-code pathway/setback figures would govern, but that text itself was not independently re-verified. 55% · checklist + ordinance cross-check

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown is required as a matter of the adopted NEC (NEC 690.12, carried through whichever edition applies -- inferred to be the 2023 NEC per the 2025 CEC cycle); no Camarillo-specific document was found that separately restates or modifies the rapid-shutdown requirement. 50% · inference

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Required markings/labels per the fire code are checked at submittal and inspection ('All required markings and labels are provided' and 'Fire classification solar system is provided' -- Eligibility Checklist, Fire Safety Requirements B-C), but no Camarillo- or VCFD-specific placard list beyond the state-model 2025 CFC marking requirements was found. 60% · checklist
• Does the authority specify placard wording of its own? No 65% · ordinance + handouts (absence checked)
• Is a site plan / facility map placard required, and what must it show? Yes -- a roof plan/diagram is required showing 'the roof layout of all panels, modules, clear access pathways and approximate locations of electrical disconnecting means and roof access points' (Eligibility Checklist Fire Safety Requirement D); the Structural Criteria worksheet separately requires 'a roof plan of the module and anchor layout' (Solar Array Check E). 82% · checklist + structural worksheet

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No 62% · department handout (OCR'd, image-only PDF)
• Are batteries permitted, and under what conditions? Batteries are NOT eligible under the automated SolarAPP+ path ('Systems including Main Panel Upgrades, and Battery Storage are not currently eligible' -- Building & Safety page; Eligibility Checklist General Requirement D: system must be 'utility interactive and without battery storage'), but ARE permitted through the standard (non-automated) permit process. Residential battery/ESS installs are then subject to a VCFD-specific 'Energy Storage Systems - UL9450A Test Review (Residential Only)' fee, distinct from the PV-only path. 85% · fee schedule + department page + checklist
• Is there a separate ESS permit or inspection? Yes 90% · fee schedule
• Is a ground mount treated as a structure? Yes 80% · department handout (OCR'd, image-only PDF)
• Is there a local rule on service upgrades or busbar sizing? Yes -- for the expedited/SolarAPP+ path, the PV system must interconnect to a single-phase 120/240V service panel with a bus-bar rating of 225A or less (Eligibility Checklist, Electrical Requirements item B). A separate 'Service Panel Upgrade' fee line exists on the fee schedule for jobs that exceed this and need an upgrade. 85% · checklist
• Is a specific mounting system or attachment spacing required? Yes -- flush-mounted arrays must sit 2-10 inches off the roof surface, not overhang roof edges, weigh no more than 4 psf (PV) or 5 psf (thermal), and meet prescriptive maximum horizontal anchor-spacing tables keyed to roof slope and rafter spacing (Table 1) and maximum rafter span tables (Table 2); anything outside those tables requires stamped engineering. 92% · structural criteria worksheet

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 85% · department page
• Are same-day or AM/PM windows offered? Yes -- AM/PM windows: Morning Inspections 9:00 AM-12:00 PM, Afternoon Inspections 1:00 PM-4:00 PM. Same-day inspections are implicitly available since the page instructs callers to cancel 'same day inspections' by phone to avoid a re-inspection fee. 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · department page
• If delegated, to whom? Ventura County Fire Protection District (VCFD) -- but only for commercial PV and for residential battery/ESS systems (UL9450A test/inspection); standard residential PV-only installs are not delegated to VCFD for final inspection. 75% · fee schedule + ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? A single Photovoltaic Electrical Permit final inspection is the documented stage for a standard PV-only array (no separate rough-in stage described in the city's own PV handout); a service-panel-upgrade or battery/ESS component adds its own inspection tied to that separate permit fee line. 55% · department handout (OCR'd, image-only PDF)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 75% · checklist
• What must be on site at inspection? UL listings for the inverter and module (UL1741/UL1703), the approved/stamped plans (including any structural engineering calculations where required), and the completed Eligibility Checklist or Structural Criteria worksheet with job address, contractor license number and class filled in. 68% · structural worksheet + handout
• Does the inspector verify labels and listings? Yes 78% · checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 55% · inference
• Who notifies the utility for PTO? Installer 55% · inference (utility manual gated)
• Is there a re-inspection fee? $146 (Missed Inspection / Excess Re-Inspection Fee, up from $56) -- a general fee applying to any permit type including PV, per the Fee Schedule. 85% · fee schedule
