City of Capitola

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 97% · department page
• Is there a separate electrical permit, or is it combined? Combined 85% · fee schedule
• Is a HOA or architectural approval required first? No 92% · municipal code
• Is there a historic-district review? Yes, conditionally 90% · municipal code
• Is a Specific Use Permit or Council approval ever required? Yes, in limited cases: the Building Official may require a conditional use permit (appealable to the Planning Commission, then City Council) if there is substantial evidence the system could have a 'specific, adverse impact' on public health/safety; also possible for historic-resource properties 92% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating (or 30 kW thermal) on a single- or two-family dwelling qualifies as a 'small residential rooftop solar energy system' eligible for the expedited/AB 2188 process; larger or non-qualifying residential systems remain permittable, just outside Ch. 15.10 and billed on a valuation basis instead of the $498 flat fee 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed contractor (electrician or solar C-46); homeowner may self-permit under the standard owner-builder exemption 68% · department handout
• Must the contractor be registered with this authority before applying? Yes for the SolarAPP+ path (must register with the SolarAPP+ platform); standard iWorQ portal only needs an account, no separate city pre-registration 78% · department page
• Is a homeowner permitted to self-install and self-permit? Yes, via the standard (non-SolarAPP+) permit track as an owner-builder; the SolarAPP+ automated path is contractor/platform-registration oriented 60% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? (a) Manufacturer label/listing specs for all array components; (b) demonstrated compliance with the Eligibility Checklist for Expedited Solar Photovoltaic Permitting; (c) completed electrical plan + single-line diagram; (d) roof plan showing panel layout and fire-safety items (access point, pathways, fire classification, label locations); (e) completed Structural Criteria for Expedited Solar PV Permitting form (Toolkit Doc #5); (f) for non-qualifying systems, PE-stamped structural drawings/calcs; (g) Smoke Detector/CO Self-Certification form 95% · department page
• How many copies, and in what format? Electronic only — submitted via the iWorQ online portal or by email/Internet; no paper-copy count specified 85% · municipal code
• Is a site plan required, and what must it show? Yes — a site/roof diagram showing panel arrangement, north arrow, lot dimensions, distance from property lines to adjacent structures, roof access point, code-compliant access pathways, fire classification, and label locations 92% · department page
• Is a one-line / three-line diagram required? Yes 95% · department page
• Are string and conductor calculations required? Yes (implied) — the required electrical plan must show total modules, modules per string, total strings, and conductor/conduit type and size 78% · department page
• Is a structural PE stamp required, and at what threshold? Yes, for systems outside the SolarAPP+/Toolkit eligibility path ('non-qualifying systems') — structural drawings and calculations must be stamped and signed by a California-licensed Civil or Structural Engineer 88% · department page

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

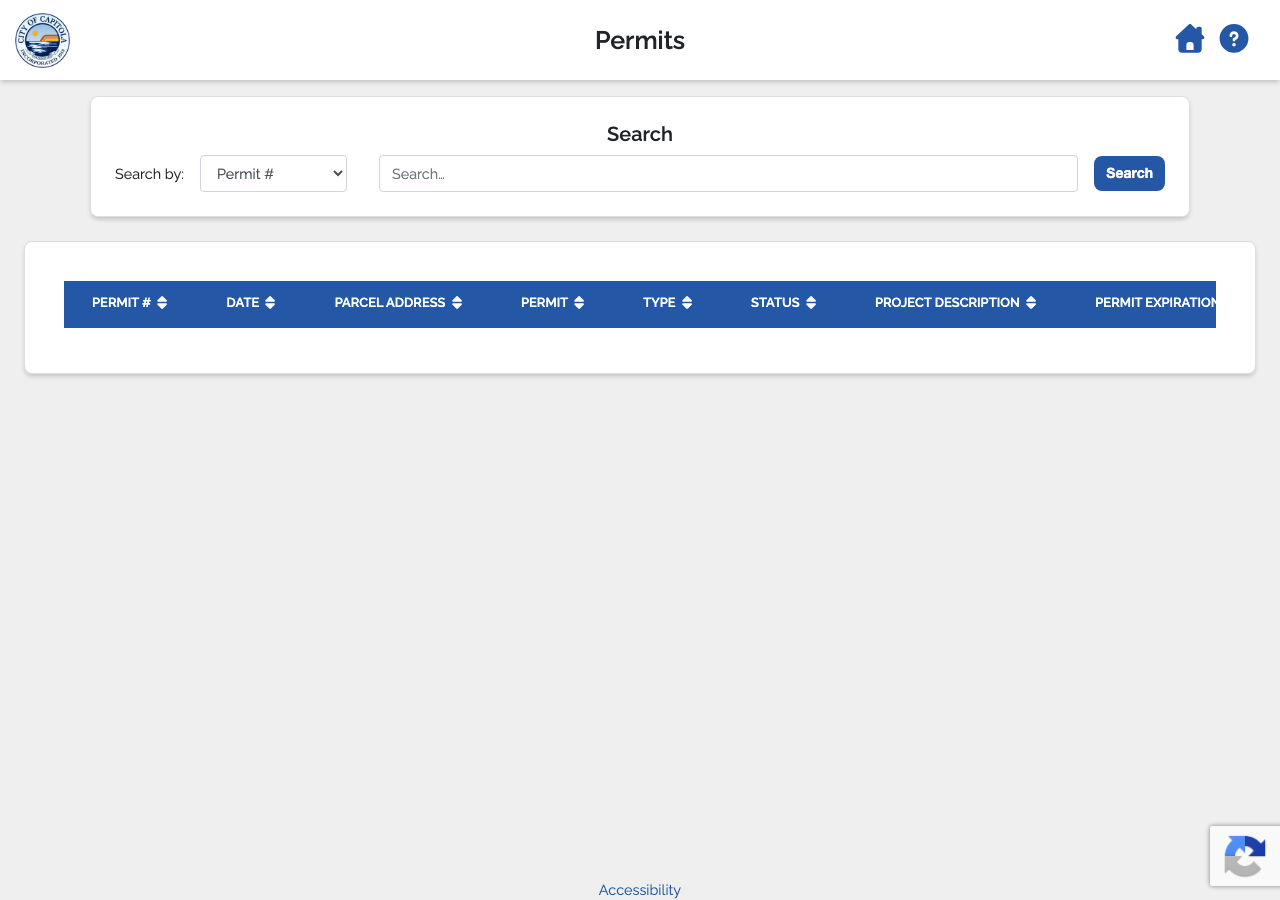

• Which permit portal does this authority use? iWorQ (portal.iworq.net/CAPITOLA/permits/600) for standard building permits; SolarAPP+ (solarapp.nrel.gov) for eligible expedited residential PV 93% · portal landing page
• Can the whole application be completed online? Yes 90% · department page
• What does a residential solar permit cost? $498.00 flat for a qualifying residential Solar P.V. System (SolarAPP+/expedited path); ESS and any work outside the solar scope are billed on a valuation basis (Table 1-A); home battery permit is $0.00 when bundled with the solar permit; re-roof with solar removal/reinstallation adds $180 to the standard re-roof fee 95% · fee schedule
• How is the fee calculated? Flat 85% · fee schedule
• Is there a separate plan-check fee? No 70% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 5 business days for a complete, checklist-conforming ('qualifying') application; timeline for non-qualifying/larger systems is not separately published 88% · municipal code
• How long is an issued permit valid before it expires? 180 days to commence work from issuance, or if more than 180 days pass between inspections; the Building Official may grant one or more 180-day extensions in writing for justified cause 90% · municipal code
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 60% · utility program page (territory inferred, not city-confirmed)
• Where does the utility sit in the sequence? Parallel (application can be submitted before/during construction), converging at Permission to Operate, which requires a signed-off building permit 58% · utility program page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 (inferred base edition of the adopted 2025 California Electrical Code) 65% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code and appendices (Ord. 1071, 2025) 85% · adopting ordinance / department page
• Which fire code edition is in force? 2025 California Fire Code, as amended by the Central Fire Protection District 82% · municipal code
• Are there local amendments to any of the above? Yes 95% · municipal code
• What is the installation judged against? The California Electrical Code plus applicable safety/performance standards of the IEEE, accredited testing laboratories (e.g. UL), and CPUC rules on safety/reliability 90% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Capitola on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required per the adopted 2025 CEC (NEC Art. 690.12); no local amendment removes or alters it 62% · municipal code (absence of amendment proved)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No Capitola-specific placard list; the city's own submittal instructions point applicants to the default CEC Art. 690/705 markings (PV power-source warning, junction/combiner-box shock warnings, AC/DC disconnect labels, rapid-shutdown label, service/inverter disconnect plaque) 55% · linked generic statewide guidebook (not authority-authored)
• Does the authority specify placard wording of its own? No 78% · municipal code (absence proved)
• Does it specify letter height, colour or material? No local spec; only the generic (non-Capitola) statewide guidebook it links specifies '3/8-inch minimum white letters on a red background, reflective weather-resistant material' for the CEC 690.31(G) conduit/PV-power-source markings 55% · linked generic statewide guidebook (not authority-authored)
• Is a site plan / facility map placard required, and what must it show? A plaque or directory at the electrical service (and at the inverter if elsewhere) showing the location of the service disconnect and the PV system disconnect, per CEC 690.56(B)/705.10 as referenced in the required submittal roof/site plan (which must itself show panel layout, access pathways, fire classification and label locations) 65% · department page

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes (implied) 75% · department page
• Are batteries permitted, and under what conditions? Yes. A home battery is permitted at $0.00 additional Building fee when installed in combination with a qualifying solar PV permit. A standalone or larger/non-qualifying Energy Storage System (ESS) is billed separately on a valuation basis for BOTH the Building permit and, separately, for Fire ('Solar Photovoltaic Energy Storage System (ESS) Permitting Fees for Fire — Fees are based on valuation') 85% · department page
• Is there a separate ESS permit or inspection? No separate permit for a battery bundled with a qualifying solar PV system (folded into the single $498 solar permit at $0 add-on); Yes, a separately fee'd process (Building AND Fire, both valuation-based) applies once ESS falls outside that bundled scope 75% · fee schedule

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (online web form) 90% · department page
• How much notice is required? 48 hours 93% · department page
• Are same-day or AM/PM windows offered? No same-day service and no narrow AM/PM choice — all inspections are scheduled in a single afternoon window, 1:00-4:00 p.m., Monday-Friday, at least 48 hours out 88% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · department page
• If delegated, to whom? N/A — not delegated 85% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a qualifying small residential rooftop system: a single consolidated final inspection by the Building Division (re-inspection allowed on failure). Non-qualifying/larger systems follow the standard multi-stage building-permit inspection sequence. 88% · municipal code
• Is a rough-in or mid-roof inspection required? No for a new qualifying PV install (single consolidated final inspection under 15.10.060(H)). Yes, an in-progress/mid-roof inspection sequence IS required when REROOFING a home with existing PV — Pre-Roofing/Tear-Off, Sheathing, an In-Progress inspection at 25-75% of roof coverage, and Final. 85% · department handout

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Referenced but not independently located as a standalone document: the SolarApp+ page twice names an 'Eligibility Checklist for Expedited Solar Photovoltaic Permitting' that applicants must demonstrate compliance with, but neither instance is hyperlinked, and no such PDF appears on the Forms page or the Resources page. The SolarAPP+ platform itself enforces an equivalent checklist automatically during the online review. 50% · department page (referenced document unlinked)
• Does the inspector verify labels and listings? Yes (implied) 62% · department handout

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer/contractor 55% · utility program page
• Is there a re-inspection fee? $208.00 90% · fee schedule
• How are corrections issued and cleared? A written correction notice detailing all deficiencies and any additional information/documentation required is sent to the applicant for resubmission 88% · municipal code
