City of Chula Vista

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes - the City of Chula Vista Development Services Department (Building Division) is the AHJ for residential solar inside the city limits 95% · department permit page
• What does this authority permit itself, and what does it delegate? Both - Development Services permits, plan-checks and field-inspects the building/structural and the electrical work itself. Nothing is delegated to San Diego County. Fire code administration sits with the Chula Vista Fire Department (CVMC 15.36), but no separate residential-solar fire permit or fire fee is published. 88% · master fee schedule bulletin 10-400 (Sep 2024)
• Is a permit required for a residential rooftop PV system? Yes - a building permit is required for a residential rooftop PV system 95% · municipal code (CVMC 15.06.080)
• Is there a separate electrical permit, or is it combined? Combined - one permit. The City issues a single Residential Solar permit (Form 4562C / Accela record type 'Residential Solar Energy' or 'Solar Permit with Solar App Plus') covering the electrical work; there is no separate electrical permit for the PV system. A main-panel upgrade taken with the PV work is a separate fee line ($203) on the same job, and requires an SDG&E work order. 85% · master fee schedule bulletin 10-400 (Sep 2024)
• Is a HOA or architectural approval required first? No. No City document conditions a solar permit on HOA or architectural approval, and CVMC 15.29 makes the expedited path administrative and non-discretionary. 85% · municipal code (absence)
• Is there a historic-district review? Yes, conditionally - and it is a gate that runs BEFORE the solar permit application. The applicant must check whether the structure is a designated or eligible historic resource using the City's Historic Home Finder GIS (gis.chulavistaca.gov/histhomefinder) by APN or address. If it is designated or eligible for designation, Historic Eligibility Clearance must be obtained before applying, and the work must conform to the Secretary of the Interior's Standards for Rehabilitation, 'Incorporating Solar Panels in a Rehabilitation Project'. Form 4562C asks up front 'Is building greater than 45 years old?' and 'Historic Yes/No', and lists 'Historic Eligibility clearance, if required' as a submittal item. 90% · department permit page + application form
• Is a wind or windstorm certification required? No. Chula Vista publishes no wind or windstorm certification requirement - that is a Gulf-coast construct with no California analogue. Wind is handled as ordinary structural design under the 2025 CBC/CRC (ASCE 7). 80% · municipal code (absence)
• Is a Specific Use Permit or Council approval ever required? Only in the exception case, and never by Council. Under CVMC 15.29.050 the Building Official may require a use permit if he makes a finding based on substantial evidence that the project could have a specific, adverse impact on public health and safety; under 15.29.060 the City may deny on written findings of an unmitigable specific adverse impact. Decisions of the Building Official are appealable to the Planning Commission. Zoning does not add a step: CVMC 19.58.142(F) provides that a 'residential-level facility' - an electrical generating facility serving an individual private dwelling - is 'subject to and governed by CVMC Title 15', i.e. the building code, while the CUP requirement in 19.58.142 applies to the other electrical-generating-facility sub-types. 90% · municipal code (CVMC 15.29.050 / 19.58.142(F))
• Is there a system-size cap on residential generation? No cap on residential generation. The only kW figure in the code is an ELIGIBILITY threshold, not a limit: CVMC 15.29.010 defines a 'small residential rooftop solar energy system' as no larger than 10 kW AC nameplate (or 30 kW thermal), on a single- or duplex-family dwelling, not exceeding the maximum legal building height. Above 10 kW AC the system is simply permitted on the standard path at the higher fee, not refused. The zoning definition of 'residential-level facility' (CVMC 19.04.002) carries no size figure. 90% · municipal code (CVMC 15.29.010)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either - a California state-licensed contractor (who must also hold a valid City of Chula Vista business licence) or the property owner as owner-builder 92% · department process page
• Must the contractor be registered with this authority before applying? Yes - a valid City of Chula Vista business licence is required to perform work in the city, and contractors using the online path must also be registered in the Accela Citizen Access portal 90% · department process page
• Is a homeowner permitted to self-install and self-permit? Yes - owner-builder self-permit is expressly allowed; the owner must sign an owner-builder disclaimer certificate before issuance, and the solar page gives a property-owner submittal route (Building Permit Application + 2 sets of plans) 90% · department process page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per Form 4562C (Residential Solar Application, Rev 10.23): (1) the completed signed application with site address, APN, building age / historic flag, owner, contractor, State licence and Chula Vista business licence; (2) two complete sets of fully dimensioned scaled plans; (3) one site/plot plan (NOT required for roof-mount residential); (4) a roof plan showing roof layout, PV panels, approximate roof access point location, code-compliant access pathways, PV system fire classification and the locations of all required labels and markings per the current California Residential and Fire Codes; (5) Historic Eligibility clearance if required; (6) SDG&E work order for an electric panel upgrade, if applicable; (7) manufacturer's specification sheets for system components and for roof-penetration waterproofing method and material; (8) project valuation. On the expedited path, instead: the SolarAPP+ unique ID plus the SolarAPP+ forms/plans packet, uploaded to Citizen Access. 90% · published application/checklist (Form 4562C, Rev 10.23)
• How many copies, and in what format? Two complete sets of plans plus one plot plan and supporting documents - but submitted electronically. Since 13 December 2024 all new submittals go through Citizen Access / e-PlanSoft Electronic Plan Review as PDFs; plan-set sheet numbering must be bottom-right, 2-12 characters, and each file under 400MB. 80% · published application/checklist + EPR page
• Is a site plan required, and what must it show? A site/plot plan is required EXCEPT for roof-mount residential, where Form 4562C expressly waives it. What is always required instead is a roof plan showing roof layout, PV panel layout, approximate location of the roof access point, location of code-compliant access pathways, PV system fire classification, and the locations of all required labels and markings per the current California Residential and Fire Codes. For a ground mount the plot plan is required and, per the older Form 4613, should show site address, responsible parties, scope, property lines and dimensions, adjacent streets, existing buildings, setback distances, location of existing electrical services and panels, and the location of all solar equipment. 85% · published application/checklist (Form 4562C, Rev 10.23)
• Is a one-line / three-line diagram required? Yes - an electrical single-line diagram is required on the standard (non-SolarAPP+) path 70% · published checklist (Form 4613 - stale, cites 2001 CBC / 2004 CEC)
• Are string and conductor calculations required? Yes in substance - conductor sizing and overcurrent data must appear on the plans. Form 4613 requires conductor size and insulation type, grounding, ground-fault protection, disconnect location, amperage loading and a voltage description of all circuits, plus system ratings (operating current, voltage, maximum voltage, short-circuit current) and the number of modules in series and groups in parallel. On the SolarAPP+ path the string and conductor sizing is computed inside SolarAPP+ and printed on the approval/inspection checklist rather than submitted by the applicant. 70% · published checklist (Form 4613 - stale) + SolarAPP+ example checklist
• Is a structural PE stamp required, and at what threshold? Not routinely. No stamp is called for on a flush, roof-plane-parallel residential array. Form 4613 requires structural calculations/analysis only where the modules are installed at an angle to the roof (the plane of the modules not parallel to the plane of the roof), and then 'Calculations must be stamped and signed by a California licensed engineer or architect.' Application General Information adds the general rule that 'A licensed California architect or engineer may be required to prepare plans.' No kW or square-foot threshold is published. 75% · published checklist (Form 4613 - stale, cites 2001 CBC)
• Is an electrical PE stamp required, and at what threshold? None published. No City document requires an electrical PE stamp for a residential PV system at any threshold. 70% · department forms index + checklists (absence)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

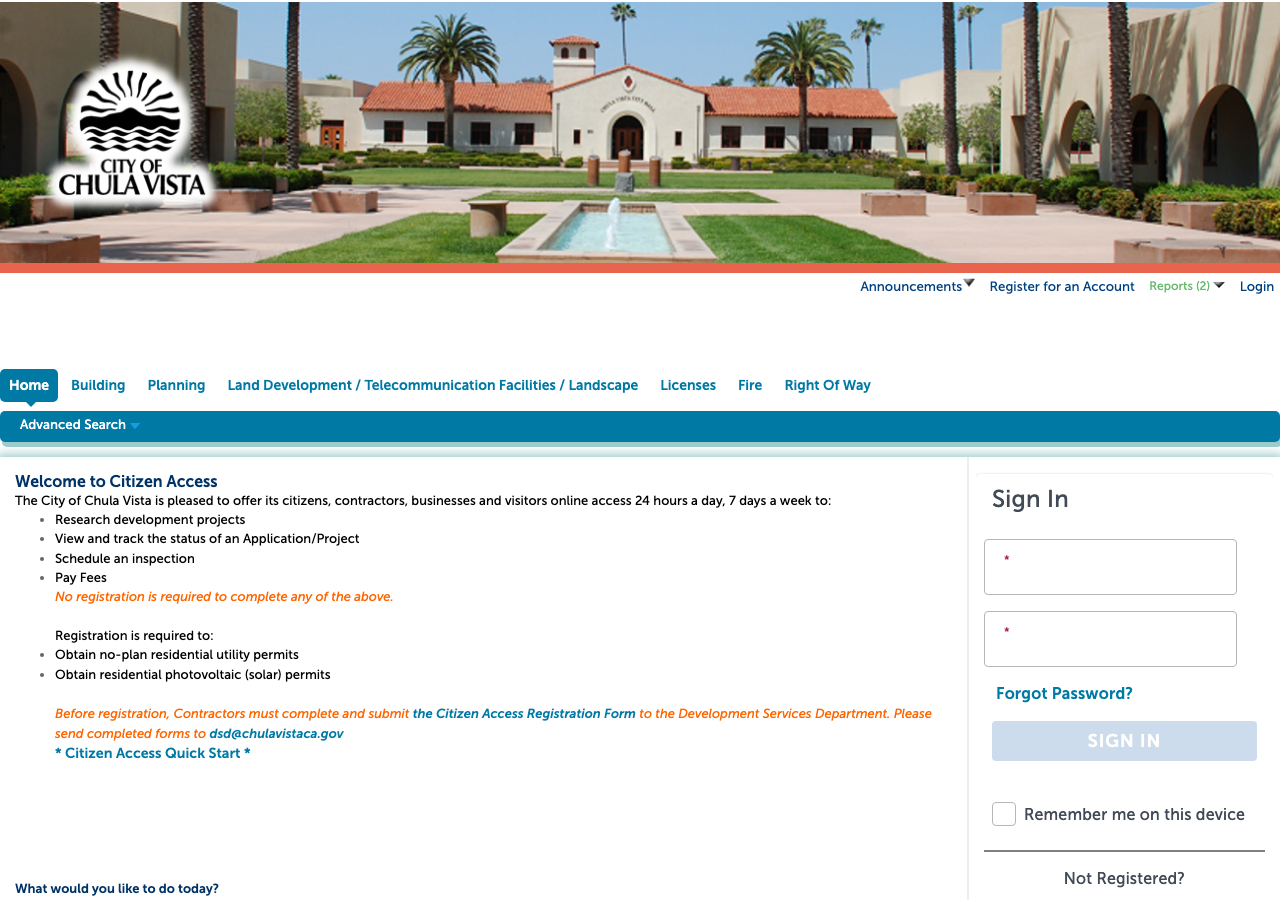

• Which permit portal does this authority use? Accela Citizen Access at permits.chulavistaca.gov/citizenaccess/chulavista.aspx (older City documents give the same portal as pip.chulavistaca.gov) for application, fees, inspection booking and results; e-PlanSoft Electronic Plan Review behind it for plan review and corrections since 13 Dec 2024; and NREL SolarAPP+ (gosolarapp.org) as the mandatory front end for expedited solar permits since 28 June 2023. 92% · department permit page + portal landing
• Can the whole application be completed online? Yes. Application, fee payment, plan upload, corrections and resubmittal, inspection booking and results are all online; SolarAPP+ permits are issued instantly on submission of the SolarAPP+ ID and packet. In-person submittal at the Development Services counter, 276 Fourth Avenue Building B, remains available as an alternative. 90% · department permit page
• What does a residential solar permit cost? $453 total on the SolarAPP+ expedited path ($30 intake + $0 plan check + $423 inspection); $722 total on the standard path ($70 intake + $158 plan check + $494 inspection). A main-panel upgrade taken with the PV is a further $203 ($0 + $62 + $141). Commercial or multifamily is $1,683 for the first 500 panels. 92% · master fee schedule bulletin 10-400 (Sep 2024)
• How is the fee calculated? Flat per system, in two tiers by processing path (expedited vs traditional), built up from three flat components: intake fee + plan check fee + inspection fee. Not valuation-based and not per-kW for residential. Commercial/multifamily is tiered per 500 panels. 92% · master fee schedule bulletin 10-400 (Sep 2024)
• Is there a separate plan-check fee? Yes on the standard path ($158), no on the SolarAPP+ path ($0) 92% · master fee schedule bulletin 10-400 (Sep 2024)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 10 business days for the first review of a Residential Solar Energy project; 5 business days for a recheck; 10 business days for a plan change. On the SolarAPP+ path review is instant - the approval is generated by SolarAPP+ and the Citizen Access submittal returns an approved permit number. 90% · department process page (plan check goals table)
• How long is an issued permit valid before it expires? 365 days to start work: a permit expires if work is not commenced within 12 months of issue, or if work is suspended or abandoned for 180 days after commencement. Extensions of up to 180 days each may be granted by the Building Official on written request. Separately, an application on which no permit issues within 12 months expires. 92% · municipal code (CVMC 15.06.090(D))
• Which utility handles interconnection here? San Diego Gas & Electric (SDG&E). San Diego Community Power is the Community Choice Aggregator serving Chula Vista, but it supplies generation and billing only and does NOT run interconnection. 95% · utility interconnection page + CCA page + city application form
• Where does the utility sit in the sequence? Parallel, with a hard dependency at the end. The SDG&E interconnection application is filed by the contractor separately from and alongside the City permit; the City permit does not authorise energisation; SDG&E issues Permission to Operate after the installation is complete and the AHJ inspection has passed. One SDG&E step can precede the permit: a work order is needed for an electric panel upgrade and must be submitted with Form 4562C. 85% · municipal code (CVMC 15.29.020(F)) + CCA process page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 95% · adopting ordinance (CVMC 15.24.010, Ord. 3610, 2025)
• Which building code edition is in force? 2025 California Building Code (Title 24 Part 2, including Appendices I and Q) and 2025 California Residential Code (Title 24 Part 2.5, including Appendices BB, BF, BJ, CI and CJ), both excluding Chapter 1 Division II 95% · adopting ordinance (CVMC 15.08.010 / 15.09.010, Ords. 3604 & 3605, 2025)
• Which fire code edition is in force? 2025 California Fire Code, including Appendix Chapters 4, B, BB, C, CC, H and P and the California Standards, with local amendments 95% · adopting ordinance (CVMC 15.36.005/.065, Ord. 3613, 2025)
• Are there local amendments to any of the above? Yes, but none of them bite on residential rooftop PV. Building: CVMC 15.08.020 adds Exception 7 to CBC 705.12 (R-to-office conversions) and 15.08.030 adds CBC 1511.6.4 requiring rooftop equipment to be screened from view - with an express 'Exception: Solar collectors.' Electrical: CVMC 15.24.035 (no reuse of previously used materials without Building Official approval), 15.24.045 (separate distribution panels per dwelling), 15.24.050 (circuit card posted before rough inspection), 15.24.055 (electric fences prohibited), 15.24.060 (amends CEC 408.3(E)(1) phase arrangement). Residential Code: no amendments at all. Fire: amendments to CFC Chapters 1, 2, 5, 9, 56 and the appendices - none to Chapter 12 Energy Systems. Separately, CVMC 20.04.040 requires PV pre-wiring conduit in all NEW residential units and 20.04.030 solar water-heater pre-plumbing, both gates on issuing the building permit for the new dwelling, not on a retrofit PV permit. Note also that the two former solar-specific electrical amendments are gone: CVMC 15.24.065 (PV pre-wiring) was repealed by Ord. 3473 in 2019 and 15.24.070 (small residential rooftop solar) by Ord. 3373 in 2016. 90% · municipal code (multiple chapters)
• What is the installation judged against? The 2025 California Electrical Code (Title 24 Part 3 = 2023 NEC), including Articles 690 and 705 unamended by the State, plus the five Chula Vista electrical amendments at CVMC 15.24.035, .045, .050, .055 and .060, and the administrative provisions of CVMC 15.06. In the field the inspector works to the approved plans plus, on the expedited path, the SolarAPP+ approval/inspection checklist. 88% · adopting ordinance + inspection references

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? State code as written, unamended: 2025 CFC Chapter 12 (CFC 1205) and 2025 CRC R329 govern ridge setbacks and access pathways, because CVMC 15.36.065 adopts CFC Chapter 12 with no amendment and CVMC 15.09 adopts the CRC with no amendments at all. The City's own compliance mechanism is on the plans: Form 4562C requires the roof plan to show 'approximate location of roof access point, location of code-compliant access pathways, PV system fire classification and the locations of all required labels and markings as required by the current California Residential and Fire Codes'. FLAG: the City's Comprehensive Inspection Reference still tells inspectors to check pathways against 'CFC 605.11.3.1 - 605.11.3.3.3, CRC R331.4.1 through R331.4.2.4' and the SolarAPP+ example checklist against '2018 International Residential Code [IRC 324.6]' - all dead numbering. An installer following the City's PDFs would be building to the wrong edition of the pathway rules. 85% · adopting ordinance + application form

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes - rapid shutdown to NEC 690.12 as adopted in the 2025 CEC (2023 NEC), with no California or Chula Vista amendment. In the field the City checks for a rapid shutdown initiation device at a readily accessible location outside the building, its labelling, and the service-disconnect rapid shutdown placard. FLAG: the City's Example SolarAPP+ Inspection Checklist is a 2023 document generated against NEC 2017 and cites 690.12(C) and 690.56(C); the live SolarAPP+ output for a permit pulled today will be against the currently adopted edition. 85% · adopting ordinance + SolarAPP+ example checklist (2023, NEC 2017)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Three groups. (1) The City's OWN 'Solar Placard' form - a directional site-plan placard at the service equipment showing the building, the PV array on roof, inverter location, PV system disconnect, service point and utility metering, storage batteries in garage (or identified room), stationary engine generator, and any remote wind/PV array, headed 'CAUTION - Power to this building is also supplied from the following sources with disconnects located as shown'. (2) The 'WARNING: PHOTOVOLTAIC POWER SOURCE' marking adjacent to the main service disconnect and repeated on all DC conduit, raceways, cable assemblies, junction/combiner boxes and disconnects. (3) On the SolarAPP+ path, the SolarAPP+ Fire Bulletin set: the rapid-shutdown placard at the service disconnect ('SOLAR PV SYSTEM IS EQUIPPED WITH RAPID SHUTDOWN / TURN RAPID SHUTDOWN SWITCH TO THE "OFF" POSITION TO SHUT DOWN CONDUCTORS OUTSIDE THE ARRAY. CONDUCTORS IN ARRAY REMAIN ENERGIZED IN SUNLIGHT.') with a simple diagram, 'RAPID SHUTDOWN SWITCH FOR SOLAR PV SYSTEM' at the initiation device, and at the point of interconnection 'WARNING: EQUIPMENT FED BY MULTIPLE SOURCES LOCATION OF DISCONNECTING MEANS' and 'WARNING: DUAL POWER SOURCE SECOND SOURCE IS PV SYSTEM'. Plus the module/system rating labels of CEC 690.51/690.53. 88% · city placard form + inspection reference
• Does the authority specify placard wording of its own? Yes - twice over. The City's Solar Placard form fixes its own heading wording, 'CAUTION - Power to this building is also supplied from the following sources with disconnects located as shown', and its own note text 'PV disconnecting means shall be installed at a readily accessible location either outside of a building or structure or inside nearest the point of entrance of the system conductors per the requirements of article 690.14(c)'. The older Form 4613 additionally prescribes three exact legends: adjacent to the main electrical service, 'This electrical service is also served by a photovoltaic (solar) power system, 1 of 2 Disconnects'; at the main electrical service photovoltaic disconnect, 'Photovoltaic Disconnect Means, 2 of 2 Disconnects'; and where terminals may be energised in the open position, 'Warning-Electrical shock hazard - Terminals on both lines and load sides may be energized in the open position. Dual Power Supply-Photovoltaic System.' 85% · city placard form (2017) + Form 4613 (2014)
• Does it specify letter height, colour or material? Yes, on both. The City's Solar Placard form dimensions its own artwork: 3/4 inch minimum for the 'CAUTION' header, 1/4 inch minimum for the body text, 1/8 inch minimum for the equipment call-out labels. For the photovoltaic warning marking the Comprehensive Inspection Reference specifies 3/8 inch (9.5 mm) minimum white letters on a red background, on reflective weather-resistant material, and requires that 'Required labels shall be permanent and suitable for the environment.' 88% · city placard form + inspection reference
• Is a site plan / facility map placard required, and what must it show? Yes - and this is the strongest single artefact Chula Vista publishes. The 'Solar Placard' form IS a site-plan / facility-map placard template. It must show, in plan and oriented to the viewer: the building outline, the solar photovoltaic array on roof, the inverter location, the PV system disconnect, the service point and utility metering, storage batteries in garage (or the identified room), any stationary engine generator, any wind turbine or remote solar PV array 'per zoning requirements', and the site fences. The note is explicit on orientation: 'Directional Placard shall be oriented relative to where an individual will be standing looking at the placard. Meter panel to be at the bottom of placard when oriented correctly. Also identify any associated equipment.' 90% · city placard form
• Does the UTILITY specify placards beyond the AHJ's? Nothing extra for a normal residential rooftop system. SDG&E's published Electric Distribution System Interconnection Handbook requires, where an isolating device is required by SDG&E's operating practices, that the device 'include markings or signage that clearly indicates open and closed positions', that it be 'clearly marked on the submitted single line diagram', and that 'if the device is not adjacent to the PCC, permanent signage must be installed at an SDG&E approved location providing a clear description of the location of the device'. That handbook expressly exempts generating facilities with non-islanding inverters totalling 1 kVA or less, and is written for Rule 21 generating facilities generally rather than for residential Solar Billing Plan rooftops. No SDG&E residential-specific placard set beyond the AHJ's was found. 60% · utility interconnection handbook (2015)
• Where must the labels be placed? Per the City's own documents: the CAUTION site-plan placard goes at the service equipment (oriented with the meter panel at the bottom); the 'WARNING: PHOTOVOLTAIC POWER SOURCE' marking goes adjacent to the main service disconnect, in a location clearly visible from where the disconnect is operated; conduit, raceway and cable-assembly markings go every 10 feet, within one foot of all turns or bends, and within one foot above and below all penetrations of roof/ceiling assemblies, walls and barriers; all interior and exterior DC conduit, enclosures, raceways, cable assemblies, junction boxes, combiner boxes and disconnects must be marked; where PV circuits are embedded in built-up, laminate or membrane roofing in areas not covered by modules, the circuit location must be clearly marked. On the SolarAPP+ path: the rapid-shutdown placard no more than 3 ft (1 m) from the service disconnecting means, and the 'RAPID SHUTDOWN SWITCH FOR SOLAR PV SYSTEM' label at the initiation device and no more than 3 ft from the switch. 88% · inspection reference + placard form + SolarAPP+ checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? No published distance from the meter, by either party. SDG&E's Interconnection Handbook requires, where its operating practices call for one, a ganged manually-operated isolating switch 'near the Point of Interconnection', capable of visible verification of separation, lockable in the open position, marked for open/closed, reachable quickly and conveniently 24 hours a day by SDG&E personnel without obstacles, keys, special permission or security clearances, and with its type and location approved by SDG&E prior to installation - with permanent signage giving its location if it is not adjacent to the PCC. Facilities with non-islanding inverters totalling 1 kVA or less are exempt. Chula Vista adds nothing: its Comprehensive Inspection Reference simply says DC disconnects are 'located as allowed by the AHJ' and that disconnects must be 'according to the approved plan and properly located as required by the CEC', and the City's Solar Placard note repeats CEC 690.14(C) - readily accessible, outside the building or inside nearest the point of entrance of the system conductors. 55% · utility interconnection handbook (2015) + city inspection reference
• Must equipment be on a specific approved list? No specific City approved list. Equipment must be listed and labelled to the standards the code names and installed per the listing: modules to UL 1703 (and, current-code, UL 61730), inverters to UL 1741 and marked 'utility interactive', combiner boxes to UL 1741, DC-rated overcurrent devices, hazard control systems to UL 3741. Form 4562C requires manufacturer's specification sheets for all proposed components; Form 4613 requires the spec sheets to 'indicate the listing agency'. CVMC 15.06.015 defines 'listed' by reference to an approved testing laboratory, and CVMC 15.24.035 bars reuse of previously used materials without the Building Official's approval. 85% · inspection reference + application form + municipal code
• Are batteries permitted, and under what conditions? Yes, permitted, on the same residential solar permit. Form 4562C offers 'Solar Photovoltaic + Battery Storage System' and 'Solar Photovoltaic + Electric Panel Upgrade + Battery Storage System' as system types. The technical conditions are the State's, unamended: CVMC 15.36.065 adopts CFC Chapter 12 'Energy Systems' with no local amendment, so CFC 1207 governs, and CVMC 15.09 adopts the 2025 CRC with no amendments, so CRC R330 governs a one- or two-family dwelling. The City's Solar Placard form expects the placard to identify 'Storage batteries in garage (or identify room)', which is how location is recorded. 85% · application form + adopting ordinances
• Is there a separate ESS permit or inspection? No. Battery storage installed with PV is a system-type checkbox on the same Residential Solar Application (Form 4562C), the fee schedule has no ESS line, and the Chula Vista Fire Department publishes no residential ESS permit or fee - Fee Bulletin 15-200 (Fire Safety Engineering) contains no solar, photovoltaic, energy-storage or battery item. Inspection is folded into the same PV inspection. 75% · fee schedule bulletins + application form (absence)
• Is a ground mount treated as a structure? Yes, in effect. A ground mount is one of the two 'Type of Installation' options on Form 4562C and takes the same City building permit, but it loses the roof-mount exemption from the site/plot plan requirement, so a scaled plot plan showing property lines, setbacks, adjacent streets and equipment locations must be submitted and the structure is sited against the zone's development standards. Zoning does not add a discretionary layer: CVMC 19.58.142(F) makes a residential-level electrical generating facility 'subject to and governed by CVMC Title 15'. 60% · application form + municipal code (inferred)
• Is there a local rule on service upgrades or busbar sizing? No local busbar rule. Interconnection sizing is plain CEC 705.12 (the SolarAPP+ checklist applies the 120% rule and the centre-fed-panel rule, and requires backfed breakers at the opposite end of the bus). What IS local: CVMC 15.24.045 requires each dwelling to have its own lighting and power distribution panels not serving other portions of the building; CVMC 15.24.050 requires a completed circuit card posted at the service equipment before rough inspection; and a service/panel upgrade taken with the PV needs an SDG&E work order submitted with Form 4562C and is charged as a separate $203 fee line (other panel upgrades go to fee bulletin 10-200, 'Upgrade Existing Electrical Service'). 85% · municipal code + fee bulletin + application form
• Is a specific mounting system or attachment spacing required? No City-specified mounting system or attachment spacing. Attachment is by manufacturer's listed instructions and the approved plans. The only published City text is Form 4613, which requires the plans to show 'Details for the assembly of the modules and for the connection of the modules to roof members. Indicate type, size and spacing of fasteners' and weather sealing of roof penetrations - but it sets the design criterion as resisting '70 MPH wind speed per 2001 CBC chapter 16, Division III', which is superseded. Form 4562C requires manufacturer's spec sheets for roof-penetration waterproofing method and material. 75% · published checklist (Form 4613 - stale) + application form

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal or Phone. Online through Accela Citizen Access (permits.chulavistaca.gov/citizenaccess/chulavista.aspx) to schedule, cancel, reschedule and check results; or by the automated Permit Inspection Line on (619) 409-5434 using the permit number and an inspection code. Assistance on (619) 409-5868. 92% · department page
• How much notice is required? No fixed minimum notice is published. The instruction is 'Please request the inspection as soon as possible, as inspections are limited each day' - a daily cap, not a lead time. Requests received after the daily limit has been reached are booked for the next available business day. The City's stated service goal has been next-day inspection from the day requested, with a caveat that it is 'experiencing high volumes and are transitioning to a new permitting software system'. 85% · department page
• Are same-day or AM/PM windows offered? No. Neither same-day booking nor AM/PM windows are offered: 'We can't give you a specific time of day for your inspection because inspection times vary from one inspection to the next.' The published workaround is to phone the inspector on the morning of the inspection between 7:30 and 8:30 a.m. on (619) 409-5868 - 'Your inspector may be able to give you a time window or make other arrangements.' 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes - the City performs its own inspections. Nothing is delegated. 92% · department page
• If delegated, to whom? N/A - not delegated. Chula Vista Development Services Building Division inspects. The only outside sign-off in the chain is SDG&E's Permission to Operate, which is an energisation approval and not a delegated inspection; the City requires the SDG&E work order to be on site at the time of its own inspection where a panel upgrade is involved. 90% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Two City inspection events at most, both electrical codes, both booked by the applicant: (1) 'ELEC-Meter Clearance' as an Electric Meter Upgrade Inspection, if applicable; then (2) the Final Inspection, requested as 'ELEC-Meter Clearance' plus 'ELEC-Final Approval'. The PV inspection sheet warns 'Please DO NOT use inspection code “Final Activity” for any inspection request' and adds the rule 'Thou shall not cover unless inspected'. On the expedited path CVMC 15.29.020(G) requires 'one consolidated building inspection ... done in a timely manner', with re-inspections required if it fails. 90% · department inspection list + municipal code
• Is a rough-in or mid-roof inspection required? No. The published PV inspection list contains no rough-in or mid-roof stage - only the optional meter-upgrade clearance and the final. For the expedited path CVMC 15.29.020(G) mandates a single consolidated inspection, which forecloses a separate mid-roof. (CVMC 15.24.050 speaks of a 'rough inspection' for circuit cards generally, but no rough-in inspection code appears on the PV list.) 85% · department inspection list (absence)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes - three of them, all linked from the solar page: the one-page 'Inspection Guide for Streamlined Small Residential Rooftop Solar Permitting' (about 20 field items), the four-page 'Comprehensive Inspection Reference for Streamlined Residential Solar Permitting' (68 numbered items with code citations, derived from the California Solar Permitting Guidebook), and an 'Example SolarAPP+ Inspection Checklist' (21 pages, the SolarAPP+ approval document format). Plus the generic Inspection Record card and the PV Solar Permit Inspection Request sheet. 92% · published inspection checklists
• What must be on site at inspection? The approved plans ('The approved plans shall be made available on site to the inspector at time of inspection'), a completed Circuit Card, and - if applicable - the SDG&E Work Order. In practice also the City Inspection Record card, on which the inspector signs off each inspection type. The Circuit Card requirement is local law, not just practice: CVMC 15.24.050 provides that when requested by the Building Official a complete schedule of circuits showing the number, kind and capacity of each outlet on each circuit shall be posted on each job prior to rough inspection, and the City publishes Form 4537 'Circuit Card and Load Summary', headed 'This card must be filled out and available at the Service Equipment for the Rough Inspection'. 90% · department permit page + municipal code + city form
• Does the inspector verify labels and listings? Yes, explicitly and in detail. The Inspection Guide requires the inspector to verify 'PV system markings, labels and signs according to the approved plan' and 'Equipment installed, listed and labeled according to the approved plan (e.g., PV modules, DC/DC converters, combiners, inverters, disconnects, load centers and electrical service equipment)', that the inverter is marked 'utility interactive', and that modules carry the required fire classification. The Comprehensive Inspection Reference devotes items 63-68 to signs and labels and items 2, 10, 11, 40 and 57 to listings. 92% · published inspection guide

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final. The Building Division signs 'FINAL APPROVAL' in the electrical Final Inspections column of the Inspection Record card, and the PV inspection code to request is 'ELEC-Final Approval'. No certificate of occupancy is issued for a solar retrofit. The City calls this 'final approval ... granted for the solar system'; the separate Permission to Operate comes from SDG&E afterwards. 85% · department inspection list + inspection card
• Who notifies the utility for PTO? Installer. The contractor files the interconnection application with SDG&E - 'Your contractor will submit a permit and interconnection application on your behalf' - and SDG&E issues Permission to Operate once the installation is complete and the AHJ has permitted and inspected it. The City does not notify SDG&E: CVMC 15.29.020(F) puts the obligation on the applicant, 'The applicant is responsible for obtaining such approval or permission from the local utility provider.' SDG&E's own material tells customers to 'consult with your local Authority Having Jurisdiction (AHJ) regarding any permitting requirements' - it does not undertake to collect the final from the City. 85% · CCA process page + municipal code + utility material
• Is there a re-inspection fee? No flat dollar amount is published for a building re-inspection. The City confirms the charge exists - 'Any changes in plans or additional inspections are subject to additional hourly review fees and a reinspection fee' - and Master Fee Schedule Bulletin 1-200 'Cost Recovery' (October 2025) supplies the mechanism: full cost recovery at fully burdened hourly rates, currently $109.09/hr for a Building Inspector I, $127.10/hr for a Building Inspector II, $151.33/hr for a Building Inspector III, $153.41/hr for a Senior Building Inspector and $249.59/hr for the Building Official. The only flat 'Reinspection Fee' in Bulletin 10-100 is a Code Enforcement item ('As required to obtain code compliance, no fee charged for 1st inspection ... Full cost recovery'), not a building re-inspection. 70% · master fee schedule bulletin 1-200 (Oct 2025) + department page
• How are corrections issued and cleared? By email, with the detail in the portal. 'We will email all comments/corrections for your project to you.' Under the electronic process, when all reviewers have finished you receive an e-mail telling you to look at the Corrections Required Report and the marked-up Plan Set file in Citizen Access; you clear them by uploading corrected plans with the 'Resubmit' button paired to the original file (and 'Add' for newly requested documents or extra plan volumes). Deleted pages must be replaced with a blank page bearing the original sheet number; files over 400MB must be split. Recheck goal is 5 business days for residential solar. Additional plan review is chargeable at hourly rates. For the expedited path CVMC 15.29.020(E) requires the Building Official to issue 'a written correction notice detailing all deficiencies in the application'. 88% · department pages + municipal code
