City of Coalinga

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 92% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 98% · codified ordinance + permit records
• Is there a separate electrical permit, or is it combined? Combined 80% · permit records + fee schedule
• Is a HOA or architectural approval required first? No 95% · codified ordinance
• Is there a historic-district review? No 65% · codified zoning ordinance
• Is a wind or windstorm certification required? No local wind/windstorm certification requirement found 55% · codified ordinance
• Is a Specific Use Permit or Council approval ever required? Yes, but only conditionally: the Building Official may require a Use Permit if a small residential system 'could have a specific, adverse impact upon the public health and safety' (CMC 8-15.06(a)); separately, utility-scale 'solar farms' (>=1MW) require Planning Commission Site Plan Review approval (CMC 9-5.123(b)(2)) — an ordinary residential rooftop PV job is not routed to Council/Commission absent such a finding 85% · codified ordinance
• Is there a system-size cap on residential generation? 10 kW AC / 30 kW thermal — the codified definitional threshold for a 'small residential rooftop solar energy system' eligible for the expedited/ministerial permit pathway (CMC 8-15.02(f)); above that (or for multi-family/commercial), the system routes to standard plan check rather than being categorically capped or barred. Separately, utility-scale ground-mounted 'solar farms' (>=1MW) are height-capped at 25 ft and require Site Plan Review/CUP (CMC 9-5.123(b)); no distinct kW cap for ordinary residential ground-mount PV (treated as an accessory structure, see Q47) was found beyond that accessory-structure regime 88% · codified ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 75% · permit application form
• Must the contractor be registered with this authority before applying? Yes 90% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · permit application + owner-builder form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? General Building Permit Application (project/site/owner/contractor/architect/engineer info) plus a plot plan; no dedicated solar-specific checklist was found even though CMC 8-15.05(c) requires the Building Department to 'adopt a standard plan and checklist of all requirements' for expedited solar review 55% · department page (absence checked against the ordinance's own mandate)
• How many copies, and in what format? Electronic PDF by email to the Building Official (rsmith@coalinga.com), or a physical copy dropped off at City Hall — no specific copy count found 55% · department page
• Is a site plan required, and what must it show? A plot plan is part of the general submittal package (a 'Plot Plan (Example)' document is published), but no solar-specific site-plan content list was found 55% · example document

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? None — no online permit portal found; process is entirely email/counter-based 75% · department page (site-wide check)
• Can the whole application be completed online? No 75% · department page
• What does a residential solar permit cost? ≈$188-$276 total per system in practice (2024 issued permits); fee-schedule components: Solar Permit Issuance (Residential) $111.00 flat + Solar Plan Check (Residential) $75.00/hr + Service Panel (Solar) electrical fee $33.70 85% · fee schedule + permit records
• How is the fee calculated? Flat (component fees: a flat permit-issuance fee + hourly plan-check fee + a flat electrical service-panel fee, summed) — not per-kW or per-panel 80% · fee schedule
• Is there a separate plan-check fee? Yes 92% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 1 business day for over-the-counter applications; 3 business days for electronic applications 95% · codified ordinance
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 88% · city utility page + business directory + press release
• Where does the utility sit in the sequence? Before permit 68% · codified zoning ordinance

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2022 CEC (based on the 2020 NEC) per the currently codified ordinance (Ord. 856, eff. 1-19-2023, last Municode supplement effective 16 Jan 2025); the city's own live Building Division webpage now states 'Current Adopted Codes: Codes listed are the 2025 Edition' (i.e. 2023 NEC via the 2025 CEC), which took effect statewide 1 Jan 2026 by state law regardless of local re-codification catching up 75% · department page vs. codified ordinance (conflict reported)
• Which building code edition is in force? 2022 CBC per the codified ordinance (Ord. 856, eff. 1-19-2023); city's own live Building Division page claims the 2025 edition is now current 75% · department page vs. codified ordinance (conflict reported)
• Which fire code edition is in force? 2022 CFC per the codified ordinance (Ord. 867, eff. 7-18-2024); city's own live Building Division page claims the 2025 edition is now current 75% · department page vs. codified ordinance (conflict reported)
• Are there local amendments to any of the above? Effectively no local amendments to the model codes' technical text — CMC Title 8 Ch.1 (Building), Ch.2 (Electrical), Ch.9 (Administrative), Ch.10 (Fire), Ch.11 (Energy), Ch.13 (Residential), Ch.14 (Green Building) are each pure adoption-by-reference plus a generic violations/penalties section, with all prior local amendment sections (e.g. 8-1.03 through 8-1.31) repealed in 2000 (Ord. 646). The only genuine local additions reaching solar are the free-standing Small Residential Rooftop Solar ordinance (CMC Title 8 Ch.15) and the zoning solar section (CMC 9-5.123) — these sit alongside the adopted codes rather than amending their section text 85% · codified ordinance (full-chapter read)
• What is the installation judged against? The 2022 California Building/Electrical/Fire/Energy/Green Building/Residential Codes as adopted (Title 24, Parts 1,2,2.5,3,6,9,11) with no local technical amendments; plus CMC 8-15.04's own cross-references to the CEC, IEEE standards, UL/accredited-testing-lab listing, and applicable CPUC safety/reliability rules for the electricity-producing portion 88% · codified ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Ridge setback: modules must stay at least 3 ft (36 inches) below the ridge ('Coalinga Fire Marshall requires 36" setbacks at the ridge' per the Building Permit Application; matches the Fire Dept PV Guideline's 2.1.2 'no higher than three feet (3') below the ridge'). Access pathways (Fire Dept PV Guideline, Rev. 11-22-21, Sec. 401.018): hip-roof homes need one 3-ft-wide pathway eave-to-ridge per slope with modules; single-ridge homes need two 3-ft pathways per slope; modules must stay >=1.5 ft from a hip/valley (unless placed on only one equal-length side); commercial/3+-unit buildings need a 6-ft (or 4-ft if either building axis <=250 ft) clear roof perimeter plus structural-member pathways and smoke-ventilation cutout rules 92% · fire department standard (current, Rev. 11-22-21)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required as part of the adopted 2022 CEC (based on 2020 NEC, which mandates 690.12 rapid shutdown) — confirmed in practice: the city's own Aug-2024 Permits-Issued report describes an actual installed job with '1-ESS, 11-RSD, and 1-60A AC disconnect.' Neither Fire Dept PV document (2015 or 2021) cites NEC section 690.12 by number 75% · permit record + codified electrical code adoption

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Main service/AC disconnect: 'CAUTION: SOLAR ELECTRIC SYSTEM CONNECTED' placard; DC conduit/raceways/enclosures/cable assemblies/junction boxes: 'CAUTION SOLAR CIRCUIT' placard every 10 ft, at turns, and above/below penetrations. An older (2015) version of the same Fire Dept standard additionally specified a rooftop 'Emergency DC Disconnect' label inside a NEMA 3R box as close to the array as possible — that specific rooftop-disconnect clause does not appear in the text of the department's current (Rev. 11-22-21) PV Installation Guideline, which covers only the two marking types above plus pathway/access/ventilation rules 85% · fire department standard (current + superseded version compared)
• Does the authority specify placard wording of its own? Yes 92% · fire department standard
• Does it specify letter height, colour or material? Red background, white lettering, minimum 3/8-inch letter height, ALL CAPITAL LETTERS, Arial or similar non-bold font, reflective/weather-resistant material suitable for the environment (durable adhesive materials acceptable); UL 969 recommended as the weather-rating reference standard (UL listing itself not required) 92% · fire department standard
• Does the UTILITY specify placards beyond the AHJ's? PG&E's Rule 21 (statewide tariff) separately requires a visible AC/interconnection disconnect with open/closed position markings, reachable and lockable — a utility-level requirement beyond whatever the AHJ specifies — but this was not independently re-downloaded/re-verified against Rule 21 in this run 45% · utility tariff (not independently re-verified this run)
• Where must the labels be placed? On/at the main service disconnect (inside the disconnect if operable with the panel closed, otherwise on the outside cover, for residential; adjacent to and visible from the operating lever for commercial); on all interior/exterior DC conduit, raceways, enclosures, cable assemblies and junction boxes, spaced every 10 ft and at turns/penetrations/combiner boxes 90% · fire department standard

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, implicitly — solar water-heating systems must be certified by an accredited listing agency under the CA Plumbing/Mechanical Code, and PV systems must meet 'accredited testing laboratories such as Underwriters Laboratories' standards and applicable CPUC rules 70% · codified ordinance
• Are batteries permitted, and under what conditions? Yes, and extensively used in practice — the great majority of residential PV permits issued in 2023-2024 include one or more ESS/battery units bundled into the same job (e.g. Tesla Powerwalls, SolarEdge home batteries), sized from ~10-27 kWh in the sampled records; batteries are permitted under the adopted 2022 CFC's energy-storage-system provisions with no separate local ESS ordinance found 85% · permit records
• Is there a separate ESS permit or inspection? No 82% · permit records + fee schedule
• Is a ground mount treated as a structure? Yes 92% · codified zoning ordinance

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

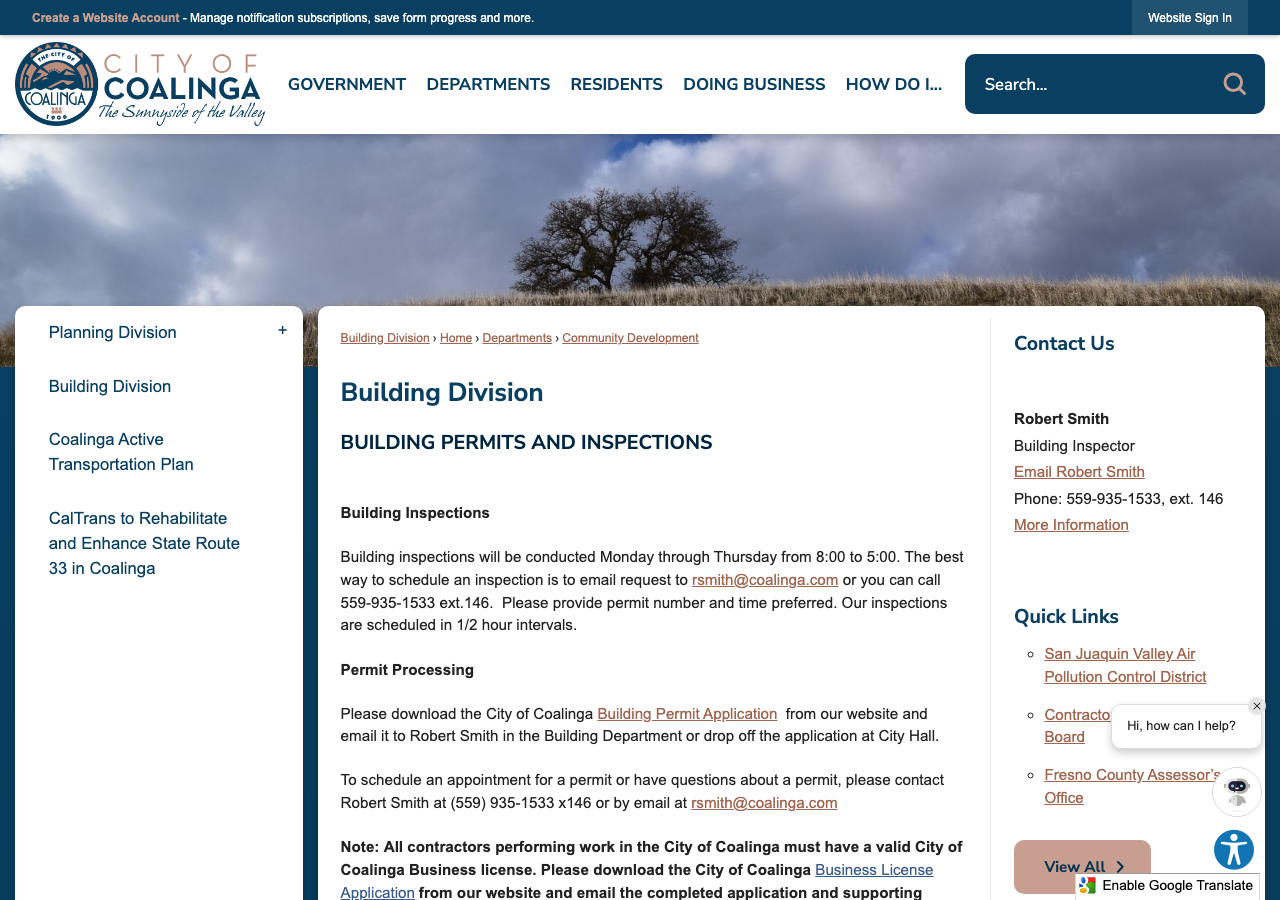

• How is an inspection booked? Email (preferred: rsmith@coalinga.com) or phone (559-935-1533 ext. 146) 92% · department page
• How much notice is required? 2 business days (solar-specific, per ordinance); general building inspections are booked by appointment with no separately stated minimum lead time 85% · codified ordinance
• Are same-day or AM/PM windows offered? No AM/PM windows offered; inspections run Monday-Thursday 8:00 AM-5:00 PM in half-hour (1/2 hour) scheduled intervals 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 92% · codified ordinance
• If delegated, to whom? N/A — not delegated; performed in-house by the Building Department, with a discretionary secondary inspection by the in-house Coalinga Fire Department if the Fire Department deems it required 90% · codified ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? A single, consolidated final Building Department inspection for a standard small residential system; a separate Fire Department inspection only if the Fire Department determines one is required for that job 88% · codified ordinance
• Is a rough-in or mid-roof inspection required? No 88% · codified ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Does the inspector verify labels and listings? Yes (inferred) 60% · inference from codified requirements

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (permit closed out as 'Complete'/'Finaled') 65% · permit records
• Who notifies the utility for PTO? Installer (inferred) 55% · inference
• Is there a re-inspection fee? $75.00 (per the 2022 CPI-adjusted master fee schedule's general 'Re-Inspection Fee' line, not solar-specific) 75% · fee schedule
• How are corrections issued and cleared? If a system fails inspection, CMC 8-15.06(j) authorizes 'a subsequent inspection,' which 'need not conform to the requirements of this chapter' (i.e. the 2-business-day/single-inspection rules do not bind the re-inspection); a general $75 re-inspection fee applies. No document describes a formal written-correction-notice procedure specific to failed field inspections (as distinct from the incomplete-application correction-notice process at 8-15.06(g)) 60% · codified ordinance
