City of Covina

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both (Building and Electrical) permitted directly by the City's own Building & Safety Division; Fire/life-safety is contracted out to LA County Fire Dept (LACoFD) as a fee-for-service city, and LACoFD in turn delegates conventional rooftop-PV fire review back to City Building & Safety EXCEPT Energy Storage Systems, certain Building-Integrated PV, and disconnect placarding, which LACoFD retains and inspects itself. 90% · adopting regulation
• Is a permit required for a residential rooftop PV system? Yes 95% · permit application form
• Is there a separate electrical permit, or is it combined? Combined for roof-mounted PV — issued as a single Electrical permit (fee schedule item 'Solar Photovoltaic - Residential 1-10KVA/10KVA+' under ELECTRICAL FEES, $89 flat). A separate stand-alone BUILDING permit is required for ground-mount/free-standing PV structures ('Photovoltaic System-(stand alone)', $408, under BUILDING FEES). 88% · fee schedule
• Is a HOA or architectural approval required first? Not required as a prerequisite to a City building/electrical permit for solar; state law (Civil Code §714, the Solar Rights Act, and Civ. Code §4600 for common-interest developments) preempts HOA/architectural-review bodies from unreasonably restricting or effectively prohibiting residential solar installations statewide, including in Covina. 60% · state statute applied to this authority (no local HOA-clearance requirement found)
• Is there a historic-district review? Covina has an adopted Historic Survey Report and an individual-property Historic Designation program (application form on file), but no blanket downtown/citywide historic OVERLAY DISTRICT requiring review of every rooftop solar permit was found; a project on an individually-designated historic property would likely need Planning review. 55% · department resources page
• Is a wind or windstorm certification required? No — California does not use a windstorm-certification program analogous to Texas TDI; wind loading is addressed through standard structural design values (Vult = 110 mph Special Wind Region, Exposure C) built into the CBC/CRC structural calculations required with every submittal, not a separate certificate. 70% · department handout
• Is a Specific Use Permit or Council approval ever required? No standing requirement for a Specific Use Permit or City Council approval for a residential rooftop PV system — permitting is ministerial under Gov. Code §65850.5/§65850.52 and processed at the Building & Safety counter or via SolarAPP+. A ground-mount or otherwise non-conforming installation could require a discretionary Site Plan Review under the zoning code, based on the Site Plan Review (A)-(F) application tiers Covina publishes, but none of those forms specifically names solar as a trigger. 55% · department forms page / state statute
• Is there a system-size cap on residential generation? No explicit kW cap found in any Covina document. For projects routed through SolarAPP+, the system is effectively capped indirectly by amperage limits rather than kW: max 400A total service, max 200A service disconnect, max 225A busbar, and array weight ≤4.0 psf; ground-mount is categorically excluded from the expedited pathway (must go the conventional/stand-alone-building-permit route instead). 65% · eligibility checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · department handout
• Must the contractor be registered with this authority before applying? Yes 85% · department handout
• Is a homeowner permitted to self-install and self-permit? Yes 90% · department handout

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For conventional (non-SolarAPP+) submittal: permit application (with Planning 'OK to submit'), site/plot plan, single-line electrical diagram, structural details for racking/attachment, and Solar Photovoltaic Plans per the Residential Submittal Checklist. Per the Building & Safety FAQ, the solar-specific package is '3 sets of plans, 2 sets of calcs (or two letters), 11x17.' For SolarAPP+-eligible systems: contractor submits design directly to solarapp.nrel.gov for automated code-compliance review, then uploads the SolarAPP+ approval to the City's own permitting portal. 75% · published checklist
• How many copies, and in what format? Conventional route: per the general Residential Submittal Checklist, 4 complete sets on 24x36 sheets. The Building & Safety FAQ states the solar-specific package is smaller: 3 sets of plans plus 2 sets of calculations (or two engineer's letters) at 11x17. SolarAPP+ route: digital submission only (no paper copies) to solarapp.nrel.gov. 65% · department page
• Is a site plan required, and what must it show? Yes. Handout #15 'Plot Plan' sample requires all utility poles and power lines with distance from the pole centerline to the closest portion of the house/ADU, building height, lot dimensions, and utility legend (sewer/water/electric/gas). The Residential Submittal Checklist requires a Site Plan/Plot Plan (8.5x11) with Building-Project Data on every submittal. 85% · published checklist
• Is a one-line / three-line diagram required? Yes 85% · published checklist
• Are string and conductor calculations required? Yes (as part of the single-line diagram and plan set) — ESS/PV plans must show conductor size/type, conduit size/type, overcurrent protection ratings and ampacity per the Energy Storage Systems handout, which cross-references the Residential Submittal checklist for any PV component of the project. 65% · department handout
• Is a structural PE stamp required, and at what threshold? General rule only found: 'STRUCTURAL CALCULATIONS: Two (2) copies of the supporting calculations, wet stamped and signed, unless waived by the Building Official' (Handout #04) — no PV-specific kW/weight threshold found. A specific threshold DOES exist for batteries: any ESS unit (or units at the same location) weighing more than 400 lbs requires structural mounting calculations stamped/signed by a CA-licensed PE (Handout #27). 70% · department handout

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

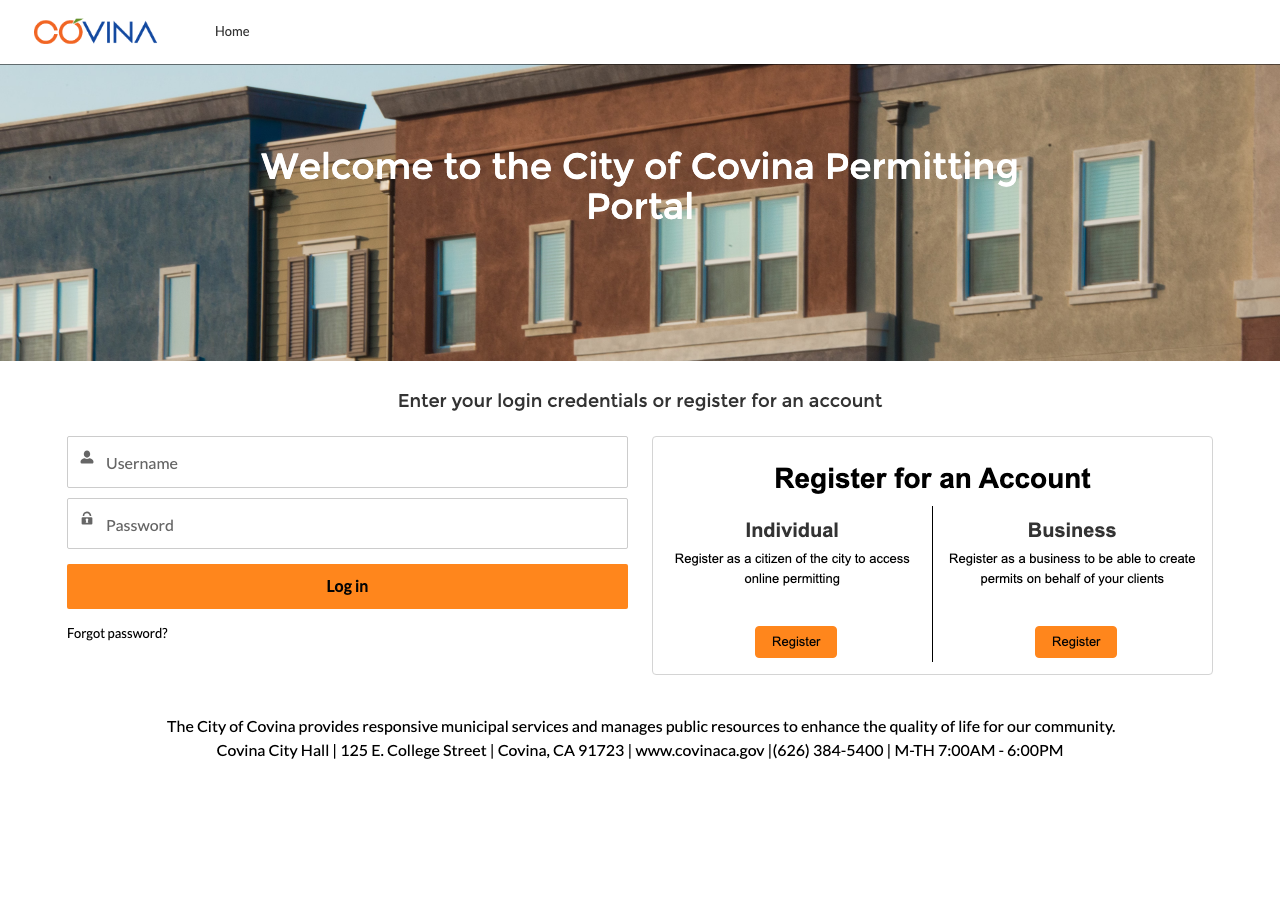

• Which permit portal does this authority use? City of Covina Permitting Portal (Salesforce Experience Cloud site at cityofcovina.my.site.com/s/login) is used today for SolarAPP+-approved permit applications and inspection scheduling. Separately, the Building & Safety 'Apply for a Permit' page states the City is implementing a new system, Clariti, expected to go live 'early fall,' and is accepting hard-copy submittals in the meantime for conventional (non-SolarAPP+) permits. 70% · portal landing page
• Can the whole application be completed online? Yes for SolarAPP+-eligible systems (contractor submits design to solarapp.nrel.gov for automated review, then applies for the permit and schedules inspection entirely via the City's own online portal). No for conventional (non-SolarAPP+) submittals, which the Building & Safety page says must currently be submitted as hard copy pending the Clariti system's 'early fall' launch. 75% · portal landing page
• What does a residential solar permit cost? $89 flat electrical permit fee for a residential rooftop PV system (1–10 kVA or 10+ kVA — both priced the same); $408 flat building permit fee if the system is a stand-alone/ground-mount structure. Separate LA County Fire fees also apply where LACoFD review is required: PV residential plan review $776, field inspection $293 (Appendix QQ). 92% · fee schedule
• How is the fee calculated? Flat 90% · fee schedule
• Is there a separate plan-check fee? Possibly, and unclear whether it stacks with the $89 item fee — the fee schedule separately lists a 'Stand Alone Electrical Plan Check' fee of $203, but it is not clear from the schedule whether this applies on top of, or instead of, the $89 Solar Photovoltaic electrical-permit line for a conventional (non-SolarAPP+) submittal. Systems processed through SolarAPP+ pay a separate NREL processing fee (covering up to 3 revisions) that functions as the plan-review fee. 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Solar PV plan review: about 1–6 business days per the Building & Safety FAQ (commercial PV may take longer due to required Fire Dept review). General (non-solar) first-submittal plan check: 4–6 weeks. 70% · department page
• How long is an issued permit valid before it expires? Plan check approval is valid 180 days (one 180-day extension available with Building Official approval); an issued permit is valid 365 days from issuance and expires if work does not commence within 180 days or if 180 days pass without a passing inspection. 92% · department form/policy
• Which utility handles interconnection here? Southern California Edison (SCE) 90% · city department page naming the utility

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 95% · adopting ordinance / department handout
• Which building code edition is in force? 2025 California Building Code (CBC) and 2025 California Residential Code (CRC), effective for new permit applications; both handouts are dated effective 01/01/2026. 95% · adopting ordinance / department handout
• Which fire code edition is in force? 2025 California Fire Code (CFC) as the base state code, PLUS the 2023 Los Angeles County Fire Code (LACFC) as the applicable local amendment set (LACFC is itself LA County's local amendments layered on the 2022 CFC cycle, certified/effective 2024-01-11) — the fire-code cycle year (2023 LACFC) trails the 2025 CBC/CRC/CEC cycle the City's own handouts list for the same effective date, a cross-cycle lag worth flagging rather than resolving. 85% · adopting ordinance / department handout
• Are there local amendments to any of the above? Yes 90% · department handout
• What is the installation judged against? The current, State-of-California-amended code editions in force at time of permit issuance: 2025 CRC/CBC/CMC/CPC/CEC/CEnC/CGBS/CWUIC/CAC, the 2025 CFC as locally amended by the 2023 LACFC, and the City of Covina Municipal Code — per the code list republished in Handout #04 and Handout #20. 90% · published checklist

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Covina on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — NEC-690.12-based rapid shutdown is required under the 2025 CEC (based on the 2023 NEC). The LACoFD placarding rules (Appendix B) explicitly plan for a PV 'Rapid Shutdown' or 'Hazard Control System' initiation switch to be included among the placarded disconnects wherever a residence has more than one power source. 75% · fire-code guidance document

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? At minimum: the LACoFD 'Electrical Power Source Disconnect Placarding System' — an Exterior Placard on/adjacent to each panel/enclosure or stand-alone disconnect that must be operated, plus Panel-Interior Placards identifying individual switches/breakers within a panel where more than one must be operated. This applies to any one- or two-family dwelling that becomes wireable from more than one power source (i.e., any home with rooftop PV, since it then has utility + PV). 85% · fire-code guidance document
• Does the authority specify placard wording of its own? Yes 90% · fire-code guidance document
• Does it specify letter height, colour or material? Yes. Exterior placards: minimum 2in x 3.5in weather-resistant plastic, red letters engraved into a yellow background, Arial font all-caps, minimum 24pt (28pt bold for 'F.D.' and '#X of Y'), attached with permanent epoxy. Panel-interior placards: minimum 7/16in x 3/4in, same color scheme/font rules at minimum 24pt bold. 92% · fire-code guidance document
• Where must the labels be placed? Exterior disconnect placards go on/immediately adjacent to the exterior of each electrical panel/enclosure or stand-alone disconnect switch that must be operated to fully de-energize a given power source; panel-interior placards go inside a panel next to the specific breaker(s)/switch(es) they identify, whenever more than one switch within a single panel must be operated. Placement is determined by a C-10 electrician and is subject to fire-code-official approval. 90% · fire-code guidance document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? The fallback rule that applies via Covina's contracted fire authority (LACoFD), not from SCE directly: required disconnection/attenuation means for electrical hazards must be located within 6 feet of the main service panel, on the same wall plane, not separated from one another by walls, gates, fences, vegetation, or architectural features — LACFC §509.3. 75% · fire-code guidance document
• Must equipment be on a specific approved list? Yes 90% · eligibility checklist / department handout
• Are batteries permitted, and under what conditions? Yes, under detailed conditions. Individual ESS units capped at 20 kWh; aggregate per R-3/R-4 occupancy capped at 80 kWh regardless of location combination (attached/detached garage, exterior wall, or ground outdoors). Prohibited inside dwelling units, sleeping units, closets, bathrooms, basements, non-garage accessory structures, or vaults. Outdoor/exterior-wall units need ≥5 ft from lot lines/public ways/other buildings/combustibles, ≥10 ft from vegetation, ≥3 ft from doors/windows/openings/HVAC inlets. UL 9540 listing, ventilation, disconnects and (for units >400 lb) a PE-stamped structural/anchorage detail are required. LA County Fire plan review and field approval is required prior to permit issuance (expedited pathway available for R-3/R-4). 92% · fire-code guidance document
• Is there a separate ESS permit or inspection? Yes 90% · fee schedule
• Is a ground mount treated as a structure? Yes 85% · fee schedule
• Is there a local rule on service upgrades or busbar sizing? Yes — 'ALL NEW PANELS REQUIRED TO BE SOLAR READY' (Handout #13, a Covina-specific local rule, not a state mandate). Separately, for projects routed through SolarAPP+, a main-panel upgrade/modification of any kind disqualifies the project from the expedited pathway ('No modifications, alterations, or upgrades to the structure' — a national SolarAPP+ eligibility rule, not unique to Covina). 85% · department handout

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

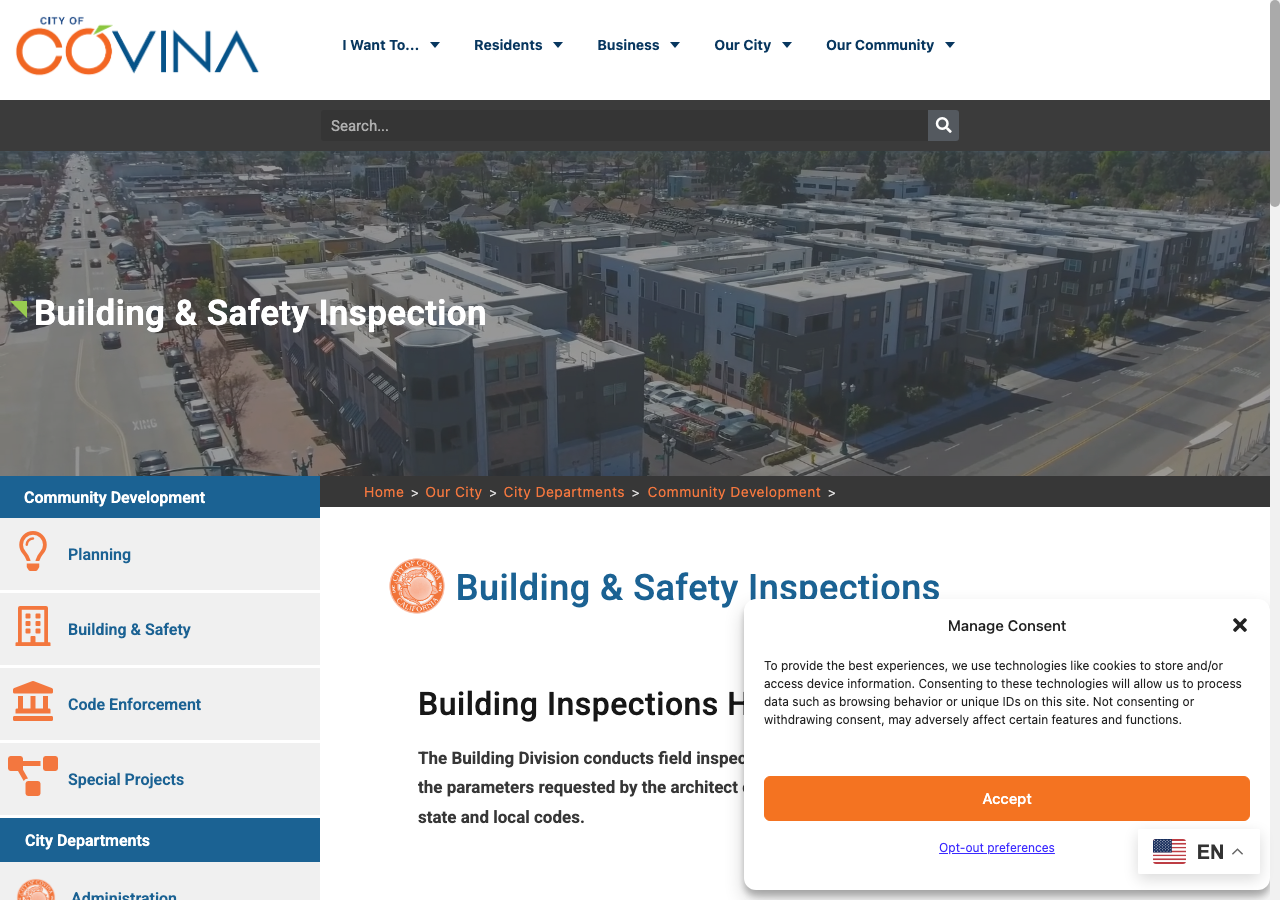

• How is an inspection booked? Email or Phone 85% · department page/handout
• How much notice is required? Requests received before 3:00 PM are scheduled for the next business day (effectively next-business-day/1-day notice); the City is closed Fridays–Sundays. 88% · department page/handout
• Are same-day or AM/PM windows offered? No discrete AM/PM windows; inspections are scheduled by daily route, approximately 9:00 AM–4:00 PM Monday–Thursday, and can be checked via the 'Daily Inspection Route' page or an automated Inspection Confirmation Hotline. 85% · department page/handout

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 80% · department handout
• If delegated, to whom? Los Angeles County Fire Department (LACoFD), Fire Prevention Division — specifically the East Region office serving Covina — for ESS, qualifying BIPV, and disconnect-placarding compliance only; conventional rooftop-PV building/electrical final inspection remains with City of Covina Building Inspectors. 85% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a conventional rooftop PV+ESS project: (1) Planning clearance/'OK to submit', (2) Building plan check (and LA County Fire plan review if ESS/BIPV or LACoFD review is otherwise required), (3) permit issuance, (4) an amperage/amp inspection to confirm the system is not back-feeding the grid, called for by the installer before requesting the Building inspection, (5) City Building final inspection (equipment, disconnects, conductors, grounding/bonding, labeling, clearances), (6) LA County Fire Department field inspection (ESS/BIPV/placarding scope), (7) utility (SCE) notification for permission-to-operate. 70% · department handout
• Is a rough-in or mid-roof inspection required? No dedicated mid-roof/rough-in inspection specific to PV retrofit was found; the SolarAPP+ eligibility checklist confirms the expedited pathway is for retrofit-only, no-structural-modification systems on an already-permitted structure, consistent with a single final inspection rather than a rough-in stage. 55% · department page/handout

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes for ESS/PV-with-storage installations — Handout #27 contains a dedicated 'INSPECTION PROCEDURES' section and itemized 'City inspector responsibilities' checklist. For general building inspections, IB-15 'Inspection Process' is a published general checklist (site-access, panel-accessibility, documents-on-hand requirements) but is not solar-specific. 75% · published checklist
• What must be on site at inspection? Approved plans and documents, the inspection record/permit card, an adult (18+) present to allow site access, pets secured, adequate lighting, a safe path of travel, and all electrical panels/junction boxes open and accessible (inspectors will not open boxes or disassemble equipment themselves). 90% · department page/handout
• Does the inspector verify labels and listings? Yes 85% · department handout

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (a final building/electrical inspection sign-off); a Certificate of Occupancy is issued only for commercial structures per IB-15, so residential PV work (which does not change occupancy) receives a passed-final rather than a CO. 75% · department page/handout
• Is there a re-inspection fee? $114 for the first half hour of a re-inspection, $99 per each additional half hour (City of Covina general Building re-inspection fee). Separately, LA County Fire's own re-inspection fee (for ESS/PV items under its jurisdiction) is $98 for additional inspections after the initial inspection and one re-inspection. 80% · fee schedule
• How are corrections issued and cleared? Corrections are noted by the inspector at the time of inspection (on the permit/inspection card); no online correction-tracking system was found for conventional permits (pending Clariti). Cleared by requesting and passing a re-inspection through the same booking channel (email/phone). 55% · department page/handout
