City of Diamond Bar

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

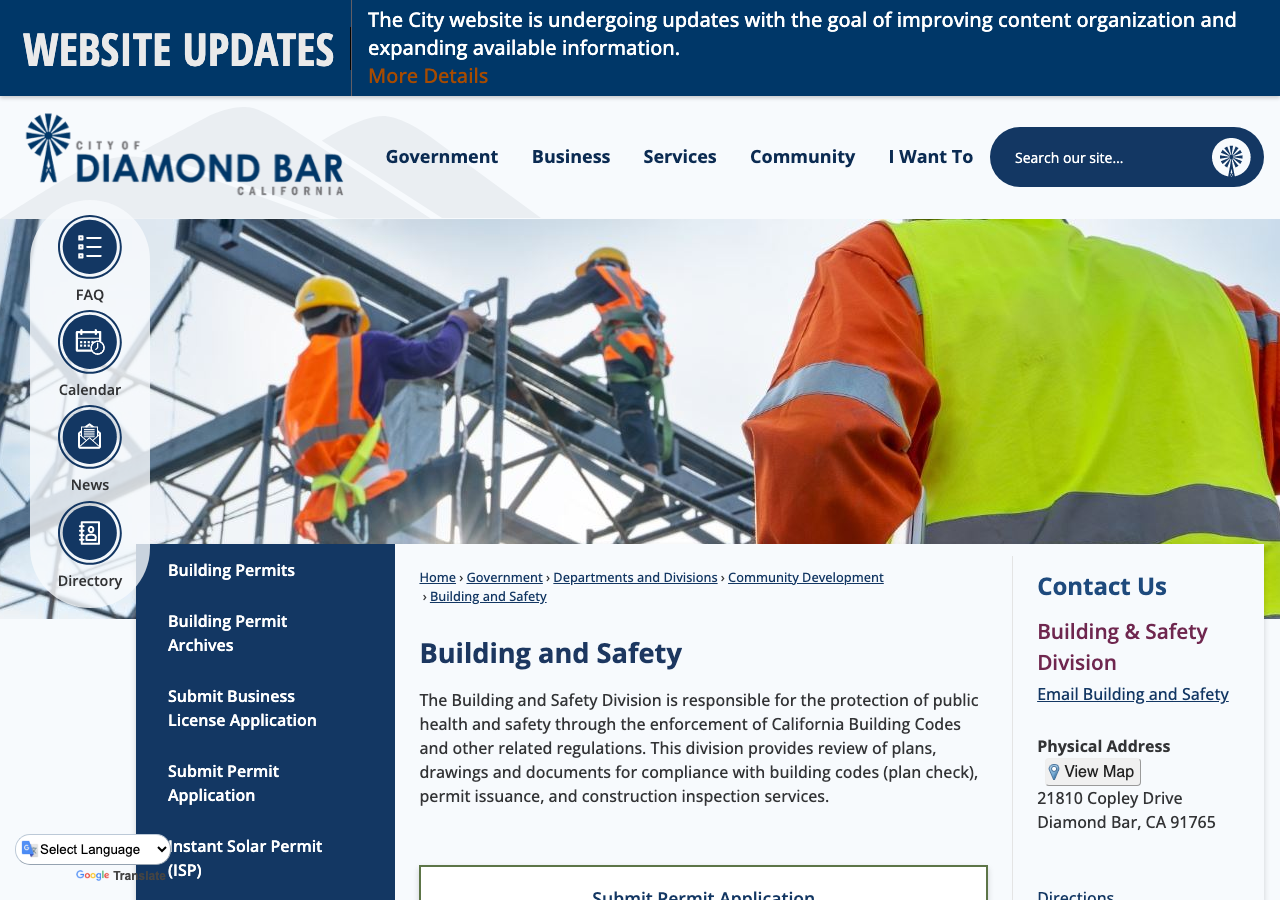

• Is this authority the AHJ for residential solar at this address? Yes — City of Diamond Bar Building & Safety Division (Community Development Dept.) is the building/electrical AHJ for residential rooftop PV; LA County Fire Department (LACoFD, Consolidated Fire Protection District) is the separate fire-code AHJ and retains jurisdiction over ESS/BESS, certain BIPV, and disconnect placarding. 90% · department page
• What does this authority permit itself, and what does it delegate? Both (Building and Electrical, combined, held by the City) for conventional rooftop PV; LACoFD retains fire-code authority (not delegated to the city) for ESS/BESS, certain BIPV, and disconnect placarding on ALL PV systems. 85% · AHJ guidance document
• Is a permit required for a residential rooftop PV system? Yes, a permit is required for residential rooftop PV. 95% · department page
• Is there a separate electrical permit, or is it combined? Combined — the Instant Solar Permit issued through CityView covers the installation as a single permit; no separate electrical permit step is described. 75% · department page
• Is a HOA or architectural approval required first? The City itself does not require HOA/architectural approval as a permit condition. Where a property sits within a private HOA (Diamond Bar has substantial HOA-covered areas, e.g. 'The Country Estates'), California's Solar Rights Act (Civil Code §714/§4600) preempts an HOA from disapproving solar outright, though the HOA may impose reasonable placement conditions that don't raise cost or cut efficiency by more than a statutory threshold. 60% · state statute
• Is there a system-size cap on residential generation? 38.4 kW AC — the statewide SolarAPP+/GC §65850.52 ceiling applies to Diamond Bar's Instant Solar Permit pathway; systems above that (or otherwise SolarAPP+-ineligible) fall outside the ISP program. 70% · program policy

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? A contractor registered with SolarAPP+ (i.e., a licensed contractor) pulls the ISP; the SolarAPP+ program explicitly lists 'Systems installed by Homeowners' as NOT eligible for the ISP pathway. 70% · program policy (adopted by reference via city ISP)
• Must the contractor be registered with this authority before applying? Yes — a City of Diamond Bar business license is required before the permit is issued. 90% · department page
• Is a homeowner permitted to self-install and self-permit? Not for the Instant Solar Permit/SolarAPP+ pathway — SolarAPP+ excludes homeowner-installed systems. Whether Diamond Bar offers a separate conventional (non-instant) self-permit route for owner-builders is not described on any published city page. 45% · program policy

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? SolarAPP+ approval documents, plus 'solar plans including single-line diagram', plus a City of Diamond Bar business license, uploaded into the CityView portal. 85% · department page
• Is a site plan required, and what must it show? A site plan is not separately described for the standard ISP pathway beyond 'solar plans.' For any project involving an ESS, LACoFD requires a detailed site plan showing all ESS units, utility meters, AC & DC disconnects, inverters, relays, load centers, and rapid-shutdown devices, at a scale of not smaller than 3/32"=1'-0". 80% · AHJ guidance document
• Is a one-line / three-line diagram required? Yes. 95% · department page
• Are string and conductor calculations required? Not stated by the city; likely covered implicitly by SolarAPP+'s own automated code-compliance engine (which checks conductor/ampacity sizing as part of national program criteria) but not confirmed in any Diamond Bar-specific text. 50% · program policy

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

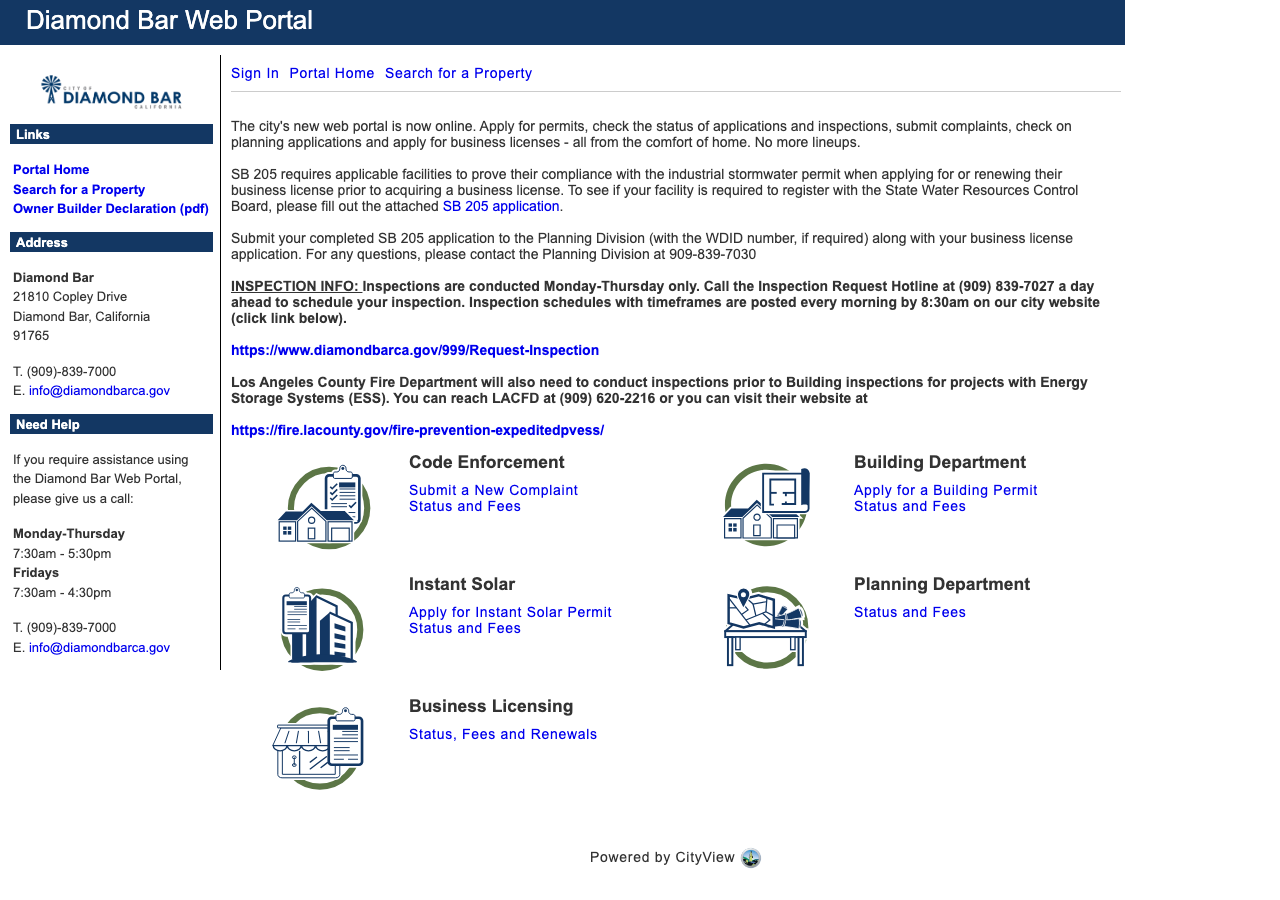

• Which permit portal does this authority use? SolarAPP+ (NREL's automated portal) for eligible systems, feeding into 'City View', the City's own online permitting portal, for permit issuance. 95% · department page
• Can the whole application be completed online? Yes — SolarAPP+ submission and CityView permit application are both online; only inspection scheduling requires a phone call. 85% · department page
• What does a residential solar permit cost? $25 SolarAPP+ platform fee (paid to SolarAPP+, not the city) plus the City's own building permit fee of $396.32 flat plus $15/kW for every kW above 10 kW (single-family residential). 85% · fee schedule
• How is the fee calculated? Tiered (flat base fee plus a per-kW increment above a threshold). 80% · fee schedule
• Is there a separate plan-check fee? No solar-specific plan-check fee is broken out; the city's general rule is 'Building Plan Check Fees = 85% of the building permit fee, minimum $50', but SolarAPP+'s $25 fee substitutes for manual plan review on ISP-eligible systems. 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Instant — SolarAPP+ issues automated approval immediately for code-compliant, eligible systems. 90% · department page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, adopted statewide as part of the 2025 California Electrical Code, effective 1 Jan 2026. 65% · state adopting agency
• Which building code edition is in force? 2025 California Building Code (based on the 2024 IBC), effective 1 Jan 2026, statewide. Note: the city's own Building & Safety page still links a '2022 Building Energy Efficiency Standards Guide,' which is a prior cycle and appears not yet updated on the website. 55% · department page (dated content flagged)
• Which fire code edition is in force? 2023 Los Angeles County Fire Code (LACFC), LACC Title 32 (based on the 2022 CFC), codified by Ordinances #23-0008 & 2023-0058, effective 2024-01-11. 75% · adopting ordinance (fee appendix)
• Are there local amendments to any of the above? Yes — LA County has extensive local amendments to the CFC specific to PV/ESS: LACFC §1207.11.x (ESS location, spacing, energy ratings, disconnects, detection, impact protection) and the LACoFD Electrical Power Source Disconnect Placarding System (LACFC §509 et seq.) all go beyond the model code. 90% · AHJ guidance document
• What is the installation judged against? The California Electrical Code (2023 NEC basis) for electrical work generally; for any project including an ESS, also the 2023 LACFC §1207.11 series and the LACoFD Disconnect Placarding System (Appendix B). 75% · AHJ guidance document

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Diamond Bar on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Rapid shutdown is required (referred to by LACoFD as 'Rapid Shutdown (RSD)' / 'Hazard Control System (HCS/PVHCS)'), and its initiation device must be included among the placarded disconnects. The applicable NEC edition is the 2023 NEC (statewide 2025 CEC cycle), which is the 690.12-based module-level scheme — but neither the LACoFD guide nor its Appendix B ever cites '690.12' by section number. 65% · AHJ guidance document

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Two LACoFD placards: an Exterior Placard ('F.D. – ELECTRICAL BLDG DISCONNECT #X of Y') on/adjacent to each panel/enclosure/disconnect that must be operated, and a Panel-Interior Placard identifying specific switches/breakers within a shared panel. 95% · AHJ guidance document
• Does the authority specify placard wording of its own? Yes — exact verbiage is mandated ('F.D. – ELECTRICAL BLDG DISCONNECT # X of Y'), with the specific #X of Y numbering scheme determined by a C-10 electrician and approved by the fire code official. 95% · AHJ guidance document
• Does it specify letter height, colour or material? Yes, in detail: Exterior placards minimum 2"x3.5", weather-resistant plastic, engraved, red letters on yellow background, solid all-caps Arial, minimum font size 24 (28 bold for 'F.D.' and '#X of Y'); Panel-Interior placards minimum 7/16"x3/4", same colour scheme, bold all-caps Arial minimum 24; attachment by permanent epoxy. 95% · AHJ guidance document
• Is a site plan / facility map placard required, and what must it show? No dedicated NEC-705.10-style 'facility placard' is separately specified; LACoFD instead requires an 'Electrical Power Source Disconnect Schedule' on the submitted plans (a table listing every power source, its #X of Y disconnect number, and the disconnection device) which is then used to derive the placards actually posted at the equipment. 70% · AHJ guidance document
• Where must the labels be placed? Exterior placards go on the exterior of, or immediately adjacent to, each panel/enclosure/standalone disconnect that must be operated (additional placards where an enclosure houses multiple panels); Panel-Interior placards go inside a panel to identify specific switches/breakers. Exact placement is determined by a C-10 electrician, subject to fire code official approval. 95% · AHJ guidance document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? No SCE-specific location rule was found (SCE's interconnection handbook link is dead — redirects to the SCE homepage). As a fire-code proxy (not a utility rule): LACFC §509.3 requires that required electrical-hazard disconnection/attenuation means be located within 6 feet of the main service panel, on the same wall plane, with no intervening walls/gates/fences/vegetation. 65% · fire code proxy (utility spec unreachable)
• Must equipment be on a specific approved list? Yes for the components LACoFD reviews — its Expedited PV/ESS page states LACoFD review covers 'product listings' for both PV and ESS components. 80% · AHJ guidance page
• Are batteries permitted, and under what conditions? Yes, under detailed conditions: individual ESS units max 20 kWh, aggregate max 80 kWh per R-3/R-4 occupancy (garage, exterior wall, or ground, each capped at 80 kWh); location restrictions (no dwelling units, sleeping rooms, closets, bathrooms, basements); 3-ft unit-to-unit spacing; 5-ft from lot lines/buildings/combustibles if outdoors, 10-ft from vegetation, 3-ft from openings; fire detection required in garages; impact protection if within vehicle-damage zones; ventilation for gassing chemistries; toxic-gas-releasing chemistries barred entirely from R-3/R-4. 95% · AHJ guidance document
• Is there a separate ESS permit or inspection? Yes — LACoFD conducts its own mandatory plan review (residential/R-3,R-4 ESS plan review fee $195) and a separate, mandatory field inspection, in all cases, independent of and prior to the city's building inspection. 90% · fee schedule / adopting ordinance
• Is a ground mount treated as a structure? Likely yes, though not confirmed from Diamond Bar's own Development Code (unreachable): ground-mounted systems are explicitly excluded from the city's SolarAPP+ Instant Solar Permit and routed to conventional plan review, consistent with ground-mount arrays typically being permitted as a structure under the standard CBC. 50% · program policy
• Is there a local rule on service upgrades or busbar sizing? For the ISP/SolarAPP+ pathway: systems with a service rating over 400A, or service disconnects/busbars rated above 225A, are excluded and must use traditional permitting — meaning any project needing that scale of service upgrade cannot use the instant pathway. 70% · program policy

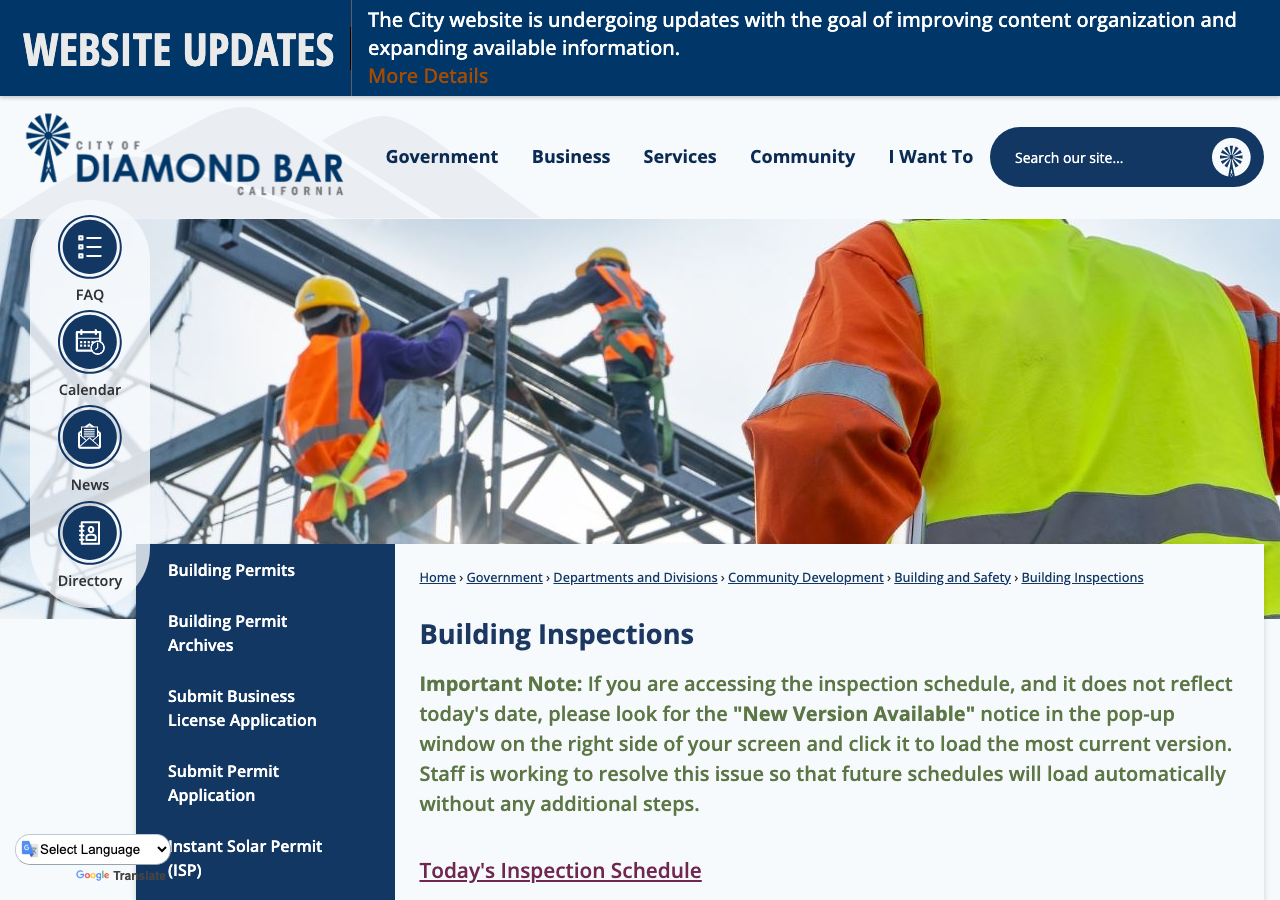

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone — call the Building and Safety Inspection Hotline. 95% · department page
• How much notice is required? At least 1 business day (requests must be made at least the day prior to the requested inspection date). 95% · department page
• Are same-day or AM/PM windows offered? Three-hour windows are offered (9am-12pm, 11am-1pm, 12pm-5pm), posted each morning by 8:30am; not same-day (next business day only), and not exact-time appointments. 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes for conventional rooftop PV — the City's own Building Division performs the final inspection. For any ESS component, LACoFD performs its own separate, mandatory field inspection that is NOT delegated to the city and occurs before the city's building inspection. 90% · department page
• If delegated, to whom? For the ESS/BESS and disconnect-placarding component only: Los Angeles County Fire Department (Consolidated Fire Protection District), Fire Prevention Division — retained as fire-code AHJ, not delegated from the city. 85% · AHJ guidance document

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? SolarAPP+ approval issued -> City permit issued via CityView -> (if ESS present) LACoFD field inspection -> City Building final inspection. 85% · department page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Does the inspector verify labels and listings? Likely yes for placard/listing compliance, though not stated as an explicit inspection-checklist item — LACoFD's placard placement and product-listing requirements are only meaningful if verified at inspection, and Appendix B ties placard placement to 'approval by the fire code official.' 65% · AHJ guidance page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? A signed building-inspection card / final inspection sign-off; no separate Certificate of Occupancy is described for a PV retrofit to an existing dwelling. 60% · department page
• Is there a re-inspection fee? City: Electrical Minimum Inspection/Reinspection Fee $132.94 (general electrical-trade fee, the category rooftop PV falls under). Separately, for the ESS component: LACoFD charges $98 for 'additional inspections after initial inspection and one reinspection.' 80% · fee schedule
