City of Dos Palos

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 90% · permit application form
• What does this authority permit itself, and what does it delegate? Both 82% · permit application form
• Is a permit required for a residential rooftop PV system? Yes 90% · permit application form / municipal code
• Is there a separate electrical permit, or is it combined? Combined 75% · permit application form
• Is a HOA or architectural approval required first? No 55% · permit application form
• Is there a historic-district review? No 72% · municipal code (full-text search)
• Is a wind or windstorm certification required? No 68% · municipal code (full-text search)
• Is a Specific Use Permit or Council approval ever required? No — state law (Gov. Code §65850.5(b)) bars requiring discretionary review/CUP/Council approval for a qualifying small residential rooftop system, and the city's own zoning title (Title 17) contains no solar-specific use-permit trigger 68% · municipal code (full-text search) + state law
• Is there a system-size cap on residential generation? No local system-size cap is codified. (State law separately defines a 'small residential rooftop solar energy system' for ministerial/expedited treatment purposes under Gov. Code §65850.5(j), but Dos Palos has no additional local kW ceiling of its own.) 68% · municipal code (full-text search)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 78% · permit application form
• Must the contractor be registered with this authority before applying? Yes 70% · municipal code (MC §5.04.160)
• Is a homeowner permitted to self-install and self-permit? Yes 75% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No separate published checklist exists; the only published submittal requirement is the one-page 'Application for Building Permit' itself, which collects: project description; owner name/address/phone; contractor name/license#/class/expiration; job address, APN, lot #, use, occupancy, project sq. ft. and valuation; a dedicated Photovoltaic block (new/revision/panel upgrade, module count, kW); Planning Dept. fields (subdivision, zone, setbacks, flood zone); and licensed-contractor/owner-builder/workers'-comp declarations. 58% · permit application form

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

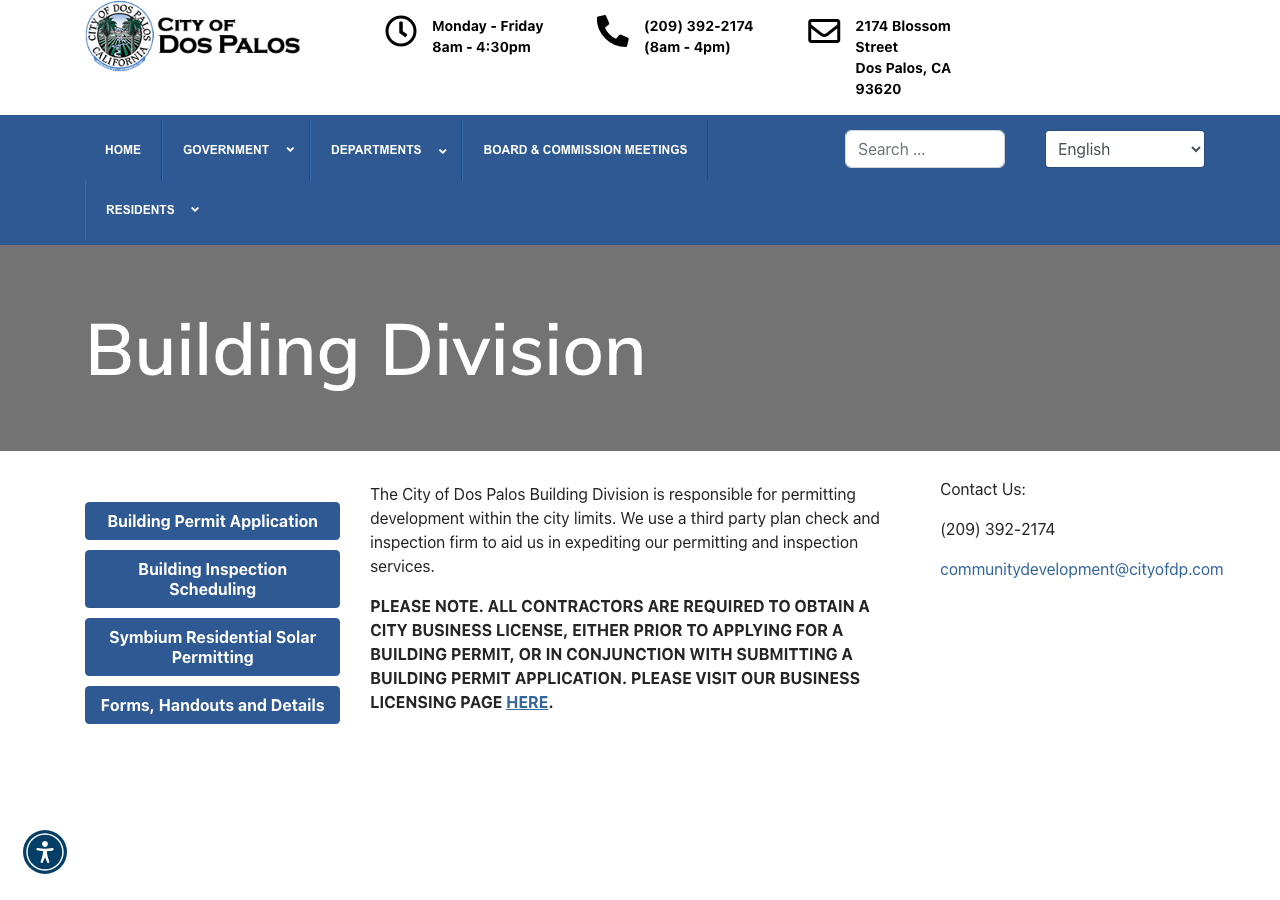

• Which permit portal does this authority use? Symbium (for qualifying residential rooftop solar); paper/in-person application at City Hall for everything else, including non-qualifying solar 88% · portal landing page
• Can the whole application be completed online? Yes 80% · portal landing page
• How is the fee calculated? Valuation 62% · municipal code (MC §15.04.020)
• Is there a separate plan-check fee? Yes 88% · municipal code (MC §15.04.020)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Instantaneous/same-day for systems that qualify and are submitted through the Symbium SB 379 automated portal; no published turnaround for the in-person/manual pathway 75% · department page
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 60% · inference from adjacent public-utility service-territory documents + absence of a city electric utility
• Where does the utility sit in the sequence? After permit (parallel submission allowed, but Permission to Operate is conditioned on the AHJ's final inspection sign-off) 62% · utility tariff (Electric Rule 21)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Are there local amendments to any of the above? No PV/solar-specific local amendments found (0 hits, control-checked). The city's Ch. 15.04 does contain limited local administrative/fee amendments to whatever model codes are adopted (e.g. the 65%-of-building-fee plan-review formula), but nothing technical or solar-specific. 58% · municipal code (full-text search)
• What is the installation judged against? Whichever current editions of the state-mandated Title 24 California Building Standards Code (CBC/CRC/CEC/CFC/CPC/CMC) the City Council has most recently adopted by resolution under MC §15.04.010 50% · municipal code (MC §15.04.010)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Dos Palos on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

Nothing recorded for City of Dos Palos on this step yet — 1 question checked and found unpublished. The guidance above is general.

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? None specified — no placard/label content of any kind is codified or published by the city for PV/solar service equipment 75% · municipal code (full-text search)
• Does the authority specify placard wording of its own? No 78% · municipal code (full-text search)
• Does it specify letter height, colour or material? No — no letter height, colour, or material spec exists locally 76% · municipal code (full-text search)
• Does the UTILITY specify placards beyond the AHJ's? Yes — PG&E requires an engraved placard on the metering equipment wherever a line/supply-side connection is used 55% · utility DG manual (PG&E Greenbook)
• Where must the labels be placed? On the metering equipment, for a line/supply-side tap connection (PG&E) 55% · utility DG manual (PG&E Greenbook)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? PG&E sets no fixed distance for the typical residential case. For a single-phase, self-contained, socket-based meter panel rated 320A or less, PG&E does not require an AC disconnect at all; where one IS required (all other panel types), it must be PG&E-approved per Electric Design Standard 060559. 58% · utility DG manual (PG&E Greenbook)
• Is a ground mount treated as a structure? Yes (by inference from the general zoning definition) 58% · municipal code (MC §17.08.050)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

Nothing recorded for City of Dos Palos on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 62% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Dos Palos on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 65% · department page (absence)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer 58% · utility tariff (Electric Rule 21)
