City of El Cerrito

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

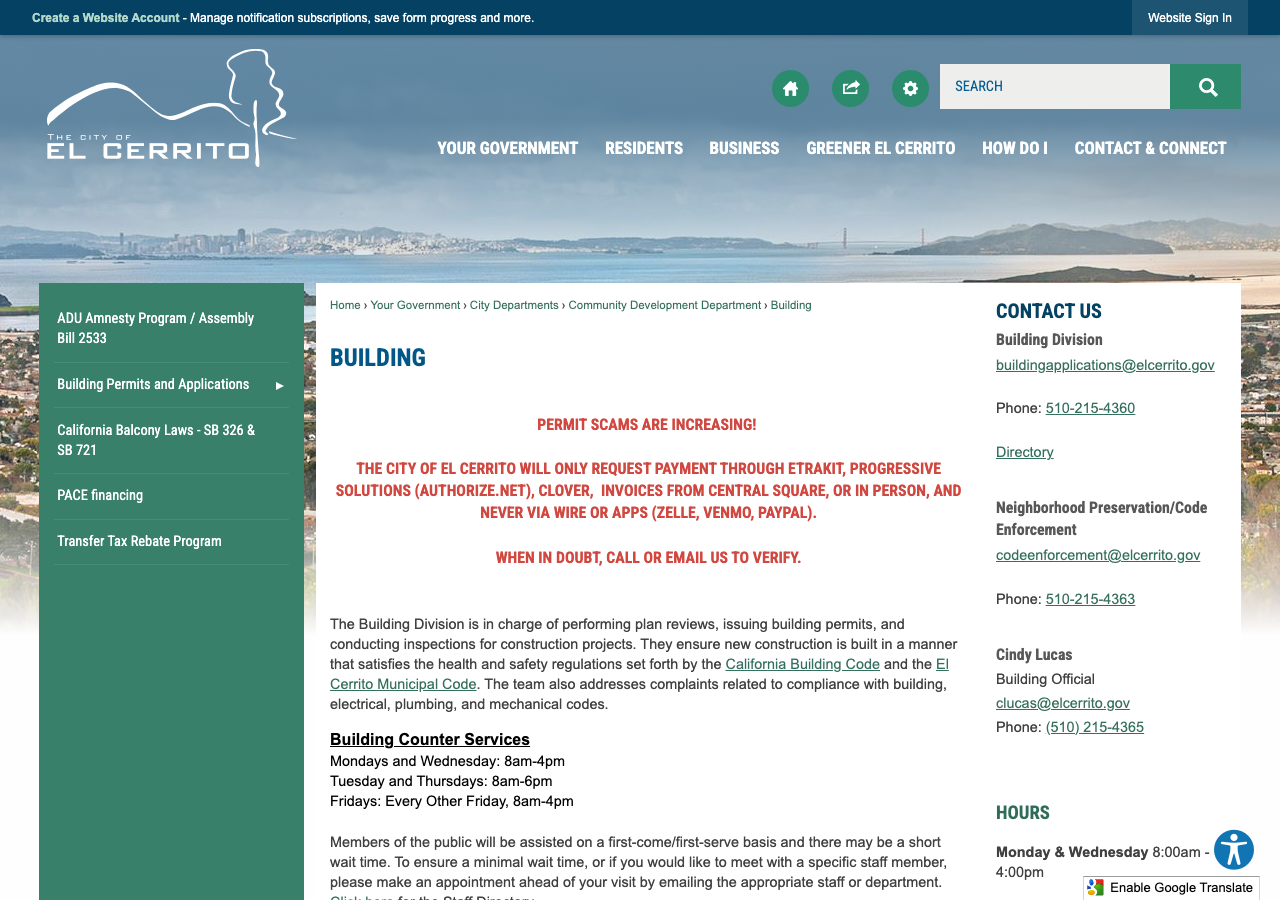

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both, with a solar-specific carve-out to a contract plan reviewer 85% · department page
• Is a permit required for a residential rooftop PV system? Yes 95% · ordinance + department page
• Is there a separate electrical permit, or is it combined? Combined 65% · department page
• Is a HOA or architectural approval required first? No HOA approval required as a precondition (Solar Rights Act incorporated by reference); city Design Review is exempt for ordinary single-family construction/alteration 80% · ordinance
• Is there a historic-district review? No — the municipal code has no historic-district or landmark overlay chapter 75% · code TOC (control-checked absence)
• Is there a system-size cap on residential generation? 10 kW AC / 30 kW thermal is the codified gate for the expedited/administrative review pathway (ECMC 16.03.065/CRC R116); the live SolarAPP+ page instead caps automated review at 38.4 kW AC (PV and ESS each) with 400 A max electric service. No hard citywide generation cap beyond these program-eligibility gates was found. 90% · ordinance + department page (dual figures)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 75% · department page
• Must the contractor be registered with this authority before applying? No separate contractor registration found beyond a standard city business license 55% · ordinance (absence)
• Is a homeowner permitted to self-install and self-permit? Yes 80% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? SolarAPP+ path: SolarAPP+ Approval Document + SolarAPP+ Specs Sheet, uploaded through eTRAKiT. Manual/legacy path (2015/2020 handout, now superseded as the live process but still the most detailed technical list available): completed application, manufacturer info sheets for panels/optimizers/inverters/mounting, a completed 'Solar PV Standard Plan', a completed Structural Criteria form, and a roof-layout diagram showing panels, access pathways and disconnect locations. 75% · department page + dated PDF checklist
• How many copies, and in what format? Electronic, via eTRAKiT upload 60% · department page
• Is a site plan required, and what must it show? Yes — a roof-layout diagram showing panel/module locations, clear access pathways, and approximate disconnect and roof-access-point locations 70% · dated PDF checklist
• Is a one-line / three-line diagram required? Yes (functionally, via the SolarAPP+ Specs Sheet) 65% · department page
• Are string and conductor calculations required? Yes (string/MPPT and combiner limits are checked) 55% · dated PDF checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? eTRAKiT (elcr-trk.aspgov.com), tied to SolarAPP+ for eligible residential PV/ESS 95% · department page
• Can the whole application be completed online? Yes, for SolarAPP+-eligible jobs (fully online, licensed-contractor only); non-eligible solar jobs are routed by email to a contract plan reviewer (4LEAF Inc) rather than completed wholly online 75% · department page
• What does a residential solar permit cost? $450.00 flat for systems up to 15 kW; $276.00 per additional 15 kW block (plus a stated $15/kW component) above that; battery storage is a separate $287.00 line; solar thermal is $331.00 up to 30 kWth. Separately, SolarAPP+ itself charges a $25 administration fee. 90% · fee schedule
• How is the fee calculated? Tiered: flat base fee for a size band, plus a per-kW increment beyond it 90% · fee schedule
• Is there a separate plan-check fee? Yes, generally — but likely bypassed for SolarAPP+-eligible jobs 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? SolarAPP+: automated/instant approval on submittal. Non-SolarAPP+ 'regular process' (per a Dec-2020 city guideline, since superseded as the live process): plan review takes about two to three weeks; the older 'streamlined' predecessor process quoted three to five business days. 70% · department page + superseded PDF
• Which utility handles interconnection here? PG&E (Pacific Gas and Electric Company) 85% · franchise ordinance + city-hosted utility documents
• Where does the utility sit in the sequence? After permit (for utility approval to energize/PTO); the interconnection application itself can be filed in parallel 65% · utility tariff (PG&E Rule 21, statewide)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 95% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code / California Residential Code (2025 CBC/CRC cycle, Title 24) 90% · adopting ordinance (codified text current; two web pages are stale)
• Which fire code edition is in force? 2025 California Fire Code 90% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? The 2025 CEC (2023 NEC) plus the ECMC 16.03.065/CRC R116 eligibility checklist for the expedited pathway, or SolarAPP+'s own automated NEC/CBC/CRC compliance check for SolarAPP+-eligible jobs 80% · ordinance + department page

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No local ridge-setback or fire-access-pathway amendment found; governed by the unamended 2025 CFC/CRC 75% · ordinance (control-checked absence)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown applies under the unamended 2023 NEC (§690.12) via the 2025 CEC; no local amendment to or beyond §690.12 was found 70% · ordinance (control-checked absence, base code applies)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No El Cerrito-specific placard list published; the last detailed labeling requirement found (2015, now superseded process) pointed generally to NEC Article 690 marking/labeling requirements 55% · dated PDF checklist (superseded) + ordinance (control-checked absence)
• Does the authority specify placard wording of its own? No 80% · ordinance (control-checked absence)
• Does it specify letter height, colour or material? No 75% · ordinance (control-checked absence)
• Does the UTILITY specify placards beyond the AHJ's? Yes — PG&E's own Rule 21 requires a visible manual disconnect at the point of interconnection with open/closed markings, reachable 24 hours a day by utility personnel, shown on the one-line diagram, beyond whatever the AHJ requires 75% · utility tariff (PG&E, statewide)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, by inference — SolarAPP+ and the (superseded) 2015 checklist both require manufacturer data sheets for all major components 55% · dated PDF checklist + national program requirement
• Are batteries permitted, and under what conditions? Yes — batteries/ESS are permitted; SolarAPP+ accommodates combined PV/ESS systems up to 38.4 kW each, but NOT standalone energy storage, which is routed to the full/manual permit process 90% · department page + fee schedule
• Is there a separate ESS permit or inspection? A separate fee line exists at the Building Division ($287 flat, 'Residential battery storage systems') distinct from the PV line; no separate FIRE ESS permit or fee was found 75% · fee schedule (control-checked)
• Is a ground mount treated as a structure? Yes, by inference — a ground-mounted PV array would fall under the Zoning Ordinance's broad, generic 'Structure' definition, which has no solar-specific carve-out 65% · ordinance (broad definition, no PV carve-out)
• Is there a local rule on service upgrades or busbar sizing? No local busbar/service-upgrade rule found beyond SolarAPP+'s own national eligibility criteria 70% · ordinance (control-checked absence) + department page

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

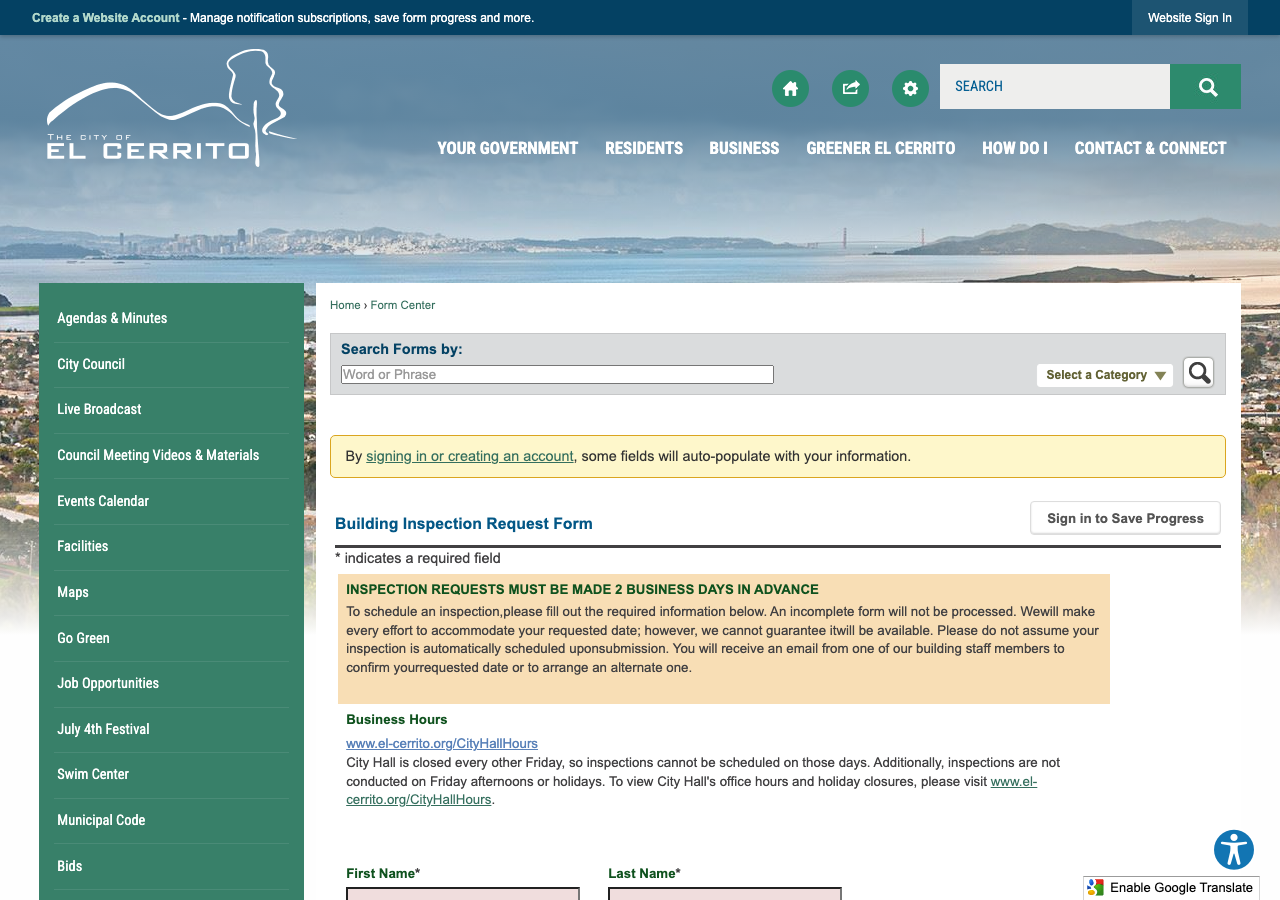

• How is an inspection booked? Portal (online inspection-request link through the Building Division page/eTRAKiT) 85% · department page
• How much notice is required? 2 business days 95% · department page
• Are same-day or AM/PM windows offered? Yes — half-day AM/PM windows 95% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 90% · ordinance
• If delegated, to whom? Not delegated — performed by the city's own Building Official (and Fire Chief, for a consolidated inspection) 80% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? SolarAPP+/expedited path: a single consolidated final inspection. Non-SolarAPP+ 'regular' path (per the superseded Dec-2020 guideline): a pre-construction inspection before permit issuance, then a rough inspection before panels are mounted, then a final inspection after all electrical/plumbing connections are made. 65% · ordinance + superseded PDF guideline
• Is a rough-in or mid-roof inspection required? Not required on the expedited/SolarAPP+ path (single inspection only); yes on the non-SolarAPP+ 'regular' path per the (superseded) 2020 guideline 60% · ordinance + superseded PDF guideline

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes — the SolarAPP+ Inspection Checklist (national program document, emailed to the city on approval) 80% · department page
• What must be on site at inspection? The permit card bearing the City permit number (e.g., 'BD24-0001'), needed to schedule inspections; by inference, the approved plans/SolarAPP+ Approval Document as well 65% · department page
• Does the inspector verify labels and listings? Yes, by inference 55% · dated PDF checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer/Applicant 90% · ordinance
• Is there a re-inspection fee? $290.00 (general building re-inspection fee; no solar-specific re-inspection fee was found) 80% · fee schedule
• How are corrections issued and cleared? For the expedited pathway: a written correction notice from the Building Official detailing all deficiencies, which the applicant must resolve to be deemed complete 70% · ordinance
