City of Elk Grove

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 90% · department page
• What does this authority permit itself, and what does it delegate? Both 85% · fee schedule
• Is a permit required for a residential rooftop PV system? Yes 90% · fee schedule
• Is there a separate electrical permit, or is it combined? Combined 75% · department page (via search index; direct fetch blocked, see note)
• Is a HOA or architectural approval required first? No, not as a City permit prerequisite 55% · inference from state law + absence on department page
• Is a Specific Use Permit or Council approval ever required? No - Chapter 16.05 establishes a ministerial/expedited permit process for small residential rooftop solar (no discretionary Specific Use Permit or Council hearing) 55% · ordinance title (redirect target blocked; see note)
• Is there a system-size cap on residential generation? Chapter 16.05's expedited process applies to a 'small residential rooftop solar system' - state law (Gov. Code §65850.5(a)) defines this as a system with a nameplate AC capacity of no more than 10 kW for single-family, but Elk Grove's own fee schedule prices tiers up to 20 kW as still 'Residential' Photovoltaic, suggesting systems above 10 kW are still permitted residentially but may fall outside the expedited-process definition and require standard (non-expedited) review. 50% · fee schedule + inference from state law definition

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 60% · inference from state law + department page
• Must the contractor be registered with this authority before applying? No 55% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 55% · inference from state law

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Completed/signed application for permit; approved SMUD interconnection approval letter; approved Cosumnes CSD (CCSD) Fire Department approval letter; electrical schematic (one-line/three-line) diagram showing module wiring, disconnects, grounding/bonding, wire and conduit type/size and conductor count; site plan. 70% · checklist (accessed via search index; direct PDF fetch blocked)
• Is a site plan required, and what must it show? Yes - a site plan is required, and (per SMUD's own interconnection checklist, which residential PV submittals must satisfy) it must be a labeled solar site plan showing the array location. 65% · utility checklist (PDF extracted directly)
• Is a one-line / three-line diagram required? Yes 75% · utility checklist (PDF extracted directly)
• Is a structural PE stamp required, and at what threshold? Structural PE/SE stamp is required only when the installation does NOT meet the prescriptive criteria of the City's standard plan/checklist (which is stated to substantially conform to the California Solar Permitting Guidebook's structural checklist - typically array dead load ≤4 psf, coverage of no more than half the roof plane, and an engineered/listed racking system). Above those thresholds a CA-licensed civil/structural engineer stamp is required. 55% · department page + comparable-jurisdiction inference

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

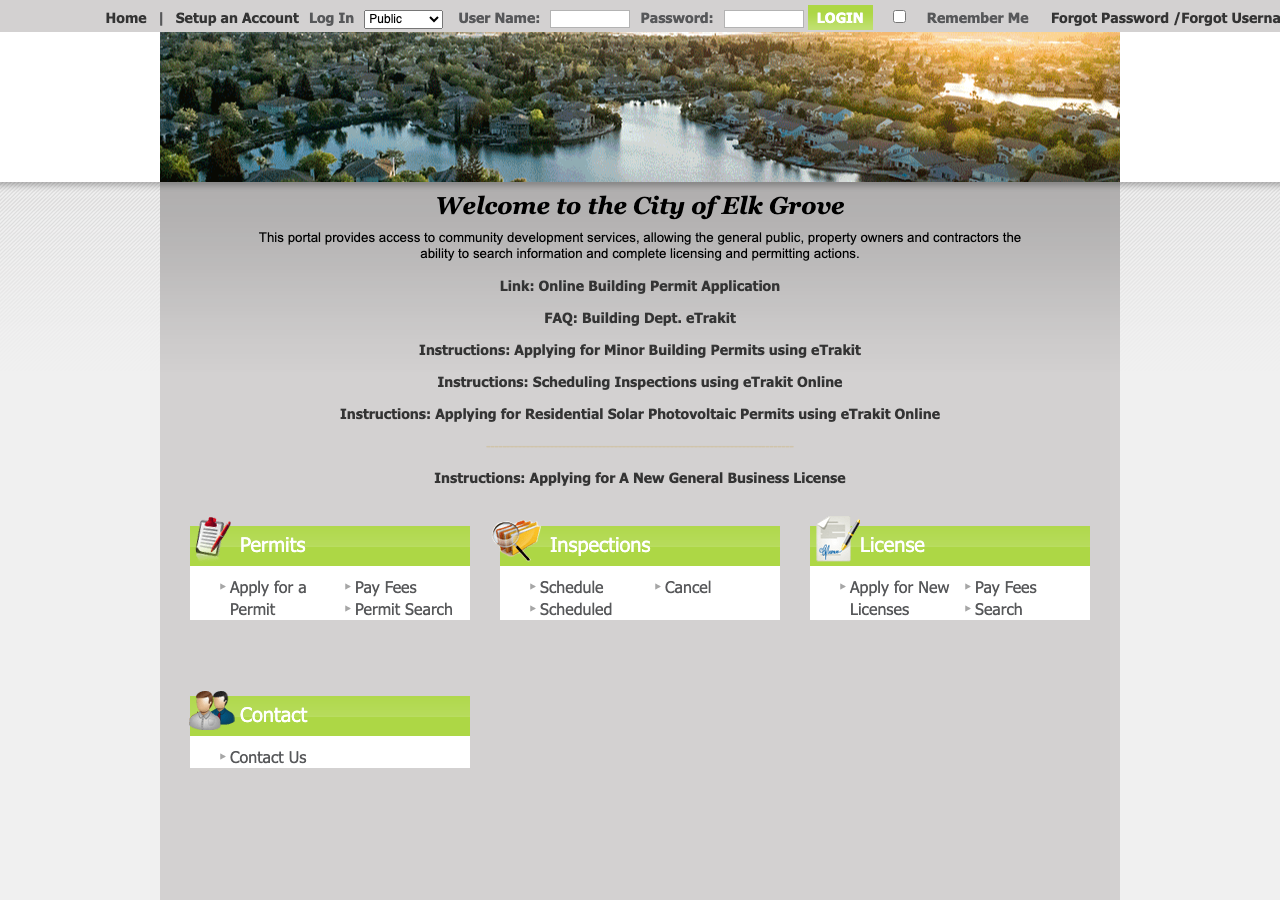

• Which permit portal does this authority use? eTrakit (elgr-trk.aspgov.com), a CentralSquare Technologies portal; SolarAPP+ is offered as an alternate automated path for eligible licensed-contractor submittals. 90% · portal landing page (fetched directly)
• Can the whole application be completed online? Yes, for SolarAPP+-eligible systems (fully automated, no human plan review); standard eTrakit submittals are completed online but plan review is still performed by City staff. 70% · department page (via search index; direct fetch blocked)
• What does a residential solar permit cost? $224 (up to 10 kW); $361 (10-15 kW); $400 (15-20 kW) residential photovoltaic permit fee, per the current fee booklet 90% · fee schedule (PDF extracted directly with pdftotext -layout)
• How is the fee calculated? Tiered by system size (kW) 90% · fee schedule (PDF extracted directly)
• Is there a separate plan-check fee? No - combined 75% · fee schedule (PDF extracted directly)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Same day for over-the-counter applications; 1-3 business days for electronic (eTrakit) applications, for a complete submittal meeting the standard checklist. SolarAPP+ eligible projects get an automated same-day approval. 70% · department page (via search index; direct fetch blocked)
• Which utility handles interconnection here? SMUD (Sacramento Municipal Utility District) - a municipally-owned utility, not a PowerToChoose-listed TDU 90% · utility interconnection guidelines (PDF extracted directly)
• Where does the utility sit in the sequence? Both: SMUD sits BEFORE the city permit (a preliminary SMUD interconnection approval letter is required before the City will accept a building permit application), and again AFTER city inspection (SMUD's guidelines state the Facility Owner is 'responsible for all local building permits and final inspections with the local agency before SMUD performs its final inspection' for Permission to Operate). 80% · utility interconnection guidelines (PDF extracted directly)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (adopted as the 2025 California Electrical Code, Title 24 Part 3) 90% · city council minutes (PDF extracted directly) + CA Building Standards Commission code cycle
• Which building code edition is in force? 2025 California Building Code (Title 24, Part 2), effective 1 Jan 2026, with local amendments 88% · city council minutes (PDF extracted directly)
• Which fire code edition is in force? 2025 California Fire Code (Title 24, Part 9), effective 1 Jan 2026, with local amendments codified at EGMC Chapter 17.04 88% · city council minutes (PDF extracted directly)
• Are there local amendments to any of the above? Yes 85% · city council minutes (PDF extracted directly)
• What is the installation judged against? The 2025 California Electrical Code (NEC 2023 base) and the City's standard PV plan/checklist, which the City states substantially conforms to the California Solar Permitting Guidebook 70% · department page + adopting ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Elk Grove on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes - rapid shutdown is required under NEC 690.12 as adopted in the 2023 NEC / 2025 CEC 75% · adopted code (statewide provision, city has not amended it)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Main service disconnect placard, PV system disconnect placard, rapid-shutdown placard/label at the service disconnect, and any additional signage SMUD requires at its point of interconnection (see q42) 60% · utility guidelines (PDF extracted directly) + statewide fire code
• Does the authority specify placard wording of its own? No - Elk Grove has not published its own placard wording distinct from the state code 55% · absence noted on department page (direct PDF fetch blocked)
• Does it specify letter height, colour or material? Standard NEC 690.56(C) rapid-shutdown label spec applies (as adopted statewide): first two lines uppercase, min. 3/8 in. height, black text on yellow background; remaining lines uppercase, min. 3/16 in., black on white; label within 3 ft of the disconnect. 55% · adopted code (statewide provision)
• Does the UTILITY specify placards beyond the AHJ's? Yes - SMUD requires its own visible-disconnect signage at or near the point of interconnection (markings clearly showing open/closed position; permanent signage at a SMUD-approved location if the disconnect switch is not adjacent to the point of common coupling), in addition to whatever the AHJ's fire/building code requires. 80% · utility interconnection guidelines (PDF extracted directly)
• Where must the labels be placed? Rapid-shutdown label within 3 ft of the service disconnecting means; SMUD's visible-disconnect signage at or adjacent to the point of common coupling (or at a SMUD-approved alternate location if not adjacent). 65% · utility guidelines (PDF extracted directly) + statewide code

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? SMUD does not currently mandate a separate AC disconnect switch for inverter-based systems on a self-contained electric meter (the typical SMUD residential meter); where a visible disconnect is still required by SMUD's operating practices, it must be near the point of interconnection with the utility, capable of being locked open and reached by SMUD 24/7. 80% · utility interconnection guidelines (PDF extracted directly)
• Must equipment be on a specific approved list? Yes - modules must be Class A fire-rated, listed and labeled per UL 1703 (or UL 61730), and inverters/equipment must be CEC-listed for SMUD interconnection. 65% · utility checklist (PDF extracted directly) + department page
• Are batteries permitted, and under what conditions? Batteries/ESS are permitted subject to the statewide 2025 CEC (NEC Article 706) and California Fire Code Chapter 12 (energy storage) requirements; Cosumnes CSD Fire lists a separate 'Energy Storage System - Battery System/Fuel Cell Power Systems (construction)' fee of $2,234 in the current fee booklet, but that entry sits under the booklet's COMMERCIAL Construction/Building Permit Fees table, so it is not confirmed to apply to a typical residential home battery. 50% · fee schedule (PDF extracted directly)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone or Portal 80% · portal (fetched directly) + department page
• How much notice is required? By phone: at least 24 hours before the requested date (cutoff 5pm the prior business day). Online: up to 5 business days in advance, or as late as 5am the same day. 60% · department page (via search index; direct fetch blocked)
• Are same-day or AM/PM windows offered? Same-day inspection is possible if requested online before 5am that day; no confirmed AM/PM window system was found. 55% · department page (via search index; direct fetch blocked)

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 70% · department page (via search index; direct fetch blocked)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For expedited small-residential-rooftop systems: a single consolidated final inspection by the City Building Department (electrical + structural/roof-mount checked together), after CCSD Fire approval and SMUD's pre-permit approval letter are already on file. SMUD performs its own separate final inspection afterward before granting Permission to Operate. 60% · utility guidelines (PDF extracted directly) + department page
• Is a rough-in or mid-roof inspection required? No - the expedited residential solar process is designed around a single consolidated final inspection, not a separate rough-in/mid-roof stage 60% · department page (via search index; direct fetch blocked)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

Nothing recorded for City of Elk Grove on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (the permit document is 'finaled' by the inspector on passing all required inspections); no separate Certificate of Occupancy is issued for an existing-home PV retrofit. 55% · department page (via search index; direct fetch blocked)
• Who notifies the utility for PTO? Installer/Facility Owner notifies SMUD and SMUD performs its own final inspection before issuing Permission to Operate; the City's final inspection is a precondition SMUD requires but does not itself notify SMUD. 75% · utility interconnection guidelines (PDF extracted directly)
• Is there a re-inspection fee? $125 flat re-inspection fee 90% · fee schedule (PDF extracted directly)
