City of Etna

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 85% · department page
• What does this authority permit itself, and what does it delegate? Both 62% · department page + conflicting general-plan text
• Is a permit required for a residential rooftop PV system? Yes 72% · linked intake page (first-party link from Etna's own site)
• Is there a separate electrical permit, or is it combined? Combined 55% · department page (inference)
• Is there a historic-district review? No dedicated historic-district or discretionary architectural review process was found that would apply to rooftop or ground-mount solar. Title 17 defines a 'Town Center (T-C)' zoning district covering the 'historic town center,' but the code contains no historic-landmark list, historic-preservation ordinance, or Architectural Review Board chapter — full-text search for 'historic' returned only the T-C district description, ADU/historic-district housing-incentive cross-references, and a sign-code view-obstruction clause, none of which establish a review process for solar. 50% · zoning code (control-proven absence)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 55% · linked intake page
• Must the contractor be registered with this authority before applying? No 50% · document list (absence)
• Is a homeowner permitted to self-install and self-permit? Yes 55% · linked intake page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Building Permit Application (the county-published fillable PDF that Etna's own Forms & Documents page links to as its 'Building Permits' resource), plus an Owner-Builder Form if self-installing. For the PV work itself, the neighbouring Siskiyou County Building Division's own Residential Solar Photovoltaic Systems Bulletin (rev. 3-27-2026) — not confirmed as Etna's own document — describes a cover sheet, an overall site plan, an enlarged roof or ground-mount plan, construction plans, an electrical single-line diagram, structural calculations, and PV equipment manufacturer cut sheets. 55% · linked intake page + neighbouring-authority bulletin
• How many copies, and in what format? Two copies, plan sets sized 11"x17" preferred (larger accepted); no separate Etna-specific digital-submission format is published. 45% · neighbouring-authority bulletin (unconfirmed applicability)
• Is a site plan required, and what must it show? Yes — property boundaries, all structures, north arrow, the specific PV installation location, driveway access, underground trenching/conduit depths, and the location of electrical service equipment (combiner box, inverter, AC/DC disconnects, junction boxes, battery banks), per the county Building Division's Residential Solar PV bulletin. Etna publishes no site-plan checklist of its own (confirmed absence across its Forms & Documents list and full municipal code). 50% · neighbouring-authority bulletin (unconfirmed applicability)
• Is a one-line / three-line diagram required? Yes (per the county Building Division's bulletin: 'Electrical single-line diagram clearly identifying all devices installed in the PV system'). Etna's own materials do not address this. 50% · neighbouring-authority bulletin
• Are string and conductor calculations required? Yes (inferred) — the bulletin requires 'type and size of all conduits and conductors throughout the PV system' and DC array VOC/ISC ratings to be shown on the electrical plans, which functionally requires conductor sizing calculations, though the bulletin does not use the term 'string calculations' itself. 45% · neighbouring-authority bulletin (inference)
• Is a structural PE stamp required, and at what threshold? Yes for both roof- and ground-mount systems — 'structural calculations, prepared by a licensed California design professional' are required in all cases per the county Building Division's bulletin (loading of 40 psf or 60 psf depending on elevation, with 'NO reduction of the loads allowed'). No small-system size threshold below which the requirement is waived was stated. Etna publishes no PV-specific threshold of its own. 50% · neighbouring-authority bulletin

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

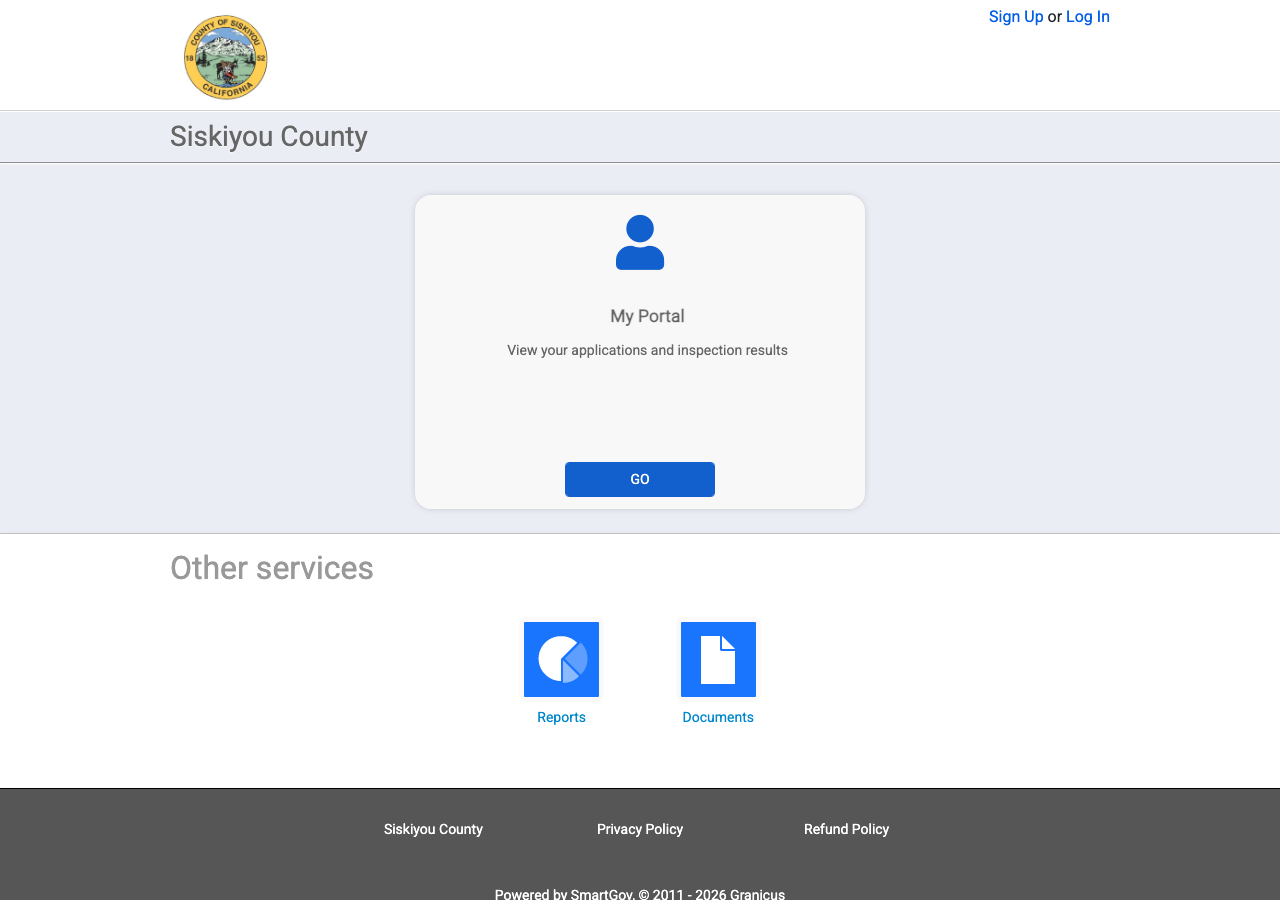

• Which permit portal does this authority use? No dedicated online permit portal was found. Applicants use the paper, county-published 'Building Permit Application (Fillable)' PDF that Etna's own Forms & Documents page links to directly under its own 'Building Permits' entry, presumably submitted in person/by mail to City Hall / Public Works. 60% · department page (linked resource)
• Can the whole application be completed online? No 60% · department page (absence)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Pacific Power (PacifiCorp), not PG&E 65% · utility CPUC filing + comparative service-territory evidence
• Where does the utility sit in the sequence? Parallel, with a hard gate at the end. PacifiCorp's own published interconnection process requires the customer to submit a Net Metering Application/Agreement and receive PacifiCorp's approval BEFORE construction (its Steps 1-4), then install the system and obtain the AHJ's own electrical inspection (Step 5), then submit that approved inspection to PacifiCorp, which sets the net meter within 10 days of receipt (Steps 6-7). So the utility's interconnection agreement runs in parallel with/ahead of permitting, but the utility's final meter-set/PTO step is strictly AFTER the city's own inspection sign-off. 75% · utility process brochure

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (as adopted within the 2025 California Electrical Code, part of the 2025 California Building Standards Code cycle effective 1 Jan 2026) — by statewide default only. Etna has NOT locally codified any electrical code of its own: its historical 'Building code' ordinance (Ord. 86) was repealed outright by Ord. 149 with no replacement ever adopted, confirmed by reading Title 15 (Buildings and Construction) in full, which contains only curb/gutter, condemnation, EV-charging and VHFHSZ chapters — no CBC/CRC/CEC adoption chapter exists. 55% · code (absence) + state default
• Which building code edition is in force? 2025 California Building Code / California Residential Code (statewide default, effective 1 Jan 2026) — same basis as Q29: Etna's own code has no CBC/CRC adoption chapter at all (Ord. 86 repealed by Ord. 149, never replaced). 55% · code (absence) + state default
• Which fire code edition is in force? 2013 California Fire Code (incorporating the 2013 International Fire Code) — EMC §8.12.010, adopted by Ord. 212 in 2014. This is the only model code Etna has actually codified and it has not been updated since; it is stale relative to the current 2025 CFC statewide cycle. 85% · codified ordinance
• Are there local amendments to any of the above? No PV/ESS-specific local amendments exist to the fire code (EMC Ch. 8.12 contains zero 'solar' hits, control-proven), and there is no local building/electrical code at all to amend — Etna simply has none codified. So 'local amendments' in the PV/ESS sense is No, though the fire code itself (2013 CFC) is by definition a locally-adopted, uncurrent vintage. 70% · codified ordinance (control-proven)
• What is the installation judged against? The 2013 California Fire Code as codified (EMC Ch. 8.12) for fire/life-safety review; for building and electrical construction standards, the current statewide California Building Standards Code (Title 24) by default, since Etna has no locally-adopted CBC/CRC/CEC chapter of its own to add to or supersede it. 58% · codified ordinance + state default

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Etna on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Not stated in any Etna-specific document — Etna has no local electrical code chapter (see Q29). Under the statewide default (2023 NEC via the 2025 CEC cycle) NEC 690.12 rapid-shutdown applies. Neither Etna's own code nor the neighbouring Siskiyou County Building Division's Residential Solar PV bulletin ever names 'rapid shutdown' or '690.12' — control-checked (zero hits for both terms across Etna's full Titles 8/15/17 and the county's 4-page bulletin). 50% · control-proven absence + state default

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? At the utility meter base, at the AC disconnect, and (if applicable) at the battery disconnect — per Pacific Power's own 'Engraved Placard Examples' spec (utility-side, high confidence). The neighbouring Siskiyou County Building Division's own PV bulletin separately calls for signage identifying 'the location of service disconnecting means and PV system disconnect' (AHJ-side, lower confidence, not confirmed as Etna's own requirement). Etna itself publishes no placard requirement of its own (control-proven absence). 60% · utility spec + neighbouring-authority bulletin
• Does the authority specify placard wording of its own? No 65% · control-proven code absence
• Does it specify letter height, colour or material? Not specified by Etna itself. Pacific Power (the serving utility) requires 3/8" white lettering on a red background for its own meter/disconnect placards (its 'Engraved Placard Examples' spec), plus a separate 1/4" (9mm)/25pt-Arial, 5"x5" 'director placard' for aggregation cases. The neighbouring Siskiyou County Building Division's Residential Solar PV bulletin separately specifies 'green or red plastic engraved with 1/2" high white letters, permanently mounted on or immediately next to the panel door' for AHJ-side signage — but that is the county's own published spec, not confirmed adopted by Etna. 60% · utility spec + neighbouring-authority bulletin
• Does the UTILITY specify placards beyond the AHJ's? Yes. Pacific Power's own 'Engraved Placard Examples' spec (3/8" white letters on red background at the meter base and AC/battery disconnects; a separate 1/4"/25pt-Arial 5"x5" 'director placard' for aggregation) and its 'Distributed Energy Resource (DER) Interconnection Policy' (Policy No. 138, Rev. 12, 5/26/2026) require the customer-side disconnect to be lockable in the open position, accessible to PacifiCorp personnel, and located within sight and within 10 feet of the utility meter (or at a PacifiCorp-approved location with signage indicating the disconnect's location). 90% · utility policy document
• Where must the labels be placed? At/near the utility meter base, at the AC knife-blade disconnect for the solar system, and (if applicable) at the battery/manual disconnect — per Pacific Power's own placard spec; the customer-side disconnect switch itself must be located within sight and within 10 feet of the meter per PacifiCorp's DER Interconnection Policy. Etna specifies no additional label-placement rule of its own. 85% · utility spec

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Within sight and within 10 feet of the utility meter, and capable of being locked in the open position — per Pacific Power's own DER Interconnection Policy (Policy No. 138, Rev. 12, 5/26/2026), which is the utility policy applicable to whichever utility serves the interconnection (see Q22 re: utility identification confidence). 70% · utility policy document
• Must equipment be on a specific approved list? Yes (inferred) — PacifiCorp's own Facility Interconnection Requirements mandate a UL 1741-listed inverter meeting IEEE 1547-2018 for certified DER interconnections. No additional Etna-specific approved-equipment list was found. 60% · utility policy document
• Is a ground mount treated as a structure? Yes (inferred) 70% · codified zoning definition
• Is a specific mounting system or attachment spacing required? 4'-0" on-center attachment spacing (both directions) for 40 psf roof loads, per the neighbouring Siskiyou County Building Division's Residential Solar PV bulletin. Not confirmed as Etna's own adopted standard — Etna's own code has no mounting-spacing rule of any kind. 45% · neighbouring-authority bulletin

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

Nothing recorded for City of Etna on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes (inferred) 55% · department page (inference)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Etna on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 60% · document list (control-proven absence)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer 80% · utility process brochure
