City of Gardena

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes — City of Gardena's Building Services / Building & Safety Division (Community Development Dept.) is the AHJ for building and electrical permitting/inspection of residential rooftop PV at this address; LACoFD is the separate fire AHJ (see jurisdiction block). 92% · department checklist
• What does this authority permit itself, and what does it delegate? Both — Gardena issues Building and Electrical permits itself (not delegated to LA County DPW, confirmed absent from county's building contract-city list); however fire-code review/inspection for ESS/BESS, certain BIPV, and all disconnect placarding is delegated the other way, to LACoFD, which Gardena contracts with fee-for-service for fire protection. 90% · county department page
• Is a permit required for a residential rooftop PV system? Yes — a Building and Electrical Permit are required to install a solar PV system. 95% · department checklist
• Is there a separate electrical permit, or is it combined? Combined — one Permit Application form (BLD-100) has Building/Mechanical/Electrical/Plumbing checkboxes and solar is submitted as a single application with both Building and Electrical boxes checked; the fee schedule nonetheless prices it as a single 'Electrical Permit - Solar Panels' line item. 68% · permit application form
• Is a HOA or architectural approval required first? No — no HOA/architectural-approval requirement is listed anywhere in the city's solar submittal checklist or permit application (the BLD-100 form has an informational 'Property is Part of a H.O.A.' checkbox but does not require an HOA approval letter as part of the submittal). 60% · permit application form
• Is there a historic-district review? No historic-district or landmark preservation program found for Gardena. 55% · site search (absence)
• Is a Specific Use Permit or Council approval ever required? No Council/SUP approval for standard rooftop residential PV ≤ 10kW — the checklist states 'Planning review is not required for solar PV installations of this size.' Not verified for larger systems or ground-mounted arrays (zoning code inaccessible — see note). 75% · department checklist
• Is there a system-size cap on residential generation? No hard cap on residential generation size found; systems ≤10kW use the simplified checklist with no Planning review, while larger systems presumably undergo standard full plan review (not a prohibition, just a different track). The city's fee schedule doesn't even list a >15kW residential PV price break beyond the flat $448, suggesting the fee structure (at least) does not anticipate large residential arrays. 75% · department checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either — the BLD-100 permit application offers 'Contractor' (CA license no. + class) or 'Owner-Builder' as the applicant type; no solar-specific restriction to licensed electricians only was found. 78% · permit application form
• Must the contractor be registered with this authority before applying? Yes — any contractor performing work in Gardena, even if based outside the city, must obtain a City of Gardena business license before/while pulling permits. 80% · department page
• Is a homeowner permitted to self-install and self-permit? Yes, generally — the standard BLD-100 permit application allows 'Owner-Builder' as an applicant type for any building/electrical permit, including solar; if the homeowner opts into the Solar Self-Certification inspection program instead of a full inspection, that self-certification form itself must be completed by a licensed C-10/C-46/A contractor, not the homeowner. 60% · self-certification form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Completed permit application (BLD-100); 2 copies of plans; electric plan (main service/disconnect location, module/string counts, inverter/combiner make & model, one-line diagram, grounding/bonding and conductor/conduit sizing, battery locations/venting if applicable, equipment cut sheets, CEC 690/705 labeling); site diagram (panel arrangement, north arrow, lot dimensions, distances to property lines/adjacent structures); roof plan (roof access point, fire-code access pathways, PV fire classification, label locations); structural drawings/calculations stamped by a CA-licensed civil/structural engineer (roof covering type/count, framing type/size/spacing, panel weight & attachment method, racking product evaluation or site-specific calcs). 92% · department checklist
• How many copies, and in what format? 2 copies of plans, drawn in ink on bond/blueprint paper, minimum 11"x17"; electronic plan review is also available per a separate BLD-027/028 Electronic Plan Review Procedures guide. 88% · department checklist
• Is a site plan required, and what must it show? Yes — a site diagram is required showing arrangement of panels on the roof or ground, north arrow, lot dimensions, and distance from property lines to adjacent buildings/structures (existing and proposed); a separate roof plan showing roof layout, PV panels, roof access point, code-compliant access pathways, PV fire classification, and label/marking locations is also required. 92% · department checklist
• Is a one-line / three-line diagram required? Yes — a one-line diagram of the system is explicitly required. 95% · department checklist
• Are string and conductor calculations required? Yes, in substance — checklist requires total number of modules, modules per string, total number of strings, and conductor type/size/count in each conduit run (full electrical string/conductor calc is implied though not spelled out as a distinct 'calculation' document). 82% · department checklist
• Is a structural PE stamp required, and at what threshold? Yes, for essentially all residential rooftop PV covered by the standard checklist — structural drawings and calculations 'stamped and signed by a California-licensed civil or structural engineer' are required, with no stated size/weight exemption threshold in the checklist itself. Separately, the Solar Self-Certification form offers a state-style prescriptive path (roof/rafter/attachment criteria, ≤4 PSF weight, ≤40 lb concentrated load) that can substitute for full engineering calcs at the inspection stage. 78% · department checklist
• Is an electrical PE stamp required, and at what threshold? No electrical PE stamp is specified — the checklist's Electric Plan section requires only a one-line diagram, conductor/conduit sizing and equipment cut sheets, with no engineer-stamp requirement analogous to the structural section. 55% · department checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

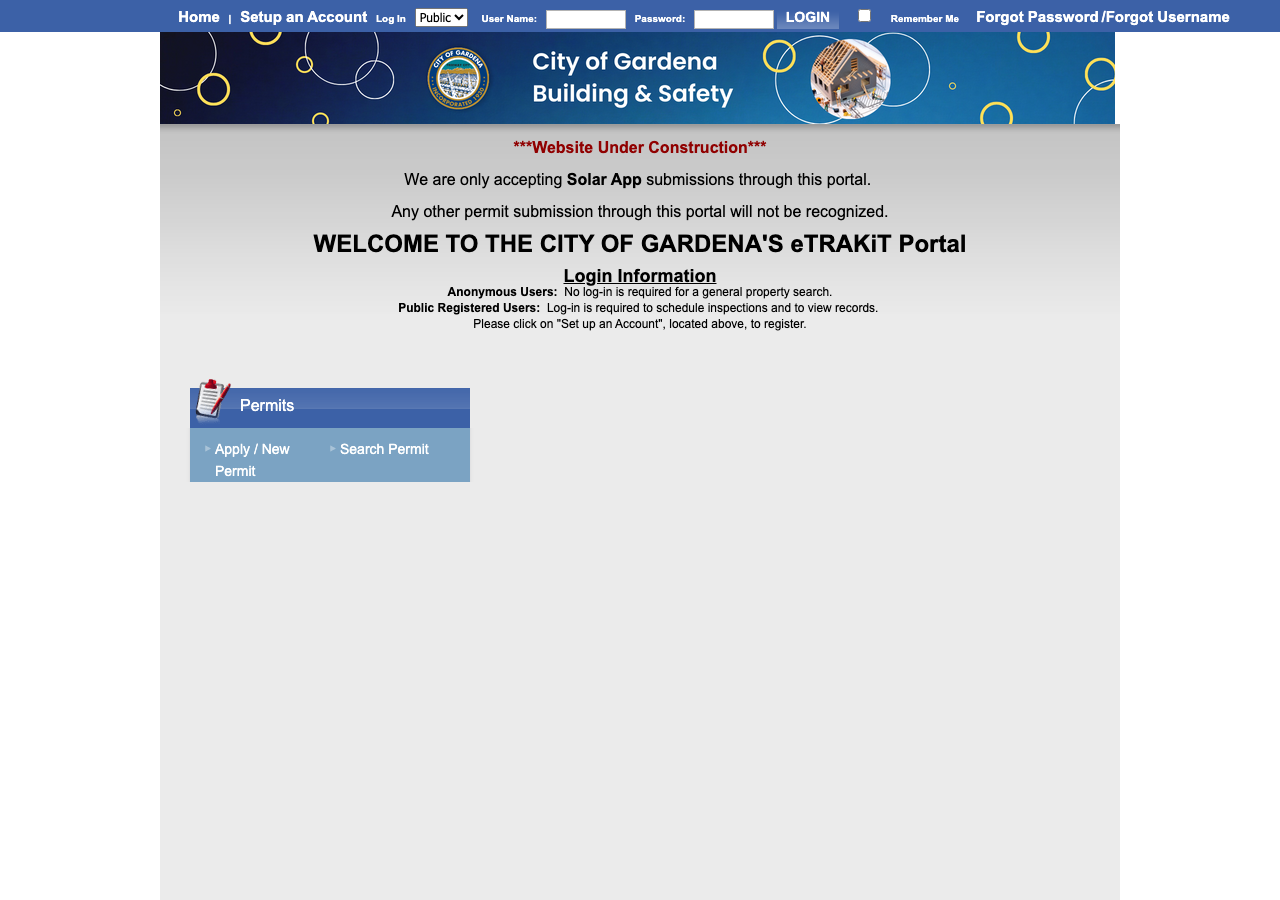

• Which permit portal does this authority use? SolarAPP+ (https://solarapp.nrel.gov/) for eligible single-family rooftop projects, which then routes to the city's Trakit portal to complete the permit/payment process; non-eligible or larger projects submit by email (building@cityofgardena.org) rather than a self-service portal. 85% · department page
• Can the whole application be completed online? Yes, for SolarAPP+-eligible projects (instant online permit with online fee payment via Trakit); No for non-eligible/regular building-permit-track solar projects, which are submitted as PDFs by email rather than through a self-service online portal. 70% · department page
• What does a residential solar permit cost? Residential PV electrical permit: $448 flat (both ≤15kW and >15kW tiers priced the same in the current schedule), plus the state-mandated SB 1473 fee, plus a plan-check fee equal to 100% of the electrical permit fee (~another $448) — so roughly $896 + SB1473 total before any additional building-permit-issuance fee. 88% · fee schedule
• How is the fee calculated? Flat (a fixed dollar amount per residential PV permit, not scaled by valuation, kW, or panel count) plus the separate state SB1473 fee. 82% · fee schedule
• Is there a separate plan-check fee? Yes — Electrical Permit Plan Check Fee is a separate line item, set at 100% of the electrical permit fee. 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Approximately 10 business days for first submittal, 5 business days for resubmittals (general Building Division standard; not stated as solar-specific). 78% · department page
• How long is an issued permit valid before it expires? 180 days, unless work is active and progressing, in which case the permit remains valid until project completion. 88% · department page
• Which utility handles interconnection here? Southern California Edison (SCE). No community choice aggregator (CCA) serves Gardena — confirmed absent from Clean Power Alliance's own site content, and Gardena's own adopted Electrical Code amendment ordinance names SCE directly as the incumbent utility (undergrounding exception clause). 90% · adopted ordinance

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, adopted as part of the 2025 California Electrical Code (Title 24, Part 3) via Ordinance No. 1888, adopted 10 Mar 2026, effective 30 days later (~9 Apr 2026). 92% · adopted ordinance
• Which building code edition is in force? 2025 California Building Standards Code (Title 24), adopted by Ordinance No. 1888 (adopted 10 Mar 2026; effective ~9 Apr 2026), with local amendments; this supersedes the prior 2022-edition ordinance (No. 1851). 92% · adopted ordinance
• Which fire code edition is in force? 2023 Los Angeles County Fire Code (LACFC) — a locally amended version of the 2022 California Fire Code, per LA County Ordinance No. 2023-0008 (adopted 2 Mar 2023) — adopted for Gardena by its own Ordinance No. 1855 (adopted 11 Jul 2023). Gardena's municipal code section (8.08.020) fixes the reference to that specific county ordinance rather than floating automatically, and the city has NOT yet passed a follow-on ordinance adopting a newer county fire-code cycle even though the building/electrical code has already moved to the 2025 cycle (Ord. 1888) — i.e. Gardena's fire code and its building/electrical code are currently on different cycles. 85% · adopted ordinance
• Are there local amendments to any of the above? Yes — local amendments exist at both levels: Ordinance No. 1888 amends the 2025 CEC (e.g. §89.108.4.2 fees, §230.30 underground service laterals, §590.3(A) temporary power poles) though none of these are solar-specific; and LA County's amendments to the 2022 CFC (adopted into the 2023 LACFC) include extensive PV/ESS-specific provisions (energy-capacity caps, spacing, and the LACoFD disconnect-placarding system) documented in LACoFD's Guide for ESS, PV, and Disconnects. 88% · adopted ordinance
• What is the installation judged against? The 2025 CBC/CEC (Title 24) as locally amended by Ord. 1888 for building/electrical work, and the 2023 LACFC (Title 32) as locally amended for fire-code matters; for PV/ESS/disconnect-placarding specifically, also judged against LACoFD's own 'Guide for ESS, PV, and Disconnects' (Rev. 3, effective 1 Sep 2023) and its Appendix B placarding spec. 85% · fire-department guide

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Two 3-ft-wide pathways from the lowest roof edge to the ridge on separate roof planes (at least one on the street/driveway side); ridge setback of 18" per side where PV covers ≤33% of roof (no sprinklers) or ≤66% (with sprinklers), rising to 36" per side above those coverage thresholds; a 3-ft-wide emergency-escape/rescue opening pathway must also be preserved. 92% · self-certification form

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — rapid shutdown is required, to NEC 690.12 of the 2023 NEC (as adopted into the 2025 CEC by Ord. 1888). LACoFD's disconnect-placarding system separately requires that any panel/switch needed to activate rapid shutdown be included in the placarded 'X of Y' disconnect count. 88% · fire-department guide

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The LACoFD Electrical Power Source Disconnect Placarding System: an Exterior Placard on/adjacent to each disconnect panel/enclosure (reading 'F.D. – ELECTRICAL BLDG DISCONNECT #X of Y'), and Panel-Interior Placards inside a panel to identify specific switches/breakers where multiple must be operated. 95% · fire-department guide
• Does the authority specify placard wording of its own? Yes — exact verbiage specified: Exterior Placard reads 'F.D. – ELECTRICAL BLDG DISCONNECT / # X of Y'; Panel-Interior Placard reads '# X' with the same F.D. header context. 95% · fire-department guide
• Does it specify letter height, colour or material? Yes, fully specified: red letters engraved into a yellow background; solid all-capital Arial font, min. size 24 (min. size 28 bold for 'F.D.' and '#X of Y' on Exterior Placards); Exterior Placard minimum 2"x3.5" weather-resistant plastic; Panel-Interior Placard minimum 7/16"x3/4" weather-resistant plastic; attached with permanent epoxy compatible with the mounting surface. 96% · fire-department guide
• Is a site plan / facility map placard required, and what must it show? Yes — at plan-check stage a roof plan/site diagram is required showing roof layout, panel arrangement, north arrow, lot dimensions, roof access point, fire-code access pathways, PV fire classification and label locations (city checklist); at the physical installation, LACoFD's Exterior/Panel-Interior placard system (Appendix B) functions as the on-site disconnect map/directory required by NEC 705.10-type multiple-source labeling. 80% · department checklist
• Where must the labels be placed? Per CEC §690/705 general equipment labeling (per the city's checklist) plus LACoFD's Appendix B rules: Exterior Placards on or immediately adjacent to each panel/enclosure/standalone disconnect that must be operated; Panel-Interior Placards inside the panel identifying specific switches/breakers when more than one must be operated within a single enclosure. 90% · fire-department guide

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Fire-code proxy rule (not a utility document): LACFC §509.3 requires that required disconnection/attenuation means for electrical hazards be located within 6 feet of the main service panel, on the same wall plane, with no separation by walls, gates, fences, vegetation, or architectural features. SCE's own DG interconnection manual could not be checked (see q42) for any utility-side meter-vs-disconnect placement rule. 82% · fire-department guide (fire-code citation)
• Must equipment be on a specific approved list? Yes, in substance — the city checklist requires equipment cut sheets (inverters, modules, disconnects, combiners), and LACoFD's ESS rules require UL 9540 listing for ESS units and UL 1741 for inverters; there isn't a single named 'approved equipment list,' but listing/certification is mandatory. 80% · fire-department guide
• Are batteries permitted, and under what conditions? Yes, under LACoFD conditions: individual ESS units capped at 20 kWh nameplate; aggregate capped at 80 kWh per site (also per-location caps of 80 kWh in attached garage / detached garage / exterior wall-mounted / ground-mounted, each independently), minimum 3 ft spacing between individual units and from ignition sources, UL 9540 listing (units) and UL 1741 (inverters, unless covered under the UL 9540 listing), and heat-alarm/detection required if installed in an attached garage. Installations >3 kWh capacity require LACoFD plan review/field inspection in addition to the city's building/electrical permit. 92% · fire-department guide
• Is there a separate ESS permit or inspection? Yes — LACoFD performs a separate plan review and field inspection for ESS installations with capacity greater than 3 kWh (booked and invoiced directly with LACoFD's regional Fire Prevention office), in addition to the city's own building/electrical permit and inspection. 90% · fire-department checklist
• Is a specific mounting system or attachment spacing required? Yes, via the Solar Self-Certification 'Prescriptive Requirements' path (an alternative to full structural engineering): roofing single-layer wood/asphalt shingle or torch-down; PV system ≤ 4 PSF; max 40 lb concentrated load per support; module-to-roof gap < 18"; rafters 2x4 or better at ≤24" o.c. with max 48" attachment span; lag screws ≥ 5/16" with ≥ 2.5" penetration, no 'shiners.' 85% · self-certification form

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

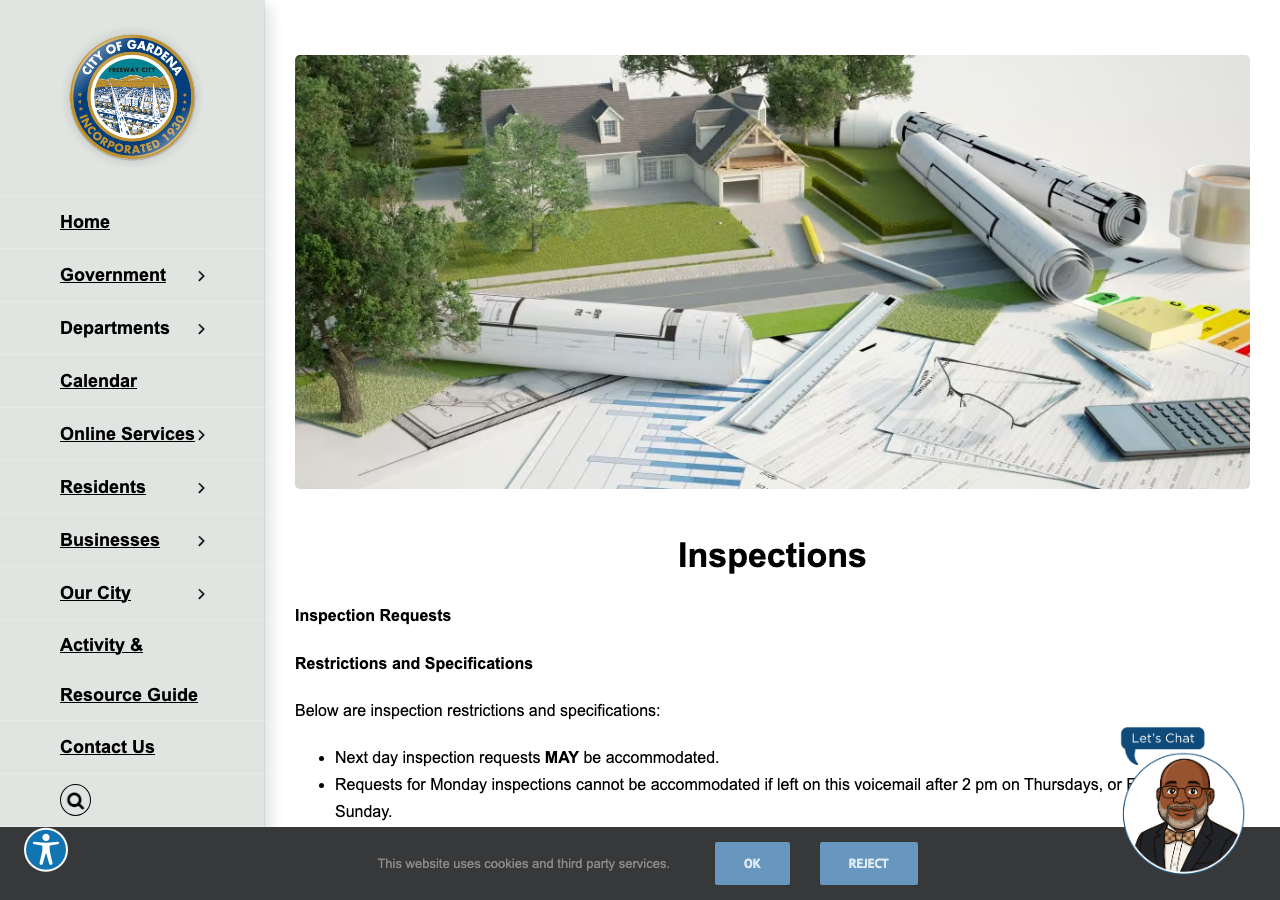

• How is an inspection booked? Phone — city Building Division inspections are booked via a dedicated inspection request line, (310) 217-9510 (leave name, callback number, permit number(s), inspection type(s), and requested date/time). LACoFD's separate ESS/PV/disconnect-placarding field inspection is booked directly with the jurisdictional LACoFD regional office by phone, then confirmed/scheduled by email. 88% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated (split) — the city's Building Division performs its own building/electrical final inspection, but LACoFD performs its own separate field inspection for ESS/BESS, certain BIPV, and the electrical-disconnect placarding/rapid-shutdown system on every PV installation, which the city does NOT perform on LACoFD's behalf. 88% · fire-department guide
• If delegated, to whom? Los Angeles County Fire Department (LACoFD), Fire Prevention Division, via its regional inspection offices — for the ESS/BIPV/disconnect-placarding scope only; building/electrical final inspection remains with the city itself. 90% · fire-department checklist

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? City obtains its own permit (Building/Electrical) → city performs its building/electrical inspection(s) up to final → separately, for ESS/BIPV/disconnect-placarding scope, applicant must independently contact and schedule LACoFD's regional Fire Prevention office (with proof of the city's construction permit) for LACoFD's own field inspection. Order between the two final inspections is not specified as strictly sequential in any document reviewed. 68% · fire-department checklist

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes — LACoFD publishes a full 'Expedited PV/ESS Inspection Checklist for Group R-3/-4 ESS, PV, and Electrical-Disconnect Placarding' (5 pages, effective 1 Sep 2023). The city's own Building Division does not appear to publish a separate solar-specific inspection checklist (only the pre-permit Solar PV Submittal Checklist and the Solar Self-Certification form, which functions as an at-inspection certification, not a checklist for the inspector). 80% · fire-department checklist
• What must be on site at inspection? Job card/permit card with all applicable permit numbers; if using the Solar Self-Certification program, the signed self-certification form must be provided to the city inspector at final inspection (or a signed/stamped structural-observation form from the engineer of record in lieu of it); for LACoFD's inspection, cut/spec sheets for ESS units, inverters, and (if requested) the full ESS installation manual must be immediately available. 85% · self-certification form
• Does the inspector verify labels and listings? Yes — LACoFD's checklist requires cut/specification sheets for ESS units and inverters (confirming UL 9540/UL 1741 listing) to be 'immediately available upon request of the fire code official,' and the placarding is itself verified at inspection. On the city side, the Solar Self-Certification form (used in lieu of a full city inspection) requires the contractor to certify labeling/listing compliance directly. 85% · fire-department checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (permit finaled/closed in the permit system) — no evidence of a separate 'Certificate of Occupancy' or 'green tag' terminology used by Gardena for residential alteration/solar permits specifically. 55% · department page (inference)
• Is there a re-inspection fee? LACoFD: $98 for 'additional inspections after initial inspection and one reinspection' (Appendix QQ, Table QQ104.4(6)). City-side building/electrical re-inspection fee is ambiguous: fee schedule lists 'Code Enforcement Re-Inspections' ($120) and 'Special Inspection/Re-inspection' ($125/hr, 4-hr minimum) but no line item titled specifically as a standard failed-construction-inspection re-inspection fee, so which (if either) applies to a routine failed solar inspection is not stated. 65% · fire-code fee schedule
