City of Gonzales

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · municipal code
• What does this authority permit itself, and what does it delegate? Both 82% · department page
• Is a permit required for a residential rooftop PV system? Yes 90% · permit application
• Is there a separate electrical permit, or is it combined? Combined 80% · permit application
• Is a HOA or architectural approval required first? No 65% · municipal code (TOC)
• Is there a historic-district review? Yes, but only within the Historic District Overlay — not citywide 60% · municipal code (TOC)
• Is a wind or windstorm certification required? No 65% · municipal code (control-checked absence)
• Is a Specific Use Permit or Council approval ever required? Not required for a standard rooftop residential PV system meeting the small-residential-solar definition in GMC §11.04.130 (no Council/CUP/SUP step is described in that chapter). A related zoning trigger exists only for oversized accessory structures: GMC §12.112.030(B)(4) requires Planning Director (not Council/SUP) approval for any accessory structure exceeding 450 sq. ft., which could apply to a large ground-mount array footprint. 60% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating or 30 kW thermal, and only for systems on a single- or duplex-family dwelling that do not exceed the maximum legal building height. 95% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 80% · permit application
• Must the contractor be registered with this authority before applying? Yes 90% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · permit application

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No solar-specific checklist exists; the only published submittal checklist is a generic, statewide 'CALBO Day 2 Checklist' template for single-family/duplex plans (new home, addition, or remodel), calling generically for a cover sheet, site/civil plan, architectural plans, structural plans, detail sheets, electrical plans, energy (Title 24) documents, and (if applicable) structural calculations. It never mentions solar, PV, or GMC §11.04.130's own required checklist. 60% · published checklist
• Is a site plan required, and what must it show? Yes — a site/civil plan is required, drawn to scale, showing: north arrow, aerial view, building footprint and roofline with all projections and dimensions to property lines, dimensions between buildings, full parcel/lot dimensions and property lines, street names, setbacks, recorded easements and visible utilities (electric/gas/water meters), and existing/proposed grading. 65% · published checklist
• Is a one-line / three-line diagram required? Yes (inferred) 50% · inference from adopted code
• Are string and conductor calculations required? Yes (inferred) 50% · inference from adopted code
• Is a structural PE stamp required, and at what threshold? No solar-specific threshold found; the only stated trigger is generic: the submittal checklist says plans 'drawn to scale' are acceptable from anyone, but 'If any portion of a structure deviates from conventional framing, the Building Department may require that the plans, drawings, specifications and/or calculations for that portion of work be prepared by or under the direct supervision of a registered engineer or architect,' who must then stamp/sign the relevant sheets. 55% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

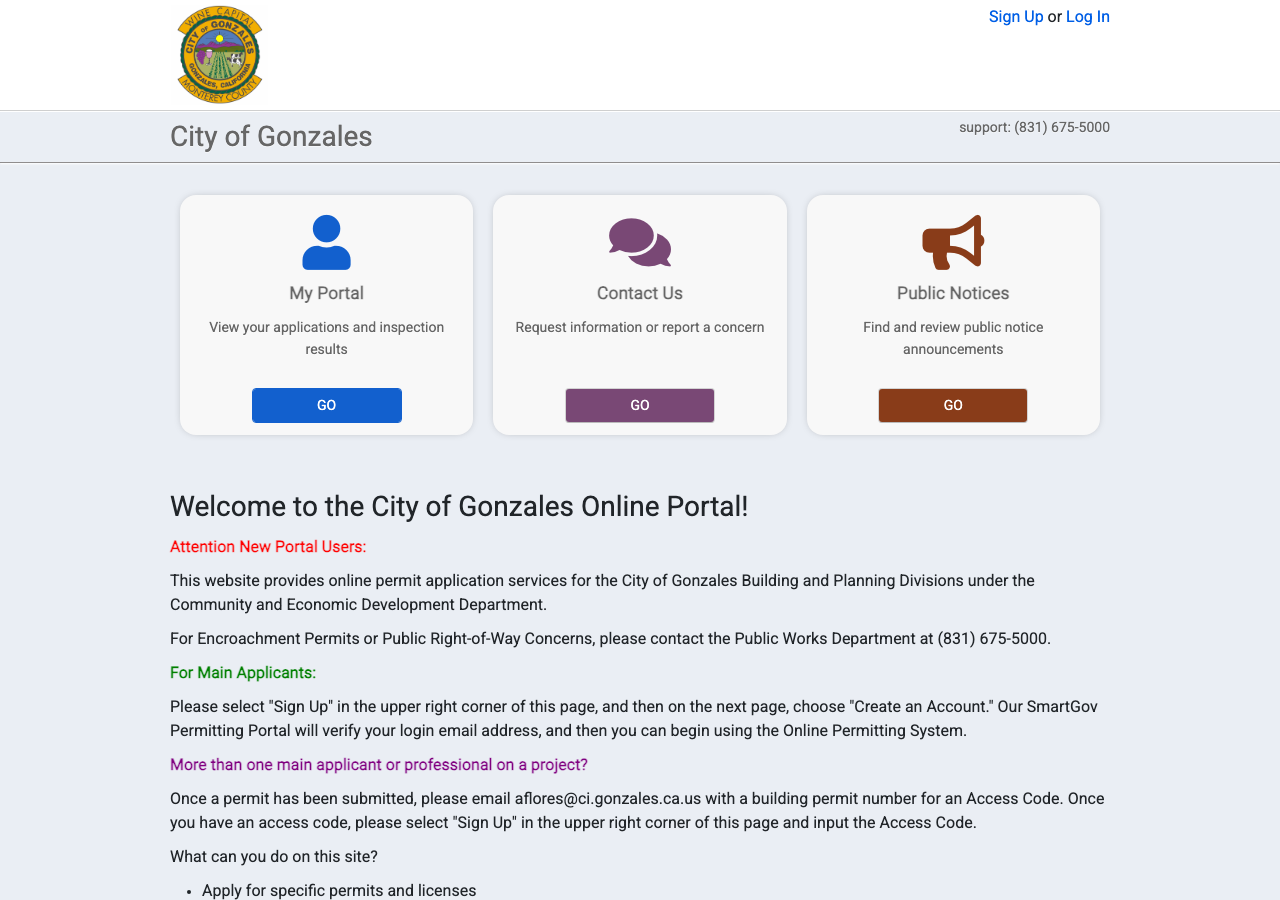

• Which permit portal does this authority use? SmartGov Community Development (ci-gonzales-ca.smartgovcommunity.com) 95% · portal landing page
• Can the whole application be completed online? Yes 60% · portal landing page
• What does a residential solar permit cost? $125 minimum, based on verified construction valuation, plus a 7% Systems Automation Fee (SAF) surcharge, under the general 'Building Permit' fee line — there is no PV-specific dollar figure or kW-based fee line. 70% · fee schedule
• How is the fee calculated? Valuation 80% · fee schedule
• Is there a separate plan-check fee? Yes 85% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Up to 30 business days for standard residential review (per the city's own general statement); GMC §11.04.130 separately requires an 'expedited' process for small residential rooftop solar under Gov. Code §65850.5 but does not itself state a specific day count. 55% · department page
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 65% · fee schedule (inference)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 85% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (and 2025 California Residential Code for one- and two-family dwellings) 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code, extensively locally amended (54+ numbered local amendments) 95% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · adopting ordinance
• What is the installation judged against? The 2025 California Building, Residential, Electrical, Mechanical, Plumbing, Energy, Green Building, WUI and Fire Codes as locally amended (GMC Title 11, Ch. 11.04), plus Gov. Code §65850.5's small-residential-rooftop-solar standard as codified at GMC §11.04.130. 90% · adopting ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Locally amended, not locally specified in full: Amendment No. 47 deletes Exceptions 1 and 2 of CFC §1205.2.1 ('Solar Photovoltaic (PV) Systems for Group R-3 Buildings') in their entirety, meaning the base 2025 CFC §1205.2 pathway/setback requirements apply to Gonzales R-3 solar installs without the carve-outs those exceptions would otherwise provide; Amendment No. 48 additionally adds the 1½ ft hip/valley module-spacing rule (Q35). 70% · adopting ordinance (local amendment)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Required, under NEC Article 690.12 as incorporated by the city's adoption of the 2025 California Electrical Code (= 2023 NEC base) at GMC §11.04.040; not locally modified. 80% · inference from adopted code + control-checked absence of local amendment

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Placards/labels required at: (1) main service disconnect panel exterior — 'SOLAR DISCONNECT INSIDE PANEL'; (2) circuit breaker controlling the inverter/PV electrical controller — 'SOLAR DISCONNECT'; (3) secondary power source shutoff switch (where PV is interconnected to battery/generator/other backup) — location signage; (4) adjacent to the main disconnect — installer name and 24-hr emergency phone number; (5) where a BESS is installed inside a structure — 'BESS' placard; (6) where a stationary fuel cell system is installed inside a structure — 'FUEL CELL' placard; (7) energy storage system (ESS) disconnects — location/shutdown placarding at or adjacent to the main electrical panel. 95% · adopting ordinance (local amendment)
• Does the authority specify placard wording of its own? Yes 95% · adopting ordinance (local amendment)
• Does it specify letter height, colour or material? Yes. Main panel exterior placard: red background, white capital letters, non-serif font, minimum 1/2" letter height, weather-resistant durable plastic with engraved letters (or other approved material). Circuit-disconnect label: contrasting-color capital letters, non-serif font, minimum 3/8" letter height, durable adhesive material (or other approved material). BESS and Fuel Cell placards: block letters 6" high with a 3/4" stroke, on a contrasting background. 95% · adopting ordinance (local amendment)
• Where must the labels be placed? Main-panel placard: permanently affixed to the exterior of the main service disconnect panel. Circuit-disconnect label: adjacent to the circuit breaker controlling the inverter/PV electrical controller. Secondary-power-source signage: at the secondary power source shutoff switch. Installer-information signage: adjacent to the main disconnect. BESS/Fuel Cell placards: at the location of the equipment, when installed inside a structure. ESS disconnects: located at or adjacent to the main electrical panel, with placarding showing the location of equipment and all shutdowns. 90% · adopting ordinance (local amendment)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No 55% · adopting ordinance (control-checked absence)
• Are batteries permitted, and under what conditions? Yes. Batteries/BESS are permitted; local Fire Code amendments require: energy storage system (ESS) disconnects located at or adjacent to the main electrical panel with placarding showing equipment location and all shutdowns (Amendment 50, CFC §1207.4.1.1); a 'BESS' placard (6" block letters, 3/4" stroke, contrasting background) where a battery energy storage system is installed inside any structure (Amendment 51, CFC §1207.4.8(6)); and additional Fire-Chief-approved signage indicating the secondary power source shutoff switch where PV is interconnected to a battery system (Amendment 46, CFC §1205.1.1.3). 85% · adopting ordinance (local amendment)
• Is there a separate ESS permit or inspection? Not explicitly separate — no dedicated 'ESS permit' or 'ESS inspection' line was found. A generic 'Fire Permit' fee line (minimum $158 + 7% SAF) exists in the Building Division fee schedule and would plausibly cover an ESS operational permit under the adopted Fire Code, but this is inferred rather than stated. 55% · fee schedule (inference)
• Is a ground mount treated as a structure? Likely yes, by default — no solar-specific ground-mount exemption or definition exists anywhere in GMC Title 11 or Title 12, so a ground-mounted PV array would presumably be evaluated under the general 'accessory structures and uses' standards (GMC §12.112.030): height ≤15 ft, setback from yards, ≥5 ft from other structures, ≤15% lot coverage, and Planning Director approval required if it exceeds 450 sq. ft. 55% · municipal code (inference)
• Is there a local rule on service upgrades or busbar sizing? No local rule found 85% · adopting ordinance (control-checked absence)
• Is a specific mounting system or attachment spacing required? Yes — a hip/valley module-spacing rule: 'Modules shall be located no closer than one and one-half feet (1½') to a hip or valley if modules are to be placed on both sides of a hip or valley. Where modules are located on only one side of a hip or valley that is of equal length, the modules shall be permitted to be placed directly adjacent to the hip or valley.' 85% · adopting ordinance (local amendment)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal or Phone 85% · department page
• Are same-day or AM/PM windows offered? No same-day or AM/PM-choice windows — inspections are offered only on a fixed Tuesday/Thursday, 1:00-4:00 PM schedule. 75% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Only ONE inspection is required for a qualifying small residential rooftop solar system, 'unless the installation is found to be out of compliance with the California building standards codes,' in which case additional inspection(s) follow correction. 85% · municipal code
• Is a rough-in or mid-roof inspection required? No 80% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 60% · department page (control-checked absence)
• What must be on site at inspection? Building permit card, official stamped/approved plans, and a person 18 years or older or a responsible contractor present on site. 85% · department page
• Does the inspector verify labels and listings? Presumed yes, though not explicitly stated as an inspector duty — the extensive local Fire Code amendments (Q38-40) require specific placards/labels to exist at final, which a final inspection would need to confirm are present and correctly worded/sized to pass. 55% · inference from adopted code

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (signed-off building permit card) — no evidence a standalone Certificate of Occupancy is issued for a PV-only permit; the fee schedule's 'Certificate of Occupancy (COO) $188.00' line reads as a new-construction/occupancy-change item, not a routine PV add-on outcome. 50% · inference
• Who notifies the utility for PTO? Installer 50% · inference
• Is there a re-inspection fee? Actual Cost, plus 10% (1-hour minimum) — the Code Enforcement Division's general 'Re-Inspection Fees' line. A separate flat '$62.50 Reinspection Fee' also appears at the end of the Planning Department fee section; it is unclear which (if either) is the figure that would actually apply to a Building-Division solar re-inspection, since no PV-specific or Building-Division-specific re-inspection line exists. 55% · fee schedule
