City of Grass Valley

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 90% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 95% · ordinance
• Is there a separate electrical permit, or is it combined? Combined 70% · fee schedule
• Is a HOA or architectural approval required first? No 90% · ordinance
• Is there a historic-district review? Yes, for the -H Historical combining zone / 1872 Townsite 85% · ordinance
• Is a Specific Use Permit or Council approval ever required? Yes — a Minor Use Permit can be required 85% · ordinance
• Is there a system-size cap on residential generation? 10 kW AC nameplate / 30 kW thermal — the codified 'small residential rooftop solar energy system' eligibility ceiling for the expedited/non-discretionary permit path (not an absolute cap on system size; larger systems are permitted under the standard, non-expedited review of GVMC §15.08.070). 95% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · authority's own page
• Must the contractor be registered with this authority before applying? Yes 70% · authority's own page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · authority's own page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Two sets of plans (min 8.5x11, max 24x36) with: cover sheet (address, owner, contractor, scope, sheet index, legend); basic site plan (structure, north arrow, equipment, disconnects, inverters); array configuration showing fire-clearance pathways; electrical single-line diagram (panel amperage, grounding/bonding, disconnects, conduit, inverter/string sizing, conductor sizing); required signage; equipment cut sheets (modules, racking, grounding hardware, inverters). 95% · published checklist
• How many copies, and in what format? Historically two (2) paper sets, min 8.5x11 / max 24x36 (per the dated checklist). Current practice: 'the entire permitting process is completed digitally through the online Building Permit system, Accela' per the 2024 Building FAQ, so the paper-copy count in the checklist appears superseded by all-digital Accela submittal. 65% · published checklist
• Is a site plan required, and what must it show? Yes — basic site plan must show the structure, north arrow, PV equipment, disconnects, inverters and related components; for ground-mount, a more detailed site plan showing array size, setbacks to structures/property lines, existing structures and new underground utilities. 95% · published checklist
• Is a one-line / three-line diagram required? Yes 95% · published checklist
• Are string and conductor calculations required? Yes 80% · published checklist
• Is a structural PE stamp required, and at what threshold? Yes, tied to snow load: roof-mount racking must meet the county structural design criteria with spacing tables for 0-40 psf and 40-70 psf snow load; 'Over 70 lb snow load: Project shall be designed by CA licensed engineer.' Ground-mount foundations require a CA-licensed engineer's wet stamp/signature where snow load is 50 psf or more. 90% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

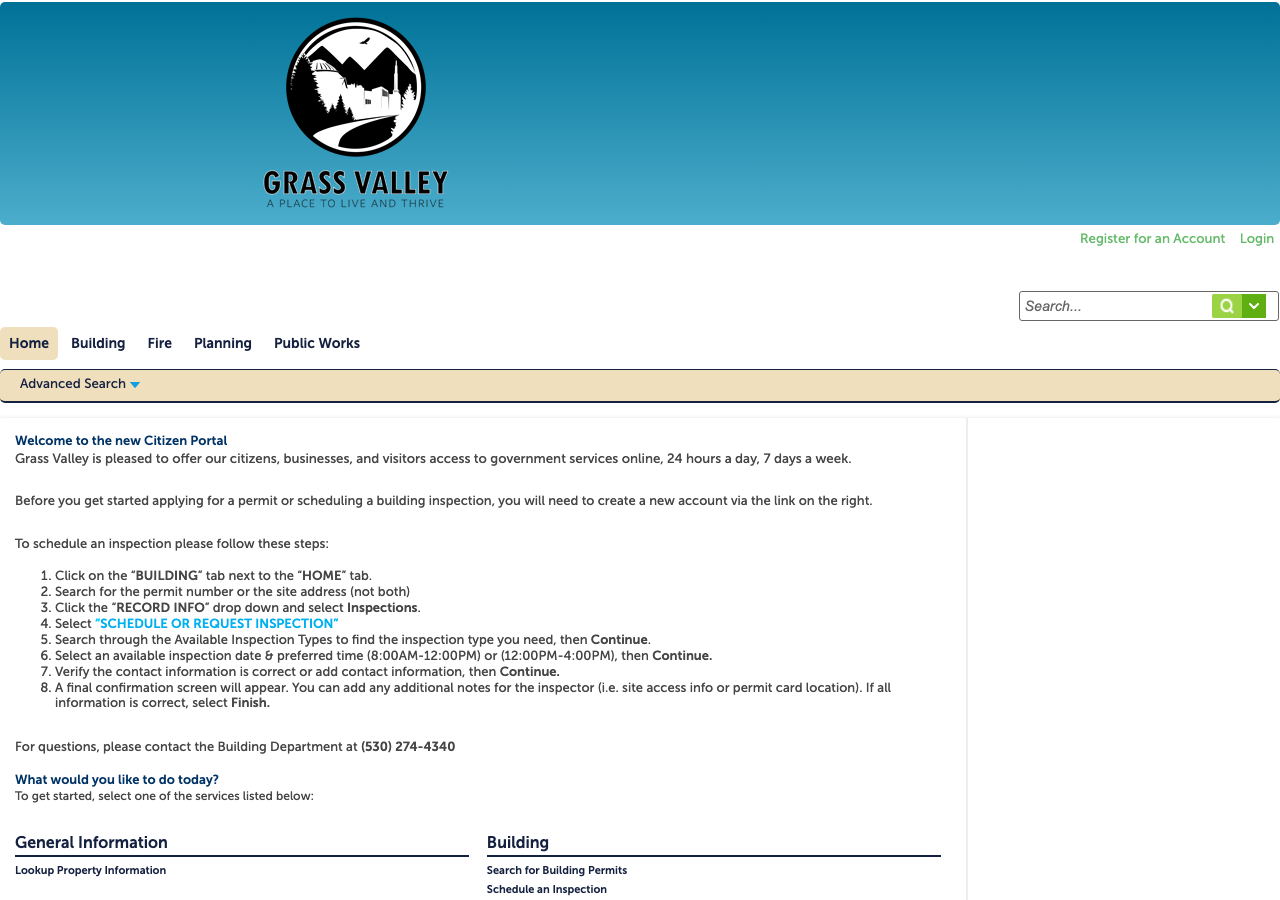

• Which permit portal does this authority use? Accela Citizen Access 95% · authority's own page
• Can the whole application be completed online? Yes 85% · authority's own page
• What does a residential solar permit cost? $373.00 flat (residential); $270.00 flat for commercial solar 95% · published fee schedule
• How is the fee calculated? Flat 90% · published fee schedule
• Is there a separate plan-check fee? No — bundled 80% · authority's own page

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 2-4 weeks per plan-review cycle (general Building FAQ figure); separately, GVMC §15.08.060(A) requires the Building Department to issue eligible small-residential-rooftop solar permits within 5 business days of a complete over-the-counter/electronic application. Reporting both: the FAQ's general turnaround and the ordinance's own statutory ministerial-issuance promise for the expedited-eligible subset. 80% · authority's own page
• How long is an issued permit valid before it expires? 2 years from date of issuance 90% · ordinance
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 85% · fee schedule / franchise reference
• Where does the utility sit in the sequence? Not independently verified from a Grass Valley or PG&E document reached in this run 40% · inference — see why

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC (adopted as the 2022 California Electrical Code) 90% · adopting ordinance
• Which building code edition is in force? 2022 California Building Code / 2022 California Residential Code (based on the 2021 IBC/IRC) 90% · adopting ordinance
• Which fire code edition is in force? 2022 California Fire Code (based on the 2021 IFC) 90% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? Compliance with 'all applicable state fire, structural, electrical, and other building codes as adopted or amended by the city and all state and city health and safety standards,' plus (for PV specifically) the California Electrical Code, IEEE and UL/accredited-testing-lab standards and, where applicable, CPUC safety/reliability rules. 90% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Two 36-inch pathways from eave to ridge (one on the street/driveway side); pathways to emergency escape openings; without sprinklers: ≤33% roof coverage → 18in clear each side of ridge, >33% → 36in; with sprinklers: ≤66% → 18in, >66% → 36in; exceptions for ≤2:12 roof slope or Fire Chief-approved alternative ventilation, and for detached non-habitable structures; ground-mount arrays require a 10 ft brush-free clearance. 85% · published checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required for DC circuits (device required for circuits more than 5 ft inside buildings or more than 10 ft from the array; roof-mounted manual load-break disconnect required at/near combiner boxes). The checklist does not cite NEC §690.12 by section number and is written to the 2016-cycle CEC; the currently codified electrical code is the 2020 NEC (via the 2022 CEC), so the exact 690.12(B) subsections in force were not independently confirmed from a current city document. 65% · published checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Placards/labels required on DC conduit, enclosures, raceways, cable assemblies, junction/combiner boxes and disconnects at every service disconnect and at 10 ft o.c. along DC conduit runs and within 1 ft of turns/bends/penetrations; a location directory at AC/DC disconnects where multiple inverters are ungrouped. 90% · published checklist
• Does the authority specify placard wording of its own? Yes 90% · published checklist
• Does it specify letter height, colour or material? Reflective, water-resistant, weather-durable labels; minimum 3/8 inch letter height; white lettering on red background. 90% · published checklist
• Where must the labels be placed? At every service/DC disconnect; on DC conduit/raceways/enclosures at 10 ft on-center intervals; within 1 ft of every turn, bend, and penetration. 90% · published checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 85% · published checklist
• Are batteries permitted, and under what conditions? Addressed only indirectly through general disconnect rules — a disconnect is required for energy storage devices located more than 5 ft from connected equipment, or where circuits pass through a wall/partition; no dedicated battery/ESS ordinance, size cap, or location standard was found. 60% · published checklist
• Is a ground mount treated as a structure? Yes — ground-mounted solar collectors must comply with the setback requirements and height limitations of the applicable zone (and additionally may not be 'visible from off the site'), implying they are treated as subject to the same development standards as a structure. 75% · ordinance
• Is a specific mounting system or attachment spacing required? Roof-mount attachment spacing is tied to snow load: 0-40 psf → 4 ft o.c.; 40-70 psf → 2 ft o.c.; over 70 psf → engineer-designed. This appears to be superseded in current practice by a per-site ASCE 7-22 method (see snow-load finding under Q28/general notes); the spacing table itself has not been found restated in a post-2022 document. 75% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (Accela Citizen Access) 90% · authority's own page
• How much notice is required? Scheduled within two business days of a request (for small-residential-rooftop expedited-path systems) 85% · ordinance
• Are same-day or AM/PM windows offered? Yes — applicant is provided a two-hour inspection window 90% · ordinance

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 95% · ordinance
• If delegated, to whom? N/A — not delegated; performed in-house by the City Building Department 95% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For expedited-eligible small residential rooftop systems: a single, consolidated Final inspection. For larger/non-qualifying systems (GVMC §15.08.070), inspection for compliance with the section and the manufacturer's grounding requirements, with all boxes open and full inspector access. 90% · ordinance
• Is a rough-in or mid-roof inspection required? No 90% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Permit, approved plans and specifications must be readily available on site at the time of inspection. 80% · ordinance
• Does the inspector verify labels and listings? Likely yes, as part of general code-compliance verification at the single final inspection, but no city document states this as an explicit inspection checklist item. 60% · inference

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final inspection approval/sign-off on the building permit (no separate Certificate of Occupancy or 'green tag' language was found used for a PV retrofit on an existing dwelling). 55% · inference
• Is there a re-inspection fee? $100.00 (30-minute minimum), general re-inspection/additional-inspection fee 90% · fee schedule
• How are corrections issued and cleared? Plan-review corrections: a written correction notice detailing all deficiencies is sent to the applicant for resubmission. Inspection failures: a subsequent re-inspection is authorized (and may carry the re-inspection fee) if a system fails its inspection. 85% · ordinance
