City of Irwindale

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · municipal code
• What does this authority permit itself, and what does it delegate? Both 82% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined 95% · municipal code
• Is a HOA or architectural approval required first? No city-imposed HOA/architectural pre-approval requirement found 65% · municipal code (absence)
• Is there a historic-district review? No 80% · municipal code TOC (absence proven)
• Is a wind or windstorm certification required? No 50% · municipal code (absence)
• Is a Specific Use Permit or Council approval ever required? No, for qualifying small residential rooftop systems (ministerial under IMC 15.05); YES potentially for larger/non-qualifying residential PV or any project otherwise triggering the city's separate Site Plan and Design Review chapter (IMC 17.70), which broadly requires review for 'any building or structure' or 'exterior alterations' with no solar-specific exemption or cross-reference found in either chapter. 60% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC (photovoltaic) / 30 kW thermal (solar water/pool heating) for the expedited/ministerial path; no absolute cap on larger residential systems, which simply route to the standard (non-expedited) permit process instead 80% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 72% · permit application form
• Must the contractor be registered with this authority before applying? No 80% · site search (absence proven)
• Is a homeowner permitted to self-install and self-permit? Yes 75% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Completed permit application (IMC 15.05.050, per LA County Building Code §106.4) plus plans/standard plans meeting 'Los Angeles County Building Code Manual 6807, Article 1' checklist, developed in substantial conformance with the CA Solar Permitting Guidebook (IMC 15.05.080(C)); the city's general Building Permit application form (owner/contractor/architect info, valuation, scope) is used as the base form. 58% · municipal code + inference
• How many copies, and in what format? Electronic submittal via the city's irwindale.cts.city portal, or in person at 16102 Arrow Hwy; no specific copy count is stated for the solar chapter itself (contrast: the unrelated Site Plan & Design Review chapter separately requires 4-15 paper sets for its own process). 65% · department page
• Is a site plan required, and what must it show? A site plan is implicitly required as part of the 'standard plans' conforming to LA County Building Code Manual 6807, Article 1 / the CA Solar Permitting Guidebook (IMC 15.05.080(C)), though the specific required contents were not independently confirmed. 55% · municipal code + inference
• Is a one-line / three-line diagram required? Yes (by inference) 55% · municipal code + inference
• Are string and conductor calculations required? Yes (by inference) 55% · municipal code + inference

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

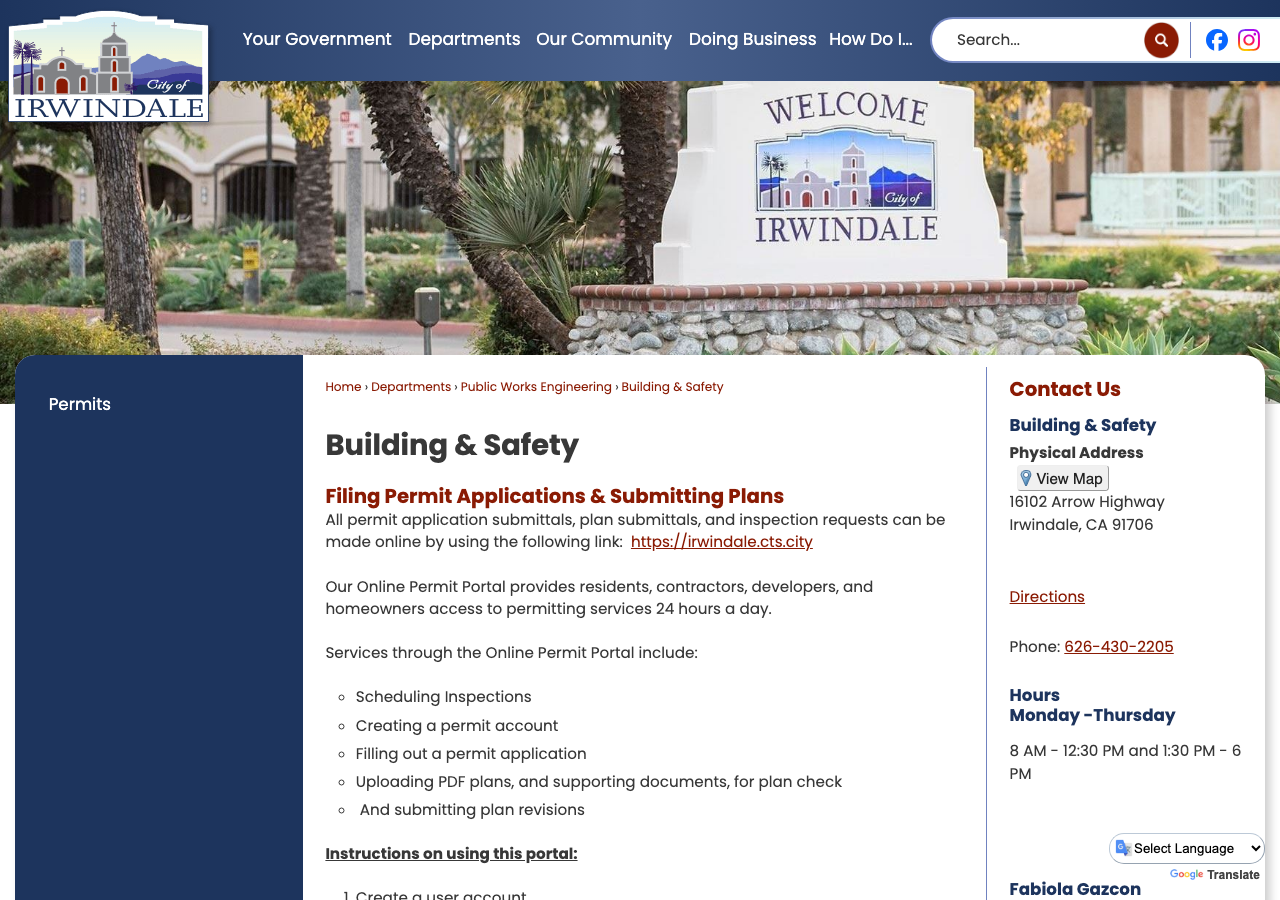

• Which permit portal does this authority use? irwindale.cts.city ('Permit Center') 90% · portal landing page
• Can the whole application be completed online? Yes 85% · department page
• What does a residential solar permit cost? $500 flat, plus $15/kW for each kW above 15kW (combined building+electrical+plumbing-as-applicable permit fee for small residential rooftop PV) 85% · municipal code
• How is the fee calculated? Tiered 88% · municipal code
• Is there a separate plan-check fee? No 62% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 1 to 3 business days 95% · municipal code
• How long is an issued permit valid before it expires? 12 months to commence work from issuance; void if work is suspended/abandoned for 180 days, or if required inspections are not obtained within 180 days 78% · incorporated county building code
• Which utility handles interconnection here? Southern California Edison (SCE) 90% · city-hosted environmental document

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 (via the 2022 California Electrical Code, itself adopted as part of LA County Electrical Code, 2023 Edition/Title 27) 78% · adopting ordinance + inference
• Which building code edition is in force? 2022 California Building Code (via Los Angeles County Building Code, 2023 Edition, Title 26), last locally amended by Ord. No. 769, 5-24-2023 88% · adopting ordinance
• Which fire code edition is in force? 2022 California Fire Code (via Los Angeles County Fire Code, 2023 Edition, Title 32, LA County Ord. No. 2023-0008), adopted by IMC Ord. No. 768, 4-12-2023 88% · adopting ordinance
• Are there local amendments to any of the above? Yes 85% · municipal code
• What is the installation judged against? The 2022 CBC/CRC/CEC as amended by LA County and adopted by the city, plus IMC 15.05.080's own standards: listing/identification per the Electrical Code for PV, Solar Rating and Certification Corporation (or equivalent) certification for solar thermal, and conformance with LA County Building Code Manual 6807 Article 1 (developed per the CA Solar Permitting Guidebook) 80% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Irwindale on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — rapid shutdown is required, under the 2020 NEC (via the adopted 2022 CEC), and independently reinforced by the LA County Fire Department's own fire-code enforcement 82% · fire agency guidance document

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? LACoFD 'Electrical Power Source Disconnect' placards at every point needing operation to fully de-energize the structure from all power sources (utility, PV, ESS), plus panel-interior placards identifying specific switches/breakers, plus standard NEC/CEC-required PV service-equipment labels 85% · fire agency guidance document
• Does the authority specify placard wording of its own? Yes 88% · fire agency guidance document
• Does it specify letter height, colour or material? Yes: exterior placards min. 2in x 3.5in weather-resistant plastic, verbiage engraved; panel-interior placards min. 7/16in x 3/4in; red letters engraved into a yellow background; Arial font, solid all-caps, min. font size 24 ('F.D.' and '#X of Y' bold, min. size 28 on exterior placards); attached by permanent, material/weather/surface-compatible epoxy 90% · fire agency guidance document
• Is a site plan / facility map placard required, and what must it show? Yes — a graphic Electrical Power Source Disconnect Schedule/site diagram is required, showing the locations and notations of all utility meter(s), AC & DC disconnects, inverters, rapid-shutdown initiation devices, and (where applicable) impact protection 80% · fire agency guidance document
• Where must the labels be placed? Exterior placards on/immediately adjacent to each panel/enclosure or standalone disconnect switch needing operation; required disconnection/attenuation means for electrical hazards must be located within 6 feet of the main service panel, on the same wall plane, uninterrupted by walls/gates/fences/vegetation/architectural features; panel-interior placards inside the panel identifying specific switches/breakers 82% · fire agency guidance document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 80% · municipal code + fire agency guidance
• Are batteries permitted, and under what conditions? Yes, conditionally — ESS is permitted, subject to LACoFD fire-code requirements: UL 9540 listing (all components or as an entire unit), UL 1741 inverter listing, fire detection if installed in an attached garage (heat alarm, heat detector tied to fire alarm, or fire sprinkler with flow detector), impact protection if exposed to vehicle contact (exception if no portion is less than 36in above finished floor), and LACoFD field inspection for any unit exceeding 3 kWh capacity 85% · fire agency guidance document
• Is there a separate ESS permit or inspection? Yes — a separate LACoFD fire inspection is required for any ESS installation with a capacity greater than 3 kWh, and for PV/ESS electrical-disconnection devices and associated (rapid-shutdown) placarding on every job, distinct from the city Building & Safety Division's own combined building/electrical/plumbing inspection 82% · fire agency guidance document
• Is there a local rule on service upgrades or busbar sizing? No Irwindale-specific local amendment on service upgrades/busbar sizing 58% · municipal code (absence proven for city text only)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 75% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 78% · municipal code
• If delegated, to whom? Los Angeles County Fire Department (LACoFD) — narrowly, for ESS >3kWh and PV/ESS disconnect & rapid-shutdown placarding only; general (non-solar) trade permits for other project types are separately delegated to TransTech Engineers 80% · department handout (agency referral form)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? One combination inspection covering structural, electrical, and plumbing components, performed by the Building Official; if the system fails, subsequent re-inspections are authorized until approved. Separately, if the fire-code-retained scope applies (ESS >3kWh, disconnect/rapid-shutdown placarding), a distinct LACoFD inspection is scheduled independently by the applicant. 85% · municipal code
• Is a rough-in or mid-roof inspection required? No — a single consolidated combination inspection is required for qualifying small residential rooftop solar (no separate rough-in/mid-roof inspection) 82% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes, for the fire-retained scope (LACoFD publishes a dated 'Expedited PV/ESS Permitting Process — Inspection Checklist', eff. 2023-09-01); the city (Building & Safety) itself has not published a separate residential-solar inspection checklist beyond the code text and its general Agency Referral form 75% · fire agency checklist + site search (city absence)
• What must be on site at inspection? Approved plans/permit and evidence (e.g., manufacturer cut sheets, nameplates) sufficient to verify installation and labeling meet code, per the Building Official's discretion; for LACoFD's retained scope, digital proof of the construction permit and any LACoFD-issued inspection checklist must be provided before requesting the fire inspection 68% · municipal code + fire agency guidance
• Does the inspector verify labels and listings? Yes 85% · municipal code

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 62% · municipal code + inference
• Who notifies the utility for PTO? Installer 55% · utility program page + inference
• Is there a re-inspection fee? No solar-specific re-inspection fee found; the general fee schedules show $93.18 for 'each extra inspection resulting from defective workmanship or materials' (Electrical Code Fee Schedule) and $276.09/hour for inspections with no fee otherwise specified (Building Code Fee Schedule) 55% · fee schedule
• How are corrections issued and cleared? A written correction notice is issued detailing all deficiencies and any additional information required for expedited eligibility 80% · municipal code
