City of La Habra

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · authority's own page
• What does this authority permit itself, and what does it delegate? Both (Building & Electrical retained by the City); Fire code enforcement/inspection is delegated by fee-for-service contract to LA County Fire Dept (LACoFD) 88% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 92% · authority's own page
• Is there a separate electrical permit, or is it combined? Combined 70% · permit application form
• Is a wind or windstorm certification required? No 60% · inference — CA has no TDI-style windstorm-certification regime
• Is a Specific Use Permit or Council approval ever required? No — routine ministerial building/electrical permit for standard rooftop retrofit PV; Council/CUP-type review is not indicated as a general PV trigger 60% · authority's own page
• Is there a system-size cap on residential generation? No explicit numeric kW cap published by the City; the SolarAPP+ path itself restricts eligibility to rooftop-mounted retrofit residential PV only — no ballasted or ground-mounted systems, and no BIPV 65% · authority's own page

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Any contractor (must hold an appropriate CSLB license class) 78% · department handout
• Must the contractor be registered with this authority before applying? No 55% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes via the conventional (non-SolarAPP+) permit path, using an Owner/Builder Declaration Form; No under the SolarAPP+ path 75% · authority's own page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For SolarAPP+: the NREL SolarAPP+-generated approval document/permit plus its Inspection Checklist (covering customer/site info, electrical/MSP/inverter details, roof requirements, fire-safety requirements, and signage/placards). For conventional review: a full plan set — Title Sheet, Site Plan, Structural Plans/Calcs (if applicable), Title 24 Energy Compliance — per the City's AB 2234 post-entitlement documents table, which separately lists 'Photovoltaic System' as needing its own permit application/submittal. 68% · authority's own page
• How many copies, and in what format? Digital only: a complete plan set submitted as one PDF file, with all other supporting documents as separate files, uploaded through the City's Tyler EnerGov self-service portal 78% · authority's own page
• Is a site plan required, and what must it show? Yes — must show the existing structure footprint, PV system layout (panel size/location), PV panel storage-during-work area, and system-owner information 80% · department handout
• Is a one-line / three-line diagram required? Yes (inferred) 55% · vendor documentation the city links to

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? SolarAPP+ (solarapp.nrel.gov) for eligible residential rooftop retrofit PV; Tyler Technologies EnerGov 'Customer Self Service' portal for all other/conventional permits 90% · authority's own page
• Can the whole application be completed online? Yes, for SolarAPP+-eligible systems (submit design, pay fees, and receive the permit entirely online at solarapp.nrel.gov); conventional permits are also submitted, reviewed, and paid for online through the Tyler EnerGov portal 85% · authority's own page
• What does a residential solar permit cost? Valuation-dependent; illustrative example for a ~$20,000 valuation SFR PV job: Building Permit ≈ $1,244 + Building Plan Check ≈ $809 (per SFR valuation table), plus itemized Electrical Permit fees (issuance $28, $28/meter-panel, etc.), plus a $776 LACoFD fire plan-review fee and $293 LACoFD field-inspection fee IF the fire-code trigger (PV covering ≥50% of roof, or any ESS) applies. 72% · fee schedule
• How is the fee calculated? Valuation (building permit portion, per SFR valuation table) + itemized/unit fees (electrical permit, per meter/panel/feature) + flat fee (LACoFD PV plan-review $776 and field-inspection $293, where triggered) 75% · fee schedule
• Is there a separate plan-check fee? Yes 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? ≈2 weeks for structural/plan-review submittals (city); 1–3 business days for general application-completeness review 70% · authority's own page
• How long is an issued permit valid before it expires? 180 days from first plan-check submittal (plan check validity, per the Permit Application's own acknowledgment); issued-permit expiration/renewal terms not separately published 60% · permit application form
• Which utility handles interconnection here? Southern California Edison (SCE) 68% · department handout
• Where does the utility sit in the sequence? Parallel, with a hard dependency for Permission-to-Operate (PTO): interconnection application/approval runs alongside the building/electrical permit process, but SCE's final PTO approval requires proof the City has finaled the building/electrical permit 55% · inference — no city/utility document retrievable

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 78% · department handout, dated
• Which building code edition is in force? 2025 California Building Code (part of the 2025 Title 24 cycle) 80% · department handout, dated
• Which fire code edition is in force? 2023 Los Angeles County Fire Code (LACFC) — a locally amended version of the 2022 California Fire Code 82% · AHJ's own inspection checklist, dated 2023-09-01
• Are there local amendments to any of the above? Yes 80% · adopting ordinance text, quoted in fee schedule
• What is the installation judged against? The 2025 California Electrical Code (CEC), 2025 California Building/Residential Code, and the 2023 LACFC (fire) — with City Building & Safety judging electrical/structural compliance and LACoFD judging fire-code compliance (disconnect placarding, rapid shutdown, ESS) for its delegated scope 75% · department handouts

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of La Habra on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required (module-level, per current NEC Art. 690.12 as carried into the 2025 CEC) 60% · AHJ's own guide, dated 2023-09-01

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? LACoFD's 'F.D. – Electrical Bldg. Disconnect' Exterior Placards (at each disconnect-equipment location) and Panel-Interior Placards (identifying specific breakers within a shared panel), per the '#X of Y' Electrical Power Source Disconnect Placarding System 90% · AHJ's own guide, dated 2023-09-01, Appendix B
• Does the authority specify placard wording of its own? Yes 92% · AHJ's own guide, Appendix B
• Does it specify letter height, colour or material? Exterior placards: minimum 2in x 3.5in weather-resistant plastic, red letters engraved into a yellow background, all-caps Arial, minimum 24pt body / 28pt bold for 'F.D.' and '#X of Y'. Panel-interior placards: minimum 7/16in x 3/4in, same red-on-yellow engraved scheme, all-caps bold Arial minimum 24pt. Attachment by permanent epoxy. 92% · AHJ's own guide, Appendix B
• Where must the labels be placed? Exterior disconnect placards on/immediately adjacent to each panel/enclosure or standalone disconnect switch that must be operated; panel-interior placards inside the panel next to the specific breaker/switch they identify 88% · AHJ's own guide, Appendix B

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Yes, under LACFC §1207.11 (R-3/R-4 occupancies): UL 9540-listed units only (residential-use listed, not utility/commercial-only listings), max 20 kWh per individual unit, and an aggregate cap of 80 kWh per site regardless of location combination (garage, exterior wall, or ground) — plus minimum 3ft separation between units/openings and 5ft from lot lines/other buildings/combustibles 90% · AHJ's own guide, dated 2023-09-01
• Is there a separate ESS permit or inspection? Yes — LACoFD inspection is required for any ESS installation with capacity greater than 3 kWh, separate from the City's building/electrical inspection 85% · AHJ's own checklist, dated 2023-09-01
• Is there a local rule on service upgrades or busbar sizing? Minimum 100A service rated for loads ≥10kW or >6 two-wire branch circuits; 1-1/4in minimum service conduit; specific conductor/conduit sizing table by service amperage (100A=#4 AWG Cu/1-1/4in, 125A=#2AWG, 150A=#1AWG, 200A=#2/0 AWG/1-1/2in) 85% · department handout, dated 01/26

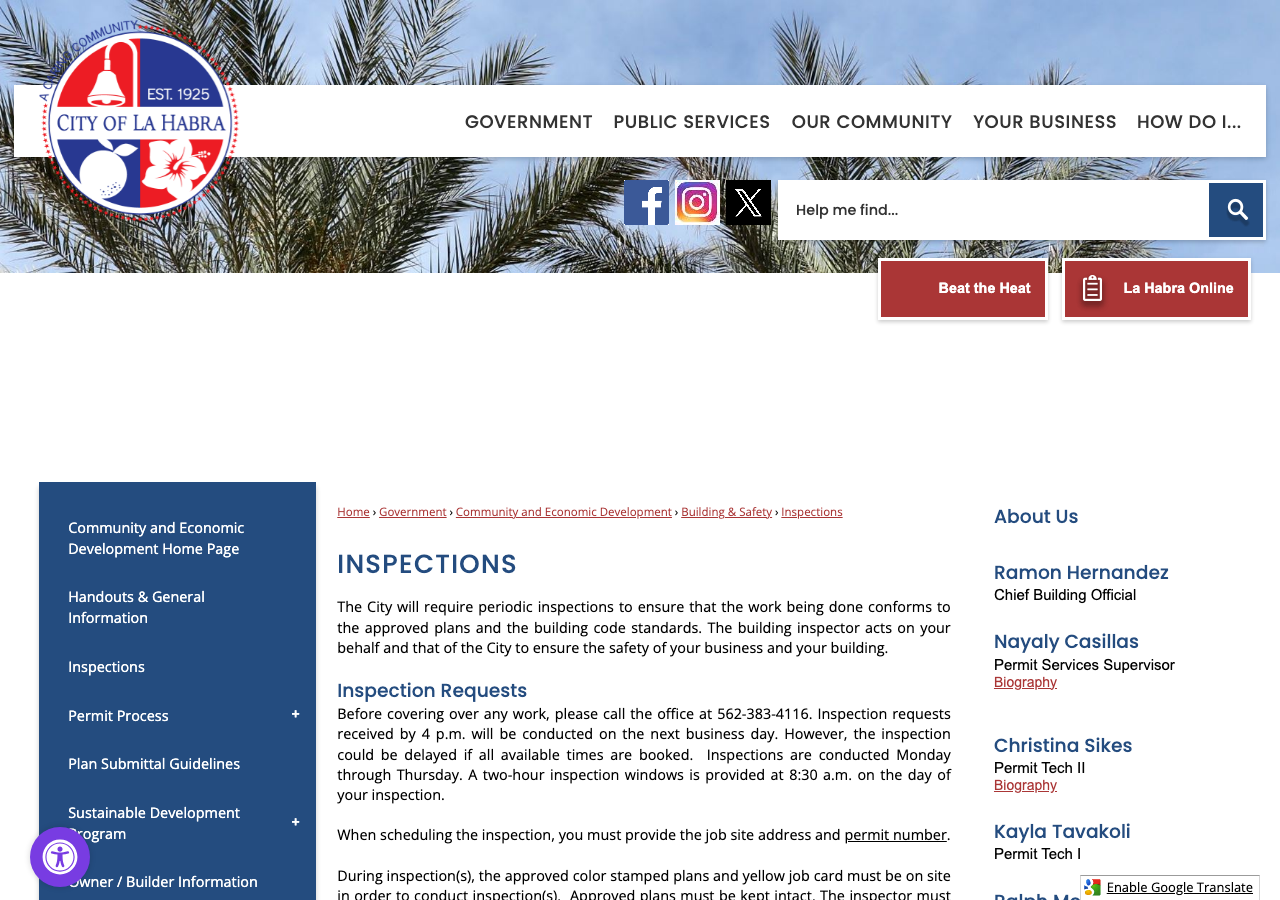

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone (call-in) for City building/electrical inspections; scheduled by phone/email coordination for LACoFD's fire-code portion 82% · authority's own page
• How much notice is required? 1 business day (requests received by 4pm are scheduled for the next business day, subject to availability) 85% · authority's own page
• Are same-day or AM/PM windows offered? General building inspections: a fixed 2-hour AM window (8:30 a.m.). SolarAPP+ path specifically: 'You may request AM or PM.' 70% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated (split) 85% · AHJ's own checklist + city inspections page
• If delegated, to whom? Los Angeles County Fire Department (LACoFD), Fire Prevention Division 90% · authority's own page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Building/electrical final inspection by City Building & Safety (single trip, called in); plus a separate LACoFD field inspection for PV disconnect placarding/rapid-shutdown and for any ESS >3kWh — LACoFD's SB-379 statement specifies its inspection must be scheduled and passed 'prior to use of the PV or ESS installations' 75% · AHJ statement hosted on city site, dated 2023-09-26

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes — LACoFD's 'Expedited Permitting Checklist – ESS, PV, and Electrical-Disconnect Placarding' (5 pages) is published; SolarAPP+ also generates and requires printing its own Inspection Checklist for the automated path 88% · AHJ's own published checklist
• What must be on site at inspection? The approved, color-stamped plan set and the yellow job card (City inspections, all trades); for SolarAPP+ specifically, the printed SolarAPP+ permit and Inspection Checklist; for the LACoFD portion, digital proof of the construction permit and (per its checklist) equipment cut/spec sheets available on request 82% · authority's own page
• Does the inspector verify labels and listings? Yes 65% · AHJ's own checklist, dated 2023-09-01

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (a signed-off inspection/job card); LACoFD's fire-code portion is a separate pass/fail sign-off on its own inspection checklist 75% · authority's own page
• Who notifies the utility for PTO? Installer (contractor) — submits proof of the AHJ's finaled permit to SCE to trigger Permission-to-Operate 55% · inference — no retrievable city/utility document
• Is there a re-inspection fee? $127.00/hour (both Building and Electrical re-inspection, per the City's fee schedules); separately, LACoFD charges $98.00 for 'Additional inspections after initial inspection and one reinspection' 85% · fee schedule
• How are corrections issued and cleared? Via an inspection correction notice from the field inspector; corrections must be cleared (and, if applicable, the $127/hr re-inspection fee paid) before scheduling any further inspection; the City allows up to two re-inspection-fee warnings/waivers before the fee is actually charged 80% · authority's own page
