City of La Palma

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 90% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 95% · authority's own page
• Is there a separate electrical permit, or is it combined? Separate 70% · fee schedule
• Is a HOA or architectural approval required first? No 70% · municipal code
• Is there a historic-district review? No 80% · municipal code (TOC walk)
• Is a wind or windstorm certification required? No 70% · adopting ordinance (OCR'd)
• Is a Specific Use Permit or Council approval ever required? Only if the Building Official makes a written finding, based on substantial evidence, that the system could have a 'specific, adverse impact' on public health/safety — the applicant must then apply for a Use Permit (appealable to the Planning Commission, not Council). 85% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate / 30 kW thermal — this is the codified eligibility gate defining a 'small residential rooftop solar energy system' for the streamlined Article IIA ministerial process (systems above this are not barred, but fall outside the expedited path and its 3-business-day issuance guarantee). 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 55% · counter handout
• Must the contractor be registered with this authority before applying? No 50% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 65% · counter handout

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? No single dedicated 'solar checklist' exists (control-checked via city site search); a complete submittal draws on general Building & Safety residential handouts — Site Plan, Residential Electrical Requirements, Electrical Load Calculations — plus, for the expedited path, a SolarAPP+ Approval Document obtained via solarapp.nrel.gov before applying in the City's OpenGov portal (record type 'SolarAPP+ Solar Permit', covering Solar, Solar plus storage, Solar plus panel upgrade, and Solar plus panel derates). LPMC Sec. 10-38(d) requires the Building Department to adopt 'a standard plan and checklist' for expedited solar, but no such document was found published on the City's site. 65% · authority's own document search
• How many copies, and in what format? 3 sets of plans for direct plan-check submittal (per Building & Safety page); SolarAPP+ record-type applications are submitted digitally through the City's OpenGov portal. 65% · authority's own page
• Is a site plan required, and what must it show? Yes — a Plot/Site Plan is required showing property lines/dimensions, existing and proposed structures and setbacks, location of utility lines and meters/panel, easements, and a project-data table; per the generic 'Site Plan' handout (not solar-specific). 60% · counter handout (OCR'd)
• Is a one-line / three-line diagram required? Yes 55% · permit portal (record-type description)
• Are string and conductor calculations required? Yes 55% · permit portal (record-type description)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

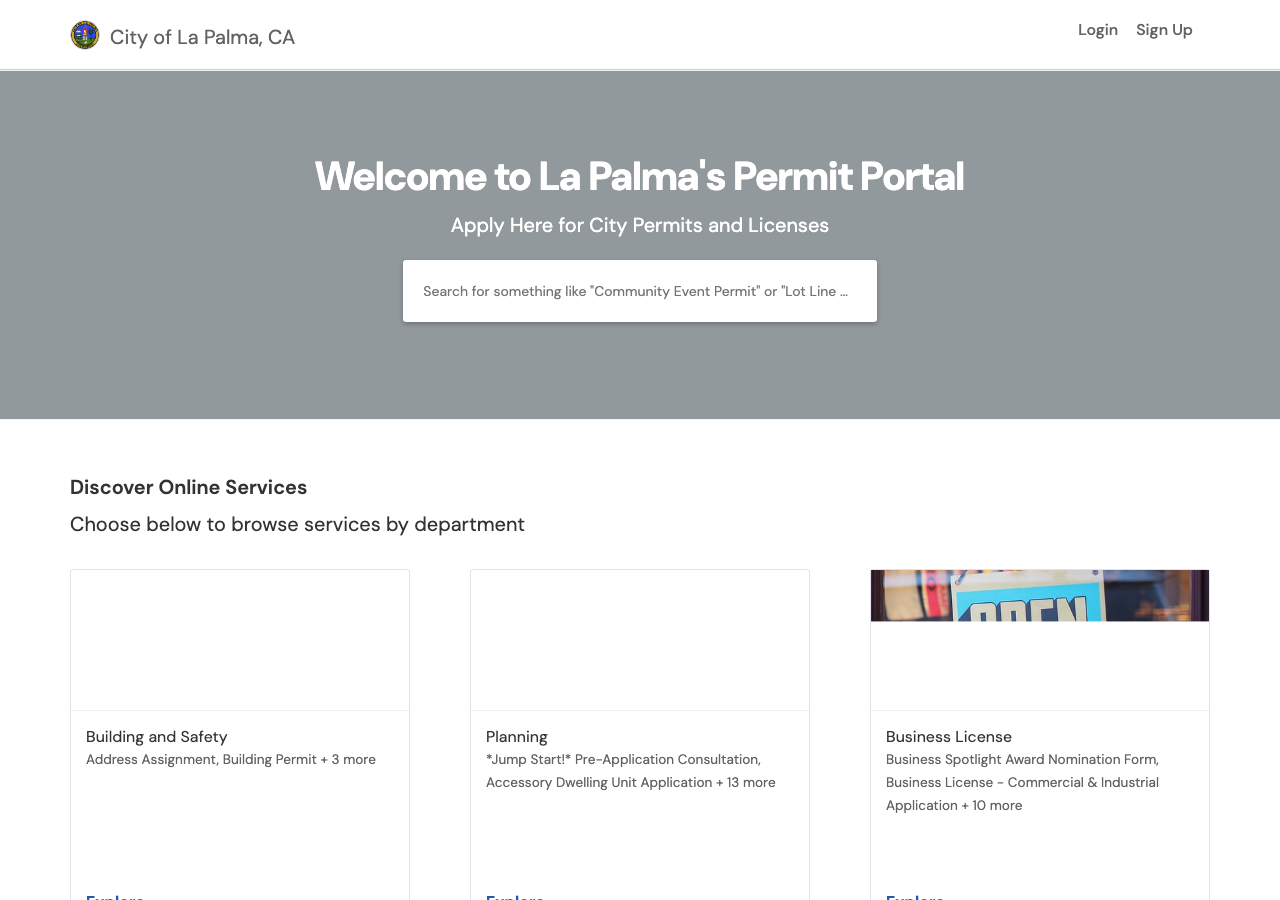

• Which permit portal does this authority use? OpenGov (Viewpoint Cloud) — cityoflapalmaca.portal.opengov.com; a dedicated 'SolarAPP+ Solar Permit' record type is offered for expedited residential solar (types: Solar, Solar plus storage, Solar plus panel upgrade, Solar plus panel derates) 95% · permit portal
• Can the whole application be completed online? Yes 85% · permit portal
• What does a residential solar permit cost? $294.23 (Electrical Permit — 'PV Solar Panels') + $172.17 ('PV Solar Plan Check') = ~$466.40 minimum, plus a project-valuation-based Building Permit fee for the structural/racking component per the City's general 'Building Permit and Plan Check Fee Table' and, if applicable, 'Solar Rack: <1,500 cf' $62.60 (each additional 1,500 cf $62.60). 80% · fee schedule (OCR'd)
• How is the fee calculated? Flat 75% · fee schedule (OCR'd)
• Is there a separate plan-check fee? Yes 90% · fee schedule (OCR'd)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days (for applications meeting the approved checklist/standard plan under the expedited path) 90% · municipal code
• How long is an issued permit valid before it expires? 180 days (permit becomes invalid if work is suspended/abandoned for 180 days; extensions available in additional 180-day increments on written request with justifiable cause) 85% · adopting ordinance (OCR'd)
• Which utility handles interconnection here? Southern California Edison (SCE) 95% · authority's own page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 95% · adopting ordinance (OCR'd)
• Which building code edition is in force? 2025 California Building Standards Codes — CBC based on the 2024 IBC, CRC based on the 2024 IRC (Ordinance 2025-02) 95% · authority's own page + adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code (LPMC Ch. 16, Art. II, Ord. 2025-03) 75% · adopting ordinance (OCR'd)
• Are there local amendments to any of the above? Yes 95% · adopting ordinance (OCR'd)
• What is the installation judged against? The 2025 CEC (2023 NEC) as locally amended, the 2025 CBC/CRC as locally amended, and LPMC Art. IIA Sec. 10-37, which requires solar energy systems to meet all applicable CEC safety/performance standards, IEEE standards, UL/accredited-lab listing, and applicable CPUC rules. 90% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No local amendment to fire-code pathway/setback requirements for PV; the unamended 2025 CFC/CRC model-code pathway and ridge-setback provisions apply by straight adoption. 80% · adopting ordinance (OCR'd)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per NEC 690.12 as adopted via the 2025 CEC (2023 NEC base edition); no local amendment to 690.12 itself was found (the only local Art. 690 amendment is to 690.13, disconnect location). 80% · adopting ordinance (OCR'd)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? A single, visible-open, lockable AC disconnect at the service equipment (see q48); no additional city-specified placard beyond the functional disconnect-marking requirement was found. 65% · adopting ordinance (OCR'd)
• Does the authority specify placard wording of its own? No 80% · adopting ordinance (OCR'd)
• Does it specify letter height, colour or material? No 80% · adopting ordinance (OCR'd)
• Is a site plan / facility map placard required, and what must it show? Only the standard (unamended) NEC 705.10 marking/directory requirement applies; no additional City-specific site-plan/facility-map placard requirement was found. 60% · adopting ordinance (OCR'd)
• Where must the labels be placed? The AC disconnect must be readily accessible, either outside the building or just inside the point of entrance of the system conductors, and within 3 feet of the meter on the exterior of the building. 80% · adopting ordinance (OCR'd)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Within 3 feet of the electric meter, on the exterior of the building — a single, visible-open, lockable AC disconnect, located either outside the building/structure or just inside the point of entrance of the system conductors. 95% · adopting ordinance (OCR'd)
• Must equipment be on a specific approved list? Yes 80% · municipal code
• Are batteries permitted, and under what conditions? Yes — the City's OpenGov/SolarAPP+ record type explicitly includes 'Solar plus storage' as a permitted application type; the OCFA fee schedule separately prices 'Battery Systems' (PR375) and the City's own Electrical fee schedule prices 'Generators, Transformers, Battery Storage Device' ($70.43). No dedicated local ESS ordinance/technical amendment (siting, clearance, ventilation) was found beyond the adopted (unamended) 2025 CRC/CFC. 85% · permit portal + fee schedules
• Is there a separate ESS permit or inspection? Yes — battery storage is billed as its own fee line, distinct from the PV lines, both at the City (Electrical: 'Generators, Transformers, Battery Storage Device $70.43' vs 'PV Solar Panels $294.23') and at OCFA (PR375 Battery Systems $963/$233 vs PR362 PV $223/$175). 75% · fee schedule (OCR'd)
• Is a ground mount treated as a structure? Likely yes, by default, as an accessory structure under LPMC Sec. 44-102 (Accessory uses and structures) — no PV-specific ground-mount carve-out or standard was found in the zoning code. 60% · municipal code (control-checked absence + inference)
• Is there a local rule on service upgrades or busbar sizing? No — no local busbar-minimum or attic-ambient-derating rule found 80% · adopting ordinance (OCR'd)
• Is a specific mounting system or attachment spacing required? No local mounting-system or attachment-spacing rule found beyond the adopted (unamended) 2025 CBC/CRC/CEC provisions 70% · adopting ordinance (OCR'd)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 90% · department page
• How much notice is required? 24 hours (generally) 90% · department page
• Are same-day or AM/PM windows offered? No AM/PM windows — inspections are conducted only Monday–Thursday, 8:30 a.m. to noon (closed Fridays); same-day inspection may be accommodated if the request is called in before 8:30 a.m. 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 85% · AP warrant register
• If delegated, to whom? Bureau Veritas North America, Inc. (contracted Building & Safety Division — plan check, building inspection, Building Official) for the standard building/electrical inspection; Orange County Fire Authority for PV needing Alternative Compliance and for Battery Systems. 85% · AP warrant register

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For systems eligible under the expedited Article IIA process, only ONE inspection is required, performed by the Building Department, scheduled within two business days of request; larger/non-eligible systems and anything triggering OCFA 'Alternative Compliance' or a Battery System receive an additional, separate OCFA inspection. 85% · municipal code
• Is a rough-in or mid-roof inspection required? No 75% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 75% · authority's own document search
• Does the inspector verify labels and listings? Yes (inferred) 55% · municipal code (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 55% · adopting ordinance (inference)
• Is there a re-inspection fee? $62.60 80% · fee schedule (OCR'd)
