City of Laguna Niguel

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · department page
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined 75% · fee schedule
• Is a HOA or architectural approval required first? Not required as a city permit precondition -- the PV Submittal Criteria handout's own 'Administrative' clearance list names only the Planning Department and Building & Safety, not an HOA/architectural body. Private CC&Rs may still require HOA architectural approval as a separate covenant matter, but the Solar Rights Act (Civil Code Section 714/4600 et seq.) limits what an HOA may withhold, and the city does not condition its own permit on proof of HOA sign-off. 72% · checklist
• Is a wind or windstorm certification required? No separate windstorm certification process identified -- wind design (Exposure C, 110 mph) is folded into the standard structural engineering calculations required for roof-mount attachment, not a distinct TDI-style certificate. 65% · checklist
• Is a Specific Use Permit or Council approval ever required? No -- standard eligible residential rooftop PV is processed ministerially (SolarAPP+ same-day, or regular ministerial permit); no Council/Specific Use Permit step is described for eligible systems. 68% · department page
• Is there a system-size cap on residential generation? 38.4 kW-dc is the operative ceiling for the streamlined SolarAPP+ path; systems above that (or otherwise ineligible, e.g. ground mount, oversized wall batteries) must use the regular permit process, where no separate hard zoning cap was found. 68% · department page

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 90% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the PV Submittal Criteria handout: full dimensioned site plan (lot size, street, meter and PV location, property lines); single-line diagram (array config/wiring, combiner box, inverter, disconnects, grounding, point of connection); inverter manufacturer spec sheet; module manufacturer spec sheet; array electrical parameters (series/parallel count, voltage, current, short-circuit current); roof structural info incl. mounting hardware spec and engineering calcs for wind uplift. 80% · published checklist
• How many copies, and in what format? Primarily digital: PV permits are submitted via SolarAPP+ or the Online Permit Center with no paper-copy count stated for solar specifically. The Design Criteria handout gives paper/digital set counts for other project types (e.g. 3 sets for custom homes; 2 paper + 1 digital when OCFA review is required) but does not give a PV-specific figure. 55% · checklist
• Is a site plan required, and what must it show? Yes -- full dimensioned site plan showing lot size, street, alley, easements, parking, all structures, property lines and lot dimensions, plus size/location of the service meter and location of the PV system. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 92% · published checklist
• Are string and conductor calculations required? Yes (functionally) -- plan must show number of modules in series, number of parallel source circuits, total modules, operating voltage/current, max system voltage, and short-circuit current. 65% · published checklist
• Is a structural PE stamp required, and at what threshold? Engineering calculations demonstrating structural adequacy of roof supporting members, including wind uplift effects, are required for roof-mount systems; the handout does not state an explicit PE-stamp threshold or whether a manufacturer's engineering letter can substitute. 60% · checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

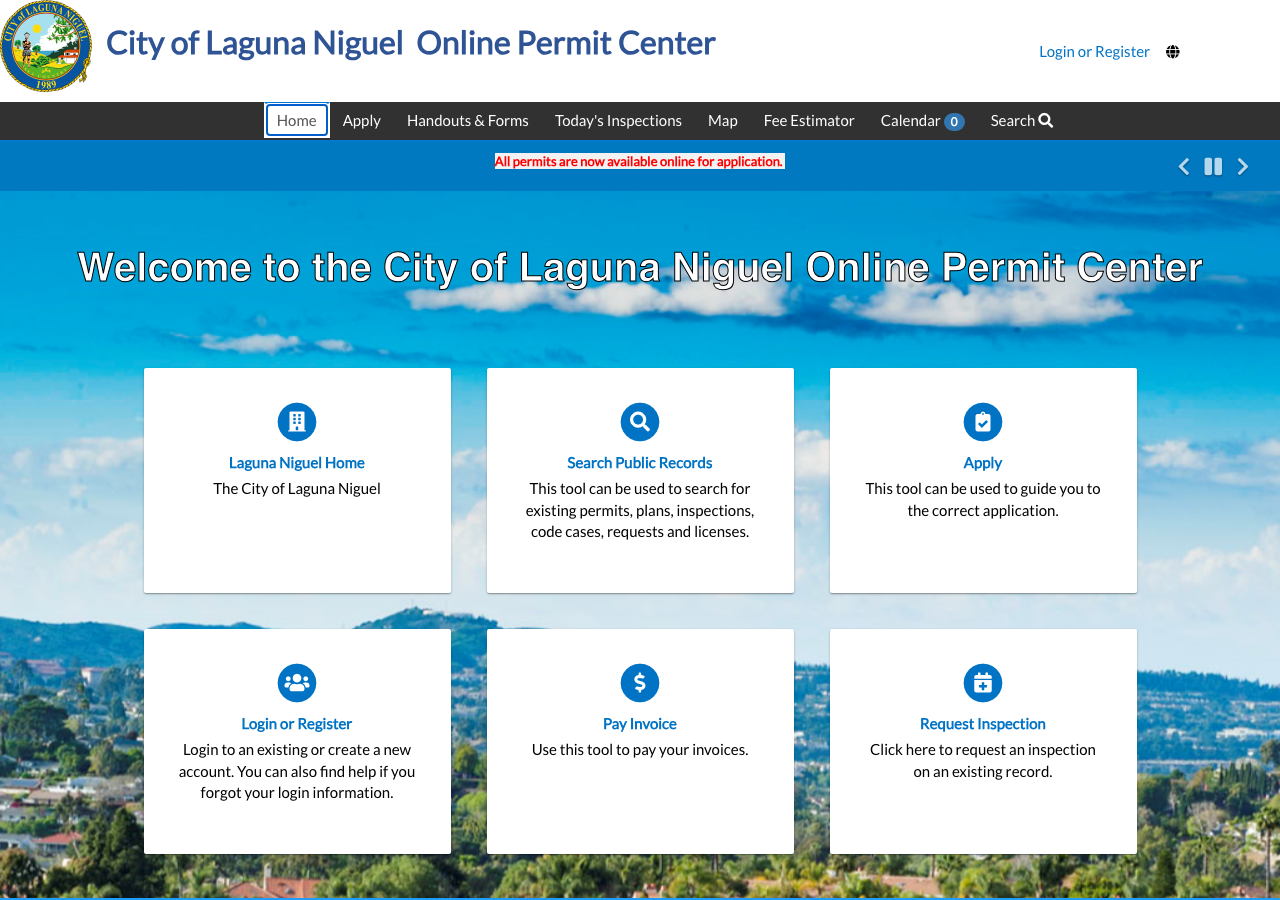

• Which permit portal does this authority use? Laguna Niguel Permit Center (Tyler Technologies EnerGov, at cityoflagunaniguel.org/CSS / cityoflagunaniguelca-energovweb.tylerhost.net), plus SolarAPP+ for eligible contractor-submitted rooftop PV. 95% · portal landing page
• Can the whole application be completed online? Yes 92% · portal landing page
• What does a residential solar permit cost? Approx. $450 total: Photovoltaic permit $205.20 + Photovoltaic plan check $205.21 + issuance fee $39.59 (plus 2% Technology and 2% General Plan Cost Recovery surcharges), per the Building Division Fees Schedule effective 1 Jul 2026. 92% · fee schedule
• How is the fee calculated? Flat 85% · fee schedule
• Is there a separate plan-check fee? Yes 92% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? ~24 hours for online application processing (general statement, not solar-specific); same-day issuance under SolarAPP+. 65% · department page
• Which utility handles interconnection here? Split -- both Southern California Edison (SCE) and San Diego Gas & Electric (SDG&E) serve Laguna Niguel, depending on the specific address. This overturns a single-utility assumption of SDG&E-only. 88% · department handout

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, as adopted into the 2025 California Electrical Code (CEC), effective 1 Jan 2026 85% · department handout
• Which building code edition is in force? 2025 California Building Code (CBC), together with the 2025 CMC, CPC, CRC, CEC, and 2025 Title 24 Energy Regulations 92% · checklist
• Are there local amendments to any of the above? Yes -- the Design Criteria handout states codes apply 'as amended by City Ordinance,' confirming local amendments exist, though the specific amendment text could not be retrieved this run. 78% · checklist
• What is the installation judged against? 2025 CBC, CMC, CPC, CRC and CEC as locally amended, plus 2025 Title 24 Energy Regulations 90% · checklist

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Laguna Niguel on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under NEC 690.12 as part of the 2023 NEC folded into the 2025 CEC now in force; no local amendment relaxing rapid shutdown was found. 75% · adopting regulation (inferred)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? DC combiner/junction box shock-hazard warning; DC disconnect shock-hazard warning plus 'PV system - DC disconnect' label with operating current/voltage, max system voltage and short-circuit current; inverter warning labels plus AC/DC output ratings; AC disconnect labeled 'PV system - AC disconnect'; meter labeled with AC output current/voltage and 'Dual sources: Second source is Photovoltaic'; a permanent directory/plaque is required if the service and PV disconnects are not co-located. 78% · ordinance/handout
• Does the authority specify placard wording of its own? Yes -- exact quoted wording is specified for each required placard (see q38). 85% · ordinance/handout
• Is a site plan / facility map placard required, and what must it show? Yes -- a full dimensioned site plan is required showing lot size, street, alley, easements, parking, all structures, property lines/dimensions, and the size and location of the service meter and PV system. 80% · checklist
• Where must the labels be placed? At the DC combiner/junction box; at the DC disconnect (at an accessible location); at the inverter; at the AC disconnect; at the meter; and at a permanent directory/plaque if the service disconnect and PV disconnect are not in the same location. 78% · ordinance/handout

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Yes, permitted with conditions. SolarAPP+ allows battery storage as an optional add-on except wall-mounted batteries over 400 lbs, which are ineligible for that path (must use the regular permit process). Separately, OCFA requires its own fire plan review/inspection (PR375, $963 plan review + $233 inspection per its fee schedule) once electrolyte exceeds 50 gal. or lithium-ion exceeds 1,000 lb. 80% · department page + fee schedule
• Is there a separate ESS permit or inspection? No distinct city 'ESS permit' type was found -- the Building Division fee schedule has only a 'Photovoltaic' electrical fee line, not a separate battery/ESS line, implying batteries are added to the same building/electrical permit. OCFA applies a separate fire plan-review/inspection fee (PR375) only when battery capacity crosses its stated thresholds. 68% · fee schedule
• Is a ground mount treated as a structure? Likely yes -- SolarAPP+ explicitly excludes ground-mount systems ('no ground mount or reverse tilt systems'), routing them to the standard/regular permit process where the city's separate geotechnical/foundation-requirement handouts for other structures would plausibly apply, but no city document was found stating this explicitly for ground-mount PV. 50% · department page (inferred)
• Is there a local rule on service upgrades or busbar sizing? Electric Meter Panel Replacement handout sets detailed panel-upgrade rules: spare/future circuits must be capped and busbar space reserved for future breakers; grounding electrode conductor sized to panel data-plate rating; a copy of the SCE or SDG&E service order is required prior to permit issuance; new/reconstructed service over 50% requires underground service. 80% · department handout
• Is a specific mounting system or attachment spacing required? Mounting hardware manufacturer specification and engineering calculations for attachment adequacy/wind uplift are required; no specific universal attachment-spacing figure is stated. 55% · checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (Laguna Niguel Permit Center, online) or Phone ((949) 362-4381) 90% · department page
• Are same-day or AM/PM windows offered? Same-day cancellation/rescheduling is permitted if called in before 7 a.m. that day ((949) 362-4334); the daily inspection schedule is posted online, updated at 8:30 a.m. No AM/PM window language was found. 78% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 90% · department page
• If delegated, to whom? N/A -- not delegated for the routine final. OCFA performs its own separate inspection only when its PR362 (PV) or PR375 (battery) thresholds are triggered. 80% · fee schedule

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? SolarAPP+ track: a single final inspection after installation is complete, matched against the SolarAPP+ approval scope. General/owner-builder track: sequence beyond intake and final is not spelled out in any city document found. 65% · department page
• Is a rough-in or mid-roof inspection required? No, for the SolarAPP+ track (explicitly one inspection only, no rough-in/mid-roof stage). Not stated either way for the general/owner-builder track. 70% · department page

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes -- the SolarAPP+ inspection checklist is explicitly printable/downloadable from the SolarAPP+ platform and becomes part of the permit set. 88% · department page
• What must be on site at inspection? A set of plans and the SolarAPP+ approval document must be available on site for the inspector; the inspection card/permit and the SolarAPP+ inspection checklist are also part of the required set. 88% · department page
• Does the inspector verify labels and listings? Likely yes, though not stated in so many words -- the city's own required-signage handout (q38-43) exists specifically so it can be field-verified, and SolarAPP+'s national NREL-based inspection checklist routinely includes label/listing verification. 60% · inferred

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (inspection card signed off/finalized) -- not a Certificate of Occupancy, since PV is an alteration to an existing residence rather than a new occupancy. 60% · inferred
• Is there a re-inspection fee? $139.25 (general 'Structural Reinspection' fee) -- no PV-specific re-inspection fee line was found. 60% · fee schedule
