City of Lake Elsinore

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes — City of Lake Elsinore Building & Safety Division is the AHJ for building and electrical permits for residential solar at addresses within city limits. 90% · department page
• What does this authority permit itself, and what does it delegate? Both — the city's Building & Safety Division permits building AND electrical work itself (single 'Complete Solar System' permit type). Fire is delegated to Riverside County Fire Department/CAL FIRE under contract. 88% · fee schedule
• Is a permit required for a residential rooftop PV system? Yes — a building permit is required for small residential rooftop solar; LEMC 15.74.060(A) requires the Building and Safety Division to issue a building permit within 3 business days of a complete application. 95% · ordinance
• Is there a separate electrical permit, or is it combined? Combined — fee schedule shows a single flat 'Complete Solar System' Base Fee ($440) rather than separate building and electrical permit fees for solar; general (non-solar) electrical work uses a separate Trades Permit. 60% · fee schedule
• Is a HOA or architectural approval required first? No — HOA/architectural approval is not a city-required precondition for standard residential rooftop solar; LEMC 15.74 imposes no such requirement (consistent with CA Civil Code §714 preemption of HOA solar restrictions beyond 'reasonable restrictions'). 75% · ordinance
• Is there a historic-district review? Yes, but narrowly — LEMC 15.74.030(C): 'A use permit and/or architectural review may be required for properties on the City's list of historic resources.' The city also maintains a Historic Downtown Elsinore Overlay District (LEMC Title 17.40) and a full Historic Preservation ordinance (LEMC Ch. 15.78) with a Certificate of Appropriateness process for designated landmarks/districts. 85% · ordinance
• Is a wind or windstorm certification required? No separate wind/windstorm certification regime — California uses ASCE 7 wind design embedded in structural calculations rather than a TDI-style certification. The city's own CRC Table R301.2(1) local amendment lists a 110 mph design wind speed as a structural design parameter, not a standalone certification requirement. 62% · ordinance
• Is a Specific Use Permit or Council approval ever required? Only in narrow cases: if the Building Official finds substantial evidence of a 'specific, adverse impact' on public health/safety, a minor design review may be required (appealable to the Planning Commission, not City Council); historic-register properties may separately require a use permit/architectural review. 78% · ordinance
• Is there a system-size cap on residential generation? No hard cap on system size, but only systems ≤10 kW AC nameplate (or ≤30 kW thermal) qualify as a 'small residential rooftop solar energy system' eligible for the expedited 3-business-day ministerial process; larger residential systems fall back to standard (non-expedited) building permit review rather than being prohibited. 85% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? A licensed contractor (B&P Code §7000 et seq.) or the property owner as owner-builder may pull the permit; the Trades Permit Application explicitly offers 'AGENT FOR: CONTRACTOR / OWNER' as options. 85% · permit application form
• Must the contractor be registered with this authority before applying? Contractors must hold a current City business license/business tax certificate to work in the city, per the Building & Safety Development Process guide ('Contractor to have current business license to work in the city'). 65% · department handout
• Is a homeowner permitted to self-install and self-permit? Yes — an Owner/Builder may self-install and self-permit; the Building Permit Application includes an Owner/Builder affidavit (owner doing own work, or exclusively contracting with licensed contractors). 85% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the city's 'Solar Requirements' handout: PV module/panel/array/framing plans and specs; plot plan showing property lines, setbacks, disconnects, inverters and existing meter(s); engineering calculations; conduit size/location and wire sizes; mounting/attachment details with roof dead-load and wind-uplift values; a one-line electrical diagram; disconnect locations (CEC 690.14); directory signage (CEC 225.37/690.56); overcurrent/busbar calculations (CEC 690.6(B)(2)); and manufacturer's spec sheets for inverter, modules and mounting system. 90% · department handout
• How many copies, and in what format? Three (3) sets of PV array plans, three (3) copies of the plot plan, and two (2) copies of engineering calculations — all paper per the 2015-era LEMC 15.74.050(D) ('the City currently does not have the capabilities to accept electronic plan submittals'). This appears superseded in practice: the city's current EnerGov Citizen Self-Service Portal states applicants can 'upload and collaborate on any relevant plans' online. 55% · department handout / portal page conflict
• Is a site plan required, and what must it show? Yes — a plot plan is required showing the location of the PV array on the property relative to lot lines, required setbacks, and the locations of all disconnects, inverters, and the existing electrical meter(s). 90% · department handout
• Is a one-line / three-line diagram required? Yes — an electrical single-line diagram is required showing panel count, voltage/kW ratings, main panel bussing amperage, and PV circuit breaker amperage. 95% · department handout
• Are string and conductor calculations required? Yes — conduit size/location and wire sizes must be specified, and calculations verifying that the sum of overcurrent device ratings does not exceed 120% of the busbar rating (CEC 690.6(B)(2)) are required. 82% · department handout
• Is a structural PE stamp required, and at what threshold? Engineering calculations (implying structural engineer involvement) are required when the total roof dead load (existing roof + array) exceeds 10 lbs/sq ft, or when the roofing material is tile, or on a trussed roof — per the handout, citing '2019 CBC [ASCE 7-05] Seismic Loads.' 68% · department handout

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? Citizen Self-Service (CSS) Portal, built on Tyler Technologies EnerGov, at mill.lake-elsinore.org/EnerGov_Prod/SelfService. 95% · portal landing page
• Can the whole application be completed online? Largely yes — per the CSS Portal's own description, a registered user can submit Building/Fire permit applications, upload plans, request inspections, monitor status, and pay fees fully online. This conflicts with the still-codified 2015 ordinance text at LEMC 15.74.050(D) stating the city 'currently does not have the capabilities to accept electronic plan submittals.' 78% · portal page
• What does a residential solar permit cost? $440 flat 'Complete Solar System' base fee, plus a $40 permit issuance fee and $5 professional development fee — approximately $485 total. 90% · fee schedule
• How is the fee calculated? Flat — 'Complete Solar System' is billed as a Base Fee, not a valuation-based or per-kW/per-panel fee. 95% · fee schedule
• Is there a separate plan-check fee? Ambiguous / likely no separately-billed plan-check line for solar specifically. The general valuation-based fee table shows Plan Check Fee = 75% of the Building Permit fee as a distinct column, but the solar 'Complete Solar System' fee is a flat Base Fee not run through that valuation table, and the Solar Requirements handout mentions only a '1-3 day plan check review' process without naming a separate fee for it. 50% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days from a complete application, for systems eligible for the expedited small-residential-rooftop-solar process (≤10kW AC / 30kW thermal). 90% · ordinance
• Which utility handles interconnection here? Southern California Edison (SCE). No community-choice aggregator (CCA) was found operating in Lake Elsinore. 60% · department handout (dated 2009)
• Where does the utility sit in the sequence? No dependency for permit issuance — LEMC 15.74.060(B) limits the city's application review to 'whether the application meets local, State, and Federal health and safety requirements,' with no utility-approval precondition; interconnection/PTO with SCE happens after city final sign-off. 55% · ordinance

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC, as the basis for the California Electrical Code, 2022 Edition (LEMC 15.38.010, Ord. 1476 §11, 2022) — this is what is currently codified. 68% · ordinance
• Which building code edition is in force? 2022 California Building Code, based on the 2021 IBC (LEMC 15.04.010, Ord. 1476 §2, 2022) — currently codified. 68% · ordinance
• Which fire code edition is in force? 2022 California Fire Code, based on the 2021 IFC (LEMC 15.56.010/020, Ord. 1476 §15, 2022), enforced by Riverside County Fire Department under contract with the City. 68% · ordinance
• Are there local amendments to any of the above? Yes — extensive local amendments exist to the Building, Residential, Electrical, Fire, Energy, and Green Building codes (LEMC 15.04.020, 15.06.020, 15.38.020, 15.56.020, 15.42.020), covering items such as: plan-check fee = 75% of building permit fee; Class B minimum roof covering; copper-only wiring for #6 AWG and smaller with continuous inspection of any approved aluminum branch-circuit wiring; 24-ft minimum fire apparatus access road width (vs. IFC default); and Very High Fire Hazard Severity Zone designation. 90% · ordinance
• What is the installation judged against? The 2022 California Electrical Code (2020 NEC-based), plus IEEE and UL/accredited-testing-lab standards and, where applicable, CPUC safety/reliability rules — per LEMC 15.74.040(C). 82% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 36-inch minimum clearance at ridgeline, valleys, and eaves; arrays may extend down to the eave if three (3) access pathways from ground to ridge are maintained. Ground-mounted arrays require a 10-ft vegetation clearance/mowed perimeter and may need Planning Department site-plan approval. 90% · department handout

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Required, to NEC 690.12 as incorporated by the adopted 2022 California Electrical Code (2020 NEC base) — LEMC 15.38 adopts the CEC without exception to Article 690. 62% · ordinance (inference)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Building directory signage per CEC Article 225.37 and 690.56, plus the disconnect labeling required at CEC 690.14 — no placard beyond what those NEC articles themselves require was identified. 78% · department handout
• Does the authority specify placard wording of its own? No — the handout cites the governing CEC articles (225.37, 690.56) rather than prescribing city-specific placard wording. 78% · department handout
• Does it specify letter height, colour or material? No local specification of letter height, color, or material — the city defers entirely to whatever the cited CEC articles (225.37, 690.56) require. 72% · department handout
• Where must the labels be placed? No AHJ-specific placement rule beyond the code citations themselves — the handout requires showing the main building electrical disconnect location per CEC Article 690.14 on the plot plan, but does not add a Lake-Elsinore-specific placement rule (e.g., distance from meter). 55% · department handout

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Not locally specified beyond a code citation — the handout requires showing the main building electrical disconnect per CEC Article 690.14, but no distance-from-meter rule is stated in any Lake Elsinore document reviewed. 55% · department handout
• Must equipment be on a specific approved list? No formal 'approved equipment list' — the handout requires manufacturer's information brochures for the inverter, PV modules, and mounting system to be submitted, implying UL/CEC-listed equipment is expected, but no city-maintained approved-products list was found. 68% · department handout
• Are batteries permitted, and under what conditions? Yes, permitted, under Riverside County Fire Dept. Guideline OFM-16 (Residential ESS, rev. 10/8/2024): rooms/areas/basements/attached garages housing an ESS must have interconnected smoke alarms per CRC R314/CFC 907.2.11, plus a listed heat detector/heat alarm (one of three specified compliance options), OR the ESS may instead be sited in an exterior location to avoid the interior detection requirements. 90% · fire department guideline
• Is there a separate ESS permit or inspection? Yes — a construction permit (CFC 510.3) is required prior to ESS installation, submitted to both the local Building Department and Riverside County Fire's Office of the Fire Marshal (RVC-OFM) for review; if the household-fire-warning-system compliance option is used, a separate Fire Alarm permit (deferred submittal) is also required. 85% · fire department guideline
• Is a ground mount treated as a structure? Likely yes in practice, though not stated in exactly those words — the Solar Requirements handout requires 'Planning Department approval of the site plan' for ground-mounted installations, plus vegetation-clearance rules typically applied to structures, but no code text explicitly labels a ground-mounted PV array a 'structure.' 62% · department handout
• Is there a local rule on service upgrades or busbar sizing? No solar-specific busbar/service-upgrade amendment beyond the general electrical-code amendment restricting aluminum wiring (copper required for #6 AWG and smaller; aluminum permitted only for feeders, case-by-case, by the Building Official, with mandatory continuous third-party inspection of terminations). The unamended CEC 690.6(B)(2) 120%-busbar-rule is cited in the Solar Requirements handout as the governing standard. 72% · ordinance
• Is a specific mounting system or attachment spacing required? No prescribed mounting system; the handout requires roof array support/attachment details, roof penetration flashing/sealing method, and manufacturer's installation instructions, with structural engineering calculations triggered above a 10 lb/sq ft combined dead load, tile roofing, or trussed-roof construction. 72% · department handout

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

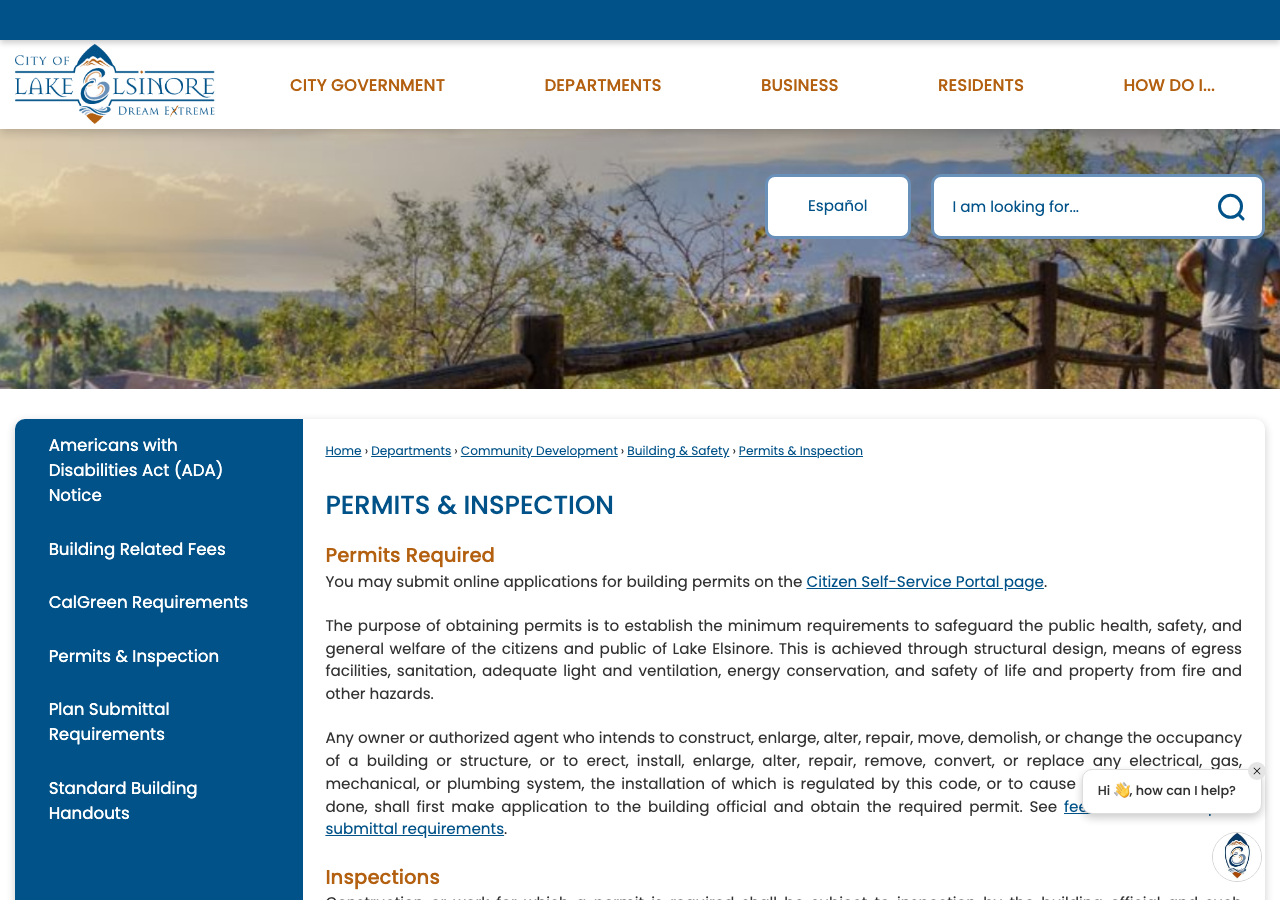

• How is an inspection booked? Phone (building inspection line 951-225-1818, providing address/permit number/inspection type/callback number) or via the CSS Portal's 'request inspections' feature. Fire-related inspections (e.g., ESS) are booked via phone (951-381-2824) or email to the Office of the Fire Marshal. 85% · department page
• How much notice is required? Building: effectively next-business-day — calls received before 5 p.m. on a workday are scheduled for the following workday. Fire: at least 72 hours (3 business days) notice, per the Fire Inspections page. 85% · department page
• Are same-day or AM/PM windows offered? Not offered/not published — the Permits & Inspection page states inspectors do not call to confirm and gives no AM/PM window selection option. 68% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes for the building/electrical final — LEMC 15.74.060(G): 'Only one inspection shall be required and performed by the Building and Safety Division' for expedited small residential rooftop solar. Delegated to Riverside County Fire for any fire-code-scoped component (e.g., ESS). 88% · ordinance
• If delegated, to whom? Riverside County Fire Department / Office of the Fire Marshal (RVC-OFM), for fire-code-scoped items such as ESS detection/permitting — under contract with the City. 82% · fire department guideline

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a straightforward rooftop PV system with no battery: a single consolidated final inspection performed by Building & Safety after permit issuance (LEMC 15.74.060 G-H). Where an ESS/battery is included, a separate fire-code-scoped construction permit and RVC-OFM review/inspection run alongside the building permit. 78% · ordinance
• Is a rough-in or mid-roof inspection required? No separate rough-in/mid-roof inspection stage for the PV system itself — LEMC 15.74.060(G) specifies only one consolidated inspection for expedited small residential rooftop solar systems. 75% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? A valid permit/job card must be on site for all inspections — explicitly stated for fire inspections ('if a job card has been issued, it will need to be on site for all inspections'); the same is standard practice for building inspections though not separately restated on the building inspection page. 62% · department page
• Does the inspector verify labels and listings? Likely yes as part of the standard final inspection, though not explicitly stated in a published document. 50% · inference from adopted code

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Likely a signed-off Final inspection approval on the building permit/job card (not a Certificate of Occupancy, since this is existing single-family housing) — not explicitly named in any document reviewed. 58% · inference
• Who notifies the utility for PTO? Likely the installer — under standard SCE/Rule 21 practice, the installer submits proof of the city's final permit sign-off to SCE to trigger Permission to Operate. 45% · utility landing page (inference)
• Is there a re-inspection fee? $120.00 per hour re-inspection fee. 90% · fee schedule
• How are corrections issued and cleared? For plan-review-stage deficiencies: a written correction notice detailing all deficiencies is sent to the applicant for resubmission (LEMC 15.74.060.F). For a failed field inspection: 'a subsequent inspection is authorized' (15.74.060.I) — no further detail on how corrections themselves are documented/cleared was found. 58% · ordinance
