City of Lemoore

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · ordinance
• What does this authority permit itself, and what does it delegate? Both 88% · department page
• Is a permit required for a residential rooftop PV system? Yes 95% · ordinance
• Is there a separate electrical permit, or is it combined? Combined 78% · permit application form
• Is a HOA or architectural approval required first? No (cannot be required as a precondition) — Solar Rights Act, Civil Code §714 85% · ordinance
• Is there a historic-district review? Conditional — no dedicated Historic District zoning chapter exists, but LMC 8-11-3.C allows the city to require a use permit and/or architectural review for properties on the city's own list of historic resources. 78% · zoning code TOC + ordinance
• Is a wind or windstorm certification required? No 72% · ordinance
• Is a Specific Use Permit or Council approval ever required? Administrative Use Permit, only if the chief building official finds a specific, adverse impact on public health/safety; appealable to the Planning Commission. A use permit may also be required for properties on the city's historic-resources list. 90% · ordinance
• Is there a system-size cap on residential generation? 10 kW AC nameplate / 30 kW thermal — this is the eligibility gate for the ministerial/expedited Chapter 11 pathway (AB 2188-era figure), not an absolute ban; it also must be a single- or duplex-family dwelling and not exceed the maximum legal building height. 90% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 50% · permit application form
• Must the contractor be registered with this authority before applying? Yes 55% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 50% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Completed City Building Permit Application (with 'SOLAR' box checked), project valuation, and building/electrical plans; no dedicated solar-only checklist was found beyond the general 'Plan Check Submittal Requirements' handout. 55% · checklist
• How many copies, and in what format? PDF, submitted electronically 65% · checklist
• Is a site plan required, and what must it show? Yes — a site plan showing north arrow, street/street name, structure footprint, dimensions to property lines, and drainage, per the department's general site-plan format. 55% · checklist
• Is a one-line / three-line diagram required? Yes (inferred) 55% · checklist
• Is a structural PE stamp required, and at what threshold? No fixed kW/valuation threshold found; general residential language gives the chief building official discretion ('depending on scope or complexity of project, plans may be required to be reviewed and stamped by an architect or engineer'). 55% · checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

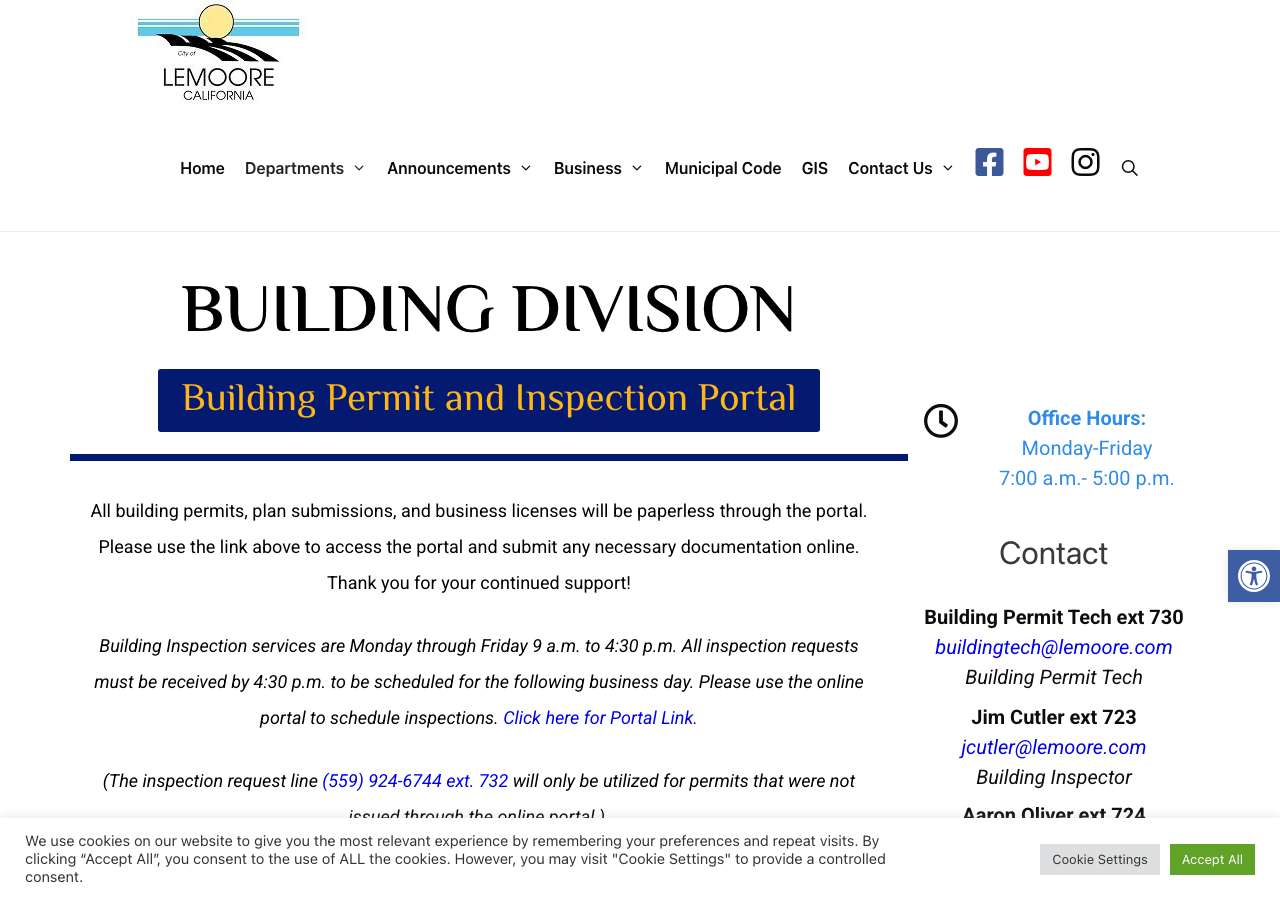

• Which permit portal does this authority use? Tyler EnerGov self-service portal ('Community Development Portal'), effective 22 Apr 2025 90% · department page
• Can the whole application be completed online? Yes (per the city's own announcement) 70% · department page
• What does a residential solar permit cost? $574.94 flat, for residential solar installations 13 kW or less 90% · fee schedule
• How is the fee calculated? Flat (up to 13 kW); systems above that threshold likely fall to the schedule's general sq-ft/valuation-based Building Permit fee formula instead, though this is not stated explicitly. 78% · fee schedule
• Is there a separate plan-check fee? No (apparently included in the flat fee) 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Same day for over-the-counter applications; 1–3 business days for electronic applications 95% · ordinance
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) — delivery, metering, billing, and O&M of wires/poles within Lemoore; no municipal electric utility exists 82% · adopted General Plan

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? Other — ordinance text literally cites the 2014 NEC 65% · adopting ordinance
• Which building code edition is in force? 2022 California Building Code (Title 24, Part 2), referencing the 2015 IBC 95% · adopting ordinance
• Which fire code edition is in force? 2022 California Fire Code, referencing the 2015 IFC 95% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? The 2022 California Electrical Code, IEEE standards, and accredited testing laboratories (e.g. UL), plus applicable CPUC safety/reliability rules for grid-tied systems. 90% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No local ridge-setback or fire-access-pathway rule specific to PV was found; defaults to the unamended 2022 CFC. 72% · ordinance

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required as part of the adopted 2022 CEC (no local amendment found narrowing or removing it). 70% · adopting ordinance

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

Nothing recorded for City of Lemoore on this step yet — 6 questions checked and found unpublished. The guidance above is general.

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 82% · ordinance
• Are batteries permitted, and under what conditions? No Lemoore-specific ESS/battery rule was found; the ordinance and fire-code amendments are silent on batteries, so ESS installs default entirely to the unamended 2022 CFC (state) provisions. 55% · ordinance
• Is there a separate ESS permit or inspection? No separate ESS permit line was found; ESS appears to fall under the same combined building permit as PV. 55% · fee schedule
• Is there a local rule on service upgrades or busbar sizing? No 85% · ordinance
• Is a specific mounting system or attachment spacing required? No local mounting/attachment-spacing rule found specific to solar racking. 68% · ordinance

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone (dedicated Inspection Request Line) 85% · department page
• How much notice is required? By 4:30 p.m. the prior business day (next-business-day scheduling) 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 95% · ordinance
• If delegated, to whom? N/A — not delegated; self-performed by the Development Services/Building Division. 90% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? A single consolidated final inspection (no separate rough-in/mid-roof stage) for systems eligible for expedited review. 88% · ordinance
• Is a rough-in or mid-roof inspection required? No 85% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 65% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (building final-inspection approval) — inferred 50% · inference from comparable authority practice
• Is there a re-inspection fee? $167.69 (general reinspection fee; not solar-specific) 65% · fee schedule
• How are corrections issued and cleared? A written correction notice detailing all deficiencies is sent to the applicant for resubmission. 90% · ordinance
