City of Livermore

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 85% · fee schedule
• Is a permit required for a residential rooftop PV system? Yes 98% · ordinance
• Is there a separate electrical permit, or is it combined? Combined 68% · fee schedule
• Is a HOA or architectural approval required first? No 65% · ordinance
• Is there a historic-district review? Yes, but only for properties on the City's list of historic resources 88% · ordinance
• Is a wind or windstorm certification required? No 62% · ordinance
• Is a Specific Use Permit or Council approval ever required? A Zoning Use Permit (not Council approval) is required only if the City finds, based on substantial evidence, that the system would have a 'specific, adverse impact' on public health/safety; appeals go to the Planning Commission, whose decision is final (not City Council). 85% · ordinance
• Is there a system-size cap on residential generation? No absolute cap; systems ≤10 kW AC (or ≤30 kW thermal) on a single/duplex-family home qualify for the expedited 'small residential rooftop' program (LMC 15.36.020(B)) and SolarAPP+; larger residential systems are still permittable but fall out of the expedited pathway and the '25 Day Review' plan-check tier. 78% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed contractor 62% · authority's own page
• Must the contractor be registered with this authority before applying? Yes 90% · authority's own page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Cover sheet (index, reference codes, scope of work, plot plan); roof or ground-mount plan with panel locations; panel anchorage/attachment details (manufacturer mounting detail, e.g. Unirac/Tile-rac, or footing/structural engineering if ground-mounted); electrical one-line diagram (panels, existing systems, inverters, disconnects, ESS, wire sizes); required signage/labeling verbiage with location; equipment cut sheets for inverter and panels (must be listed products, panel weight indicated). 92% · published checklist
• How many copies, and in what format? Electronic submittal only (PDF); no physical copy count specified. Plans must be to scale, minimum 24x36 sheet size, signed and/or stamped by designer, site address on every page, all sheets numbered. 85% · published checklist
• Is a site plan required, and what must it show? Yes — a plot plan is required as part of the cover sheet, and a separate roof or ground-mount plan showing panel locations is required. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 95% · published checklist
• Are string and conductor calculations required? Not itemized as a separate calculation package; conductor/wire sizing must be shown on the required electrical one-line diagram, but no standalone 'string/conductor calculations' document is listed. 60% · published checklist
• Is a structural PE stamp required, and at what threshold? No PE stamp specified for standard roof-mount systems using a manufacturer's engineered mounting system (e.g. Unirac, Tile-rac); ground-mounted systems require 'footing, structural details, and engineering' — i.e., a stamped structural design. 72% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

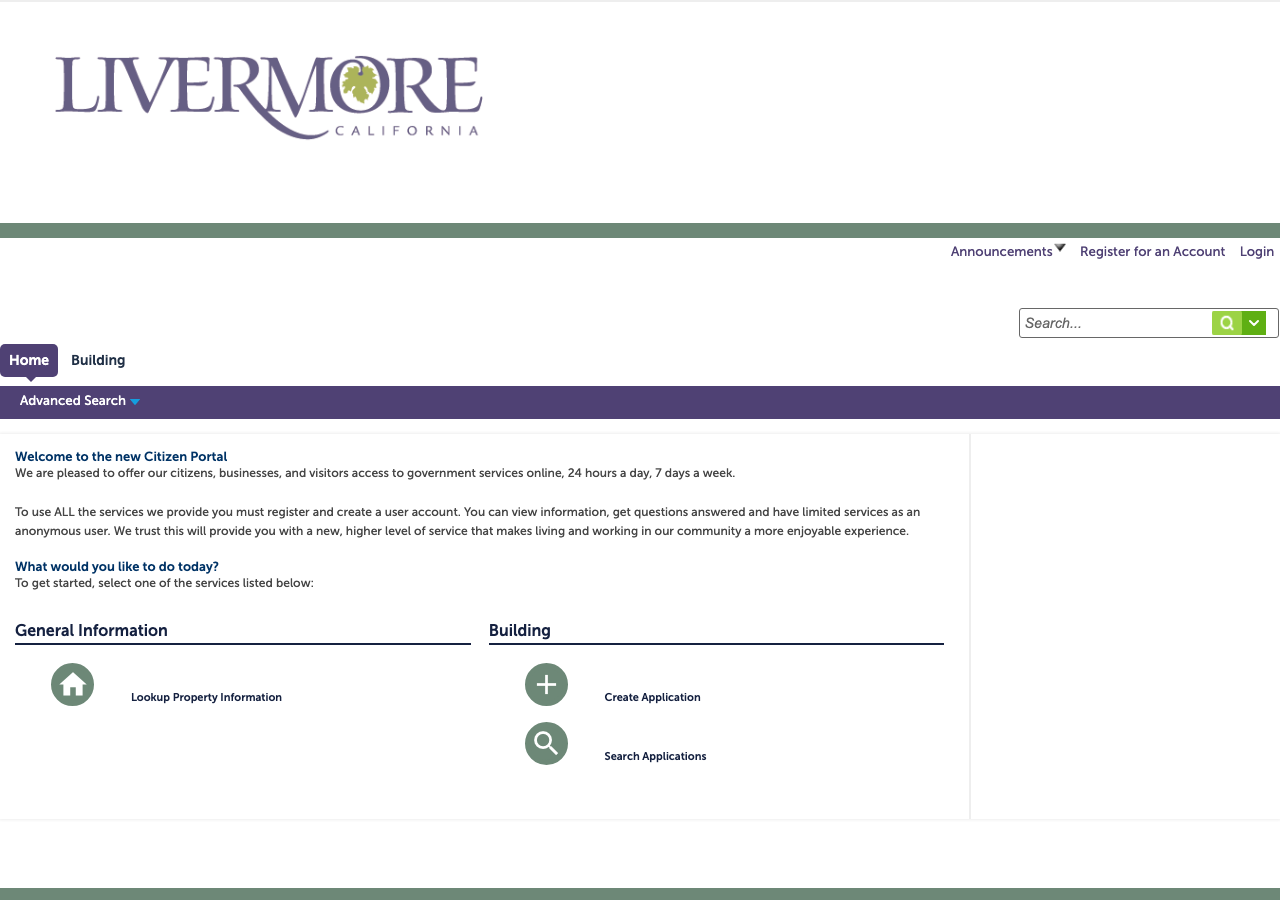

• Which permit portal does this authority use? Accela Citizen Access (ACA) at aca-prod.accela.com/LIVERMORE, used for the City's 'Online Permitting'; SolarAPP+ (solar-app.org / NREL) is used in parallel for eligible small residential rooftop systems. 90% · portal landing page
• Can the whole application be completed online? Yes 82% · authority's own page
• What does a residential solar permit cost? $440.00 flat, residential photovoltaic system permit 95% · fee schedule
• How is the fee calculated? Flat 95% · fee schedule
• Is there a separate plan-check fee? No 68% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? SolarAPP+-eligible residential systems (typically ≤10 kW AC, per LMC 15.36): same day for over-the-counter applications, or 1-3 business days for electronic applications (LMC 15.36.060). Non-eligible or >10 kW residential PV goes through standard plan check, listed at the '25 Day Review' tier on the Permit Center Review Time Frames page. 80% · department page
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 88% · utility DG manual
• Where does the utility sit in the sequence? Parallel 58% · utility DG manual

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC, as adopted via the 2022 California Electrical Code (LMC 15.08.020, last amended by Ord. 2138, 2022). The statewide 2025 Title 24 cycle (2023 NEC) took effect 1 Jan 2026, but Livermore's codified local ordinance — current through Ord. 2175 (23 Jun 2025) per the code publisher's table of contents — had not yet re-adopted a newer local amendment as of this capture. 75% · adopting ordinance
• Which building code edition is in force? 2021 IBC as the 2022 California Building Code (LMC 15.02.020, Ord. 2138, 2022); see Q29 note on the 2025/2026 statewide cycle not yet reflected in the local ordinance text. 75% · adopting ordinance
• Which fire code edition is in force? 2021 IFC as the 2022 California Fire Code (LMC 15.06.020, Ord. 2138, 2022). 80% · adopting ordinance
• Are there local amendments to any of the above? Yes 90% · ordinance
• What is the installation judged against? The 2022 California Electrical Code (2020 NEC) as locally amended, Art. 690/705 for PV, plus PG&E's Greenbook (Doc. 060559) for interconnection/disconnect hardware; no Livermore-specific PV electrical amendment was found. 70% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Livermore on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — rapid shutdown is required under NEC 690.12, as adopted via the 2020 NEC/2022 CEC (LMC 15.08.020); no local amendment to the rapid-shutdown provision was found. 78% · adopting ordinance

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The PV submittal checklist requires 'required signage/labeling verbiage with location' to be shown on plans (NEC 690/705 placards); PG&E additionally requires its own 'UTILITY AC DISCONNECT SWITCH' placard at the disconnect (see Q42). 80% · ordinance / utility spec
• Does the authority specify placard wording of its own? No 68% · ordinance
• Does it specify letter height, colour or material? Not specified by the City itself; no letter-height/colour/material requirement was found in LMC Ch. 15.02/15.06/15.08/15.36. (PG&E does specify its own AC-disconnect label spec — see Q42 — but that is a utility, not an AHJ, requirement.) 60% · ordinance
• Is a site plan / facility map placard required, and what must it show? Yes — the required roof/ground-mount plan must show panel locations, and the cover-sheet plot plan situates the system on the parcel; no additional 'facility map placard' beyond NEC 690.56(C)/705.10 requirements was found. 70% · checklist
• Does the UTILITY specify placards beyond the AHJ's? Yes. PG&E's Greenbook (Doc. 060559, Rev. #07, dated 3/25/2022) requires permanently attached signage on the AC disconnect switch stating it is the utility disconnect (example given: 'UTILITY AC DISCONNECT SWITCH'), engraved phenolic or ANSI Z535.4-compliant, minimum 3/8-inch all-capital lettering; a location map is required if the disconnect is not grouped with the meter, and the Net Generation Output Meter (if installed) needs its own labeling. 90% · utility DG manual
• Where must the labels be placed? AHJ: signage/labeling location must be shown on the submitted plans (handout item 5). Utility: the AC disconnect label must be permanently attached to the front of the disconnect switch itself; if the switch is not grouped with the meter, a location map and directional signage are required (PG&E Doc. 060559). 85% · utility DG manual

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? The AC disconnect switch must be within 10 feet, in line-of-sight, of PG&E's electric meter (or in an approved electric meter room within that distance); if outdoors it must be at the same grade level as the meter and is not allowed on a roof, on any floor/level above grade, or in a non-meter room; when wall- or pad-mounted it must sit between 48 and 75 inches above grade, measured to the top of the enclosure. 92% · utility DG manual
• Must equipment be on a specific approved list? No — equipment must be a 'listed product' (inverter and panels), but there is no City-specific approved-equipment list; listing is via a Nationally Recognized Testing Laboratory (e.g. UL), per standard NEC/CEC listing requirements. 72% · ordinance
• Are batteries permitted, and under what conditions? Batteries/ESS are permitted as part of a PV system; the required electrical one-line diagram must show the 'ESS system,' implying ESS is reviewed together with the PV application under the adopted CEC/CFC (no Livermore-specific ESS ordinance or separate battery bulletin was found). 62% · checklist
• Is there a separate ESS permit or inspection? No separate ESS permit type was found — ESS appears to be folded into the same Photovoltaic permit/one-line diagram requirement; no dedicated battery/ESS informational handout exists on the Permit Center's Informational Handouts page (only a general 'Generator Requirements' handout was found, which is for standby generators, not batteries). 60% · ordinance
• Is a ground mount treated as a structure? Yes 75% · checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone 80% · department page
• How much notice is required? Effectively about 1 business day — the Inspections page requires the request 'no later than 11:00 PM the day before you need the inspection.' 82% · department page
• Are same-day or AM/PM windows offered? AM/PM windows are offered (caller selects AM or PM); an approximate arrival time can be obtained by calling a separate number (925-960-4445) between 7:00-8:00 AM the day of the inspection. No explicit same-day booking is offered (requests must be made the prior day). 80% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 78% · department page
• If delegated, to whom? Not delegated for single-family residential PV (City Building Division inspects). For multifamily/non-residential fire-related work only, fire inspections are delegated to the Livermore-Pleasanton Fire Department, a joint department serving both cities. 75% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For SolarAPP+/expedited small residential rooftop systems, only one consolidated inspection is required (LMC 15.36.060(A)(2)); the applicant must have the permit, approved plans, job inspection card, and (residential) Smoke Detector Compliance form on site. Larger/standard-review PV is not separately sequenced in any document found. 72% · ordinance
• Is a rough-in or mid-roof inspection required? No 72% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Printed permit, approved documents/plans, job inspection card, and (for residential) a completed Smoke Detector Compliance form — the project 'will not be finaled without a completed Smoke Detector Compliance form.' 90% · department page
• Does the inspector verify labels and listings? Likely yes (inference) 60% · department page / practice

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 62% · department page
• Is there a re-inspection fee? $219.00 per hour (re-inspection) 90% · fee schedule
• How are corrections issued and cleared? For expedited/SolarAPP+ applications, a written correction notice detailing all deficiencies is sent to the applicant for resubmission (LMC 15.36.060(A)(1)); more generally, applicants 'receive updates via email' through the review process (Photovoltaic/SolarApp+ pages), and revisions are submitted through SolarAPP+ or a Revision Application emailed to permitcenter@livermoreca.gov. 75% · department page
