City of Manteca

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · ordinance
• What does this authority permit itself, and what does it delegate? Both 90% · ordinance
• Is a permit required for a residential rooftop PV system? Yes 95% · ordinance
• Is there a separate electrical permit, or is it combined? Combined 80% · published checklist
• Is a HOA or architectural approval required first? No 78% · ordinance
• Is there a historic-district review? No 78% · municipal code (full-text search)
• Is a wind or windstorm certification required? No 65% · department page
• Is a Specific Use Permit or Council approval ever required? Not required for a compliant small residential rooftop system, which is approved administratively under Ch 15.60; no solar-specific Council/SUP approval requirement was found in Title 17 Zoning or Ch 15.60. 55% · ordinance
• Is there a system-size cap on residential generation? 10 kW AC nameplate (or 30 kW thermal) is the cap for a system to qualify as a 'small residential rooftop solar energy system' eligible for the city's expedited/administrative permit process; this is an eligibility threshold for expedited review, not an absolute ceiling on residential system size. 85% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · published checklist
• Must the contractor be registered with this authority before applying? No 45% · permit application
• Is a homeowner permitted to self-install and self-permit? Yes 90% · permit application

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Building permit application + Owner/Builder form (if applicable); manufacturer spec sheets, installation instructions, and UL listings; site plan + roof plan showing PV equipment/arrays and fire setbacks/egress; partial roof framing plan; equipment-to-roof connection/flashing details; structural (gravity + lateral) calculations or a qualifying alternate; electrical drawings incl. single-line diagram, inverter/module/array data, wiring & OCPD sizing, system labels/warnings, grounding, disconnects, and rapid-shutdown method; plans signed/stamped by a CA-licensed engineer or A/B/C-46/C-10 contractor. 78% · published checklist
• How many copies, and in what format? Three sets of plans, minimum 11"x17" 78% · published checklist
• Is a site plan required, and what must it show? Yes — must show location/dimensions of all PV equipment and arrays, plus fire setbacks and emergency egress pathways per CEC 690 and city amendments; a roof plan is required projected onto the site plan. 80% · published checklist
• Is a one-line / three-line diagram required? Yes 85% · published checklist
• Are string and conductor calculations required? Yes 85% · published checklist
• Is a structural PE stamp required, and at what threshold? Required unless the installation qualifies for a prescriptive exemption: PE/architect gravity calcs are waived only if arrays are supported at ≤4 ft spacing and impose <5 psf; PE/architect lateral calcs are waived only if the system is shown to be <5 psf. Otherwise a licensed PE or architect must stamp both. 80% · published checklist
• Is an electrical PE stamp required, and at what threshold? No separate electrical PE stamp threshold found — the checklist accepts a signature/license number from a CA-licensed engineer OR an A/B/C-46/C-10 licensed contractor on every sheet; there is no electrical-specific PE trigger distinct from the structural one in Q13. 65% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

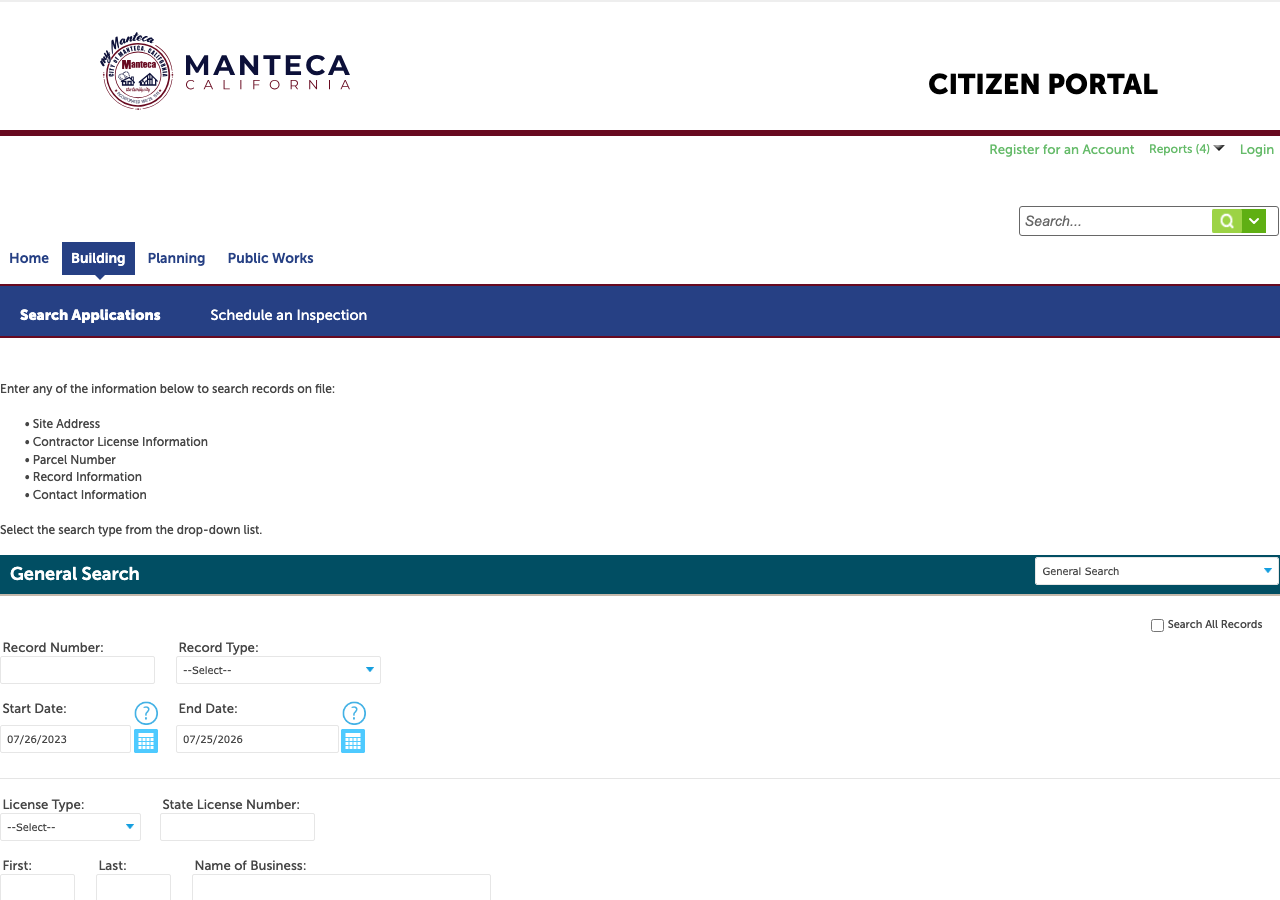

• Which permit portal does this authority use? Symbium (instant/automated permitting for eligible residential rooftop solar & battery storage); Citizen Access / Accela ('aca-prod.accela.com/MANTECA') for all other permits, revisions, and inspection scheduling 92% · portal landing page
• Can the whole application be completed online? Yes 88% · portal landing page
• What does a residential solar permit cost? $409 flat 95% · fee schedule
• How is the fee calculated? Flat 95% · fee schedule
• Is there a separate plan-check fee? No 78% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 5 business days (first submittal), 5 business days (subsequent submittal) 92% · department page
• How long is an issued permit valid before it expires? An issued permit is valid 12 months from issuance unless work is suspended/abandoned for 180 days without a substantial inspection approval; the building official may grant written extensions of up to 180 days each. (Separately, an application itself expires 180 days after filing if no permit is issued, extendable 90 days on written request.) 92% · ordinance
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 70% · city department page
• Where does the utility sit in the sequence? After permit 90% · ordinance

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 92% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (Title 24, Part 2) 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code, incorporating the 2021 International Fire Code 95% · adopting ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? The 2025 CRC/CBC/CEC as locally amended, plus CEC Article 690 (solar-specific electrical requirements) and Ch 15.60's own permit/inspection conditions. 85% · ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? CRC Appendix R324.7 series as locally amended: roof access points avoiding ground-ladder conflicts (R324.7.1); hip-roof layouts need one 3-ft clear pathway eave-to-ridge per slope (R324.7.2.2); single-ridge roofs need two 3-ft pathways (R324.7.2.3); panels must be ≥18 in. from a hip/valley when placed on both sides (R324.7.2.4); panels must stay ≥3 ft below the ridge for smoke-ventilation (R324.7.2.5); and a city-amended emergency-egress rule (R324.7.2.8) requiring a straight, ≥3-ft-wide firefighter-capable pathway from any emergency escape/egress opening, which also applies around roof chimneys/HVAC equipment. 75% · published checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required per CEC 690.12, under the 2025 CEC (2023 NEC base). 82% · published checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Required signage/warning labels per CEC Article 690 (system labels and warnings at service equipment); no additional city-specific placard beyond the adopted electrical code was found. 60% · published checklist
• Does the authority specify placard wording of its own? No 60% · ordinance
• Does it specify letter height, colour or material? No 55% · published checklist
• Is a site plan / facility map placard required, and what must it show? A site plan/roof plan showing the location and dimensions of all PV equipment and arrays is required as part of the permit submittal (see Q10); this satisfies NEC/CEC 705.10-type directory/placard intent but flows from the adopted CEC rather than a distinct city-authored facility-map placard spec. 65% · published checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No dedicated city-approved-equipment list; the checklist requires UL listings on all equipment cut sheets generically (PV modules, inverter, combiner box, disconnects, rapid shutdown, racking) rather than referencing a specific approved-products list. 68% · published checklist
• Are batteries permitted, and under what conditions? Yes — batteries/ESS are permitted; the fee schedule carries a dedicated residential 'ESS' (Energy Storage System) flat fee ($329/app), and the city's Symbium instant-permit portal explicitly lists 'Battery Storage' as an eligible project type alongside rooftop solar. 88% · fee schedule
• Is there a separate ESS permit or inspection? Yes — ESS has its own distinct fee line item ('Energy Storage System,' $329/app) separate from the residential solar PV line ($409/app), indicating a separate permit/application track. 78% · fee schedule
• Is a ground mount treated as a structure? Not directly addressed for solar specifically — Ch 15.60's expedited process applies only to ROOFTOP systems (defined in §15.60.010), so a ground-mounted array falls outside that chapter and would default to standard accessory-structure review under Title 17 Ch 17.40, likely making it subject to standard setback/height rules as a structure. 60% · municipal code (full-text search)
• Is there a local rule on service upgrades or busbar sizing? No numeric city-specific busbar/service-upgrade rule found; the checklist requires the applicant, at their own cost, to verify (using standard electrical inspection techniques) that the existing service — line, load, ground/bonding wiring, and main/subpanel sizing — is adequately sized to carry the new PV electrical load. 65% · ordinance
• Is a specific mounting system or attachment spacing required? No fixed mandated spacing, but the structural-calculation exemption in the checklist implies a prescriptive ceiling of 4 ft maximum support spacing (and <5 psf loading) to avoid requiring PE-stamped calcs. 70% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 88% · portal landing page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a system eligible for expedited review, only one (final) inspection is required. 82% · ordinance
• Is a rough-in or mid-roof inspection required? No 82% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Approved plans and all permit documents must be printed and physically available on-site; the inspector cannot complete the inspection without them. 85% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (final inspection approval/'final approval on the inspection record') 65% · ordinance
• Who notifies the utility for PTO? Installer 88% · ordinance
• Is there a re-inspection fee? $128 per unit 92% · fee schedule
• How are corrections issued and cleared? For an incomplete application: the building official issues a written correction notice detailing deficiencies. For a failed inspection: a subsequent inspection is authorized (it need not follow the one-inspection expedited rule), and every re-inspection after the first is charged 'a reasonable inspection fee... in accordance with the currently adopted fee schedule' ($128, per Q59). 85% · ordinance
