City of Marysville

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 82% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 95% · permit portal
• Is there a separate electrical permit, or is it combined? Combined 75% · permit portal
• Is a HOA or architectural approval required first? Only if applicable — no PV-specific trigger found. The general Building Permit Application's Submittal Checklist has a 'Design Review Appl. (if applicable)' line, and MMC Ch. 18.87 Architectural Review governs building/sign design review generally, but no HOA or architectural-review requirement specific to rooftop solar was found (full-text search of 'solar'/'photovoltaic' across the entire code returned zero hits in Ch. 18.87). 55% · application form
• Is there a historic-district review? Yes, but only for parcels within the codified Historic Preservation Overlay Zone District (MMC Ch. 18.59) — §18.59.030 requires Planning & Historic Preservation Commission (or its Architectural Review subcommittee) approval of exterior work, and explicitly lists 'roofing' as an example of covered work, with no solar/PV exemption found anywhere in Ch. 18.59 or 18.94. Not a citywide requirement. 78% · municipal code
• Is a wind or windstorm certification required? No 72% · full-text code search (absence)
• Is a Specific Use Permit or Council approval ever required? No 78% · full-text code search (absence)
• Is there a system-size cap on residential generation? Two uncoordinated figures found: the city's automated online eligibility path caps residential PV at 38.4 kW AC nameplate (matching the statewide SolarAPP+ ceiling); separately, the older 'Solar Submittal Checklist' states systems larger than 10.0 kW are routed to third-party plan review (a review trigger, not necessarily a hard cap). No zoning-code generation-size cap exists (control-checked full-text search). 82% · permit portal + published checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 92% · municipal code
• Must the contractor be registered with this authority before applying? Yes (in practice) 62% · permit portal
• Is a homeowner permitted to self-install and self-permit? Yes 95% · municipal code

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the city's own 'Solar Submittal Checklist': signed owner contract; electrical schematic diagram (module wiring, disconnects, grounding/bonding, wire/conduit sizing, rapid shutdown, DC color coding, and battery locations/venting if applicable); site diagram (panel layout, combiner box, inverter, disconnect, main service, setbacks); equipment cut sheets (inverters, modules, generators, transfer switch); labeling schedule per CEC 110.21(B)/690.13/690.31/690.56/705.10/705.12; system kW capacity; engineer-stamped structural plans; PV System Summary; Single Line Diagram; manufacturer information; photos of existing main panel bus rating if reusing it. 92% · published checklist
• How many copies, and in what format? 2 sets for roof-mount, 3 sets for ground-mount; minimum sheet size 11"x17". 90% · published checklist
• Is a site plan required, and what must it show? Yes — a site diagram showing arrangement of panels on the roof or ground, location of combiner box, inverter, utility disconnect, main service, approximate distances from panel to all components, dimensioned setbacks to all structures and property lines, and generator/transfer locations if applicable. 90% · published checklist
• Is a one-line / three-line diagram required? Yes 92% · published checklist
• Are string and conductor calculations required? Yes 90% · published checklist
• Is a structural PE stamp required, and at what threshold? Yes — 'Engineer stamp plans for all structurals, with a clear scope of work' is a general submittal item; for ground-mount/wind-generator systems an engineer is explicitly required once the array height exceeds 7 feet from ground to top of array, or wherever ground snow load (Pg) exceeds 50 psf. Separately, the city's automated online eligibility path caps roof-mount system+hardware weight at ≤ 4.0 psf to avoid triggering full structural engineering review. 88% · published checklist
• Is an electrical PE stamp required, and at what threshold? Yes, for batteries specifically — 'For ALL battery connections: An Electrical Engineer is required.' No PE-stamp threshold is stated for PV-only (non-battery) electrical work. 90% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

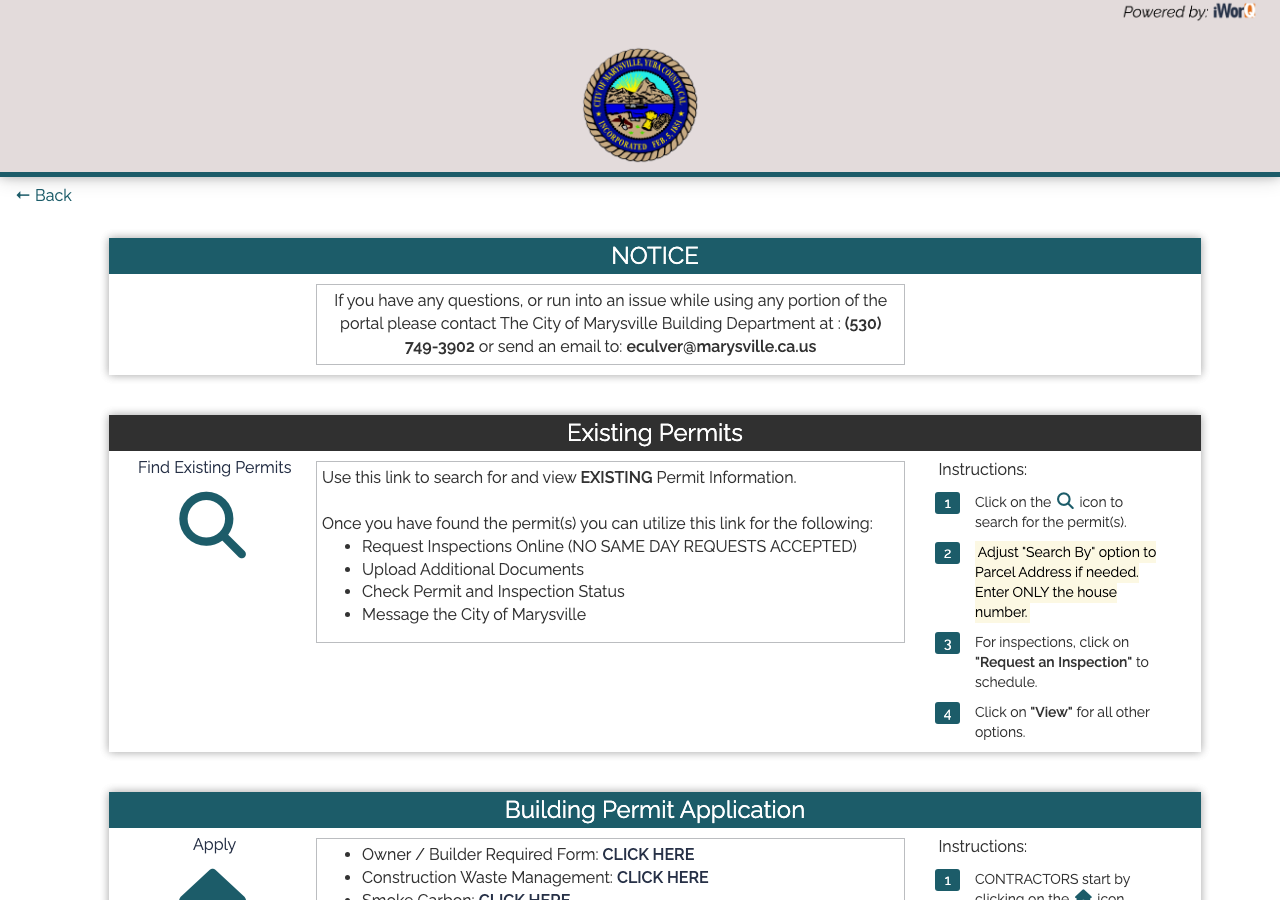

• Which permit portal does this authority use? iWorq Citizen Portal (marysvilleca.portal.iworq.net), with a dedicated 'Solar Permit Application' entry point distinct from the general building-permit application. 95% · portal landing page
• Can the whole application be completed online? Yes 95% · permit portal
• What does a residential solar permit cost? Valuation-based, no flat solar line exists. Example: a $20,000 system valuation → Building Permit fee ≈ $476.92 (per the $2,001–$25,000 tier: $102.70 + $20.79/$1,000 over $2,000) + Plan Review at 65% of that (≈ $310) ≈ $787 total, before any itemized Title 14 electrical fees for panel/service upgrades. 75% · fee schedule
• How is the fee calculated? Valuation 85% · fee schedule
• Is there a separate plan-check fee? Yes — 'Structure plan review fees are 65% of the Building Permit Fee.' 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? For systems meeting the online eligibility criteria (≤ 38.4 kW AC, single racking/module/inverter model, etc.), the city's own portal states the application 'will automatically approve/deny' — i.e., effectively same-day/instant. For systems that don't qualify, the Solar Submittal Checklist states only that 'Solar plans larger than 10.0kW will be sent out to a third party for review,' with no published day-count. 70% · permit portal
• How long is an issued permit valid before it expires? Not locally amended — defaults to the base 2025 CBC/CRC §105.5 permit-expiration provisions (180 days from issuance, extendable) as adopted wholesale by MMC §13.04.010. 60% · municipal code (inference)
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 68% · inference (no city electric utility found)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 97% · municipal code
• Which building code edition is in force? 2025 California Building Code / California Residential Code (Title 24, Parts 2 and 2.5), effective per Ord. 1464 (12/16/2025). 97% · municipal code
• Which fire code edition is in force? 2025 California Fire Code (Title 24, Part 9), including Appendix Chapter 4, effective per Ord. 1464 (12/16/2025). 97% · municipal code
• Are there local amendments to any of the above? Yes 95% · municipal code
• What is the installation judged against? The 2025 Title 24 code set (CBC/CRC/CEC/CFC) as locally amended in MMC Titles 13 and 14, plus — for the streamlined online path — the city's own iWorq eligibility checklist (System/Structural/Fire/Electrical criteria modeled closely on the statewide SolarAPP+ program). 85% · permit portal

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Solar Submittal Checklist: 'Fire Setbacks – 18in from crest of Roof' for roof-mount PV; solar panels covering more than 50% of total roof area require fire department approval. Separately, MMC §13.20.050(c) allows fire apparatus access roads to 'be permitted to be exempted or modified for solar photovoltaic power generation facilities' (a ground-mount/utility-scale-oriented provision). No broader local pathway amendment beyond base 2025 CFC §1205 was found. 85% · published checklist + municipal code

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per CEC §690.12 (2023 NEC base, via the 2025 CEC). 95% · published checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? A 'Labeling schedule for equipment and electrical hazard' is required, citing CEC §110.21(B), 690.13, 690.31, 690.56, 705.10, and 705.12 — the city requires compliance with these NEC labeling sections but does not itself list discrete named placards (e.g., no city-specific 'PV DISCONNECT' placard name was found). 80% · published checklist
• Does the authority specify placard wording of its own? No 75% · published checklist + full-text code search (absence)
• Is a site plan / facility map placard required, and what must it show? The Solar Checklist's required 'Site diagram' functions as the facility map: it must show arrangement of panels on roof or ground, location of combiner box, inverter, utility disconnect, main service, approximate distances between all components, and dimensioned setbacks to all structures/property lines. No separate, formally named '705.10 placard/map' document was found. 70% · published checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 92% · published checklist + permit portal
• Are batteries permitted, and under what conditions? Yes, under detailed conditions: lithium-ion only; individual battery units < 20 kWh; 80 kWh ESS aggregate capacity cap (location-dependent); ESS must not be installed within habitable space; minimum 3 ft from any door/window entering the dwelling; a listed heat detector interconnected to interior smoke alarms is required if installed in an attached garage; ESS unit(s) must weigh < 400 lbs with center of mass < 4 ft from the floor; an Electrical Engineer is required for all battery connections (per the separate Solar Checklist); ESS must be paired with new PV to use the streamlined path. 92% · permit portal
• Is there a separate ESS permit or inspection? No — storage is folded into the same 'Solar Permit Application' as an optional 'PV + Storage' configuration rather than issued as a separate ESS permit. 78% · permit portal
• Is a ground mount treated as a structure? Yes 85% · published checklist + permit portal
• Is there a local rule on service upgrades or busbar sizing? For the streamlined online path: service ≤ 400A, service disconnect ≤ 200A, busbars ≤ 225A; max 2 DC strings in parallel; one PV module model and up to two string inverters (or one microinverter/AC-module model) per system. 80% · permit portal
• Is a specific mounting system or attachment spacing required? Engineered or listed racking/attachment system required; for the streamlined path: only one racking model per project, ≤ 10" projection above the roof for flush-mount arrays on pitched (>2/12) roofs, ≥ 7/8" rooftop conduit standoff height, and at least 20% of any tilt-up-mounted array must sit under 2 feet above the roof. Metal roofs and wood shake/shingle roofing are excluded from the streamlined path. 85% · permit portal + published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 92% · permit portal
• How much notice is required? At least 1 business day (no same-day requests). 85% · permit portal

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 80% · permit portal
• If delegated, to whom? N/A — not delegated; performed by the city's own Building Department. 80% · permit portal

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? At minimum, a final inspection is required after installation ('Inspection will be required' — the online Solar Permit Application's own final step); no published multi-stage inspection sequence specific to PV (e.g., rough-in, mid-roof) was found. 55% · permit portal (partial)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

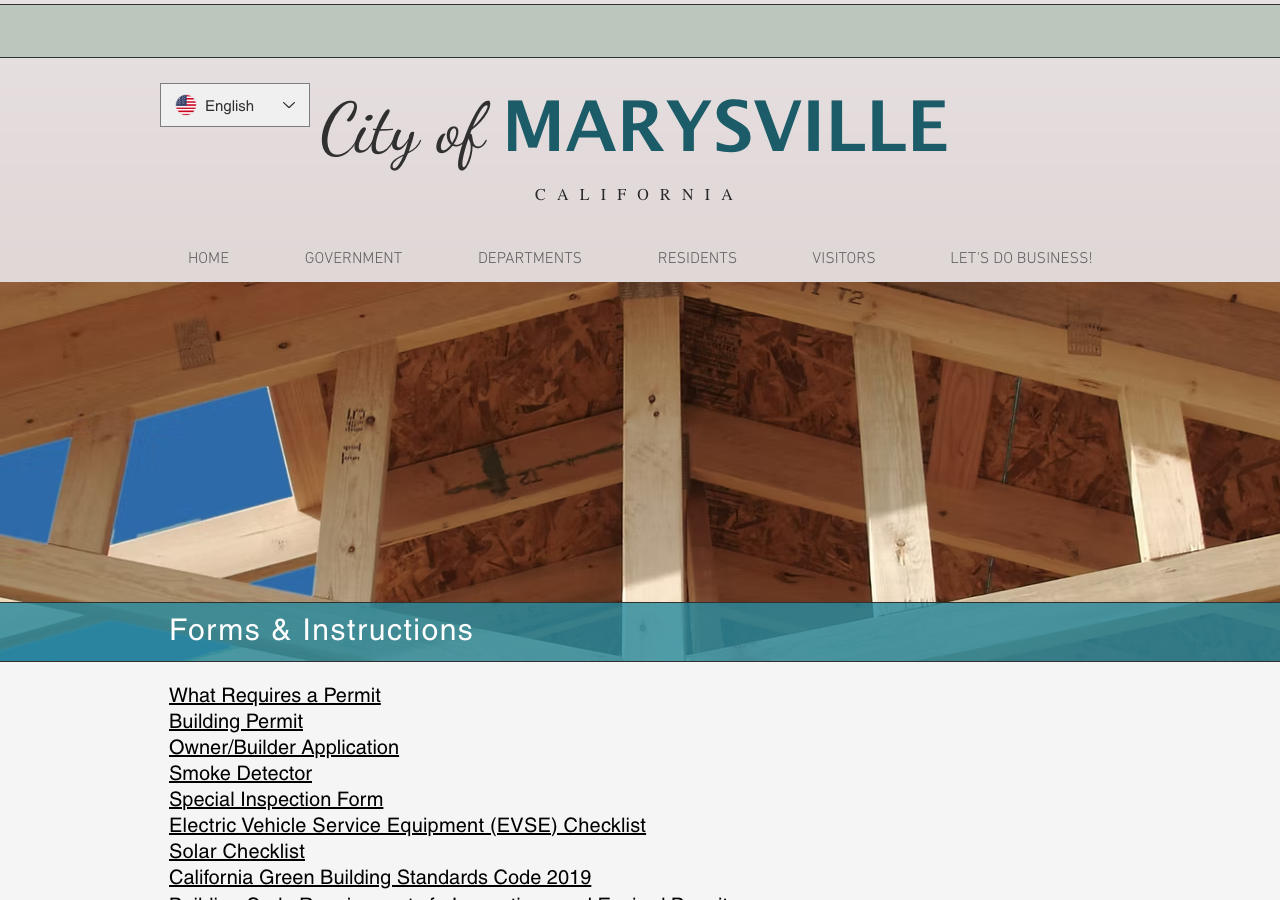

• Is there a published inspection checklist? No dedicated PV inspection checklist — the city's only published PV-related document set (Building Permit Application, Owner/Builder Application, Smoke Detector form, Solar Checklist) is a pre-permit submittal checklist, not an inspection-stage checklist. 68% · department page (absence)
• Does the inspector verify labels and listings? Likely yes (inferred, not directly stated) 55% · inference from submittal requirements

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (inspection approval) 50% · inference
• Is there a re-inspection fee? $66.00 per incident 88% · application form
