City of Merced

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 88% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 90% · authority's own page
• Is there a separate electrical permit, or is it combined? Combined 60% · inference from authority's own page + SolarAPP+ program design
• Is a wind or windstorm certification required? No 72% · absence on authority's own page + general CA code structure

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 78% · authority's own document folder listing
• Must the contractor be registered with this authority before applying? Yes 88% · authority's own page
• Is a homeowner permitted to self-install and self-permit? Yes 65% · authority's own document folder listing

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? 2025 California Building/Electrical/Fire Code editions (in force 1 Jan 2026); complete submittal package could not be itemized — see not_found 55% · authority's own document folder listing (title list only)
• Is a one-line / three-line diagram required? Yes (inferred) 55% · inference from utility application requirement + SolarAPP+ program design

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

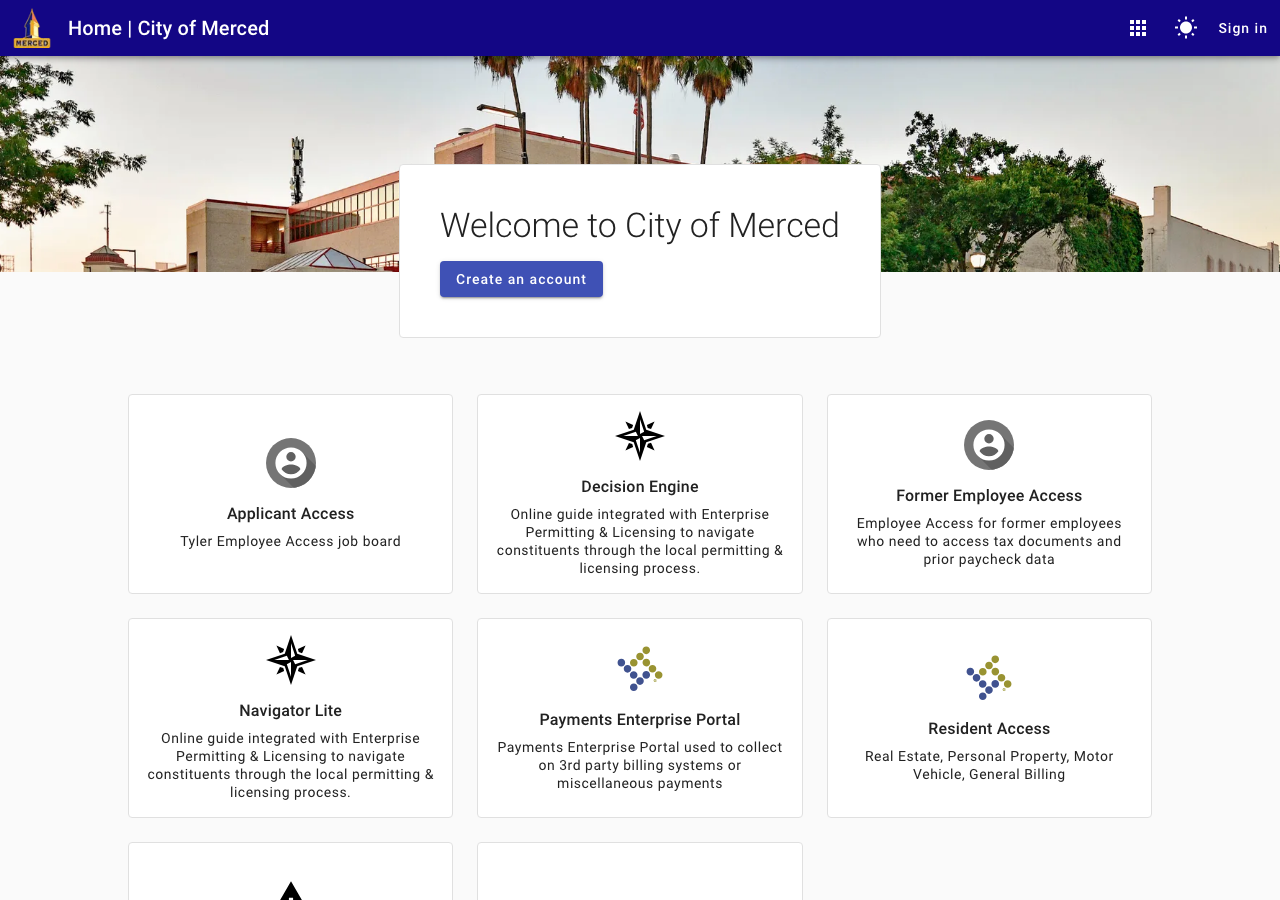

• Which permit portal does this authority use? Tyler EnerGov Citizen Self Service, branded by the City as 'Civic Access' (cityofmercedca-energovweb.tylerhost.net); SolarAPP+ offered as an alternate instant-review path for residential PV 90% · authority's own page
• Can the whole application be completed online? Yes 88% · authority's own page

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days without progress (California Building Code default, Section 105.5) 50% · inference from statewide adopted code, not a Merced-specific document
• Which utility handles interconnection here? Varies by address: Pacific Gas & Electric (PG&E) for most of the city, but Merced Irrigation District (MID) is a separate publicly-owned electric utility that itself sells retail power inside the city limits of Merced (as well as Livingston and Atwater) — not just PG&E citywide 82% · utility's own page
• Where does the utility sit in the sequence? After permit (for MID-served addresses); typically parallel-to-after for PG&E-served addresses 72% · utility's own page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (via the 2025 California Electrical Code, part of the 2025 California Title 24 cycle) 80% · authority's own page (code-cycle notice)
• Which building code edition is in force? 2025 California Building Code, effective for submittals on/after 1 Jan 2026 (2022 CBC still honored for previously-approved master plans) 92% · authority's own page
• Which fire code edition is in force? 2025 California Fire Code (effective 1 Jan 2026), inferred as part of the same Title 24 cycle bundle referenced by the City's building-code notice 65% · inference from authority's own page
• What is the installation judged against? The adopted 2025 California Building Code / California Electrical Code / California Fire Code (effective 1 Jan 2026), plus any local amendments in Merced Municipal Code Title 15 (not independently verified) 65% · authority's own page + inference

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Merced on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown per NEC 690.12, under the 2023 NEC as adopted via the 2025 California Electrical Code 70% · inference from adopted code edition

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The City itself publishes no placard spec found; the applicable UTILITY does: MID requires 'WARNING! DUAL POWER SUPPLY SOLAR ELECTRIC SYSTEM' placards at the net meter panel and 'DUAL POWER SUPPLY SOLAR ELECTRIC SYSTEM DISCONNECT' at the AC disconnect enclosure (MID Construction Standard 55010, Figure 7); PG&E requires an engraved placard on the metering equipment for any line/supply-side-tap interconnection (Greenbook TD-7001M-06 §6.3.3.a) plus standard NEC dual-source labeling. 85% · utility construction standard (PDF, text-layer, extracted with pdftotext)
• Does the authority specify placard wording of its own? No (for the AHJ itself) — but the UTILITY does specify its own wording (see q38/q40) 72% · utility construction standard
• Does it specify letter height, colour or material? Utility-specified only: MID requires labels of 'red reflective, weather-resistant material with white letters,' lettering 'a minimum of 3/8in tall,' permanently attached (Standard 55010, Figure 7 notes). No City-level letter-height/color/material spec was found. 85% · utility construction standard (PDF)
• Does the UTILITY specify placards beyond the AHJ's? Yes — both utilities serving parts of the city specify their own placards beyond code minimums: MID (Standard 55010, dual-power-supply safety labels) and PG&E (Greenbook TD-7001M-06 §6.3, engraved line/supply-side placard + Electric Design Standard 060559 disconnect-switch requirements). 90% · utility manual (PDF, text-layer, extracted with pdftotext; Publication Date 04/22/2026, Effective Date 06/22/2026, Rev. 2026-04 per document footer)
• Where must the labels be placed? MID: safety labels attached to the exterior of the net meter panel and the exterior of the AC disconnect enclosure, with the performance meter and AC disconnect within 10ft of the main service disconnect and in front of any fencing/gates (street-side, accessible). PG&E: engraved placard on the metering equipment itself for line/supply-side taps; if the AC disconnect is more than 10ft from or out of line-of-sight of the meter panel, additional signage/map is required at the meter panel showing its location. 88% · utility construction standard (PDF)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? MID: AC disconnect and performance meter must be within 10ft of the main service disconnect, street-side of any fencing/gates, within sight of the main service panel. PG&E: AC disconnect required for most self-contained/transformer-rated meter panel configurations (Table 6-3) and, where present, must generally be within 10ft and line-of-sight of the meter/service disconnect or additional signage is required. 88% · utility construction standard (PDF)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (EnerGov Civic Access self-service, 'Schedule an online inspection' / 'Today's Inspections'); phone (209) 385-4773 or email inspectionservicesweb@cityofmerced.gov also offered 88% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 82% · authority's own page + utility page
• If delegated, to whom? Not delegated — City performs its own final; utility (MID or PG&E) separately performs its own interconnection/PTO inspection, which is additional rather than a delegation 78% · utility's own page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Merced on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

Nothing recorded for City of Merced on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (inspection approval in EnerGov); Permission to Operate (PTO) is separately issued by the utility (MID explicitly; PG&E by standard Rule 21 practice) once the AHJ final has passed 52% · utility's own page + inference for the AHJ side
• Who notifies the utility for PTO? Installer (or homeowner-applicant) 68% · utility's own page
