City of Moreno Valley

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 92% · department page
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code
• Is there a separate electrical permit, or is it combined? Combined 88% · department page
• Is a HOA or architectural approval required first? No (not required by the city) 65% · municipal code
• Is there a system-size cap on residential generation? No hard cap on residential solar size, but only systems ≤10kW AC (or ≤30kW thermal) qualify for the expedited administrative-approval path defined in MVMC 8.40.020; larger systems go through standard/full plan review (fee schedule shows tiers up through '>15kW'). 85% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 82% · permit application form
• Must the contractor be registered with this authority before applying? Likely yes for contractors (not for owner-builders) 50% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 90% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Eligibility Checklist for Expedited Residential Solar PV Permitting + Solar Building Permit Application + a completed 'Solar PV Standard Plan' (Simplified Central/String-Inverter, Simplified Micro-Inverter/ACM, or Comprehensive), including manufacturer spec sheets for inverter/modules/racking and a roof-layout diagram. 90% · published checklist
• How many copies, and in what format? Electronic submittal explicitly accepted (email, internet, or fax) per MVMC 8.40.030/8.40.040, in addition to personal or mailed submittal; no specific paper copy-count was found published. 70% · municipal code
• Is a site plan required, and what must it show? Yes — a roof-layout diagram showing all panel/module locations, clear access pathways, and approximate locations of electrical disconnects and roof access points. 92% · published checklist
• Is a one-line / three-line diagram required? Yes 92% · standard plan template
• Are string and conductor calculations required? Yes 85% · standard plan template
• Is a structural PE stamp required, and at what threshold? Not required for standard expedited-eligible roof arrays (verified via 'standard engineering evaluation techniques' per MVMC 8.40.040(A)(1) and checklist weight/attachment limits); a stamp/roof calc IS required when the roof is tile ('roof calcs are required' per the permit application). 75% · permit application form
• Is an electrical PE stamp required, and at what threshold? Required when the PV system interconnects at the main service panel in a 'Center Fed' configuration — load calculations, fault study, and an engineer's stamp are required in that case; End Fed or Supply Side connections do not trigger this on the form. 85% · permit application form

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

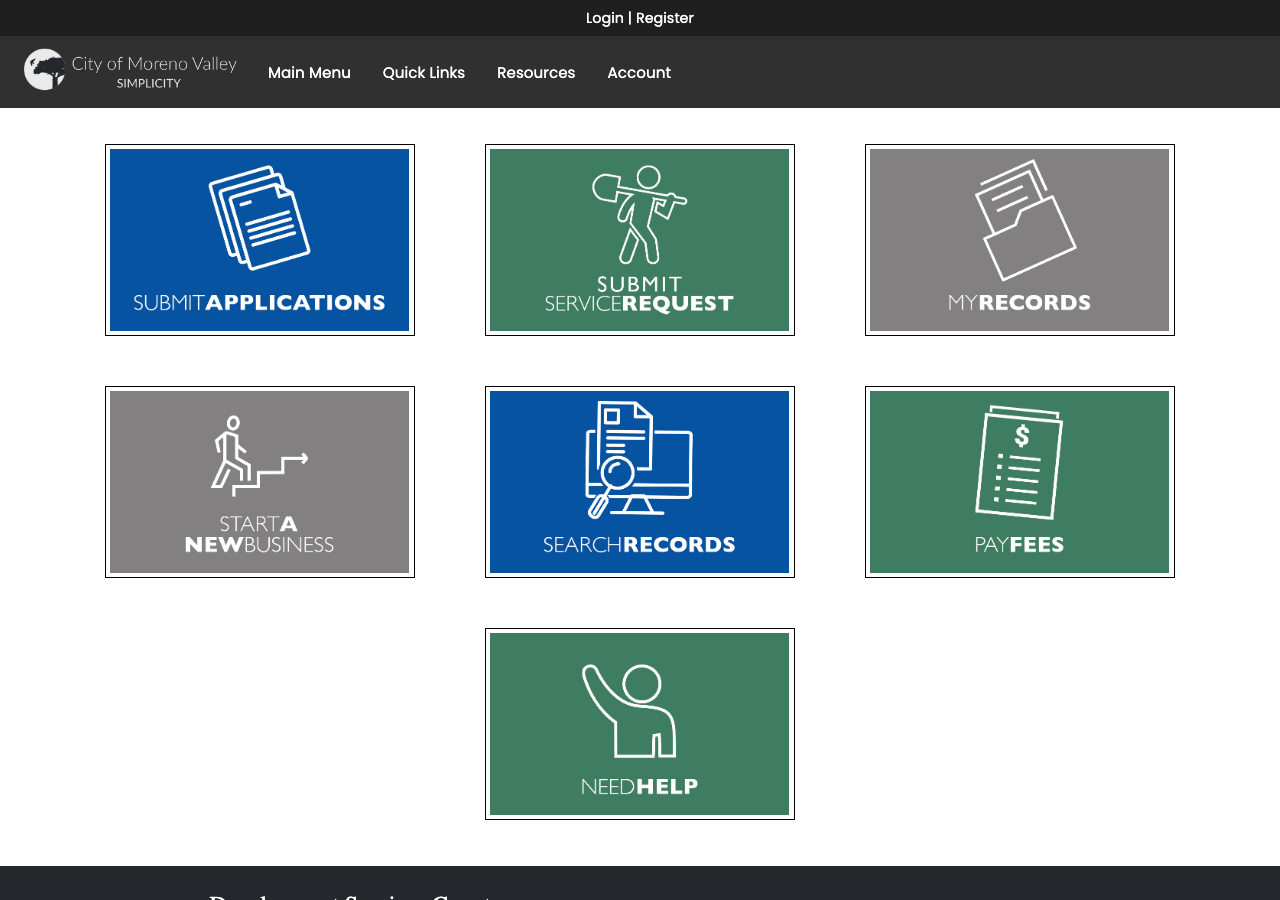

• Which permit portal does this authority use? SimpliCITY (built on Accela Citizen Access) — aca-prod.accela.com/MOVAL 95% · department page
• Can the whole application be completed online? Yes 85% · permit portal
• What does a residential solar permit cost? SolarAPP+ path: $385 flat (inspection only, $0 plan check). Standard path: ≤10kW no fire review: $88 plan check + $314 inspection ($402 total); >10–15kW with fire review: $127 + $157 ($284 total); >15kW: additional tiers. A separate Fire Department PV fee also applies: $150 plan check + $150 inspection (residential). 95% · published fee schedule
• How is the fee calculated? Tiered 90% · published fee schedule
• Is there a separate plan-check fee? Yes 90% · published fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? No solar-specific turnaround was published; the general building-permit FAQ states normal plan review is within 12 business days (not solar-specific), while MVMC 8.40 mandates an 'expedited' administrative approval process without stating a day count. 55% · department FAQ
• Which utility handles interconnection here? Split: Southern California Edison (SCE) for the large majority of the city; Moreno Valley Utility (MVU) — a city-owned electric utility (~6,500 customers, originally the Promontory Park subdivision) — for a defined, smaller service area within city limits. 95% · permit application form
• Where does the utility sit in the sequence? After permit 75% · municipal code

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 90% · municipal code
• Which building code edition is in force? California Building Code, 2025 Edition 95% · municipal code
• Which fire code edition is in force? California Fire Code, 2025 Edition 95% · municipal code
• Are there local amendments to any of the above? Yes 90% · municipal code
• What is the installation judged against? The 2025 CEC/CBC/CRC as adopted, plus the city's own 'Solar PV Standard Plan' templates (Simplified Central/String-Inverter, Simplified Micro-Inverter/ACM, or Comprehensive) and the Eligibility Checklist. 85% · standard plan template

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 3 ft. clear access pathway from the ridge; 18 in. from hips/valleys on both sides. 92% · published checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Required under the currently adopted 2025 CEC (NEC 2023-based, Art. 690.12), but the city's own downloadable standard-plan handout (dated Oct. 2015) does not mention 'rapid shutdown' by name — it predates the NEC rapid-shutdown overhaul and may be stale. 65% · standard plan template (dated 10/2015)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? CEC 690.53 (PV DC disconnect rating plaque), CEC 690.54 (PV AC disconnect rating plaque), CEC 705.12(D)(4)/(7) (dual power source / inverter output overcurrent-device warnings), CEC 690.35(F), 690.5(C), 690.17 (shock-hazard warnings), CRC R331.2/CFC 605.11.1 (PV power-source marking on junction/combiner boxes and conduit every 10 ft), and CEC 705.12 (permanent plaque/directory of all electric power sources). 90% · standard plan template
• Does the authority specify placard wording of its own? Yes 90% · standard plan template
• Does it specify letter height, colour or material? Minimum 20-point (3/8") lettering per referenced ANSI Z535.4 guidance; a phenolic plaque with contrasting text/background colors is recommended (not strictly mandated) for permanency. 72% · standard plan template
• Is a site plan / facility map placard required, and what must it show? Yes — a roof-layout diagram is required showing all panel/module locations, clear access pathways, and approximate disconnect/roof-access locations. 90% · standard plan template
• Where must the labels be placed? At the inverter output overcurrent device, the PV system AC disconnect, the PV system DC disconnect, junction/combiner boxes and conduit (marked at least every 10 ft), and a permanent plaque/directory at the main service panel. 88% · standard plan template

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes 88% · standard plan template
• Are batteries permitted, and under what conditions? Batteries are excluded from the expedited/administrative-approval path (eligibility checklist requires the system be 'utility interactive and without battery storage'), but ARE permitted via the standard (non-expedited) review path — the fire fee schedule carries a distinct 'Battery System' line. 88% · published checklist
• Is there a separate ESS permit or inspection? Yes 85% · published fee schedule
• Is a ground mount treated as a structure? Yes, effectively 78% · municipal code
• Is there a local rule on service upgrades or busbar sizing? For the expedited path, the PV system must interconnect to a single-phase 120/240V service with a busbar rating of 225A or less; systems exceeding this are not barred but fall outside expedited eligibility and go through standard review. 85% · published checklist
• Is a specific mounting system or attachment spacing required? Yes — underside-of-module clearance 2"–10" above roof, modules parallel to roof plane, ≤4 psf (PV) / 5 psf (thermal) combined weight, manufacturer's project-specific mounting worksheets required in plans. 90% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal (SimpliCITY/Accela 'Quick Links') and Phone (951.413.3350 ext. 3 to speak with inspector, ext. 5 to cancel). 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes (city performs its own final inspection) 80% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Building permit (BON, +BOE if panel upgrade) issued administratively per MVMC 8.40.040(D) → installation → Building/Electrical final inspection (+ Fire Dept inspection component where applicable) → applicant separately applies to the utility (SCE or MVU) for interconnection/PTO. 68% · municipal code (synthesized)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes (functionally) 62% · published checklist
• Does the inspector verify labels and listings? Effectively yes 68% · published checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer/Applicant 85% · municipal code
• How are corrections issued and cleared? The building official issues a written correction notice detailing all deficiencies and any additional information needed to qualify for expedited issuance. 85% · municipal code
