City of Nevada City

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · municipal code
• What does this authority permit itself, and what does it delegate? Delegated 90% · city application form
• Is a permit required for a residential rooftop PV system? Yes 95% · city application form
• Is there a separate electrical permit, or is it combined? Combined 55% · fee schedule
• Is a HOA or architectural approval required first? Yes 85% · municipal code
• Is there a historic-district review? Yes, for parcels within the downtown Historical District 95% · municipal code
• Is a Specific Use Permit or Council approval ever required? Not for a standard small residential rooftop system, but Council-level review IS reachable: appeals of a Historical District permit denial go to City Council (§17.68.150); appeals of Architectural Review Committee decisions go to City Council (§17.88.040(D)); and systems exceeding the Ch.15.06 'small residential rooftop' definition (10 kW AC/30 kW thermal, single/duplex family) fall outside the ministerial process entirely and would need to proceed through the City's standard (potentially discretionary) land-use process. 80% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate (or 30 kW thermal) is the ceiling for eligibility as a 'small residential rooftop solar energy system' under the City's ministerial/expedited Ch.15.06 process. No absolute citywide cap on residential solar generation size was found; larger systems simply fall outside Ch.15.06's non-discretionary track. 85% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 45% · inference from checklist silence
• Must the contractor be registered with this authority before applying? Yes 95% · city application form
• Is a homeowner permitted to self-install and self-permit? Yes 50% · inference

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? City side: completed Solar Plan Check Application (name/address/APN, scope of work incl. kW/panel count/battery), proof of current City Business License, payment of the Fire Dept Solar Plan Review fee, and solar plans. County (Building Dept) side, per the shared Solar PV Submittal Checklist: two sets of plans; cover sheet (address, owner, contractor, scope, sheet index, legend); site plan (structure location, north arrow, equipment/disconnects/inverters); array configuration showing fire clearances; electrical single-line diagram (panel/subpanel amperage, grounding/bonding, conductor sizes, combiner/disconnect locations, inverter details); required NEC Art. 690 signage; cut sheets for all PV equipment/mounting hardware including module fire rating; and, for ground mount, a more detailed site plan with setbacks and structural/foundation design. 90% · published checklist
• How many copies, and in what format? Two (2) sets of plans, minimum 8.5"x11" and maximum 24"x36", drawn to scale or fully dimensioned. 90% · published checklist
• Is a site plan required, and what must it show? Yes. Must show location of the structure, North arrow, equipment, disconnects, inverters and other related PV components; cover sheet and site plan may be combined on small residential lots. Ground-mount projects need a more detailed site plan additionally showing array size, setbacks to structures/property lines, existing structures on site, and new underground utility locations. 92% · published checklist
• Is a one-line / three-line diagram required? Yes 95% · published checklist
• Are string and conductor calculations required? Yes 85% · published checklist
• Is a structural PE stamp required, and at what threshold? Roof mount: prescriptive spacing allowed without a stamp (4 ft o.c. at 0-50 lb snow load; 2 ft o.c. at 51-100 lb); a CA-licensed engineer must design/stamp the mounting system above 100 lb snow load. Ground mount: engineered foundation/support tables may be used without a stamp below 50 lb snow load if calculations include the applicable snow load; at or above 50 lb, structural components must be wet-stamped and signed by a CA-licensed engineer. 90% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

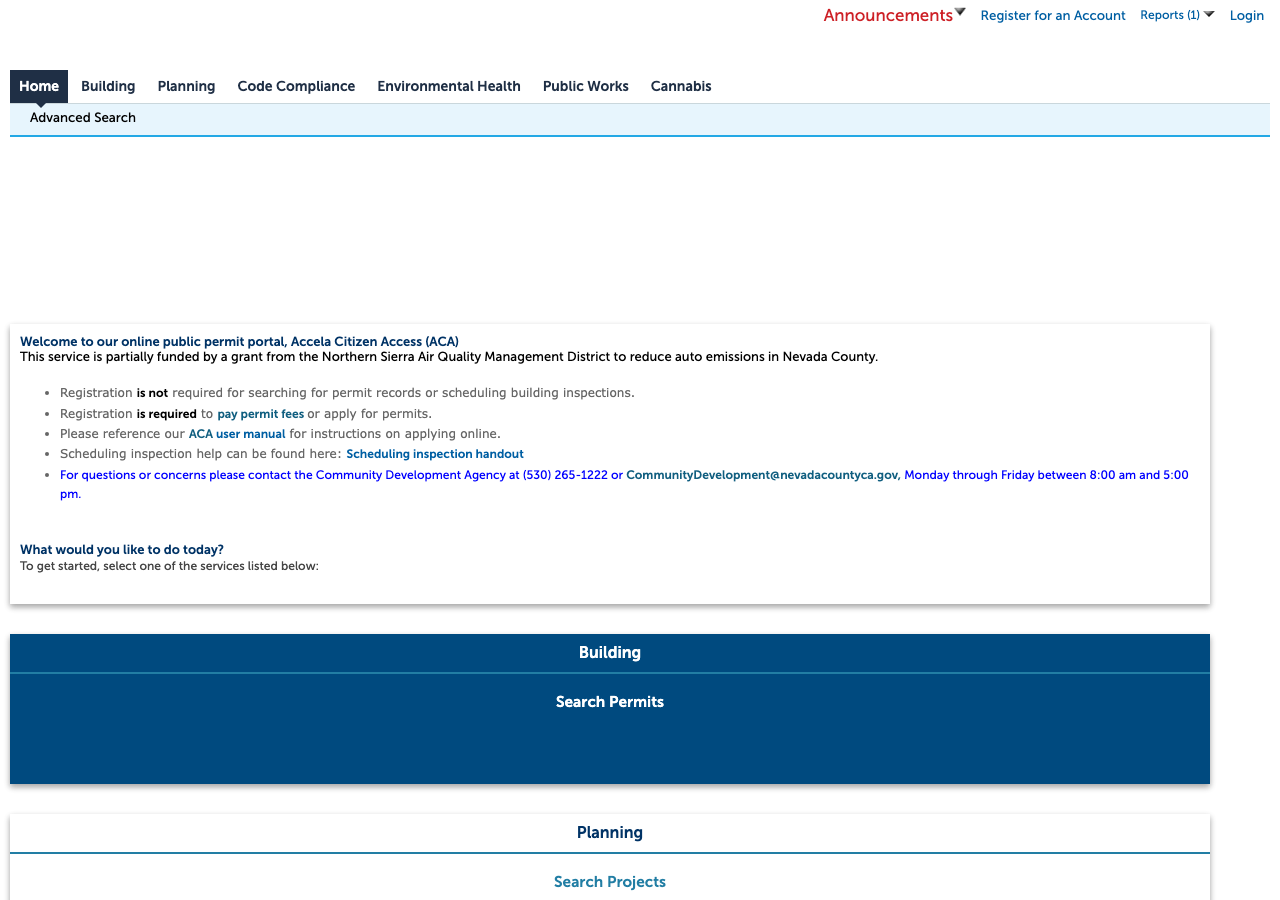

• Which permit portal does this authority use? Nevada County's Accela Citizen Access portal, at permits.nevadacountyca.gov/CitizenAccess (used for the County-issued building/electrical permit, application status, and inspection scheduling). The City's own Solar Plan Check Application is a separate fillable PDF submitted by email/in person to City Hall, not on this portal. 88% · department page
• Can the whole application be completed online? Yes 75% · department page + municipal code
• What does a residential solar permit cost? City component: $190 (Fire Dept Solar Plan Review, primary structure 1-2,499 sq ft), $240 (2,499-5,000 sq ft), or $240 + hourly (>5,000 sq ft), per the FY26/27 Citywide Master Fee Schedule. County component (Building/Electrical permit + inspection) is NOT itemized as a solar-specific line in the County's fee schedule; it is billed under a generic hourly/unit fee code (e.g. B595 'Electrical Installation... alteration or additions' = $382.40 for 2 inspection units at the FY26/27 $191.20/hr rate, or the $95.60 'Miscellaneous Plan Check' minimum), so the all-in total is not published anywhere as a single number. 65% · fee schedule
• How is the fee calculated? Tiered 70% · fee schedule
• Is there a separate plan-check fee? Yes 80% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 5 business days 95% · municipal code
• How long is an issued permit valid before it expires? 180 days from issue date or from the last passing inspection 82% · department page
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric Company) 68% · county document reference
• Where does the utility sit in the sequence? After permit 45% · inference

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? Other 55% · municipal code
• Which building code edition is in force? 2022 California Building Code (Div. II, incorporating 2018 IBC with State amendments) per the codified adopting ordinance NCMC §15.04.015 (Ord. No. 2023-05, 5-24-2023). Superseded in PRACTICE, per the County's own current Building Department page, by the 2025 California Building Standards Code for all permits submitted on/after 1 Jan 2026 — the City's own Municode text (last captured 9 Apr 2025) has not yet been amended to reflect that cycle change. 72% · department page + municipal code
• Which fire code edition is in force? 2022 California Fire Code (incorporating 2018 IFC with State amendments) per NCMC §15.08.015, citing §15.04.015.D (Ord. No. 2023-05). Same stale-vs-current caveat as the building code: County practice has moved to the 2025 cycle effective 1 Jan 2026; the City ordinance is not yet updated in the available capture. 68% · municipal code
• Are there local amendments to any of the above? Yes, extensive local amendments 95% · municipal code
• What is the installation judged against? The applicable California Building Standards Codes as locally amended (2022 cycle per codified text; 2025 cycle per current County practice since 1 Jan 2026), plus NCMC Title 15 generally, and specifically for solar: NCMC §15.06.020 requires compliance with CEC Article 690 electrical safety/performance standards, IEEE standards, UL/accredited-lab testing, and applicable CPUC rules; water-heating solar must be certified by an accredited listing agency under the CA Plumbing/Mechanical Codes. 85% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Ridge setback: 18" clear on both sides of the ridge where the array covers ≤33% (unsprinklered) or ≤66% (sprinklered) of roof area; 36" clear above those thresholds. Pathways: at least two 36"-wide clear pathways on separate roof planes from the lowest roof edge to the ridge, one on the street/driveway side, maintained to emergency escape/rescue openings; ground-mount arrays need a 10 ft brush-free clearance. Exceptions for roof slope ≤2:12 or Fire Chief-approved alternative ventilation, and for detached non-habitable garages/barns/carports. 85% · published checklist

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — required for DC system circuits in or on buildings: 30V within 30 seconds outside the array boundary, 80V within 30 seconds inside the array boundary, matching NEC 690.12 as it stood in the 2017/2019 NEC cycle (the checklist's own citations are to standards 'effective January 1, 2020'). 75% · published checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? DC conduit/enclosure/junction-box 'WARNING: PHOTOVOLTAIC POWER SOURCE' labels; a 'RAPID SHUTDOWN SWITCH FOR SOLAR PV SYSTEM' placard at the exterior shutdown device; an 'AUXILIARY POWER DISCONNECT' label for any battery/ESS or auxiliary-power disconnect (codified locally at NCMC §15.08.045); and, per the County's 2025-cycle code-update page, every auxiliary energy system disconnect switch must have 'an approved, permanently mounted, all-weather sign indicating the power source it controls.' 92% · published checklist + municipal code
• Does the authority specify placard wording of its own? Yes 92% · published checklist + municipal code
• Does it specify letter height, colour or material? Yes — DC/PV warning labels: reflective, water-resistant, minimum 3/8" lettering, white on red background. Rapid-shutdown switch label: white or red lettering, minimum 3/8" height. Auxiliary power disconnect label: 'permanently mounted, weather proof' (material specified; no color/height given for this one). 90% · published checklist + municipal code
• Is a site plan / facility map placard required, and what must it show? A basic site plan (part of the submittal, not a distinct posted placard) must show structure location, north arrow, equipment, disconnects, inverters and related components. Separately, where multiple inverters are installed and not grouped together, 'a clear location directory shall be provided at each AC & DC disconnect location' — functioning as an on-site facility/equipment-location placard requirement. 70% · published checklist
• Where must the labels be placed? DC labels: at every service disconnect, and on every DC conduit/raceway/enclosure at 10 ft o.c. and within 1 ft of turns, bends and penetrations. Rapid shutdown switch: on the building exterior. Roof-mounted DC manual load-break disconnect: at combiner boxes or within 6 ft of them. Auxiliary power disconnect: on the exterior of the main building, within 3 ft of the main power disconnect switch, accessible to fire department personnel. 92% · published checklist + municipal code

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes — rooftop-mounted PV modules must be tested, listed and identified with a fire classification per UL 1703, meeting the minimum classification in CBC Table 1505.1 for the building's type of construction (e.g. Class B for Type IA construction, Class C for Type VB/IIIB); building-integrated PV (serving as the roof covering) must additionally meet Class A per a local Nevada County Land Use Code amendment to CBC §1505.1. 85% · department policy (OCR'd)
• Are batteries permitted, and under what conditions? Yes, with conditions. Battery/ESS installations trigger the Fire Dept's 'Electrical Storage (ESS/battery) plus solar review if applicable' fee, and NCMC §15.08.045 (a local CFC §605.3.3 amendment) requires any new structure or remodel with a secondary/auxiliary power unit that has automatic startup and/or automatic transfer capability to have an auxiliary power disconnect, accessible to fire department personnel, located within 3 ft of the main power disconnect and labeled 'AUXILIARY POWER DISCONNECT.' 85% · municipal code + fee schedule
• Is there a separate ESS permit or inspection? No, not a wholly separate permit/inspection — ESS/battery review appears to be folded into the same Fire Dept plan-review fee as the solar review ('Electrical Storage (ESS/battery) plus solar review if applicable,' one $105 line), rather than triggering an independent ESS permit or inspection process. 55% · fee schedule
• Is a ground mount treated as a structure? Likely yes 60% · inference from checklist
• Is a specific mounting system or attachment spacing required? Yes — mounting/attachment spacing is prescriptive and snow-load-dependent: 4 ft o.c. at 0-50 lb ground snow load; 2 ft o.c. at 51-100 lb; above 100 lb requires a CA-licensed-engineer-designed mounting system. 90% · published checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

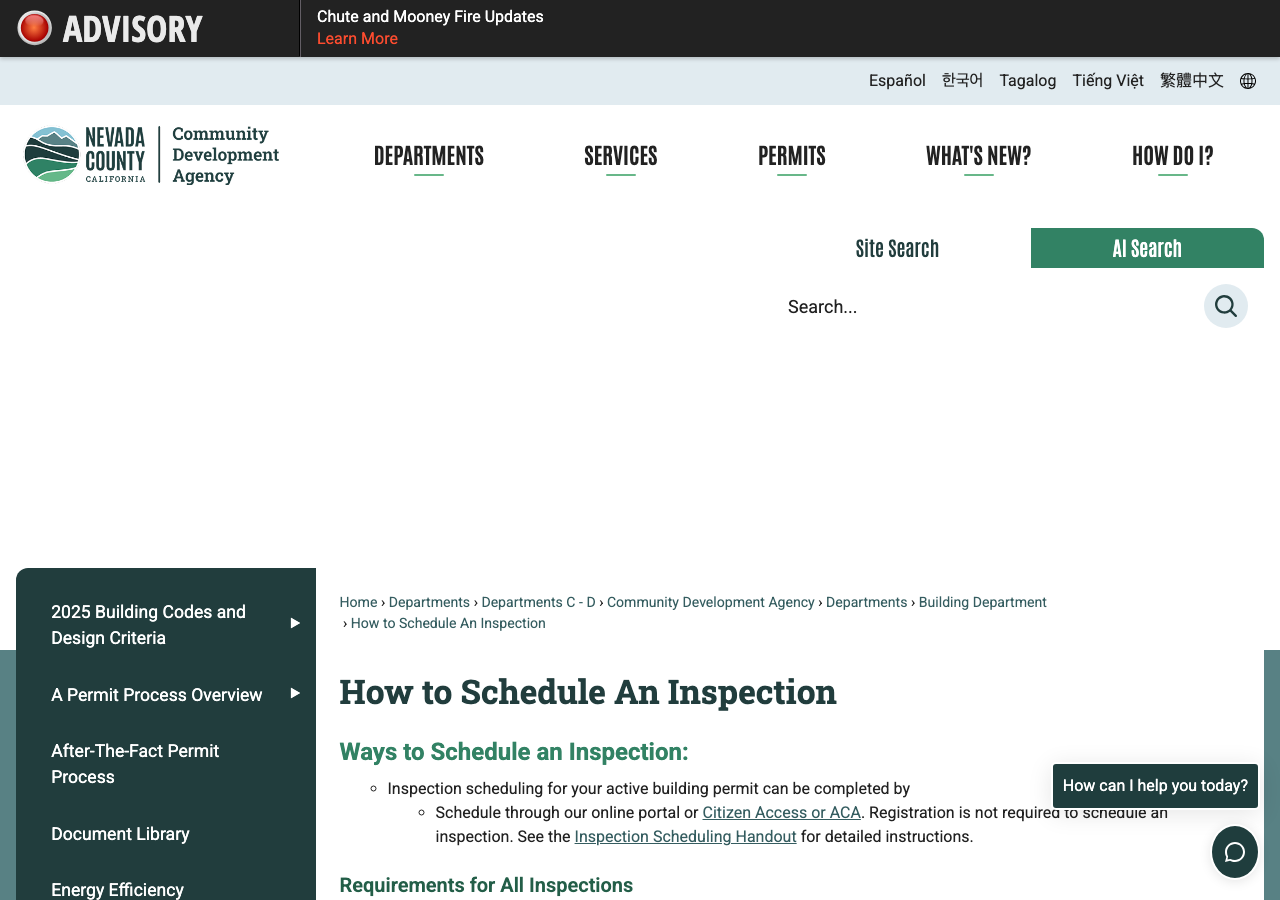

• How is an inspection booked? Portal 85% · department page
• How much notice is required? 2 business days 92% · municipal code
• Are same-day or AM/PM windows offered? A two-hour inspection window is provided (not same-day, and not simply AM/PM, but a specific 2-hour slot). The County's general Inspection page separately confirms: cutoff for next-working-day inspection requests is midnight, and the 2-hour window is available by logging into ACA at 8am on the inspection day. 88% · municipal code + department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 92% · municipal code

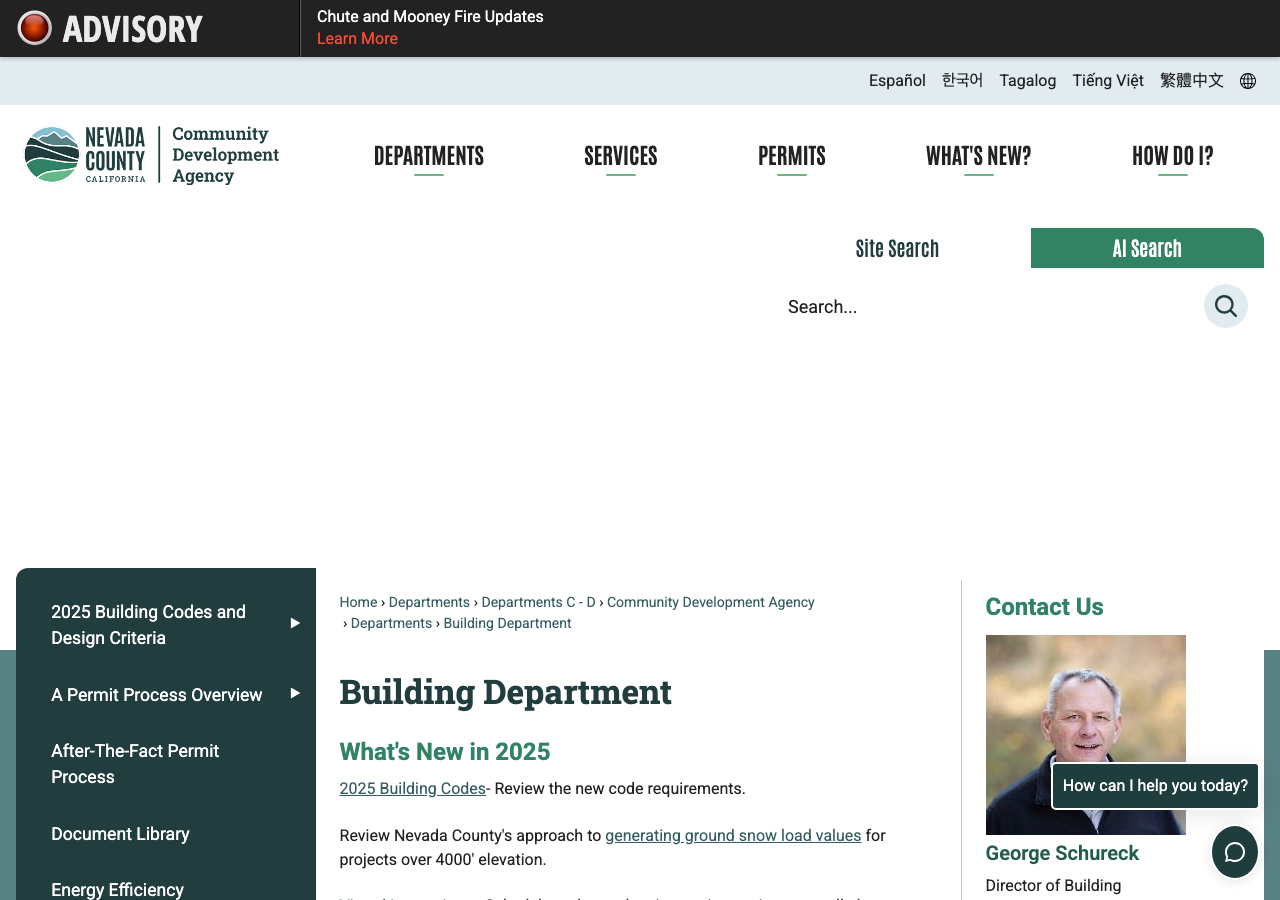

• If delegated, to whom? Nevada County Building Department (Community Development Agency) 92% · municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? (1) City Solar Plan Check Application submitted with plans, proof of City Business License, and payment of the Fire Dept Solar Plan Review fee; City stamps/approves. (2) The City-stamped form plus plans are submitted to the Nevada County Building Department for the building/electrical permit. (3) A single final inspection is performed by the County Building Inspector, unless the Building Official determines additional inspections are needed for specific climatic, geographic or topographical reasons. 85% · municipal code + city application form
• Is a rough-in or mid-roof inspection required? No 85% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes, in substance 65% · published checklist
• What must be on site at inspection? The permit, approved plans and specifications must be readily available on site at the time of inspection; the system must be ready for inspection with all electrical equipment/components accessible and in clear view; and per the County's general inspection rules, someone over 18 must be present and ladders must be on-site and secured per OSHA. 90% · municipal code + department page
• Does the inspector verify labels and listings? Yes 88% · municipal code + department policy

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 55% · inference
• Who notifies the utility for PTO? Installer 45% · inference
• Is there a re-inspection fee? $191.20 (one inspection unit, FY26/27 rate, County fee code B114 'Reinspection') 78% · municipal code + fee schedule
• How are corrections issued and cleared? If an application is deemed incomplete, a written correction notice detailing all deficiencies and any additional required information is sent to the applicant for resubmission. Any changes to already-approved plans must be reviewed and approved by the Building Department before an inspection can be scheduled. 88% · municipal code
