City of Newark

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page
• What does this authority permit itself, and what does it delegate? Both 90% · authority's own page
• Is a permit required for a residential rooftop PV system? Yes 97% · authority's own page
• Is there a separate electrical permit, or is it combined? Combined 72% · fee schedule
• Is a HOA or architectural approval required first? No — not required by the City. 58% · municipal code / statute
• Is there a historic-district review? No general historic-district review requirement found for solar specifically. NMC Ch. 17.20 (Historical Resources) applies only to City-designated landmarks, and even there routine maintenance/alteration is 'exempt from city council review' (17.20.040.A) with compliance only 'voluntary, not mandatory' for other recommendations. 55% · municipal code
• Is a wind or windstorm certification required? No — California does not use a separate wind/windstorm certification scheme; wind loading is addressed through the adopted 2025 CBC/CRC structural provisions generically, not a solar-specific or TDI-style certification. 58% · municipal code
• Is a Specific Use Permit or Council approval ever required? Yes, conditionally, for GROUND-MOUNTED systems only. NMC 17.26.240.C: roof-mounted PV is allowed in all districts with no discretionary approval. Ground-mounted PV over a parking area is allowed outright; ground-mounted PV NOT over parking requires a Minor Use Permit; in the RP (Residential-Professional) district, any ground-mounted system requires full Conditional Use Permit approval. 92% · municipal code (zoning)
• Is there a system-size cap on residential generation? No generation-capacity (kW) cap found. NMC 17.26.240.A imposes only height limits — ground-mounted systems capped at 25 ft or the base-district max, whichever is less; roof-mounted systems may project up to 5 ft above the roof surface even if that exceeds the district height limit. 68% · municipal code (zoning)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · authority's own page
• Must the contractor be registered with this authority before applying? No 55% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 85% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? PDF plans plus (if applicable) structural calculations, Title 24 energy calculations, truss calculations, and soils report, each wet- or digital-stamped; a completed Permit Application worksheet; cover sheet with APN/owner/scope/zoning; electrical plans (one-line diagram, panel schedule, service size, grounding/bonding); CalGreen checklist. Solar applications that are not SolarAPP+-eligible require plans but the City accepts email submittal for the shorter turnaround. 80% · authority's own checklist (PDF)
• How many copies, and in what format? Electronic only — PDF, submitted through the City's online portal; no paper copies accepted. 92% · authority's own page
• Is a site plan required, and what must it show? Yes — Architectural Plans must include a Site/Plot plan, and the Cover Sheet must show APN, legal owner, scope of work, location map, zoning designation, lot size/coverage, and applicable codes. 82% · authority's own checklist (PDF)
• Is a one-line / three-line diagram required? Yes 88% · authority's own checklist (PDF)
• Are string and conductor calculations required? Implied but not named as such — the checklist requires conductor/conduit sizing on the one-line diagram, but does not use the term 'string calculations' anywhere. 58% · authority's own checklist (PDF)
• Is a structural PE stamp required, and at what threshold? No PV-specific numeric threshold found. NMC 15.08.042 requires state-licensed-engineer/architect stamped documents whenever work 'affects the safety of a building or its occupants' (citing Bus. & Prof. Code §§5500/6700), at the Building Official's discretion for other work; NMC 15.09.020.A separately requires a CA-licensed architect/civil/structural engineer to stamp structural documents for any two-story wood-frame dwelling. 55% · municipal code
• Is an electrical PE stamp required, and at what threshold? Same general provision as Q13 (NMC 15.08.042) applies to electrical work affecting building safety, at the Building Official's discretion; no PV-specific electrical PE-stamp threshold found in NMC Ch. 15.12 (Electrical Code). 48% · municipal code

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

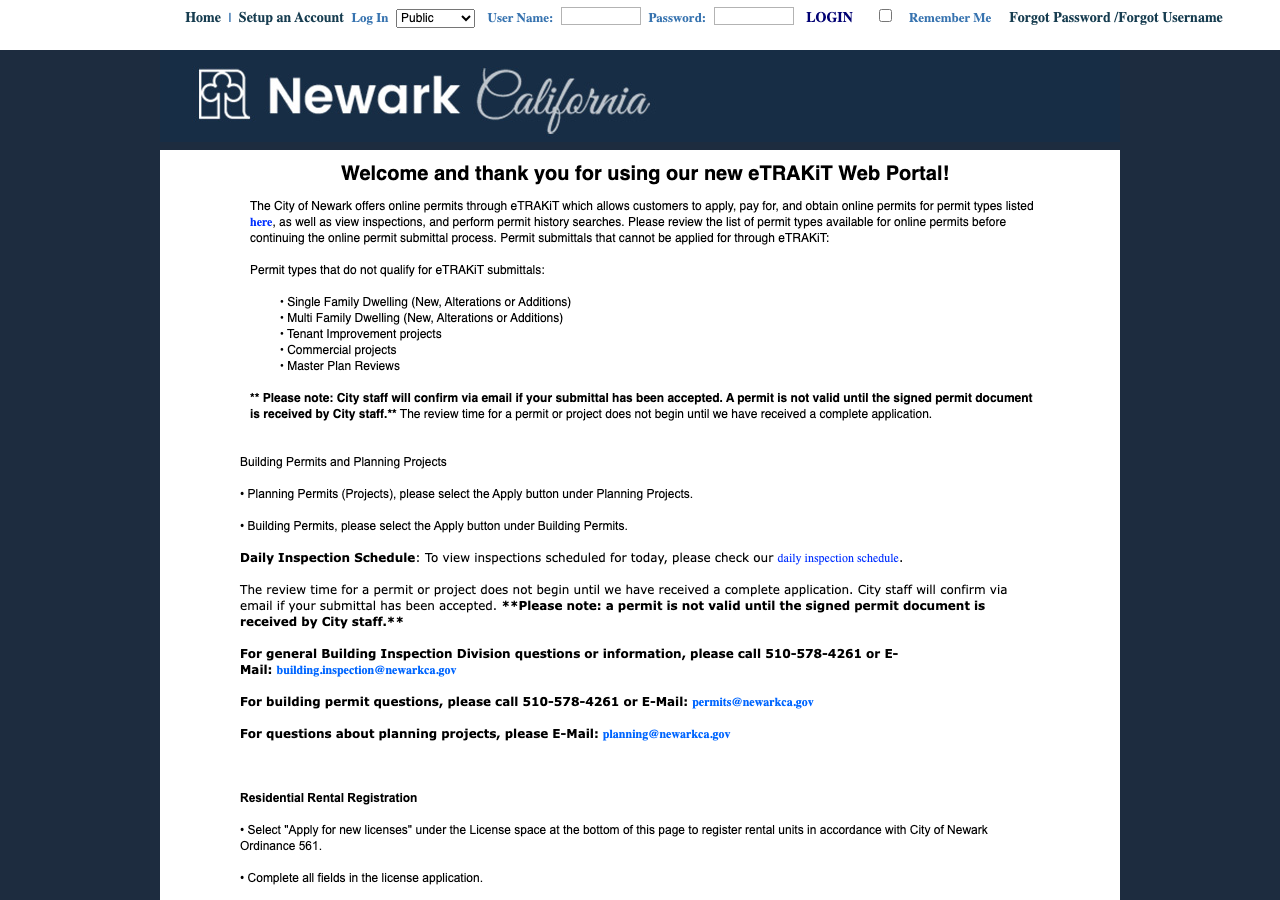

• Which permit portal does this authority use? SolarAPP+ (gosolarapp.org) for eligible residential rooftop solar/storage; eTRAKiT (nwca-trk.aspgov.com) for standard plan-check status/tracking on non-eligible PV and all other permits. 93% · authority's own page
• Can the whole application be completed online? Yes for SolarAPP+-eligible systems (fully online, instantaneous permit). Non-eligible PV still requires plans and is submitted by email rather than through a full self-service online application, though status can then be tracked in eTRAKiT. 85% · authority's own page
• What does a residential solar permit cost? No Newark-specific dollar figure — Master Fee Schedule item G.37 (Solar Photovoltaic Systems: ground-mounted racks; roof-mounted racks 1-3/4-10/over-10 panels; inverter/batteries/components) reads 'Use State Fees' for every category, deferring to the state-mandated fee cap rather than setting a City amount. 78% · fee schedule (PDF)
• How is the fee calculated? Defers entirely to the state-mandated solar permit fee cap ('Use State Fees') rather than a City-set Flat/Valuation/Per-kW/Tiered amount; Newark's own schedule prints no formula. 68% · fee schedule (PDF)
• Is there a separate plan-check fee? No dedicated PV plan-check line — item G.37 has no separate plan-check sub-line (unlike other Electrical Permit Fee items, e.g. 33.a 'Stand Alone Electrical Plan Check $232', which is a different, non-solar line). 55% · fee schedule (PDF)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 95% · authority's own page
• Where does the utility sit in the sequence? Parallel — a PG&E interconnection request can be filed before or during City permitting, but Permission to Operate (PTO) is withheld until the applicant supplies evidence of the AHJ's final electrical-inspection clearance. 85% · utility tariff

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC, as incorporated into the 2025 California Electrical Code (CEC) 90% · adopting ordinance / municipal code
• Which building code edition is in force? 2025 California Building Code (and 2025 California Residential Code for one/two-family dwellings) 93% · adopting ordinance / municipal code
• Which fire code edition is in force? 2025 California Fire Code 93% · adopting ordinance / municipal code
• Are there local amendments to any of the above? Yes 92% · municipal code (local amendments)
• What is the installation judged against? 2025 California Electrical Code (based on 2023 NEC) as locally amended, plus the entirety of NEC Articles 110, 517 and 550 specifically adopted whole (not just per the state matrices). 88% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Not locally amended — governed by the default, un-amended 2025 California Fire Code rooftop-PV access/pathway/setback provisions (state model-code text, not reproduced by Municode since it is adopted by reference). 52% · municipal code

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, per NEC §690.12 as incorporated into the adopted 2025 CEC (2023 NEC base) — no local amendment modifies or removes this requirement. 75% · adopting ordinance (inference)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Not published locally — no Newark-specific placard requirement for PV service equipment found anywhere reviewed; defaults to the unamended 2025 CEC/CFC placarding provisions. 58% · authority's own page (absence)
• Does the authority specify placard wording of its own? No 58% · municipal code (absence)
• Does it specify letter height, colour or material? Not published — no letter-height, colour or material specification found. 58% · municipal code (absence)
• Is a site plan / facility map placard required, and what must it show? Not published — no local facility-map/site-plan placard requirement beyond the (unreproduced) state-code default NEC §705.10 provision. 52% · authority's own page (absence)
• Where must the labels be placed? Not published locally — no Newark-specific label-placement instruction found; the City's documents are silent and rely on the (unreproduced) state CEC/CFC default label locations. 55% · authority's own page (absence)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No separate City-approved-equipment list; the adopted 2025 CEC carries the standard NEC/UL listing requirement (e.g. Art. 110/690) without a Newark-specific product list. 52% · municipal code (inference)
• Are batteries permitted, and under what conditions? Yes, permitted, with a specific local physical-protection condition for garage/vehicle-exposed installations: NMC 15.09.020 amends CRC §R328.8 so that an ESS 'installed in a location subject to vehicle damage... shall be provided with impact protection,' and further amends §R328.8.3 Option 2.2 to require premanufactured wheel barriers placed 54 inches in front of the ESS, rated to resist a 2,000-lb impact. 90% · municipal code (local amendment)
• Is there a separate ESS permit or inspection? No separate ESS permit found — the Master Fee Schedule folds 'Inverter, batteries, components' into the same item 37 (Solar Photovoltaic Systems) 'Use State Fees' line as the PV racking items, within the single Electrical Permit Fee section, rather than listing a standalone ESS permit fee. 65% · fee schedule (PDF)
• Is a ground mount treated as a structure? Yes — treated as a regulated structure for zoning purposes. 78% · municipal code (zoning)
• Is there a local rule on service upgrades or busbar sizing? Not published — no PV-specific service-upgrade or busbar-sizing rule found. NMC Ch. 15.12 (Electrical Code) contains only general provisions on temporary utility connection (15.12.090), Building Official authority to disconnect (15.12.120), and required Building Official approval before reconnection (15.12.190) — none address service/busbar sizing for backfeed. 60% · municipal code
• Is a specific mounting system or attachment spacing required? Not published — no local mounting-system or attachment-spacing amendment found. 60% · municipal code

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone or Email primarily (birequests@newarkca.gov / (510) 578-4261); the eTRAKiT portal can additionally be used for narrower AM/PM scheduling. 88% · authority's own page
• How much notice is required? At least 24-48 hours 90% · authority's own page
• Are same-day or AM/PM windows offered? Yes — A.M. (8:30am-12pm) or P.M. (1pm-4:30pm) windows are offered by phone/email request; narrower timeframes are available via self-scheduling in eTRAKiT. 88% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · authority's own page
• If delegated, to whom? Not delegated for the building/electrical final inspection — the City's own Building Inspection Division (Public Works) performs it. (Fire life-safety code administration generally is delegated by contract to Alameda County Fire Department, but ACFD is not shown to inspect routine residential rooftop PV specifically.) 78% · authority's own page / contracted agency's own page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Not solar-specific — the City's general 'Inspection Procedures for Residential Structures' document lists a new-construction sequence (under-slab, foundation, under-floor, roof deck, shear wall, rough electrical/plumbing/mechanical, exterior lath, frame, insulation, interior gypsum, final). For a rooftop PV retrofit only a subset (typically rough electrical, if triggered, and final) would normally apply, but the City does not publish a PV-specific sequence. 55% · authority's own document (PDF)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes, for general residential construction — the 'Inspection Procedures for Residential Structures' checklist is published, though it is not solar-specific and its content dates to 2008. 68% · authority's own document (PDF)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? No physical tag/CO issued — 'the City of Newark does not issue physical job cards'; a Final inspection approval is recorded and results/approval communicated by email to the requested on-site contact. 55% · authority's own page
• Who notifies the utility for PTO? Installer/Applicant 82% · utility tariff
• Is there a re-inspection fee? Hourly Rate (not a flat fee) for building-permit reinspections, per the current FY2025-26 Master Fee Schedule Section G item 16.b ('Reinspection as allowed for in the Newark Municipal Code — Hourly Rate'). An older 'Inspection Procedures for Residential Structures' document (2008-vintage text, saved 2015) states a flat $121 re-inspection/cancellation fee, which appears to be superseded by the current fee schedule's hourly-rate structure. 68% · fee schedule (PDF)
• How are corrections issued and cleared? Not explicitly documented beyond: inspection results (pass/fail/corrections) are emailed to the on-site contact after each inspection; re-inspection is then requested the same way an initial inspection is booked (phone/email, 24-48 hrs notice). 55% · authority's own page
