City of Norwalk

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 90% · department page
• What does this authority permit itself, and what does it delegate? Both 85% · department page
• Is a permit required for a residential rooftop PV system? Yes 95% · department page
• Is there a separate electrical permit, or is it combined? Combined 75% · permit application form

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 90% · department page
• Must the contractor be registered with this authority before applying? Yes 85% · department page
• Is a homeowner permitted to self-install and self-permit? No 80% · department form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For SolarAPP+-eligible single-family rooftop PV: automated online application per solarapp.nrel.gov eligibility criteria, no full plan diagram needed. For non-eligible systems: standard Plan Check and Permit Application plus the city's Residential Plan Submittal Requirements checklist (site plan, floor/roof plans, structural details) and, where applicable, PV Toolkit Document #3 (central/string inverter) or #4 (microinverter/ACM) standard plans. 75% · department page + forms
• How many copies, and in what format? If submitting paper: (2) sets, minimum 24" x 36" sheet size, plans drawn to 1/4"=1'-0" min scale (site plans 1"=20' min). SolarAPP+-eligible systems submit digitally through the automated portal with no full plan diagram required. 80% · published checklist
• Is a site plan required, and what must it show? Yes — must show property lines and lot dimensions, adjacent streets, easements (verified with Engineering and SCE), north arrow, dimensions to adjacent structures/property lines, location of exterior HVAC equipment, all utility connections, and site slope/drainage. 85% · published checklist
• Is a one-line / three-line diagram required? Yes for standard (non-SolarAPP+) submittals — the city's PV Toolkit Document #3 (central/string inverter) and #4 (microinverter/ACM) standard plans require a one-line diagram and branch-circuit conductor/OCPD tables to be completed. SolarAPP+-eligible systems are processed 'without needing a full plan diagram' per the city's own Solar Application page. 80% · standard plan form
• Are string and conductor calculations required? Yes — the D3/D4 PV Toolkit standard plans require branch-circuit current, OCPD size and minimum conductor size (AWG) to be calculated and entered on the form for non-SolarAPP+ submittals. 80% · standard plan form
• Is a structural PE stamp required, and at what threshold? General city rule (not solar-specific): a CA-licensed engineer or architect stamp is required unless the project falls under the Business & Professions Code §5537 exemption for conventional wood-frame single-family/two-story construction; 'roof-mounted mechanical equipment' is listed among the project types that DO require a licensed design professional stamp regardless of the §5537 exemption. No PV-specific structural-stamp threshold (e.g., a kW or roof-load number) was found on the city's site. 55% · department handout

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

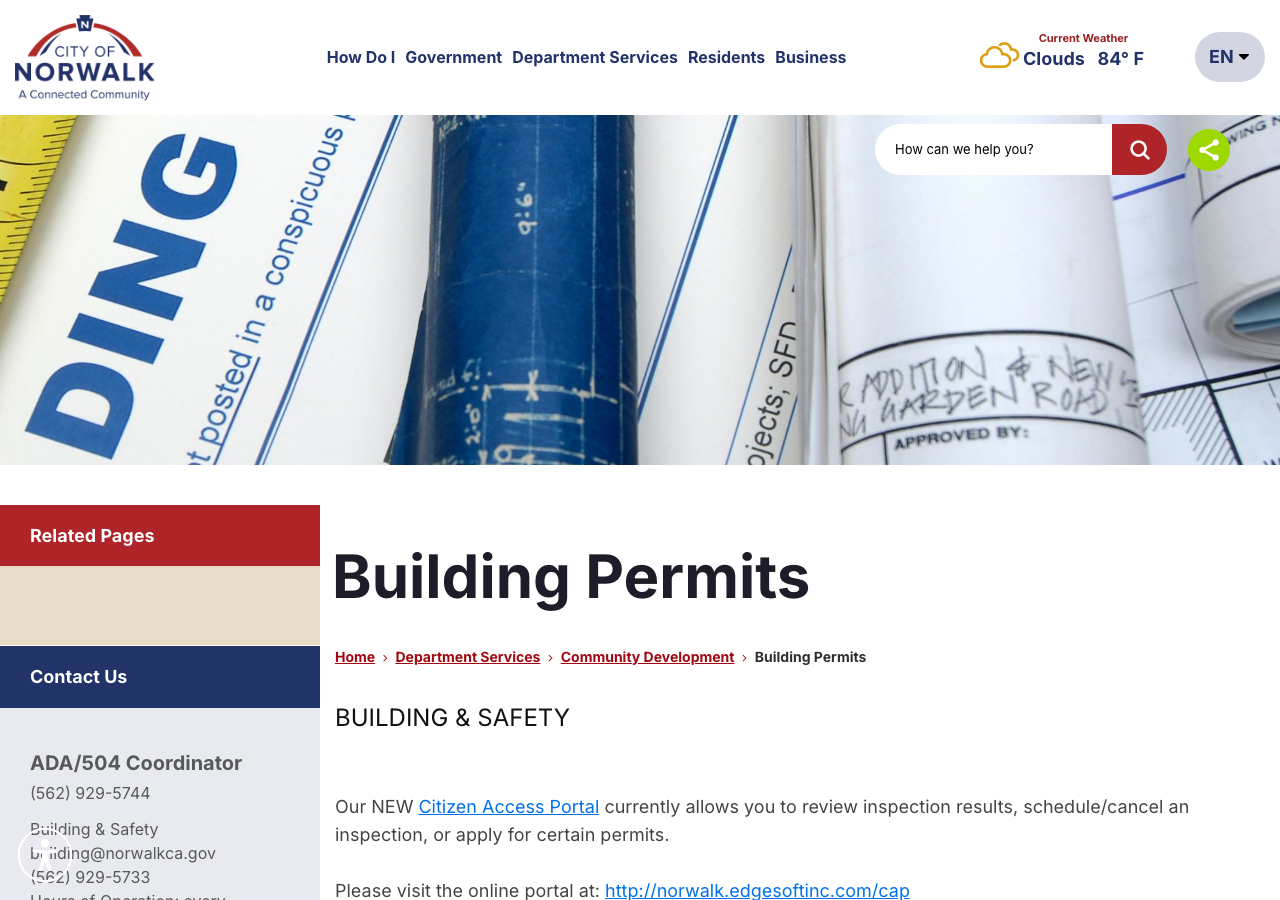

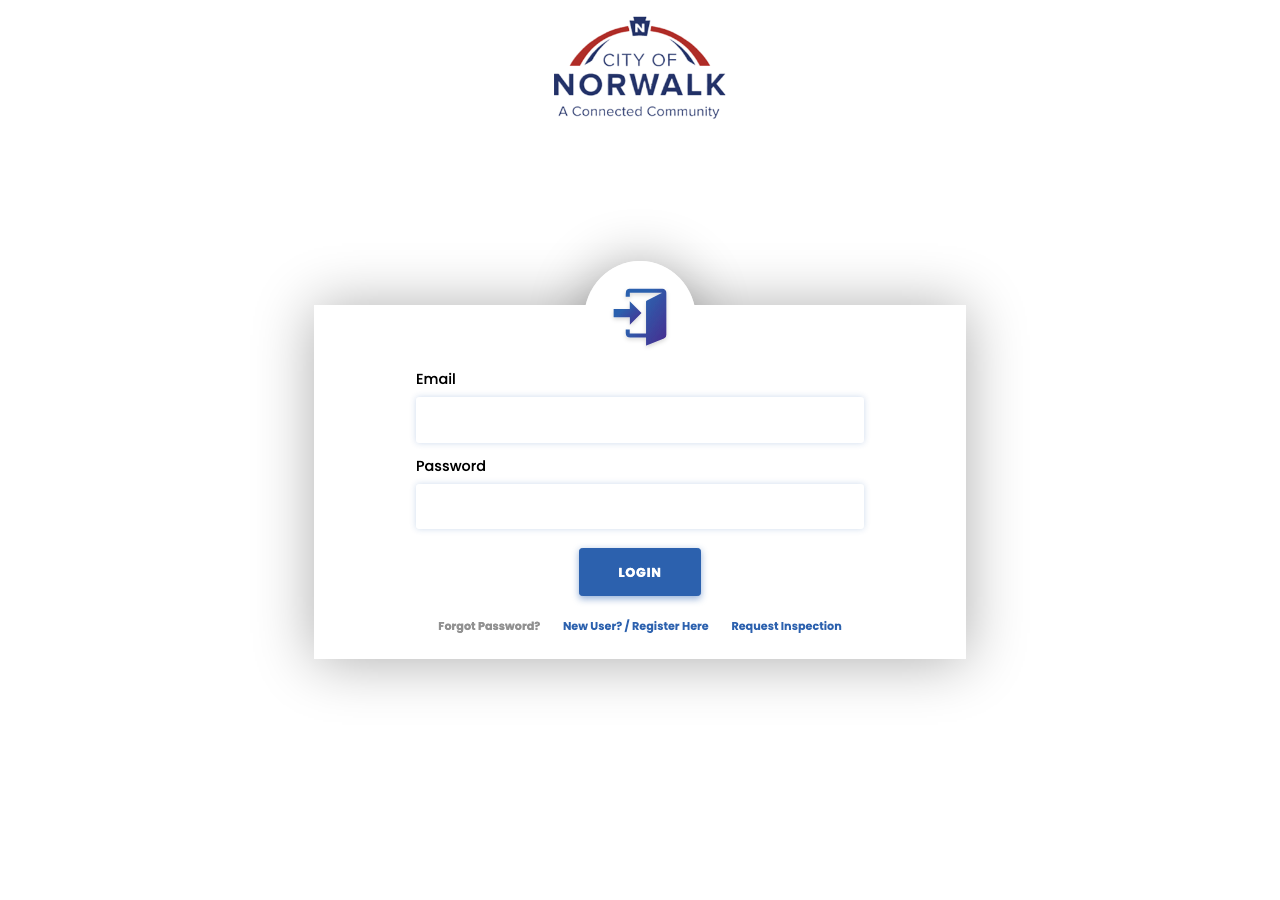

• Which permit portal does this authority use? EdgeSoft 'Citizen Access Portal' (CAP) at norwalk.edgesoftinc.com/cap; SolarAPP+ (solarapp.nrel.gov / operated by NREL/Brinq) for eligible single-family rooftop PV. 90% · department page
• Can the whole application be completed online? Yes 90% · department page
• What does a residential solar permit cost? $393 flat (residential PV ≤15kW); $450 base + $15/kW above 15kW for larger residential systems 95% · fee schedule
• How is the fee calculated? Tiered 95% · fee schedule
• Is there a separate plan-check fee? No 85% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Southern California Edison (SCE) 95% · city program page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 85% · department page
• Which building code edition is in force? 2025 California Building Code (CBC) and 2025 California Residential Code (CRC) 95% · department page
• Which fire code edition is in force? City's own Building & Safety page lists '2025 California Fire Code' as one of the codes it uses for plan check. However, fire-specific PV/ESS enforcement in Norwalk is by LACoFD, whose own PV/ESS/disconnect checklist (hosted on this same city site) is dated 2023-09-01 and cites the 2023 Los Angeles County Fire Code (a locally amended 2022 CFC) — an older cycle not yet reconciled with the city's stated 2025 CFC. 70% · department page
• Are there local amendments to any of the above? Yes 75% · published checklist
• What is the installation judged against? 2025 California Electrical Code (CEC), 2025 CBC/CRC, and City of Norwalk Amendments; for PV/ESS disconnects and rapid shutdown, additionally against LACoFD's Los Angeles County Fire Code requirements. 85% · department page

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Norwalk on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, rapid shutdown is required. LACoFD's checklist (hosted by the city) requires inspection of 'Rapid-Shutdown attenuation devices, and associated placarding' on all PV, citing 2022 CEC §705.10/§705.20 (i.e., the rapid-shutdown provisions carried from NEC 690.12). Note this checklist is dated 2023-09-01 and cites the 2022 CEC cycle, while the city's current Building & Safety page states the 2025 CEC is now in force — the rapid-shutdown requirement itself is unaffected by the edition gap since NEC 690.12 rapid shutdown has been required since 2017 NEC. 80% · AHJ inspection checklist

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? LACoFD's 'Electrical Power Source Disconnect Placarding System' — a single placarding scheme covering all electrical power sources capable of supplying a structure (utility, generator, PV, ESS, wind, fuel-cell, vehicle-to-grid), plus PV rapid-shutdown activation labeling. 85% · AHJ inspection checklist
• Does the authority specify placard wording of its own? Yes 75% · AHJ inspection checklist
• Is a site plan / facility map placard required, and what must it show? No 55% · AHJ inspection checklist
• Where must the labels be placed? Electrical disconnection means and Rapid Shutdown activation devices for all power sources must be on the exterior, within 6 feet of the main service panel, on the same wall plane, and not separated from one another by walls, gates, fences, vegetation, or architectural features. 85% · AHJ inspection checklist

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Within 6 feet of the main service panel, on the exterior, on the same wall plane as the meter/main panel. 90% · AHJ inspection checklist
• Must equipment be on a specific approved list? No 55% · standard plan form
• Are batteries permitted, and under what conditions? Yes, under LACoFD conditions: max 20 kWh capacity per individual ESS unit; 80 kWh aggregate per site and per location category (attached garage, detached garage, outdoor on exterior wall, outdoor on ground); UL 9540 listing for the unit and UL 1741 for the inverter; 3 ft spacing between units; various setbacks from openings/lot lines/vegetation; impact protection where subject to vehicular impact; and detection/notification in attached garages. 90% · AHJ inspection checklist
• Is there a separate ESS permit or inspection? Yes 85% · AHJ inspection checklist
• Is a ground mount treated as a structure? Yes 65% · fee schedule
• Is a specific mounting system or attachment spacing required? No city-specific mounting/attachment-spacing spec found beyond the generic requirement that PV racking be installed per approved plans, manufacturer specifications, and industry standards. 60% · final-inspection form

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

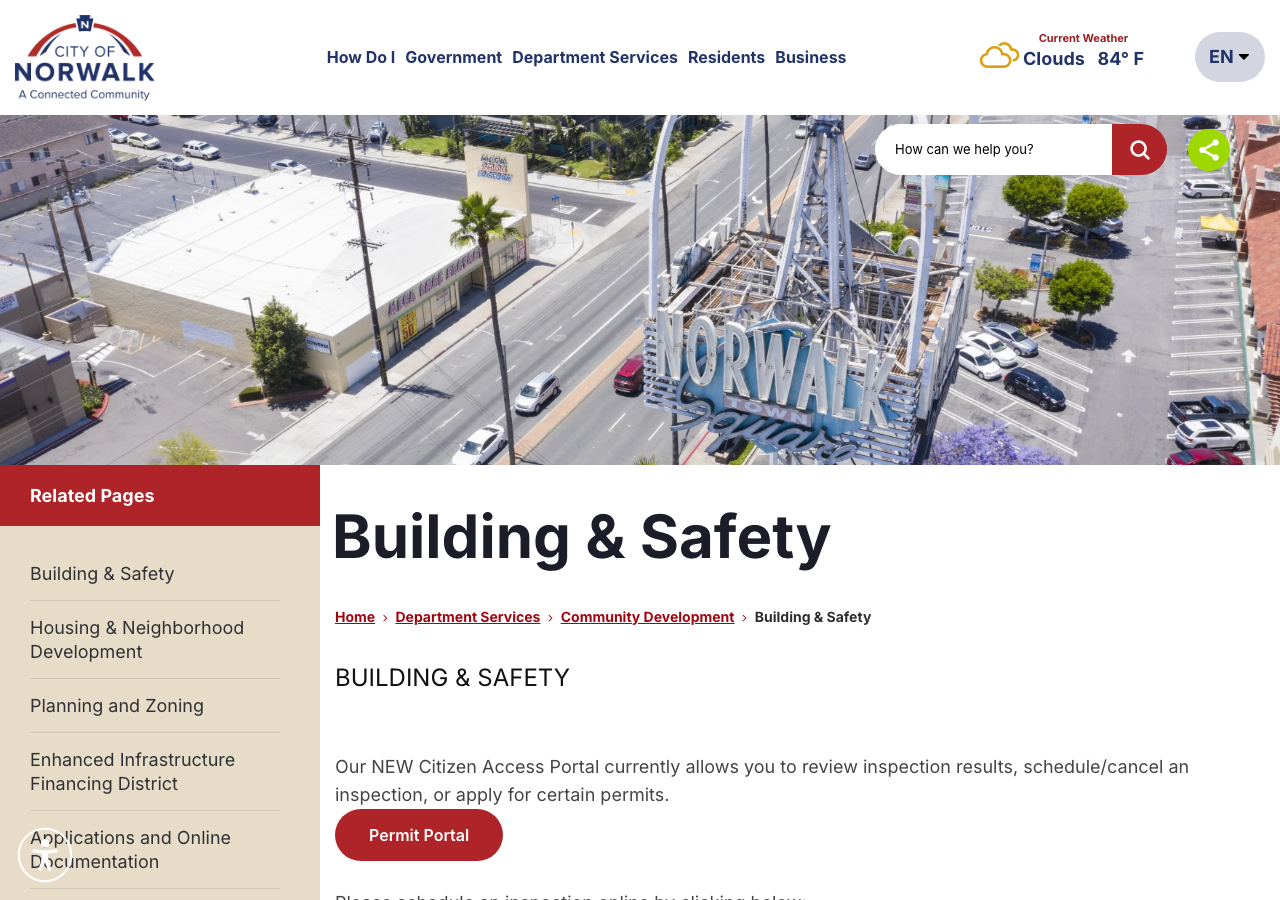

• How is an inspection booked? Portal 90% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 75% · final-inspection form
• If delegated, to whom? Los Angeles County Fire Department (LACoFD) — for disconnect-placarding/rapid-shutdown on ALL PV, and for ESS >3kWh and qualifying BIPV in all cases, per LACoFD's own checklist. 90% · AHJ inspection checklist

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Is a rough-in or mid-roof inspection required? No 55% · final-inspection form

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 90% · AHJ inspection checklist
• What must be on site at inspection? Digital or physical proof of the construction permit (e.g., SolarAPP+ printout), any inspection checklist issued with the permit, manufacturer cut/specification sheets for modules/inverters/racking/ESS units, and disconnect placarding already in place before the LACoFD inspection is requested. 85% · AHJ inspection checklist
• Does the inspector verify labels and listings? Yes 70% · AHJ inspection checklist

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 60% · AHJ inspection checklist
• Is there a re-inspection fee? $98 (applies after the first re-inspection) 85% · fee schedule
