City of Orland

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

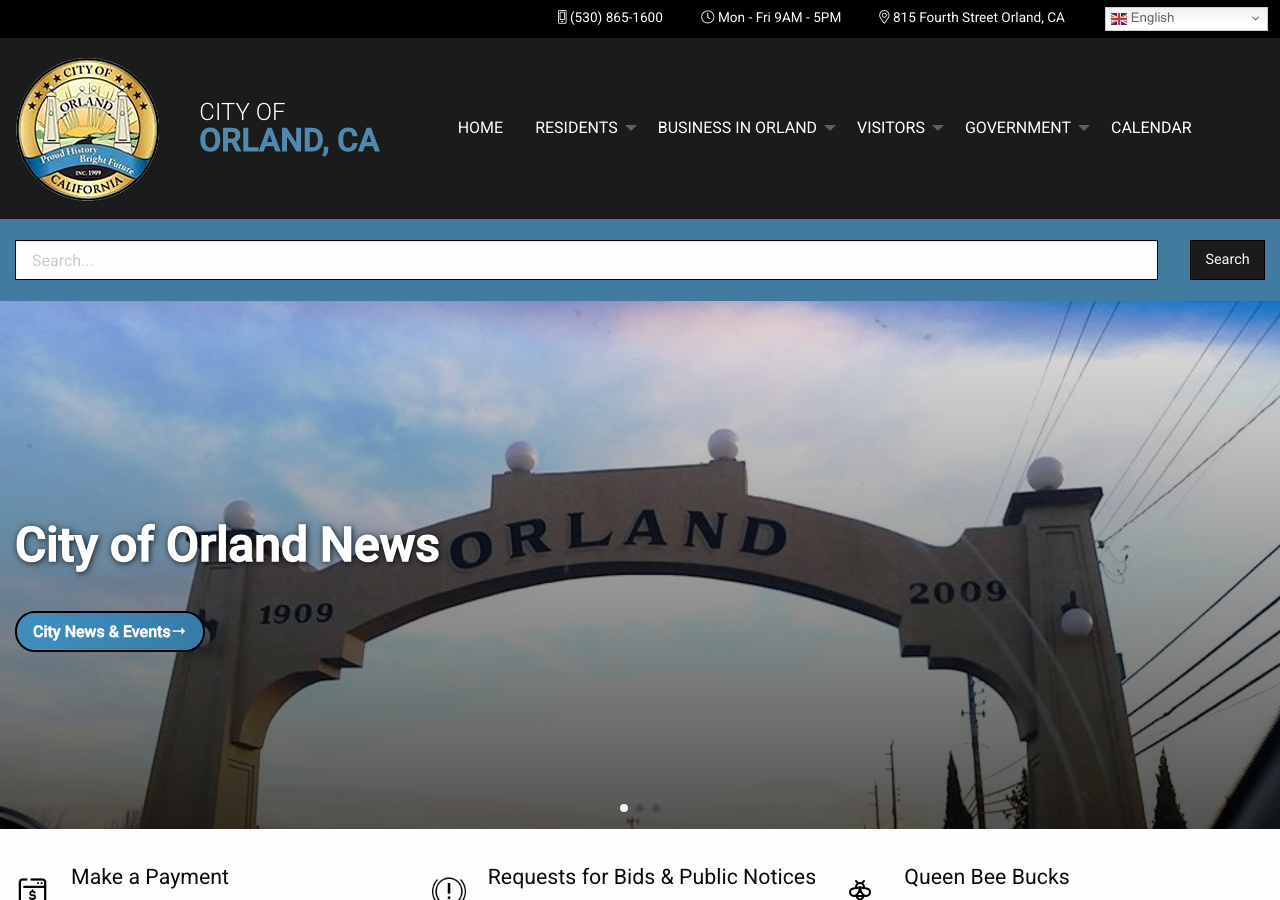

• Is this authority the AHJ for residential solar at this address? Yes 90% · department page
• What does this authority permit itself, and what does it delegate? Both 82% · department page + permit application form
• Is a permit required for a residential rooftop PV system? Yes 95% · published submittal-requirements handout
• Is there a separate electrical permit, or is it combined? Combined 72% · published handout + permit application form
• Is a wind or windstorm certification required? No separate windstorm certification program; wind-load compliance is addressed through the mandatory wet-stamped structural analysis report required for every roof-mount PV system. 78% · published submittal-requirements handout

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 75% · published policy handout
• Must the contractor be registered with this authority before applying? Yes 65% · site search excerpt of council minutes referencing a business-license ordinance
• Is a homeowner permitted to self-install and self-permit? No 78% · published policy handout

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the City's 'Roofmount Photo Voltaic Submittal Requirements': (1) completed building permit application stating system size in kW; (2) site plan showing module count, roof layout/sections, and ridge/eave/valley fire setbacks; (3) roof plan showing existing roof covering; (4) mounting/racking/flashing details plus manufacturer installation instructions; (5) wet-stamped structural analysis showing wind-load compliance; (6) bonding details and manufacturer clamp installation instructions; (7) if rafter framing, member size/species/span/spacing for the added dead load; (8) a string diagram showing array wiring; (9) a line diagram showing module/inverter type & model, system size, string/array sizing, wiring size/method incl. ground AWG, conduit type/size, junction-box locations, subpanel ratings/locations, overcurrent-device ratings/locations, disconnect locations/types, grounding-electrode location/type, and ampacity of the existing main panel and service disconnect; (10) a warning-label sheet showing exact verbiage and sticker locations; (11) manufacturer technical data sheets for modules and inverter(s). 92% · published submittal-requirements handout
• Is a site plan required, and what must it show? Yes — site plan must show the number of solar modules, building roof layout, roof sections, and ridge, eave and valley fire setbacks. 92% · published submittal-requirements handout
• Is a one-line / three-line diagram required? Yes 95% · published submittal-requirements handout
• Are string and conductor calculations required? Partially — a string diagram (item 8) and wiring size/method/AWG on the line diagram (item 9) are required; the handout does not separately ask for formal voltage-drop or short-circuit-current calculation worksheets. 65% · published submittal-requirements handout
• Is a structural PE stamp required, and at what threshold? Yes, for every roof-mount PV system, with no stated size/valuation threshold — a wet-stamped structural analysis report is required outright. 88% · published submittal-requirements handout

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

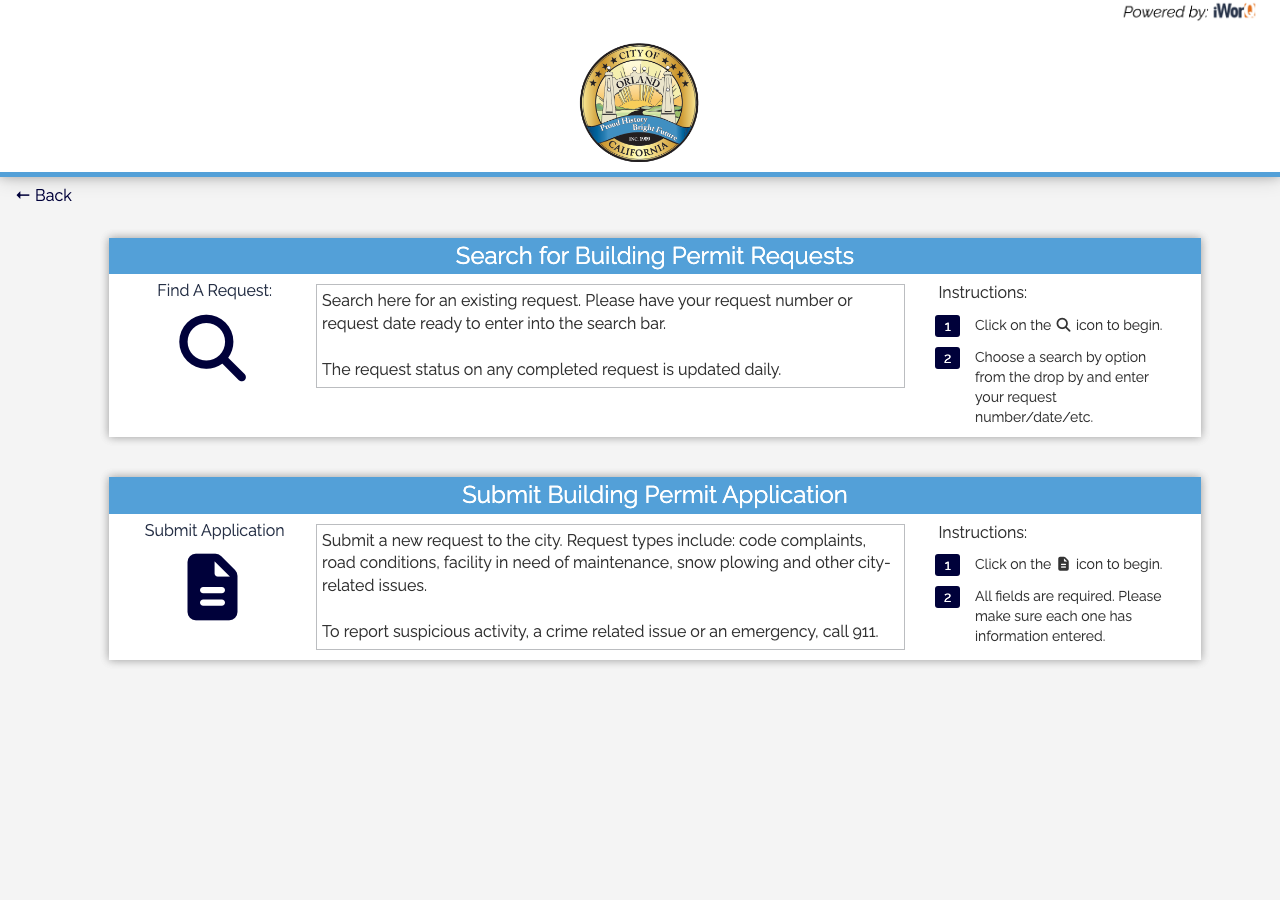

• Which permit portal does this authority use? iworQ Citizen Portal (orlandciteng.portal.iworq.net/portalhome/orlandciteng) 82% · department forms page
• Can the whole application be completed online? Likely yes for at least submission, unconfirmed for the full process 55% · department forms page (portal itself unreachable)
• Is there a separate plan-check fee? At minimum, a City-wide $75 'Planning Clearance Fee (All Building Permits)' applies to every building permit including solar, separately from whatever the Building Department's own permit/plan-check fee is. 60% · published fee schedule (planning, not building)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 78% · county hazard mitigation plan (hosted by the City)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? Not confirmed for the current code cycle; last documented local adoption (Ord. 2020-02, Feb 2020) was for the 2019 cycle (2019 CEC, based on the 2017 NEC). Statewide, the 2023 NEC is in force via the 2025 CEC, effective 1 Jan 2026, and California jurisdictions are required to update on the same statewide effective date. 50% · council meeting minutes referencing the local code-adoption ordinance; Municode itself unreachable
• Which building code edition is in force? Not confirmed for the current cycle; last documented local ordinance (2020-02, Feb 2020) adopted the 2019 California Building Code. Statewide, the 2025 California Building Code is in force effective 1 Jan 2026. 50% · council meeting minutes referencing the local code-adoption ordinance; Municode itself unreachable
• Which fire code edition is in force? Orland Municipal Code §15.15 adopts the California State Fire Code(s), per a third-party reference; the specific edition currently in force could not be confirmed. 45% · county hazard mitigation plan referencing the City's own code section; Municode itself unreachable
• Are there local amendments to any of the above? Yes, at least historically 60% · council meeting minutes; Municode itself unreachable
• What is the installation judged against? The California Building Code / California Residential Code / California Electrical Code as locally adopted under OMC Title 15 (last confirmed cycle: 2019, via Ord. 2020-02), plus the City's own roof-mount PV submittal handout's structural (wind-load) and bonding requirements. 55% · published handout + inferred code-adoption chapter (Municode unreachable)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? The site plan must show ridge, eave and valley fire setbacks/pathways (item 2 of the submittal requirements), but the handout does not itself state a numeric setback dimension — the applicant appears to design to whatever the adopted fire/residential code's pathway standard is. 55% · published submittal-requirements handout; code text itself unreachable

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Not stated by the City in its own documents; rapid shutdown per NEC 690.12 applies by virtue of the state-adopted NEC regardless of local silence. 55% · site search (controlled) + published handout

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Not named specifically by the City; the applicant must submit a 'warning label sheet' showing whatever verbiage and label locations the design requires, rather than the City naming particular placards itself. 65% · published submittal-requirements handout
• Does the authority specify placard wording of its own? No 78% · site search (controlled) + published handout
• Does it specify letter height, colour or material? No 78% · site search (controlled) + published handout

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Is a specific mounting system or attachment spacing required? No City-mandated proprietary mounting system; the applicant must submit mounting/racking/flashing details and the manufacturer's own installation instructions, plus (if the roof framing is rafters) the rafter size, species, span and on-center spacing for the added dead load. 82% · published submittal-requirements handout

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

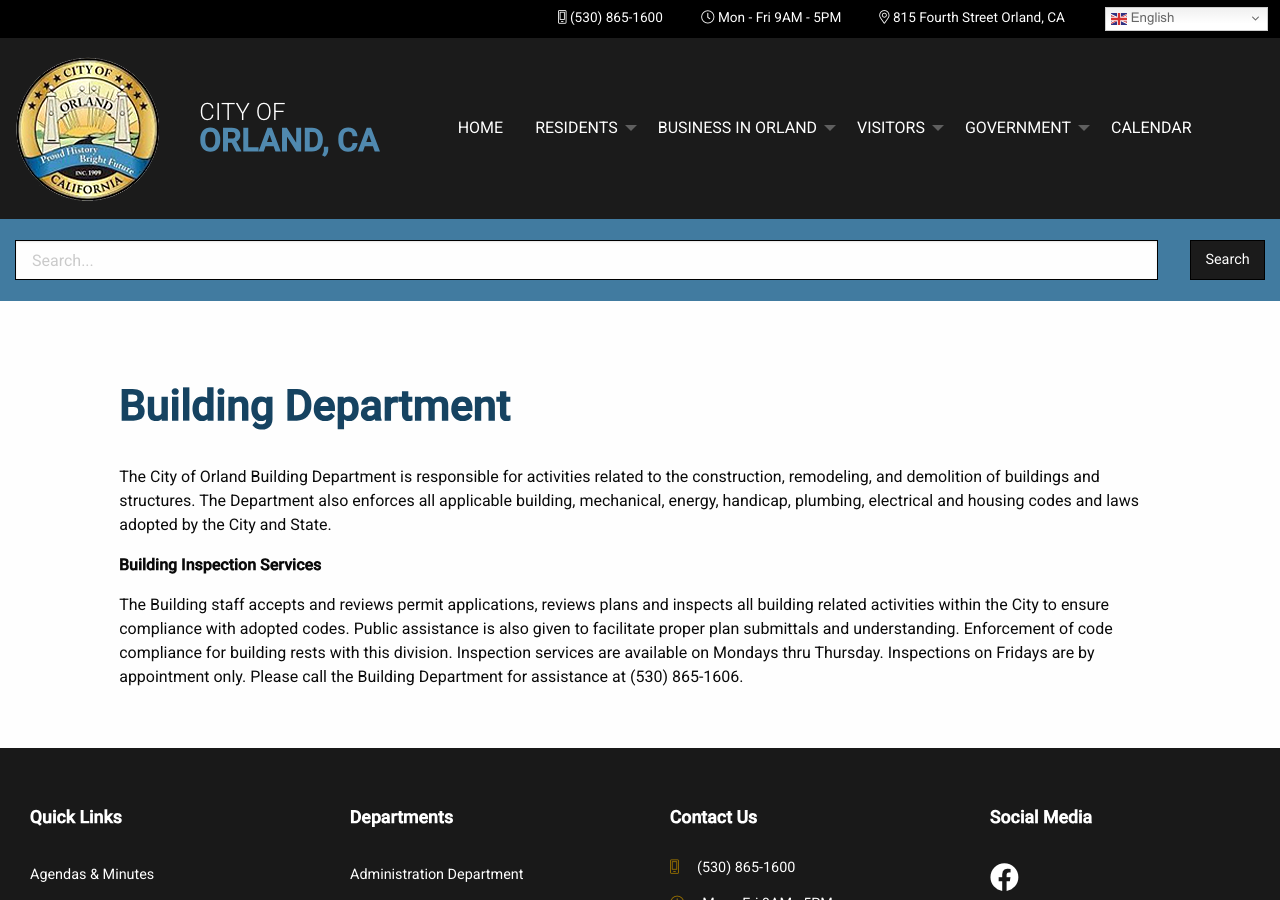

• How is an inspection booked? Phone 78% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 80% · published policy handout + department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For PV installed/modified concurrently with a re-roof: an initial inspection of the rack anchors (verifying proper attachment to structural framing members), then a final inspection of all PV components once installation is complete. For a re-roof over an EXISTING PV system (no modification): a roof-deck inspection once the PV system and old roofing are removed, then a final roofing inspection, at which the inspector also verifies the panels were reinstalled in their original location per the roof-layout placard on the electric panel. No sequence is separately published for a stand-alone new PV installation not tied to a re-roof. 68% · published policy handout
• Is a rough-in or mid-roof inspection required? Yes, for PV work performed under a re-roof or PV-modification permit — a rack-anchor inspection is required before the roofing/PV installation is completed. 70% · published policy handout

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

Nothing recorded for City of Orland on this step yet — 3 questions checked and found unpublished. The guidance above is general.

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (permit is 'finaled') 62% · published policy handout
