City of Patterson

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · authority's own page + municipal code
• What does this authority permit itself, and what does it delegate? Delegated 85% · authority's own page (staff directory)
• Is a permit required for a residential rooftop PV system? Yes 95% · permit application form
• Is there a separate electrical permit, or is it combined? Combined 70% · permit application form
• Is a HOA or architectural approval required first? No 65% · municipal code (control-checked absence)
• Is there a historic-district review? Conditional — Yes, but only if the specific property is a designated historic landmark/site or lies within an adopted Historic Preservation Overlay District; otherwise No. 75% · municipal code
• Is a wind or windstorm certification required? No 78% · department handout (control-checked absence)
• Is a Specific Use Permit or Council approval ever required? Not for a small residential rooftop system processed under the expedited PMC 15.59 pathway (administrative approval only — no CUP or City Council step named). Chapter 18.60's enumerated Height Exceptions list (flues, chimneys, spires/bell towers) does not include solar panels/collectors, so a system that would otherwise exceed the district height limit has no dedicated by-right allowance and could require the Minor Adjustment process (PMC 18.16.110) instead. 70% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating or 30 kW thermal — this is the codified 'small residential rooftop solar energy system' definition that GATES eligibility for PMC 15.59's expedited/single-inspection administrative process, not an absolute ceiling on residential systems generally (larger systems still route through the standard, non-expedited building permit process). 92% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 65% · permit application form
• Must the contractor be registered with this authority before applying? Yes 70% · permit application form + authority's own page
• Is a homeowner permitted to self-install and self-permit? Yes 90% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For residential projects: the Solar Permit Application (address, panel count, kW, mounting type, SFHA status, owner/contractor info) plus 3 sets of plans, 2 sets of supporting documents (structural/energy/truss calcs as applicable), and a digital/electronic set (USB or shareable link). 85% · permit application form
• How many copies, and in what format? 3 sets of plans + 2 sets of supporting documents (structural/energy/truss calcs) + 1 digital/electronic copy (USB or shareable link). 85% · permit application form
• Is a site plan required, and what must it show? A site/plot plan is implicitly required via the general plot-plan standard used for all building permits (property address, APN, structures) plus the application's own question of whether the property sits in a Special Flood Hazard Area (SFHA). No solar-specific site-plan content list (panel layout, setbacks) is separately published; the City's general 'Typical Site - Plot Plan' handout is an image-only diagram with no extractable text. 55% · permit application form
• Is a one-line / three-line diagram required? Yes (inferred) 55% · utility document (inference for AHJ)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? No dedicated online permit portal identified — permits (including the Solar Permit Application) are submitted on paper/PDF to the Building Department counter at City Hall or by email to buildingclerk@pattersonca.gov; over-the-counter permits are issued in person Mon-Fri 8:00am-4:30pm. 70% · authority's own page (absence of a named portal)
• Can the whole application be completed online? No 70% · permit application form (absence of online system)
• How is the fee calculated? Valuation 80% · authority's own page (FAQ) + fee spreadsheet
• Is there a separate plan-check fee? Yes 80% · permit application form + fee spreadsheet

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Roughly 30-40 business days total: the current Building FAQ states plans are sent to an outside plan-check agency, allowing 'up to 15-20 business days for your plans to be processed and sent to the outside agency' plus 'an additional 15-20 business days for the Plan Checker to receive, review and comment.' 90% · authority's own page (FAQ)
• How long is an issued permit valid before it expires? 180 calendar days to commence work (or 180 days of suspension/abandonment voids the permit) and 730 calendar days (2 years) to complete the work from the date of permit issuance; one 180-day extension is allowed. 92% · municipal code (adopting ordinance)
• Which utility handles interconnection here? Electricity: Turlock Irrigation District (TID) — a municipal/public irrigation-district utility, NOT PG&E. PG&E serves gas only in Patterson. 92% · authority's own page
• Where does the utility sit in the sequence? After permit 88% · utility's own page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2020 NEC (via the 2022 California Electrical Code) — the City has NOT yet adopted the 2025 code cycle (2023 NEC) for electrical; only the Fire Code has been advanced to the 2025 cycle so far (see Q31). 90% · municipal code (adopting ordinance)
• Which building code edition is in force? 2022 California Building Code / 2022 California Residential Code — the City has NOT yet adopted the 2025 cycle for building/residential, unlike its Fire Code (see Q31). This is a genuine cross-code lag as of the most recent codification (through 12-16-2025). 88% · municipal code (adopting ordinance)
• Which fire code edition is in force? 2025 California Fire Code — adopted by Ord. 885 (12/16/2025), making Fire the most current code cycle in force, AHEAD of Building/Electrical/Residential which remain on the 2022 cycle. 92% · municipal code (adopting ordinance)
• Are there local amendments to any of the above? Yes 85% · municipal code (control-checked)
• What is the installation judged against? The 2022 California Building/Residential/Electrical/Mechanical/Plumbing Codes, plus the 2025 California Fire Code, plus PMC Ch. 15.59's own definitions incorporating Civil Code Sec. 714 (Solar Rights Act) and Sec. 801.5, and Gov. Code Sec. 65850.5. 88% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No PV-specific ridge-setback or access-pathway rule is locally amended into the Fire Code or Building Code (control-checked absence in Title 15 for 'ridge', 'setback', 'pathway' in a solar context). The standard, un-amended 2025 California Fire Code's fire-fighter roof-access/pathway provisions (adopted wholesale, PMC 15.20.010) would apply by default. 60% · municipal code (control-checked absence, inference from wholesale code adoption)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under NEC 690.12 — incorporated by the currently-adopted 2022 California Electrical Code (based on the 2020 NEC), which already contains the rapid-shutdown requirement. No City document cites Sec. 690.12 by number, and no PV-specific carve-out was found (see Q32 control check). 70% · municipal code (inference from adopted code)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? At the AHJ level, no additional labels beyond the standard adopted 2022 CEC / 2025 CFC labeling requirements (control-checked — no local placard ordinance). At the UTILITY (TID) level, TID's current Solar Installation Guidelines Sec. 4 require labeling, per NEC 690.14(C)(2) and NEC 690.52, of: the dedicated PV breaker in the main service panel (MSP), the AC disconnect switch, conduits for the solar circuit, the MSP itself, any line-side tap, and a site-map placard on the MSP if the optional TID generation meter is not visible from the MSP. 85% · utility document
• Does the authority specify placard wording of its own? No 70% · utility document + municipal code (control-checked absence)
• Does it specify letter height, colour or material? No — neither the City nor TID specifies a letter height, colour, or material for PV placards; both simply reference NEC labeling sections. 70% · utility document + municipal code (control-checked absence)
• Is a site plan / facility map placard required, and what must it show? Not required by the AHJ. Required by the UTILITY (TID) only conditionally: a 'Site map placard on MSP' is required 'if the optional TID generation meter is to be located where not visible from MSP.' 75% · utility document
• Does the UTILITY specify placards beyond the AHJ's? Yes 90% · utility document
• Where must the labels be placed? Per TID's guidelines: on/at the main service panel (MSP) — the dedicated PV breaker, AC disconnect switch (located within 10 ft and in line of sight of the MSP), the conduits for the solar circuit, and (if applicable) a site-map placard on the MSP and the generation-meter socket (max 60 ft from the inverter/array). 85% · utility document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Per TID (the utility): if installed, the AC disconnect must be located within 10 feet AND in line of sight of the main service panel (MSP), on the same side of any obstruction (fences/gates) as the MSP; if the optional TID generation meter is used, an additional AC disconnect is required between the MSP and the generation meter, and the generation meter socket itself may be no more than 60 feet from the inverter (or the array, for micro-inverters). 88% · utility document
• Must equipment be on a specific approved list? No dedicated City 'approved equipment list' exists; TID requires 'All connectors and equipment used in the installation must be UL approved' (a UL-listing standard, not a closed proprietary product list). 60% · utility document
• Are batteries permitted, and under what conditions? Yes, batteries are permitted. TID's current guidelines require: the battery storage system be operable at the time of TID's field inspection with a contractor representative present to verify proper operation; it must be demonstrated there is no possibility of back-feed when TID power is interrupted; and battery size (kWh and kW) must be specified on the single-line diagram. No separate local (AHJ) fire-code ESS amendment was found (control-checked, Title 15). 80% · utility document + municipal code (control-checked absence)
• Is there a separate ESS permit or inspection? No separate local ESS permit found; PMC 15.59.040 caps the expedited residential solar process at a single inspection 'unless the installation is found to be out of compliance... or a separate fire safety inspection is required.' TID verifies battery operability as part of its own single interconnection field inspection rather than issuing a second permit. 68% · municipal code + utility document
• Is a ground mount treated as a structure? Likely Yes by inference from the general zoning definition, though the City's Accessory Structures development-standards table (PMC 18.62.040) has no ground-mounted-solar category at all (only sheds, pool houses, gazebos, carports, decks, play equipment, etc.), so no PV-specific ground-mount setback/height standard exists. 60% · municipal code (definitional inference)
• Is there a local rule on service upgrades or busbar sizing? No local AHJ busbar-sizing or service-upgrade minimum found (control-checked absence — no Palm-Springs-style local minimum). Separately, TID (the electric utility) applies the standard NEC 120% rule for PV breaker sizing on the main service panel bus, and disallows derating of phase wires — a utility interconnection rule, not a City ordinance. 75% · municipal code (control-checked) + utility document

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone 92% · department handout (dated 2024)
• How much notice is required? Same/next business day if called in before 3:00pm; second business day if called in after 3:00pm (e.g., a Friday-after-3pm request is scheduled for the following Tuesday). 92% · department handout (dated 2024)
• Are same-day or AM/PM windows offered? AM (8:00am-12:00pm) or PM (1:00pm-5:00pm) windows are offered when requesting; the City states it is 'unable to accommodate appointments,' including specific-time requests within those windows. 90% · department handout (dated 2024)

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

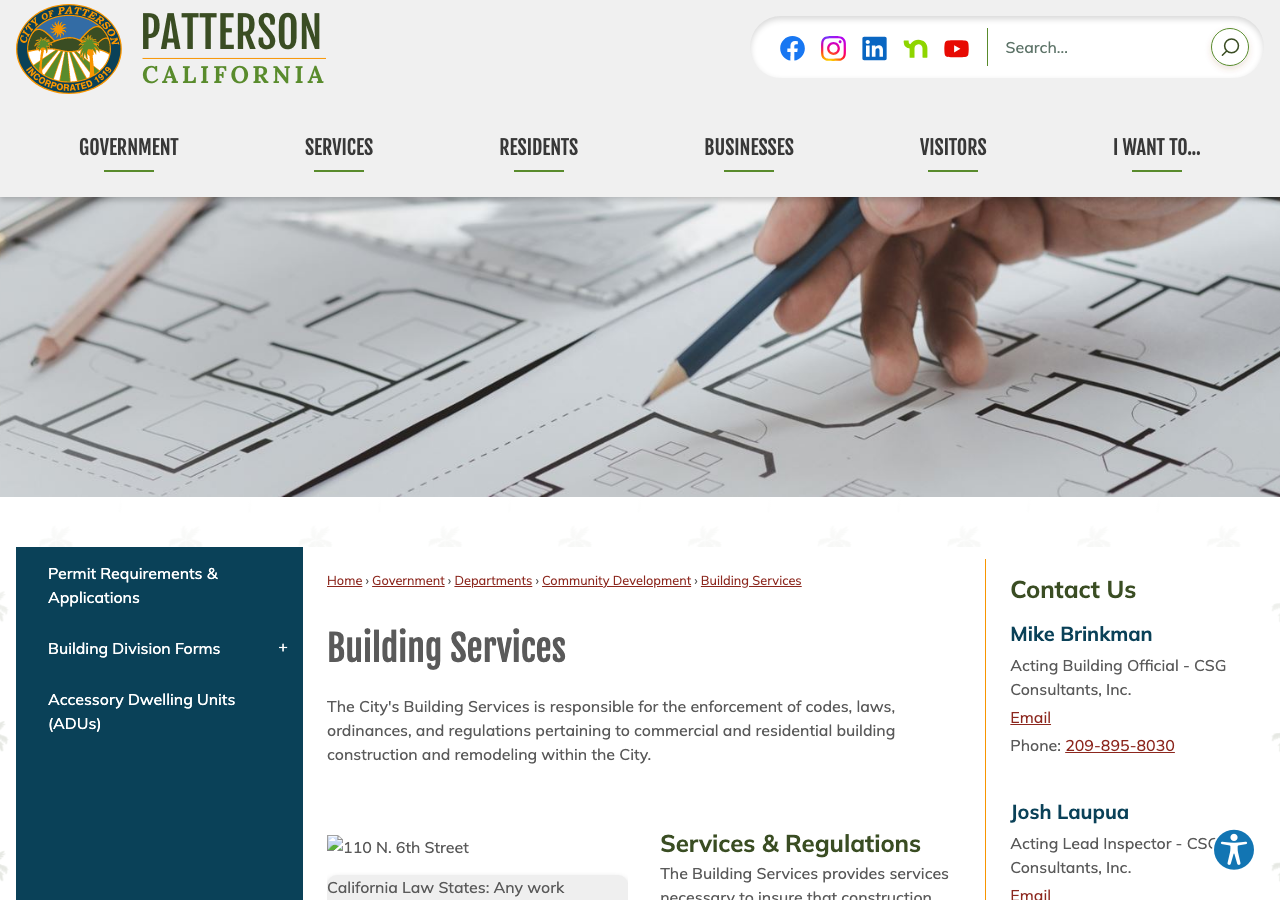

• Does this AHJ perform its own final solar inspection? Delegated 85% · authority's own page (staff directory)
• If delegated, to whom? CSG Consultants, Inc. for building/electrical plan check and field inspection (Building Official and Lead Inspector titles both held by CSG staff per the City's current staff listing); the in-house Patterson Fire Department for any separate fire-safety inspection. 85% · authority's own page (staff directory) + municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a small residential rooftop system eligible for the PMC 15.59 expedited path: a single inspection, unless the system is found out of compliance with the California Building Standards Codes or a separate fire-safety inspection is required. No separate published sequence exists for larger, non-expedited systems. 75% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Approved plans and the permit envelope must be on the job site when the inspector arrives. 90% · department handout (dated 2024)
• Does the inspector verify labels and listings? Not explicitly published as an AHJ field-inspection step, but confirmed at the utility level: TID's current Solar Installation Guidelines list exactly which labels 'must be labelled in accordance with NEC rules' for a TID field inspection to pass (Sec. 4), meaning TID's own inspector does verify labeling. Whether the City/CSG inspector separately re-verifies labels was not confirmed by any City document. 60% · utility document (AHJ practice not confirmed)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Not explicitly named by any City document (no CO/green-tag/letter program specific to solar found); presumed a standard building-permit 'Final' inspection sign-off in the absence of a named alternative, consistent with PMC 15.59.040's description of a single 'inspection' rather than a distinct certificate. 55% · municipal code (inference, absence of an alternative)
• Who notifies the utility for PTO? Installer 85% · utility's own page
• Is there a re-inspection fee? No City/AHJ re-inspection fee line was found. At the UTILITY (TID) level: the first TID solar field inspection is free; any subsequent TID inspection costs $150 per trip (effective 1 Jan 2025). 75% · utility's own page
