City of Pico Rivera

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · authority's own department page
• What does this authority permit itself, and what does it delegate? Both 88% · authority's own department page
• Is a permit required for a residential rooftop PV system? Yes 95% · published checklist
• Is there a separate electrical permit, or is it combined? Combined 70% · published checklist
• Is a HOA or architectural approval required first? No 82% · authority's own page citing state law
• Is a wind or windstorm certification required? No 58% · published checklist (absence)
• Is a Specific Use Permit or Council approval ever required? No — Council/SUP approval is not part of the standard residential PV path. Systems that are ineligible for SolarAPP+ are routed to the 'Residential Permit' track, which the Online Permit page says undergoes 'a zoning review and/or plan check review prior to permit issuance' — an administrative, staff-level review, not a discretionary Use Permit or Council hearing. 65% · portal / department page
• Is there a system-size cap on residential generation? No fixed kW cap on residential systems as such. The SolarAPP+ automated fast-track applies to systems meeting NREL's SolarAPP+ PV+ST eligibility rules (single-phase 240V, ≤400A service, ≤225A service disconnect/busbars, ≤600V DC, max 2 DC strings in parallel, etc.); systems exceeding those parameters, or including battery storage, are not excluded from permitting — they are simply routed to the standard (non-SolarAPP+) Building Division review instead. 78% · published checklist

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Licensed electrician 85% · published checklist
• Must the contractor be registered with this authority before applying? Yes 90% · published checklist

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? For SolarAPP+ track: SolarAPP+ Approval Document (with its inspection checklist), SolarAPP+ approval number, and solar contractor name/license number. For non-SolarAPP+ track (>10kW or with battery storage): Site Plan, Electrical Diagram (PV/ESS configuration, wiring, overcurrent protection, inverter, disconnects, required signs, AC connection), and manufacturer spec sheets/installation details for all components. 90% · published checklist
• How many copies, and in what format? Entirely digital — plans/documents are uploaded through SolarAPP+ (solarapp.nrel.gov) and then through the Pico Rivera Virtual City Hall online permit application; no physical copy count is specified anywhere in the checklist or portal instructions. 65% · published checklist
• Is a site plan required, and what must it show? Yes. The site plan must show the location of major components on the property; it 'does not need to be scaled exactly, but it should represent the relative location of components at the site,' and must show PV arrays/ESS in compliance with applicable state fire, structural, electrical, and other codes. 92% · published checklist
• Is a one-line / three-line diagram required? Yes 90% · published checklist
• Are string and conductor calculations required? Yes, in substance — not named as a stand-alone 'string and conductor calculations' document, but folded into the required electrical diagram/worksheet, and for SolarAPP+-track projects the NREL SolarAPP+ tool itself performs automated NEC ampacity/conductor-sizing checks as part of its plan review. 60% · published checklist, cross-referencing SolarAPP+
• Is a structural PE stamp required, and at what threshold? Not stated as an explicit PE-stamp trigger; the checklist instead says 'Local design criteria should be used to ensure small residential rooftop solar energy systems are adequate to transfer all wind, seismic, and dead and live loads...to the building foundation,' and the SolarAPP+ eligibility sheet attached to the same checklist caps systems at ≤4 psf added roof dead load, ≤3-story R-3/R-4 construction, and no structural alterations for the no-stamp fast track; systems outside those bounds fall to the non-SolarAPP+ Building Division track where a stamp would ordinarily be required. 45% · published checklist (inferred)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

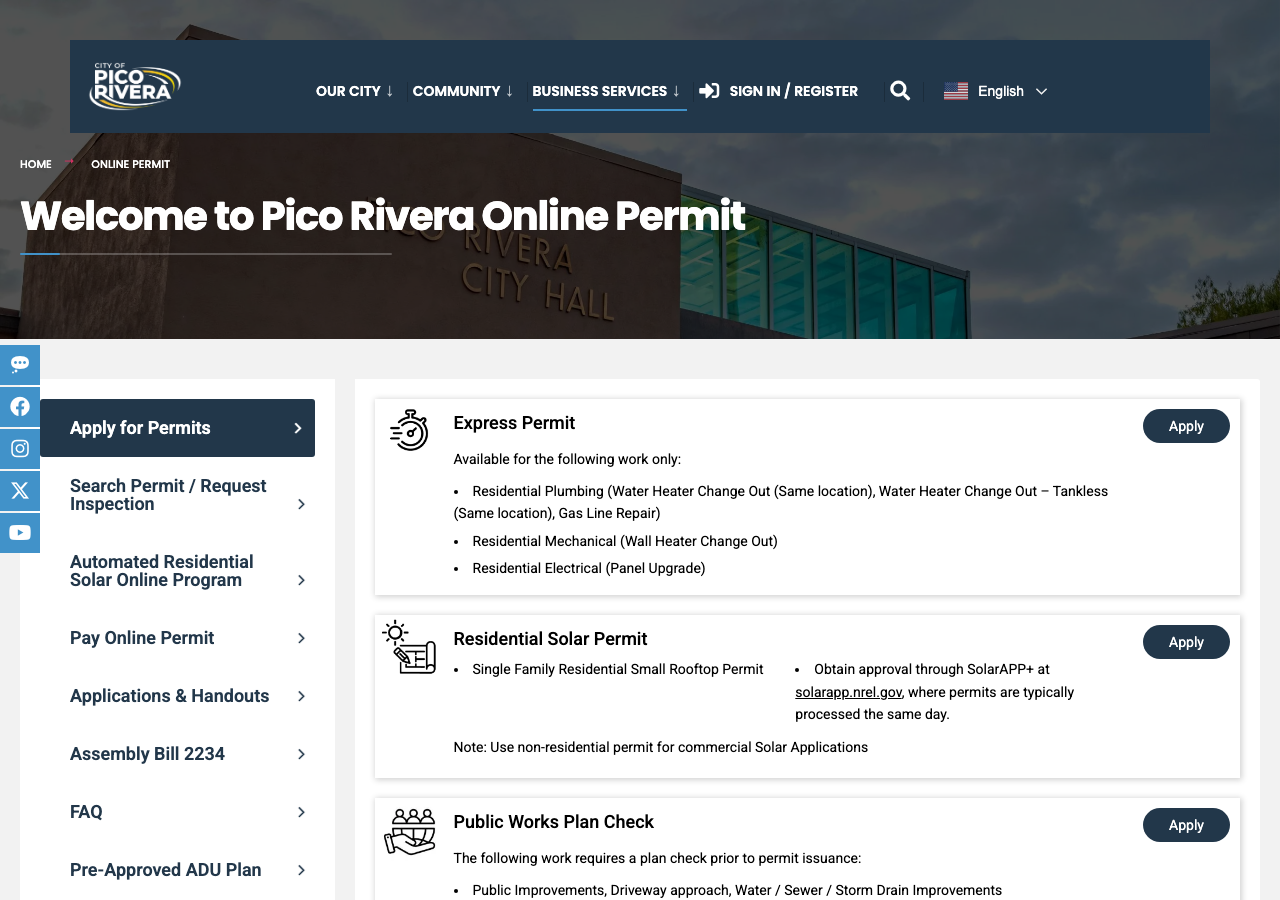

• Which permit portal does this authority use? SolarAPP+ (solarapp.nrel.gov) for the automated plan review/permit approval, feeding into the Pico Rivera Virtual City Hall / NextGen311 portal for permit application, fee payment, and inspection scheduling. 92% · portal landing page
• Can the whole application be completed online? Yes 90% · authority's own program page
• What does a residential solar permit cost? Solar-specific electrical permit fee: $209.00 (SFR 0–10 kW) or $313.00 (SFR 10+ kW), FY2026-27. Total out-the-door cost also includes a valuation-based Building Permit fee and several surcharges (technology 3%, AB717 training, records, SB1473 green fee, general-plan/zoning maintenance) — the city's own worked example for a 3.28 kW system (using the FY2022 schedule) totalled $500.00. 78% · fee schedule
• How is the fee calculated? Tiered 80% · fee schedule
• Is there a separate plan-check fee? Yes, but only off the SolarAPP+ track 82% · published checklist + fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 2-3 business days for SolarAPP+-track systems; 2-4 business weeks (roughly 10-20 business days) for systems with battery storage or otherwise not eligible for SolarAPP+. 88% · published checklist
• How long is an issued permit valid before it expires? 365 days (1 year) from issuance 92% · published checklist
• Which utility handles interconnection here? Southern California Edison (SCE) is the interconnecting/wires utility. Generation is separately supplied by PRIME (Pico Rivera Innovative Municipal Energy), the city's own Community Choice Aggregator — 'PRIME purchases power on behalf of its customers while Southern California Edison (SCE) delivers it.' SCE remains the utility of record for interconnection and net metering. 90% · authority-adjacent CCA program page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (via the 2025 California Electrical Code), which took effect statewide 1 Jan 2026 under California's standard triennial code cycle — but the city's own Building & Safety page (last modified 12 May 2026) still lists 'California Electrical Code 2022 Edition' among the codes in force. 60% · authority's own department page (dated content conflict)
• Which building code edition is in force? 2025 California Building Code, effective statewide 1 Jan 2026 — but, as with q29, the city's own Building & Safety page (modified 12 May 2026) still lists 'California Building Code 2022 Edition, Volumes 1 & 2.' 58% · authority's own department page (dated content conflict)
• Which fire code edition is in force? 2023 Los Angeles County Fire Code (LACFC) — a locally amended version of the 2022 California Fire Code, per LACoFD's own current guidance documents (Guide dated 2023-09-01; the fee-schedule Appendix QQ, PDF-created Sept 2025, still refers to the '2023 LACFC'). 75% · adopting agency's own guidance document
• Are there local amendments to any of the above? Yes 82% · published checklist citing local ordinance
• What is the installation judged against? The currently-adopted California Residential/Building/Mechanical/Plumbing/Electrical Codes (2022 Editions per the city's own current page — see q29/q30 caveat about the 2025 cycle), the LA County Fire Code (Title 32) for delegated/retained fire aspects, Title 24 (Energy Code, Green Building Standards, Disabled Access), and Pico Rivera Municipal Code Chapter 15.52 (added by Ordinance No. 1124) governing solar-specific permitting and installation requirements. 85% · authority's own department page

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

Nothing recorded for City of Pico Rivera on this step yet — 1 question checked and found unpublished. The guidance above is general.

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes — Rapid Shutdown is required and is explicitly cross-referenced to NEC §690.12 in the SolarAPP+ eligibility criteria embedded in the city's checklist ('Rapid Shutdown cannot be satisfied using the method: No exposed wiring or conductive parts (690.12(B)(2)(3))'), and LACoFD's own disconnect-placarding system separately requires that 'Rapid Shutdown' activation devices be placarded. Per q29's caveat, this is 690.12 as codified in whichever CEC cycle (2022 CEC/2020 NEC per the city's still-published page, or 2025 CEC/2023 NEC per the state's default cycle) is actually in force. 75% · published checklist + LACoFD guide

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? The LACoFD Electrical Power Source Disconnect Placarding System: an Exterior Placard reading 'F.D. — ELECTRICAL BLDG DISCONNECT / #X of Y' mounted on or immediately adjacent to each power-source disconnect panel/enclosure, plus Panel-Interior Placards identifying specific switches/breakers inside a panel where more than one must be operated. 92% · fire authority's own guidance document
• Does the authority specify placard wording of its own? Yes 92% · fire authority's own guidance document
• Does it specify letter height, colour or material? Yes. Exterior placards: minimum 2 inches tall x 3.5 inches wide, weather-resistant plastic with verbiage engraved; red letters engraved into a yellow background; solid all-capitals Arial font, minimum 24-point (28-point bold for 'F.D.' and '#X of Y'). Panel-interior placards: minimum 7/16 inch tall x 3/4 inch wide, same weather-resistant plastic/engraving/color scheme, all-caps bold Arial minimum 24-point. Attachment must be permanent epoxy, material/weather/surface-compatible. 95% · fire authority's own guidance document
• Where must the labels be placed? Exterior placards go on the exterior of, or immediately adjacent to, each disconnect panel/enclosure/standalone switch that must be operated to fully disconnect the structure from a given power source; additional exterior placards may be required where an enclosure houses multiple panels. Panel-interior placards go inside a panel to identify the specific switches/breakers where more than one within the same enclosure must be operated. 90% · fire authority's own guidance document

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? The fire code (2023 LACFC §509.3, as reproduced in LACoFD's guide) requires that electrical disconnection means/rapid-shutdown activation devices for all power sources be located 'on the exterior, within 6 feet of the main service panel, on the same wall plane,' not separated from one another by walls, gates, fences, vegetation, or architectural features. This is the AHJ (fire-code) locational rule actually available; SCE's own utility-side DG-manual requirement for AC-disconnect-to-meter placement could not be retrieved (see q42/q23 — SCE's interconnection handbook links are dead/gated). 62% · fire authority's own guidance document (proxy for unavailable utility source)
• Must equipment be on a specific approved list? Yes 82% · published checklist / LACoFD guide
• Are batteries permitted, and under what conditions? Yes, under conditions set by the 2023 LACFC §1207.11: each individual ESS unit capped at 20 kWh (nameplate) capacity; aggregate capacity per site capped at 80 kWh regardless of whether located in an attached/detached garage, on the exterior building wall, or outdoors on the ground; 3-foot minimum spacing between individual units; minimum 3-ft clearance from openings into habitable space, 5-ft from lot lines/other buildings/combustibles, 10-ft from vegetation; vehicular impact protection where applicable; fire detection/notification required for garage-mounted ESS; UL 9540/UL 1741 listing required. 93% · fire authority's own guidance document
• Is there a separate ESS permit or inspection? Yes 90% · fire authority's own guidance document + fee schedule
• Is a ground mount treated as a structure? Effectively yes — ground-mounted systems are excluded from the SolarAPP+ fast track ('No ground mounted systems' is one of the SolarAPP+ PV+ST structural eligibility exclusions embedded in the city's checklist), which routes them to the standard, non-SolarAPP+ Building Division review that applies to accessory structures generally; no Pico Rivera document affirmatively labels a ground mount 'a structure' in so many words. 55% · published checklist (inferred)
• Is there a local rule on service upgrades or busbar sizing? For the SolarAPP+ fast track: systems are limited to ≤400A total service, ≤225A service disconnect, and ≤225A busbars (NREL SolarAPP+ eligibility criteria reproduced in the city's checklist). Systems requiring a main panel upgrade (MPU) above those limits are routed to the standard, non-SolarAPP+ Building Division review — the city's own >10kW worked fee example explicitly includes 'E/MPU 225A' as a line item, confirming MPUs are permitted via that track. 75% · published checklist
• Is a specific mounting system or attachment spacing required? No mounting-system brand or attachment-spacing standard is separately published by the city; the SolarAPP+ eligibility criteria that govern the fast track constrain each project to 'only 1 racking system type,' flat-plate modules only, rooftop conduit height ≥7/8 inch, and hardware weight ≤4 psf — but these are SolarAPP+'s (NREL's) national eligibility limits, not a Pico Rivera-specific mounting/spacing amendment. 60% · published checklist (national program criteria, not city-specific)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal 92% · department page
• How much notice is required? At least 24 hours in advance 90% · published checklist
• Are same-day or AM/PM windows offered? Yes — the city's Solar page states it is 'Offering solar project inspection within a 2-hour window,' though the checklist separately notes the specific date/time requested is not guaranteed. 85% · authority's own page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 80% · fire authority's own guidance document (delegation statement)
• If delegated, to whom? Split, not a single delegation: LACoFD delegates conventional rooftop-PV plan review/inspection TO the Pico Rivera Building & Safety Division, but retains ESS/BESS, certain Building-Integrated PV (BIPV), and — per LACoFD's Appendix B — the electrical power-source disconnect placarding and rapid-shutdown activation devices for ITSELF, inspected directly by LACoFD's own Fire Prevention regional office, not delegated to the city. 85% · fire authority's own guidance document

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For the Building Division's own scope: one combined final inspection covering (1) Solar PV system inspection, (2) electrical compliance, (3) structural compliance, and (4) fire-safety inspection, per the city's checklist. Separately and independently, LACoFD schedules its own PV/ESS disconnect-placarding (and, where applicable, ESS) field inspection through its regional Fire Prevention office, which the applicant must arrange directly and which is not sequenced by the city's portal. 88% · published checklist + LACoFD checklist
• Is a rough-in or mid-roof inspection required? No 68% · published checklist (absence)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 92% · fire authority's published checklist
• What must be on site at inspection? For the city's PV/electrical/structural inspection: the SolarAPP+ Approval Document with its inspection checklist, and a signed Solar Affidavit (uploaded via the portal or handed to the inspector). For LACoFD's separate disconnect-placarding/ESS inspection: digital proof of the construction permit obtained via the expedited process (e.g. SolarAPP+ approval), disconnect placarding already in place, and LACoFD inspection fees paid in advance. 88% · published checklist + LACoFD checklist
• Does the inspector verify labels and listings? Yes 80% · fire authority's own guidance document

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 68% · fire authority's own guidance document (inferred wording)
• Who notifies the utility for PTO? Installer 55% · authority's own page (inferred)
• Is there a re-inspection fee? No flat re-inspection fee on the city side — billed at the Fully Burdened Hourly Rate ($196.13/hr, FY2026-27), minimum 2 hours for after-hours inspections. On the LACoFD side (for its separate PV/ESS/placard inspection), a flat $98.00 fee applies for 'Additional inspections after initial inspection and one reinspection.' 85% · fee schedule
• How are corrections issued and cleared? If an application/inspection is returned for corrections, the applicant is emailed a notification; logging into the Virtual City Hall portal shows red instructions in the Comments tab describing the required fix, and any missing-information attachments can be viewed there; the applicant then clicks 'Submit Information,' uploads the corrected files/comments, and resubmits through the portal. 85% · department page
