City of Piedmont

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page / ordinance

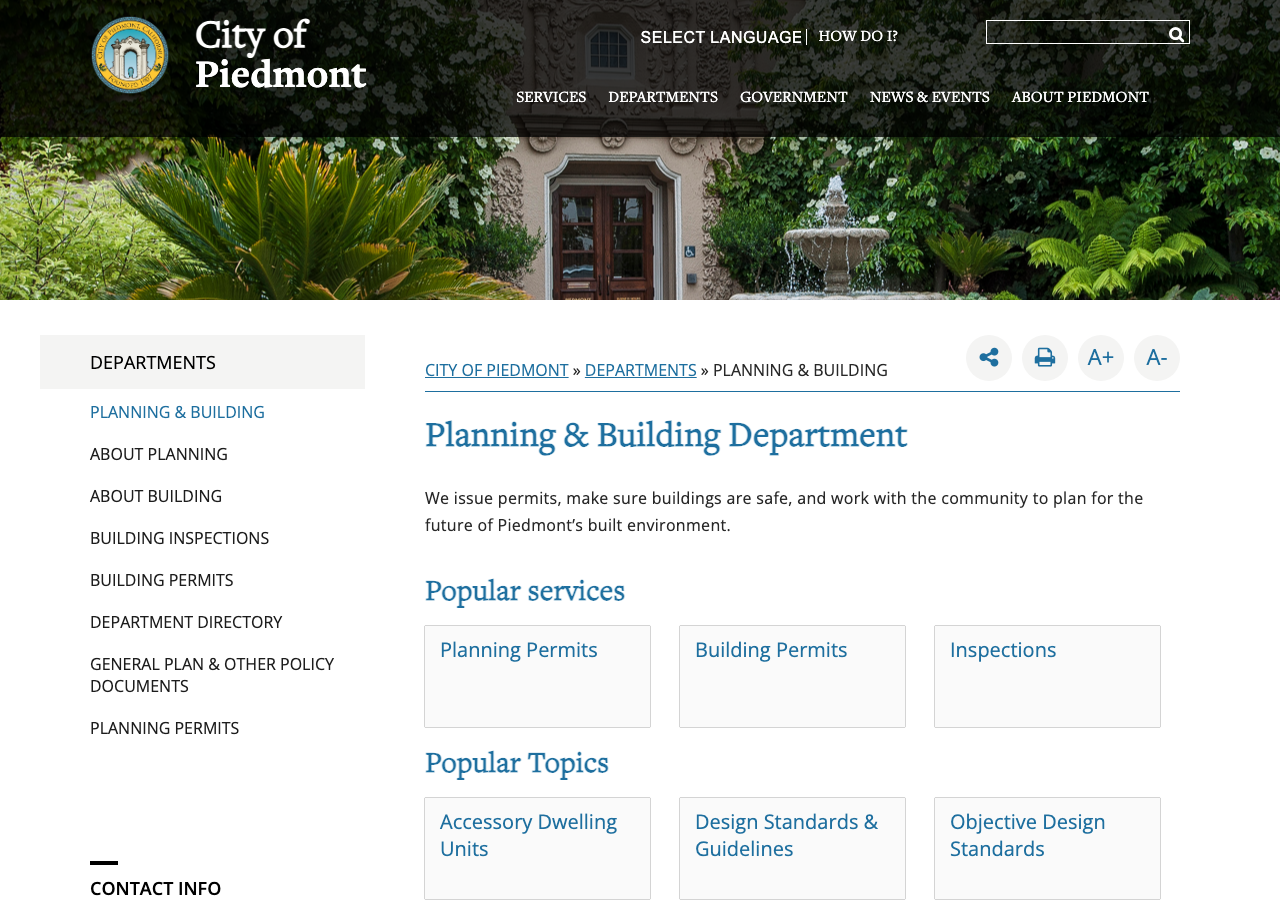

• What does this authority permit itself, and what does it delegate? Both 90% · department page
• Is a permit required for a residential rooftop PV system? Yes 98% · department page / ordinance
• Is there a separate electrical permit, or is it combined? Combined 85% · fee schedule
• Is a HOA or architectural approval required first? No 85% · ordinance
• Is there a historic-district review? No 68% · ordinance (absence checked)
• Is a wind or windstorm certification required? No 72% · published checklist (PDF), absence checked
• Is a Specific Use Permit or Council approval ever required? No, for a qualifying small residential rooftop system 78% · ordinance
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating (or 30 kW thermal) for the streamlined 'small residential rooftop solar energy system' definition, on a single- or duplex-family dwelling, not exceeding the zone's maximum legal building height 95% · ordinance

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 78% · department page
• Must the contractor be registered with this authority before applying? Yes 82% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 90% · department page / form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Eligibility Checklist for Expedited PV; Building Permit Application; Cover sheet (address, owner, designer, scope, sheet index, legend); schematic Site Plan; Standard Electrical Plan (Central/String Inverter or Microinverter/ACM, as applicable); Roof Plan showing panel layout and fire-safety pathway/marking items; Structural Criteria for Residential Rooftop Solar (or PE-stamped calcs if the checklist fails); manufacturer spec sheets for all major components; Contractor or Owner-Builder Declarations; Construction & Demolition Debris Recycling Statement if project value exceeds $50,000. 85% · department page + published checklist (PDF)
• How many copies, and in what format? The city's current live page states applications go through eTRAKiT (electronically) or the Symbium instant-permit portal, and that 'Paper and email applications are no longer be accepted.' A separate, older handout (ModDate 28 Nov 2023) still on the same solar page states '2 sets of plans (minimum 11x17)' if submitted in person, or e-mail submittal with a 10MB attachment cap — that in-person/email path appears superseded by the newer electronic-only policy but the city has not removed the conflicting document. 55% · department page (conflicting with an older linked PDF)
• Is a site plan required, and what must it show? Yes — a schematic site plan showing the building footprint, property lines, PV array location, main service location, all interior/exterior equipment and disconnect locations with working clearances, and other structures on the property. 88% · published checklist (PDF)
• Is a one-line / three-line diagram required? Yes 90% · published standard plan (PDF)
• Are string and conductor calculations required? Not as free-form calculations for a qualifying project — the Standard Plan pre-computes allowable string counts, MPPT limits and maximum combined OCPD vs. bus-bar-rating tables (e.g. Table 4, Max Combined Supply OCPDs per CEC 705.12(D)(2)) that the applicant selects from; project-specific conductor/string calculations are only required if the project falls outside the Eligibility Checklist's prescriptive limits, in which case a 'Comprehensive Standard Plan' or engineered plans are used instead. 75% · published standard plan (PDF)
• Is a structural PE stamp required, and at what threshold? A CA-licensed Civil or Structural Engineer's stamped, project-specific calculations are required only if any item on the Structural Criteria checklist (roof condition, rafter size/span, module weight ≤4 psf PV / 5 psf thermal, anchor spacing per Table 1) is answered 'No.' If every item is 'Yes,' no PE stamp is required. 85% · published checklist (PDF)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

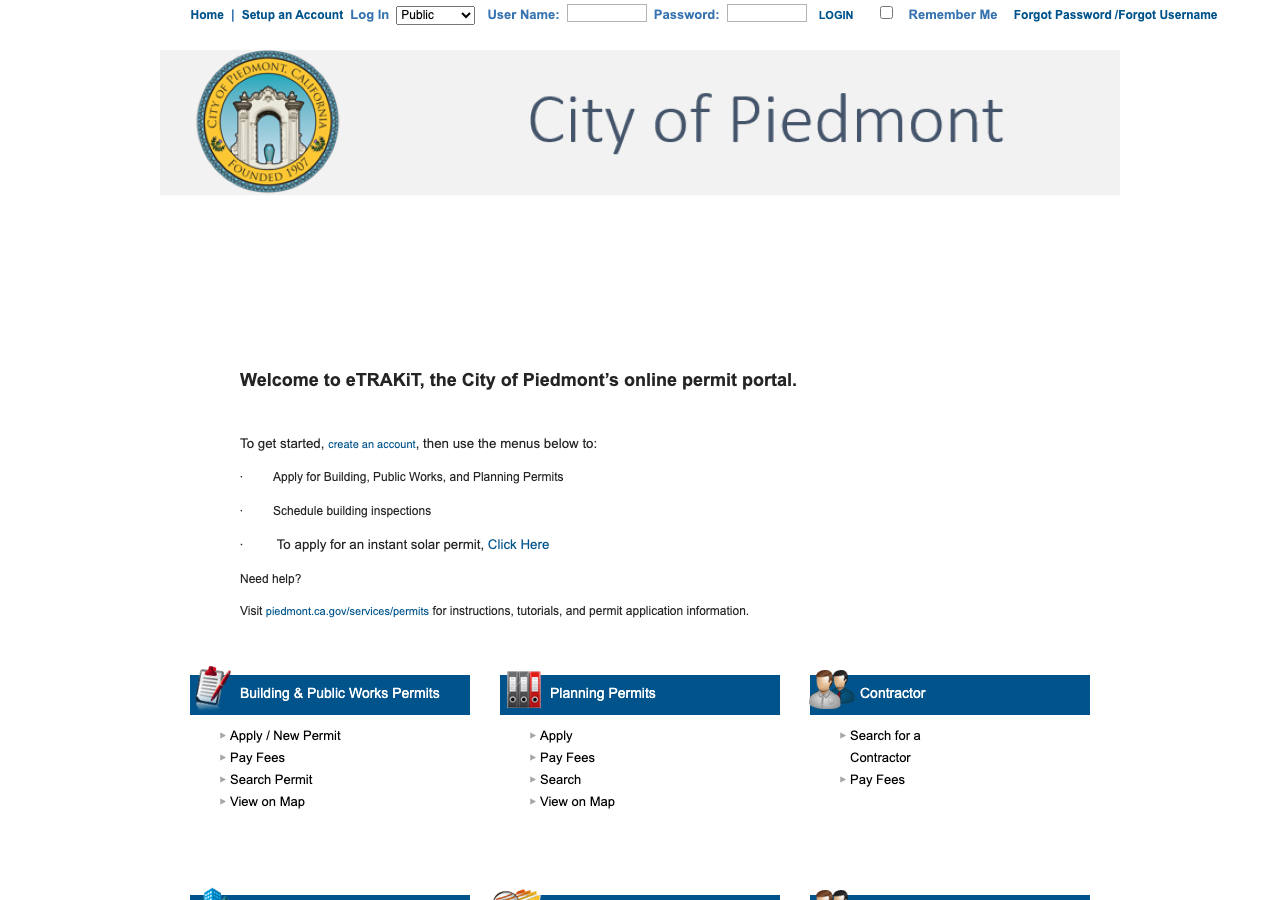

• Which permit portal does this authority use? eTRAKiT (https://pied-trk.aspgov.com/etrakit/), with Symbium (symbium.com) as an integrated instant-permit front end for eligible solar projects that auto-submits into eTRAKiT 92% · department page / portal
• Can the whole application be completed online? Yes 85% · department page
• What does a residential solar permit cost? $559 flat (residential); $1,085 flat (commercial); $343 flat if processed as a 'SolarAPP+' permit type 92% · published fee schedule
• How is the fee calculated? Flat 92% · fee schedule
• Is there a separate plan-check fee? No 68% · fee schedule (inference)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days 92% · ordinance
• How long is an issued permit valid before it expires? 180 days (standard, unamended CRC/CBC default) 68% · fee schedule (inference) + ordinance (no override found)
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 82% · department page (utility named)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 85% · ordinance + known CA code-cycle mapping
• Which building code edition is in force? 2025 California Building Code (Part 2) and 2025 California Residential Code (Part 2.5), Title 24, effective 1 January 2026 96% · ordinance
• Which fire code edition is in force? 2025 California Fire Code (Part 9), Title 24, as adopted/amended by the CA State Fire Marshal, effective 1 January 2026 96% · ordinance
• Are there local amendments to any of the above? Yes 95% · ordinance
• What is the installation judged against? The 2025 California Building Standards Code (CBC/CRC/CEC/CFC/Energy/Green Building) as locally amended by PCC Chapter 8, judged in practice via the city's own prescriptive self-certification tools for qualifying systems: the Eligibility Checklist for Expedited PV, the Structural Criteria worksheet, and the Simplified Standard Electrical Plans (Central/String or Microinverter). 82% · department page + ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 3 ft clear space at ridges and a 3 ft access pathway from eave to ridge; where modules are placed on both sides of a hip or valley, 1.5 ft clearance on each side of the hip/valley — drawn from CRC R324.7 series, per the State Fire Marshal Solar PV Installation Guide referenced by the city. 72% · published checklist (PDF), dated

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under CEC §690.12. The city's own PV Installation Compliance Affidavit states 'Rapid Shutdown System installed if conductors run more than 10 ft from the PV array (CEC 690.12)' — but that affidavit is expressly keyed to the '2016 California Electrical Code,' while the code now in force is the 2025 CEC (Title 24 Part 3, based on the 2023 NEC); §690.12's basic rapid-shutdown mandate persists across those editions, but the city has not republished the affidavit to the current cycle. 65% · published inspection form (PDF), dated

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Inverter-output-connection overcurrent-device warning; ungrounded-DC-conductor shock-hazard warning (ungrounded systems only); PV power-source warning at junction/combiner boxes and conduit (marked every 10 ft); dual-power-sources / AC-disconnect rating sign; PV system AC disconnect rating sign; PV system DC disconnect rating sign; ground-fault shock-hazard warning; do-not-touch-terminals warning at listed disconnects; and, if the project includes a battery/ESS, a permanent red label at the ESS disconnect (local amendment, CRC R330.4). 85% · published standard plan (PDF) + ordinance
• Does the authority specify placard wording of its own? Yes, for the ESS disconnect specifically 78% · ordinance
• Does it specify letter height, colour or material? For the ESS disconnect: colour only ('permanent red label'), no letter height/material specified. For PV placards generally, the city's own Standard Plan carries an informational (non-mandatory) note: 'No type size is specified, but 20 point (3/8") should be considered the minimum,' referencing ANSI Z535.4 for safety-sign design guidance. 75% · published standard plan (PDF) + ordinance
• Is a site plan / facility map placard required, and what must it show? A permanent plaque or directory denoting all electric power sources on or in the premises is required (CEC 705.12) — the Standard Plan calls this out explicitly on its Markings page. No additional, distinct 'facility map' placard graphically depicting the roof/array layout is required to be posted at the equipment; a roof-layout diagram is instead a design-submittal document (reviewed at permitting), not a field placard. 70% · published standard plan (PDF)
• Where must the labels be placed? At the inverter (AC disconnect); at the main service/PV DC disconnect; on interior and exterior DC conduits, raceways and cable assemblies (marked every 10 ft and within 1 ft of turns/penetrations); at junction/combiner boxes; at the main electric panel/dual-power-source directory; and, for ESS, on the ESS disconnect located near and in line of sight of the main panel. 82% · published inspection form (PDF)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, in general terms 72% · ordinance
• Are batteries permitted, and under what conditions? Yes. Per the live Solar Building Permit page's ESS section: a disconnect near the main electric panel is required; batteries inside enclosed spaces/rooms require a smoke alarm/heat detector per the current CFC; enclosed utility closets/basements/storage housing batteries require not less than 5/8-inch Type X gypsum wallboard on walls and ceilings per the current CFC; and batteries must sit at least 3 ft from any property line and from any opening (door, window, vent) into the dwelling, basement or crawlspace — the last point is also codified locally at CRC §R330.4 as amended, which further requires an exterior disconnect near/in line of sight of the main panel with a permanent red label if the ESS disconnect is not co-located with the main panel. 92% · department page + ordinance
• Is there a separate ESS permit or inspection? No distinct standalone ESS permit/fee was identified — 'Solar, plus battery' and 'Battery only' are simply subtypes of the same eTRAKiT 'Solar' building-permit type, and the Fee Schedule carries no separate battery/ESS dollar line distinct from the flat residential-solar fee. 60% · department page (inference)
• Is there a local rule on service upgrades or busbar sizing? To qualify for the streamlined/expedited path, the PV system must interconnect to a single-phase 120/240V service panel with a bus bar rating of 225A or less, on the load side of the utility distribution equipment; larger or 3-phase services are routed out of the expedited path. 82% · published checklist (PDF)
• Is a specific mounting system or attachment spacing required? Yes — flush-mounted arrays only (2"-10" gap between module and roof, no roof-edge overhang, ≤4 psf PV/5 psf thermal loading, ≤50% roof-plane coverage), with maximum horizontal anchor spacing set by Table 1 (varies by roof slope and rafter spacing, e.g. 5'-4" at 0°-26° slope / 16" o.c.) and fastener minimums (5/16" lag screw, 2.5" rafter embedment) unless the manufacturer's own engineering governs. 82% · published checklist (PDF, statewide template)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

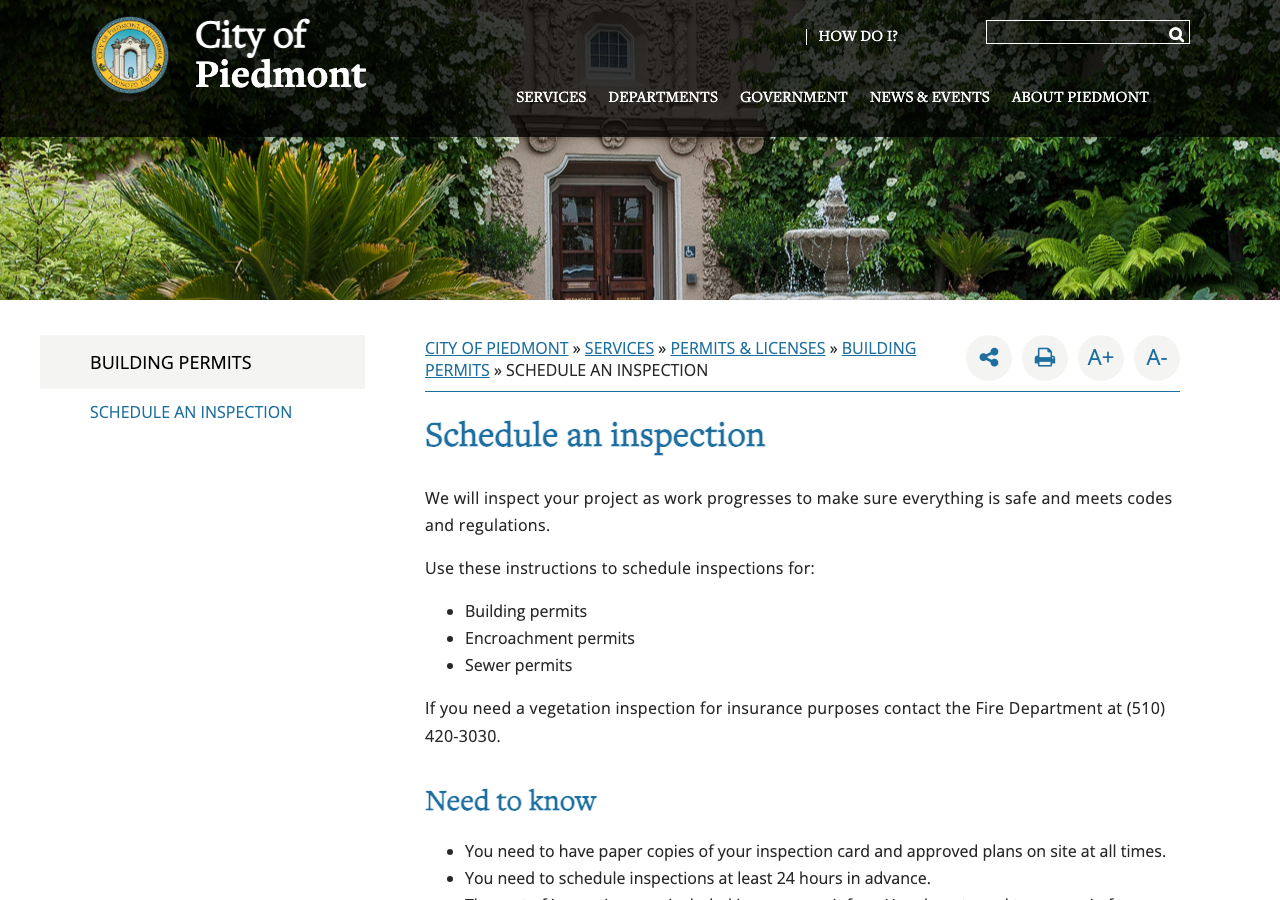

• How is an inspection booked? Portal 82% · department page
• How much notice is required? 24 hours 88% · department page
• Are same-day or AM/PM windows offered? Yes — a two-hour inspection window is provided for the small-residential-rooftop-solar consolidated inspection, scheduled within two business days of the request. 85% · ordinance

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 95% · ordinance

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For an eligible small-residential-rooftop-solar system, only ONE consolidated final inspection is required — the ordinance does not describe a separate rough-in/mid-roof stage for the streamlined path. 88% · ordinance
• Is a rough-in or mid-roof inspection required? No 85% · ordinance

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 85% · published checklist (PDF)
• What must be on site at inspection? An approved set of plans and the inspection card must be on site at all times (general city inspection policy); for solar specifically, the completed and signed PV Installation Compliance Affidavit must be returned to the building inspector prior to or at final inspection. 85% · department page + published form (PDF)
• Does the inspector verify labels and listings? Yes 80% · published inspection form (PDF)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 72% · published form (PDF)
• Is there a re-inspection fee? No distinct 're-inspection' fee line is published; the current Fee Schedule's only relevant mechanism is its general Hourly Rates table (e.g. Building Official $213/hr, Plans Examiner $186/hr), which is not explicitly labeled for re-inspections. 55% · fee schedule (absence checked)
• How are corrections issued and cleared? If an application is deemed incomplete, the city sends the applicant a written correction notice detailing the deficiencies and any additional information/documentation needed to be eligible for expedited issuance; corrections are cleared by resubmission that satisfies the notice. 75% · ordinance
