City of Pinole

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 96% · department page
• What does this authority permit itself, and what does it delegate? Both (Building & Electrical) in-house via the Building Division/Community Development Dept.; Fire enforcement is codified to 'the Pinole Fire Department' (PMC 15.20.020) but fire SERVICES are contracted to Contra Costa County Fire Protection District (Con Fire) since 1 Mar 2023. 90% · municipal code
• Is a permit required for a residential rooftop PV system? Yes 97% · municipal code
• Is there a separate electrical permit, or is it combined? Combined 78% · department page
• Is a HOA or architectural approval required first? No 96% · municipal code
• Is there a historic-district review? No dedicated historic-district review reaches solar 72% · municipal code
• Is a wind or windstorm certification required? No windstorm-certification requirement found 58% · municipal code
• Is a Specific Use Permit or Council approval ever required? No 88% · municipal code
• Is there a system-size cap on residential generation? Two uncoordinated figures: codified PMC 15.56.020.G caps 'small residential rooftop solar energy system' eligibility at 10kW AC / 30kW thermal on a single/duplex dwelling (tracking AB 2188/Gov. Code SS65850.5); but the City's LIVE Symbium/SB 379 instant-permitting portal runs a materially larger 38.4kW AC ceiling with battery storage capped at 20kWh per battery. No separate zoning-code numeric cap exists; height is effectively uncapped absent a Building-Official adverse-impact finding (PMC 17.36.040.B). 90% · department page + municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 88% · department page
• Must the contractor be registered with this authority before applying? Yes 80% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 88% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Plan set (title page with address/contacts/scope/date/reviewer-notes area; existing roof rafter size, spacing and span; roof plan showing fire setbacks); Submittal/Resubmittal Form; Contractor or Owner-Builder Declaration Package; accurate project valuation; a Self-Certification Affidavit for smoke/CO alarms at completion. 88% · published checklist
• How many copies, and in what format? Digital only, via eTRAKiT; PDF preferred, filenames descriptive with street address, pages indexed/bookmarked and landscape-oriented; paper and email applications are no longer accepted. 88% · department page
• Is a site plan required, and what must it show? Yes -- a roof plan showing fire setbacks is required for solar specifically; the general city site-plan standard (property lines/dimensions, setbacks, existing structures, north arrow, address/owner, project location, scale, 3in x 3in stamp block) applies as the baseline site plan. 82% · published checklist
• Is a one-line / three-line diagram required? Yes, by inference 68% · municipal code
• Is a structural PE stamp required, and at what threshold? No explicit residential-solar PE stamp threshold found; the checklist requires only prescriptive roof-framing data (existing rafter size, spacing, span), suggesting Building Official review against the CA Solar Permitting Guidebook's standard/prescriptive plan is the default path, with engineering escalation only for systems outside that prescriptive scope. 55% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

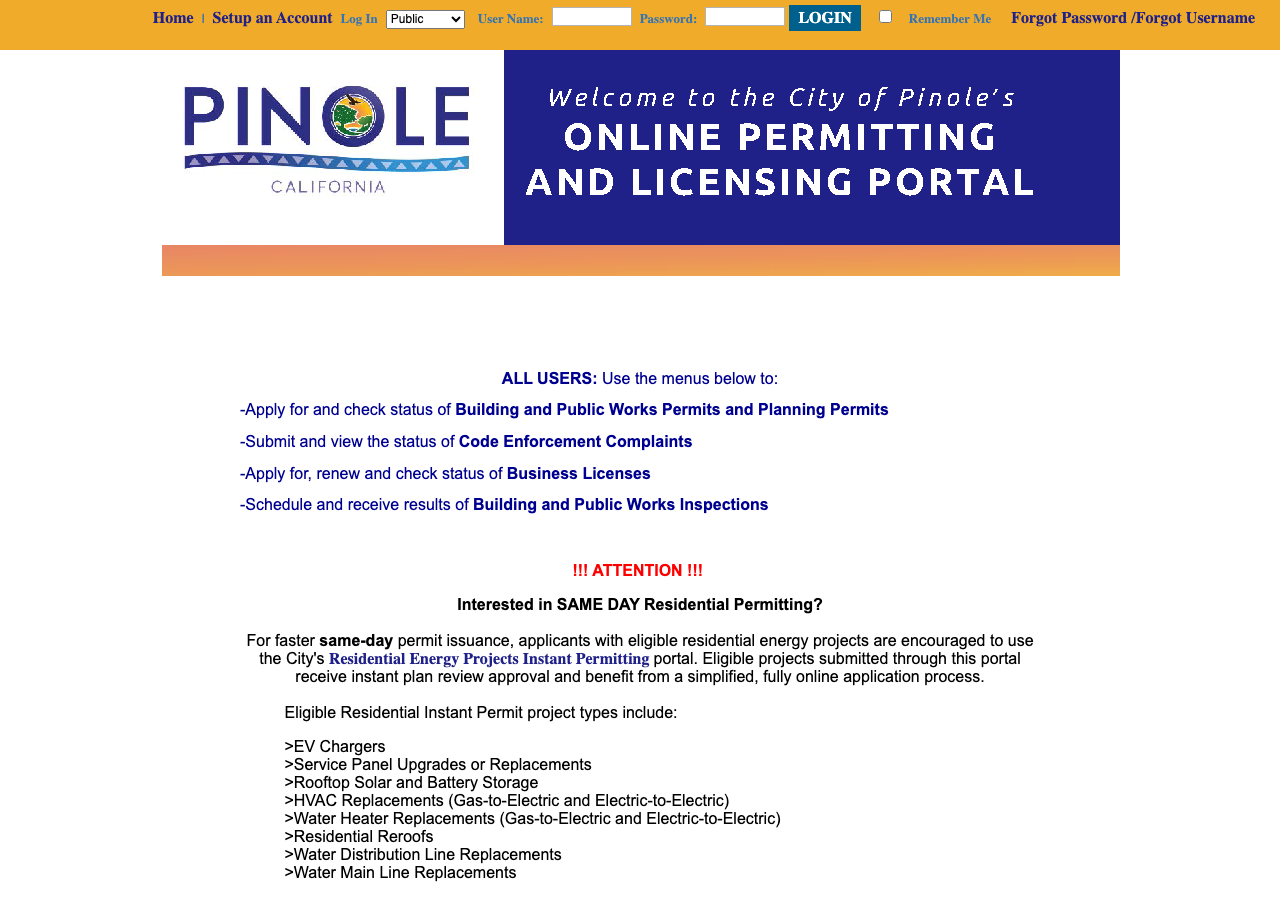

• Which permit portal does this authority use? eTRAKiT (pino-trk.aspgov.com/eTRAKiT) for standard applications, plus Symbium for qualifying instant-permitting projects. 95% · portal landing page
• Can the whole application be completed online? Yes 90% · department page
• What does a residential solar permit cost? $225 flat for systems <=15kW; $450 base fee plus $15/kW for each kW above 15kW 96% · fee schedule
• How is the fee calculated? Tiered 94% · fee schedule
• Is there a separate plan-check fee? No 82% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days for expedited/complete solar applications (PMC 15.56.060.C); the City's general page separately states 'specialty permits (solar, windows)' are 'expected approval within 2-3 business days' via standard eTRAKiT, or same-day via the Symbium instant-permitting portal for eligible systems. 90% · municipal code
• How long is an issued permit valid before it expires? 180 calendar days from issuance if work has not commenced 92% · municipal code
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 92% · department page
• Where does the utility sit in the sequence? After permit (for Permission to Operate) 85% · utility DG manual

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 (as the 2025 California Electrical Code, effective statewide 1 Jan 2026) 94% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code (Title 24, Part 2) 94% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code, as codified (PMC 15.20.010); note Con Fire's own Solar Application (PV) plan-review form -- the operative document for PV-specific fire requirements -- still cites the 2022 California Fire Code, a cross-document lag between the City's adoption ordinance and the fire agency's own working paperwork. 88% · adopting ordinance
• Are there local amendments to any of the above? Yes generally (local amendments exist to the Building Code, PMC 15.04.030, and the Fire Code, PMC 15.20.030), but NONE are solar/PV/ESS/rapid-shutdown specific -- control-checked: 0 hits for '690', 'rapid shutdown', 'battery' or 'energy storage' across the full Fire Code amendment text (268 'fire' hits, 0 'zzqqx'), and 0 hits for solar/battery in the Building Code amendment text (40 'building' hits, 0 'zzqqx'). The Electrical Code chapter (15.10) has no local-amendment section at all -- adoption by reference only. 90% · municipal code
• What is the installation judged against? The unamended 2025 CEC/CBC/CRC and the 2025 CFC (whose local amendments do not touch solar), plus Con Fire's own CFC Chapter 1205-series pathway, rapid-shutdown-labeling and DC-marking requirements (per Con Fire's Solar Application (PV) form, citing the 2022 CFC text of those sections). 84% · fire agency application form

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Con Fire's own Solar Application (PV) form (citing CFC 1205): for Group R-3, no fewer than two 36-inch-wide pathways on separate roof planes from lowest roof edge to highest ridge, at least one on the street/driveway side (CFC 1205.2.1.1); DC conductors/raceways routed as close as possible to ridge, hip or valley, direct route to an outside wall, DC combiner boxes sited to minimize conduit runs (CFC 1205.2.4/1205.3.4). 80% · fire agency application form

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under NEC 690.12 as incorporated into the 2025 CEC statewide. Con Fire's own permanent-label wording spec (citing CFC 1205.5.1, still under the 2022 CFC text) requires: 'SOLAR PV SYSTEM EQUIPPED WITH RAPID SHUTDOWN. TURN RAPID SHUTDOWN SWITCH TO THE OFF POSITION TO SHUTDOWN PV SYSTEM AND REDUCE SHOCK HAZARD IN ARRAY.' 85% · fire agency application form

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? (a) DC-conductor/raceway 'WARNING: PHOTOVOLTAIC POWER SOURCE' markings per CEC 690.31(D)(1)/(2); (b) rapid-shutdown permanent label per CFC 1205.5.1; (c) PG&E's own visible-AC-disconnect open/closed markings per Rule 21 SS H.1.d. 84% · fire agency application form + utility DG manual
• Does the authority specify placard wording of its own? Yes 84% · fire agency application form
• Does it specify letter height, colour or material? DC/PV source marking: minimum 3/8-inch letters, white on red, weather-resistant reflective material. Rapid-shutdown label: minimum 3/8-inch uppercase characters, black on yellow. 84% · fire agency application form
• Does the UTILITY specify placards beyond the AHJ's? Yes -- PG&E Rule 21 SS H.1.d requires a visible AC disconnect that (i) clearly indicates open/closed position, (ii) is reachable without obstacles, keys or special/security clearance for operation, maintenance, inspection or testing, (iii) can be locked in the open position, and (iv) if not adjacent to the point of common coupling, requires permanent signage at a PG&E-approved location describing the device's location. 88% · utility DG manual
• Where must the labels be placed? DC/PV markings: exposed raceways/cable trays, covers/enclosures of pull and junction boxes, unused conduit openings, every wiring section separated by enclosures/walls/partitions/ceilings/floors, every 10 feet, and at all DC combiner/junction boxes. Rapid-shutdown label: on or at the service/disconnect equipment per CFC 1205.5.1. PG&E's visible AC disconnect: reachable without obstacles for operation/maintenance/inspection. 82% · fire agency application form

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes, by inference 74% · municipal code
• Are batteries permitted, and under what conditions? Yes. Building-side: Master Fee Schedule prices 'Battery Backup Storage - Residential' at a flat $199. Fire-side: the City's own Master Fee Schedule mirrors Con Fire's 'Battery Systems/Energy Storage' plan-review line at $632 minimum (one hour review + one inspection) but explicitly states Con Fire's own current amounts supersede if different; Con Fire's own July-2026 Engineering Fee Schedule in fact shows $944 minimum plus a separate $516 UL9540A review. eTRAKiT permit subtypes distinguish ESS <=20kWh per battery from ESS >20kWh per battery. No CFC local amendment specific to residential battery placement/venting was found (control-checked: 0 'battery'/'energy storage' hits in the Fire Code amendments). 85% · fee schedule
• Is there a separate ESS permit or inspection? Yes 80% · department page
• Is a ground mount treated as a structure? Yes, by inference 58% · municipal code
• Is there a local rule on service upgrades or busbar sizing? No 88% · municipal code

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

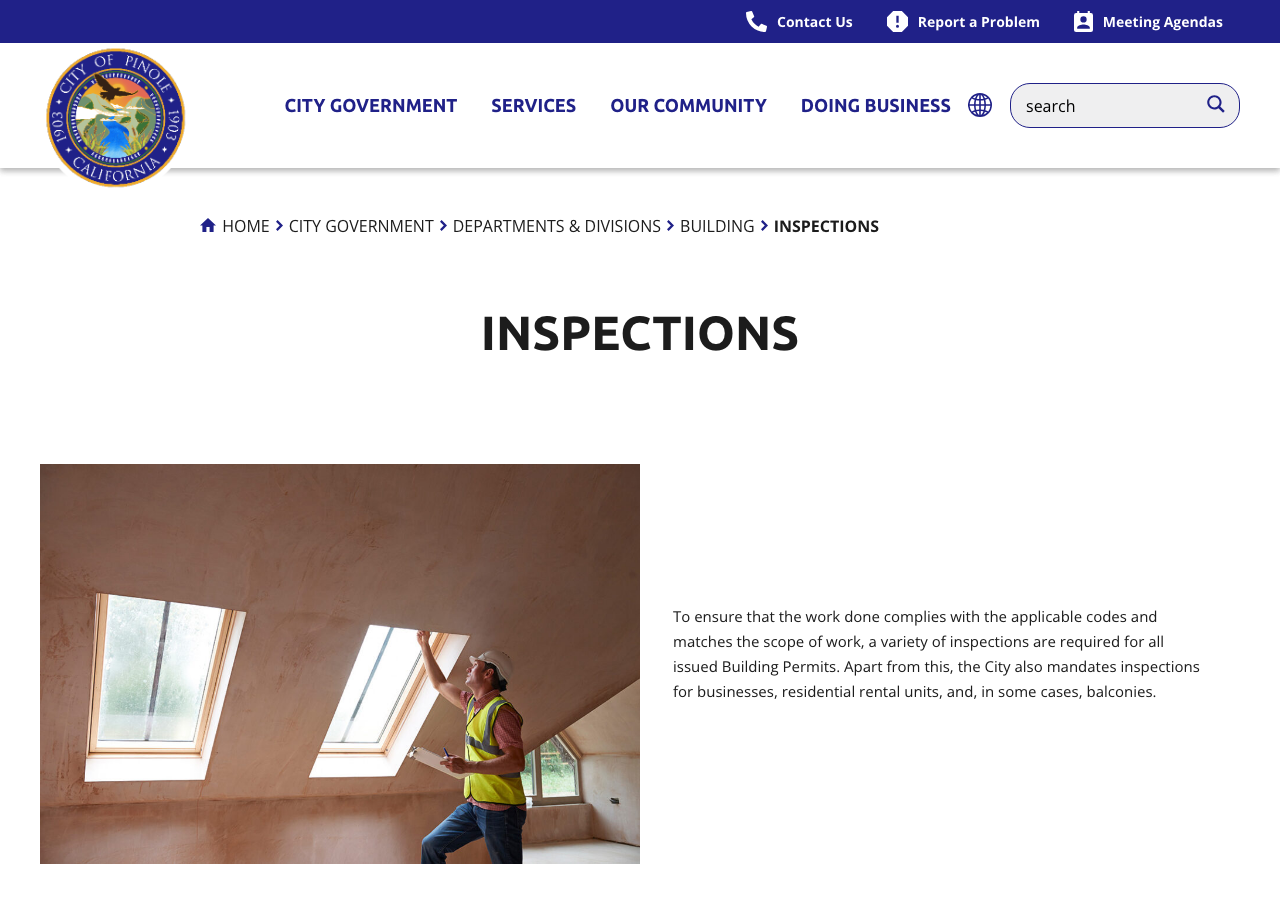

• How is an inspection booked? Portal (eTRAKiT) or phone 88% · department page
• How much notice is required? 24 hours (business-day) notice for standard building-permit inspections 88% · department page
• Are same-day or AM/PM windows offered? AM (8:00am-12:00pm) and PM (1:00pm-3:30pm) windows offered Monday-Thursday; no Friday construction inspections; requested window is not guaranteed due to volume. 86% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 88% · municipal code
• If delegated, to whom? N/A for the standard residential path -- the City's own Building Division performs the inspection. Con Fire receives only the Photovoltaic Notification Form for dispatch-safety purposes and does not run a documented residential field inspection. 78% · fire agency form

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? A single, consolidated final inspection by the Building Division; no separate rough-in/mid-roof stage is codified for the expedited category. 86% · municipal code
• Is a rough-in or mid-roof inspection required? No 80% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• What must be on site at inspection? Approved plans and permits, the inspection card, manufacturer installation instructions, and (for roof access) an OSHA-compliant extension ladder extending at least 3 feet above the roofline, rated for a minimum 250 lbs, and firmly secured. 88% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? A passed 'Final' inspection sign-off on the building permit (no separate 'green tag' or CO terminology found for single-family solar work). 72% · department page
• Who notifies the utility for PTO? Installer/Applicant 74% · utility DG manual
• Is there a re-inspection fee? $99 (2nd re-inspection or more); a separate Missed Inspection Fee of $97 applies for late cancellations. The first re-inspection is included free in the permit fee. 90% · fee schedule
• How are corrections issued and cleared? For expedited applications, a written correction notice detailing all deficiencies is sent to the applicant for resubmission (PMC 15.56.060.D). Generally, corrections must be completed before a re-inspection is scheduled, per the City's Re-Inspection Policy FAQ. 76% · department page
