City of Pismo Beach

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · permit application form
• Is a permit required for a residential rooftop PV system? Yes 95% · municipal code (adopting ordinance)
• Is there a separate electrical permit, or is it combined? Combined 75% · permit application form
• Is a HOA or architectural approval required first? No 90% · municipal code
• Is a wind or windstorm certification required? No separate wind/windstorm certification is required as a stand-alone document; instead, the Submittal Requirements handout lets an applicant self-verify against fixed ASCE 7-10 site assumptions (zero snow load, wind exposure category, and hill-slope conditions) to qualify for the structural exemption, or submit full structural calculations if those assumptions are not met. 60% · department checklist
• Is a Specific Use Permit or Council approval ever required? Conditionally -- MMC 15.12.010(C)(5) lets the Building Official require a use permit under other Municipal Code provisions only if, based on substantial evidence, the proposed system 'could have a specific, adverse impact upon the public health and safety'; otherwise no Council/use-permit approval is required. 85% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating or 30 kW thermal, for the AB 2188 expedited/nondiscretionary path (one- or two-family dwellings only); larger systems fall outside this codified definition and would need standard (non-expedited) review. 95% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 85% · permit application form
• Must the contractor be registered with this authority before applying? Yes 55% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 85% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Completed Eligibility Checklist; electrical plans (either the 'PV3 Standard Plan String'/'PV4 Standard Plan MicroInv' or own plans complying with the City's 'Photo Voltaic System Requirements -- AB 2188' handout); roof plan showing panel layout plus fire-safety items (roof access point, access pathways, fire classification, label locations); structural compliance documentation (either a site-assumption exemption declaration re: snow/wind zone, or own structural plans/calcs); completed Solar PV Permit Application. 92% · department checklist
• How many copies, and in what format? Electronic only, emailed to permits@pismobeach.org as PDF. Minimum sheet size 11"x17", maximum 24"x36" (or up to four 8.5"x11" sheets if all information fits). 88% · department handout
• Is a site plan required, and what must it show? Yes -- a complete site/roof plan showing property lines and easements (north arrow), existing structures with dimensions, location of proposed work, height/distance from the mounting structure, roof framing members affected, and Fire Safety items: roof access points, code-compliant access pathways, PV fire classification, and label locations. 92% · department handout
• Is a one-line / three-line diagram required? Yes 92% · department handout
• Are string and conductor calculations required? Yes 72% · department handout
• Is a structural PE stamp required, and at what threshold? Structural documentation is only exempt from a full calculation package if the site meets specific ASCE 7-10 assumptions (zero snow load, not in Wind Exposure D, and standard/special wind-region conditions depending on exposure category); outside those, the applicant must submit project-specific structural calculations, framing plan/details, and racking-system product evaluation/design documentation. 68% · department checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? SolarAPP+ (solarapp.nrel.gov) for automated plan review, then the City's CitizenServe Public Portal (citizenserve.com/Portal/?installationid=103) for permit application, payment, and issuance. 90% · department page
• Can the whole application be completed online? Yes 75% · department page
• What does a residential solar permit cost? $450.00 flat for single-family residential up to 15 kW, plus $14.62 per additional kW above 15 kW 95% · fee schedule
• How is the fee calculated? Tiered 88% · fee schedule
• Is there a separate plan-check fee? No distinct 'Solar Plan Check' line was found; the Photovoltaic System fee sits under 'Equipment Fees Electrical' with its own flat/per-kW figure, separate from the Building Permit Fees' valuation-based 'Plan Review Fee (% of BMEP)' line, but there is also a generic 'Plan Review -- Hourly rate' row under Electrical Equipment Fees whose applicability to the solar line is not stated either way. 50% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 2 business days (goal, not guaranteed) 85% · department handout
• How long is an issued permit valid before it expires? The City's own Permit Process flowchart states an inspection must be obtained 'within 1 year of issuance' or the permit lapses; the underlying (unamended) base 2022 CBC Section 105.5 standard of 180 days to commence/resume work was not itself locally amended per the Construction Codes and Amendments summary, so both figures should be read together. 65% · department process chart
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric) 88% · fee schedule
• Where does the utility sit in the sequence? Parallel / No dependency 68% · municipal code

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 78% · department page
• Which building code edition is in force? 2025 California Building Code (Volumes 1 and 2), effective January 1, 2026 98% · department page
• Which fire code edition is in force? 2022 California Fire Code, effective January 1, 2023 (adopted by Ordinance No. 0-2022-008) 72% · municipal code (adopting ordinance)
• Are there local amendments to any of the above? Yes 92% · municipal code
• What is the installation judged against? The 2025 California Building/Residential/Electrical Codes as locally amended (MMC Title 15), plus the City's codified small-rooftop-solar ordinance (MMC 15.12.010) and its own Eligibility Checklist / Solar PV Standard Plan handouts, which in turn are required by ordinance to 'substantially conform' to the state's California Solar Permitting Guidebook. 85% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? The City requires 'clear access pathways' and a roof diagram showing them, but does not restate numeric ridge-setback/pathway dimensions itself -- it points applicants to 'examples of clear path access pathways...available in the State Fire Marshal Solar PV Installation Guide' (linked by URL) rather than reprinting the figures. 72% · department handout

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? No Pismo Beach document found cites NEC/CEC §690.12 by number or uses the term 'rapid shutdown.' The City's own 'Solar PV Standard Plan -- Simplified' cites only CEC 690.5(C), 690.17, 690.35(F), 690.53, 690.54 and 705.12 for its required markings, all pre-690.12-era citations. Rapid shutdown legally still applies as part of the base 2023-NEC-derived 2025 CEC the City has adopted, but the City's own PV-specific guidance materials do not reflect or cite it. 70% · department design standard

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? Per the City's 'Solar PV Standard Plan': (1) 'WARNING -- INVERTER OUTPUT CONNECTION; DO NOT RELOCATE THIS OVERCURRENT DEVICE' (CEC 705.12(D)(7)); (2) 'WARNING -- DUAL POWER SOURCES...SECOND SOURCE IS PHOTOVOLTAIC SYSTEM' with rated AC current/voltage (CEC 690.54 & 705.12(D)(4)); (3) 'PV SYSTEM AC DISCONNECT' rating placard (CEC 690.54); (4) 'WARNING -- ELECTRIC SHOCK HAZARD...DC CONDUCTORS...UNGROUNDED' (CEC 690.35(F), ungrounded systems only); (5) 'WARNING: PHOTOVOLTAIC POWER SOURCE' on junction/combiner boxes and conduit every 10 feet (CRC R331.2 / CFC 605.11.1); (6) 'WARNING -- ELECTRIC SHOCK HAZARD, IF A GROUND FAULT IS INDICATED...' (CEC 690.5(C)); (7) 'WARNING -- ELECTRIC SHOCK HAZARD, DO NOT TOUCH TERMINALS' (CEC 690.17); (8) 'PV SYSTEM DC DISCONNECT' rating placard (CEC 690.53); plus a CEC 705.12 permanent power-source directory/plaque. 92% · department design standard
• Does the authority specify placard wording of its own? Yes 92% · department design standard
• Does it specify letter height, colour or material? A phenolic plaque with contrasting colors between text and background is recommended to meet the code's permanency intent; no fixed type size is mandated, but the document states '20 point (3/8") should be considered the minimum,' citing ANSI Z535.4 guidelines for safety sign/label design. 85% · department design standard
• Is a site plan / facility map placard required, and what must it show? Yes -- a roof-layout diagram is required showing all panels/modules, clear access pathways, and the approximate locations of electrical disconnecting means and roof access points; CEC 705.12 additionally requires a permanent plaque/directory denoting all electric power sources on the premises. 82% · department checklist
• Where must the labels be placed? Per the Standard Plan diagram: at the inverter output overcurrent device; at the PV AC and DC disconnects; on junction/combiner boxes and conduit runs (repeated every 10 feet); and a permanent power-source directory/plaque at the main service panel/point of interconnection. 78% · department design standard

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Are batteries permitted, and under what conditions? Batteries are excluded from the expedited/SolarAPP+ review path -- the Eligibility Checklist requires the system be 'utility interactive and will not utilize battery storage' to qualify -- but battery storage is otherwise permitted under standard (non-expedited) review, and the City's current fee schedule carries its own 'Storage Battery' fee line. 82% · department checklist
• Is there a separate ESS permit or inspection? No distinct standalone 'ESS Permit' type was identified -- Storage Battery is priced as its own line item under the same Electrical Equipment Fees table as the Photovoltaic System fee, suggesting it is processed as part of the same building/electrical permit rather than a separate permit type. 55% · fee schedule
• Is there a local rule on service upgrades or busbar sizing? For the expedited path, the PV system must interconnect to a single-phase, nominal 120/240V AC service panel with a busbar rating of 225 A or less, connected to the load side of the utility distribution equipment; an electrical service change or upgrade performed under the same permit disqualifies the project from the expedited process (it must go through standard review instead). 85% · department checklist
• Is a specific mounting system or attachment spacing required? For the expedited path, solar array/module components must not project more than 10 inches above the roof surface, measured at right angles to the roof; beyond that, or for any non-standard mounting, the project falls out of the expedited process and needs project-specific structural documentation (racking manufacturer data, attachment method, max allowable weight). 82% · department checklist

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

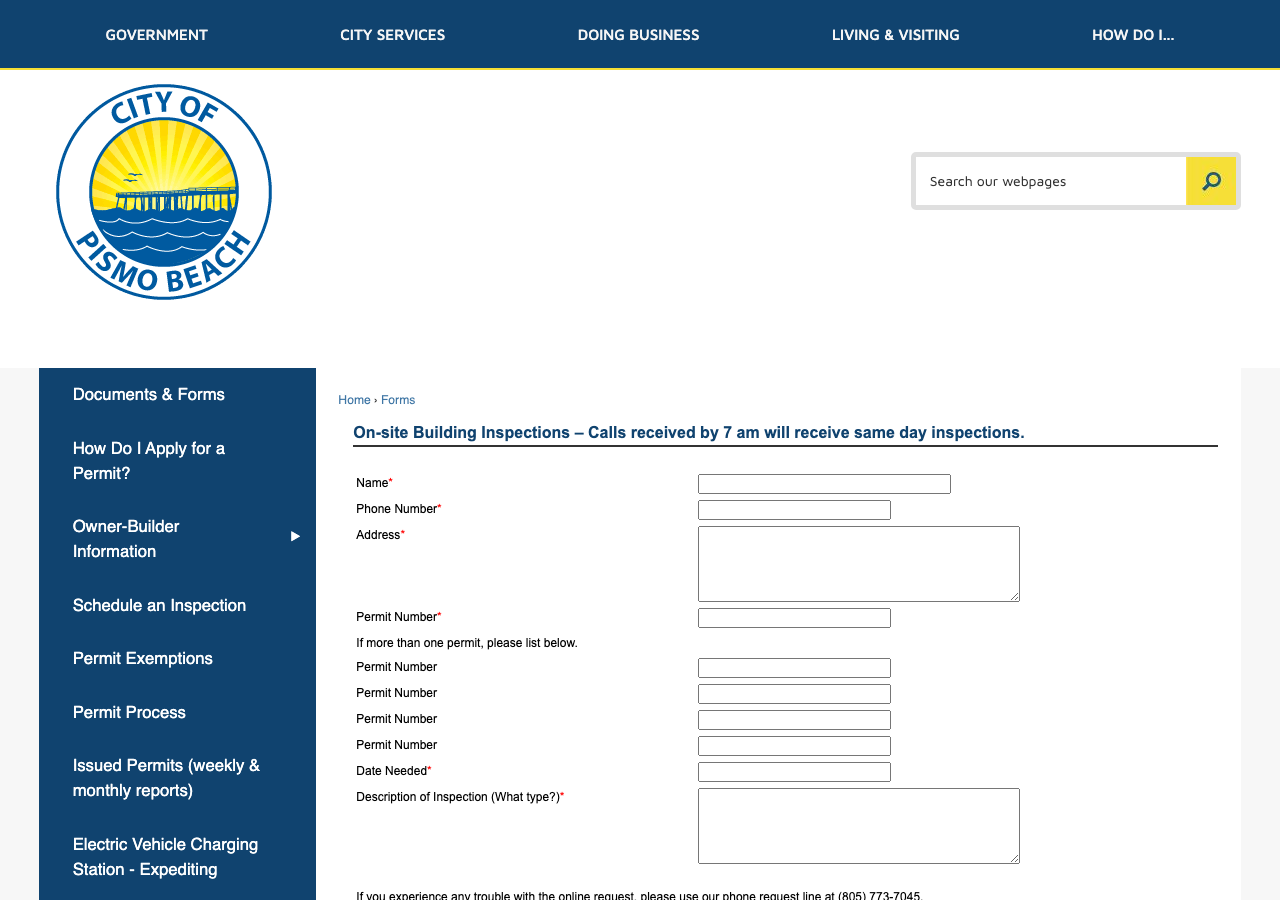

• How is an inspection booked? Phone 78% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 78% · municipal code
• If delegated, to whom? Not delegated to an outside agency. If the conditional MMC 15.12.010(D)(1) trigger applies (no inter-agency inspection agreement), a separate fire inspection would be performed by the City's own Fire Prevention Bureau/Fire Chief (fire code official under MMC 8.04.020) -- itself a City department, just organizationally distinct from the Building Division. 60% · municipal code

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? Standard sequence: application submitted to the Public Portal -> plan-review payment via portal -> routed to all necessary Departments -> corrections cycle if needed -> final fees paid via portal -> Building Permit issued -> inspection obtained. For systems eligible for expedited review, MMC 15.12.010(D)(1) limits this to a single inspection performed by the Building Official. 78% · department process chart
• Is a rough-in or mid-roof inspection required? No 85% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 70% · department checklist
• What must be on site at inspection? The printed Construction Permit must be available on-site for the Inspector. 85% · department page

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final inspection sign-off (approved permit card); no Pismo Beach document specifically calls for a new Certificate of Occupancy for a PV retrofit on an existing dwelling. 50% · municipal code
• How are corrections issued and cleared? If a submittal is deficient, the City returns a correction list to the applicant, who submits revised plans; the project is then re-routed through department review before approval. 78% · department process chart
