City of Placentia

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 92% · department page
• What does this authority permit itself, and what does it delegate? Both (Building + Electrical) via Development Services Building & Safety Division; Fire only when its own commercial/multifamily/hazard-trigger checklist applies — PFLSD is the City's own department, not delegated to OCFA or the County. 85% · department checklist
• Is a permit required for a residential rooftop PV system? Yes 97% · department page
• Is there a separate electrical permit, or is it combined? Combined 65% · fee schedule
• Is a HOA or architectural approval required first? No dedicated HOA/architectural-approval step is imposed by the City itself; the City's own aesthetic review (visibility from neighboring structures/streets, landscape shading, alternative groupings on request) is folded into the Development Services plan-check under PMC 20.48.060, and California Civil Code §714 (Solar Rights Act) statutorily limits any HOA's ability to block or unreasonably restrict solar. 55% · ordinance text reproduced on department page
• Is there a historic-district review? Not solar-specific — the City does operate a historic 'Certificate of Appropriateness' review (Major $596 / Minor $60) for its Old Town Placentia historic/revitalization area, per the Planning Fees section of the Master Fee Schedule, but no document ties rooftop PV to that review. 50% · fee schedule
• Is a wind or windstorm certification required? No 55% · fee schedule (absence)
• Is a Specific Use Permit or Council approval ever required? No CUP/Council-approval requirement found for a standard residential rooftop PV system; the process described is administrative Development Services plan-check only. 50% · department page

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · department page
• Must the contractor be registered with this authority before applying? Yes 85% · department page
• Is a homeowner permitted to self-install and self-permit? Yes 80% · department page

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Per the Photovoltaic System Submittal Requirements: 2 sets of structural calcs (wet-stamped/signed, CA engineer); 2 sets of plans (wet-stamped/signed, CA engineer or architect) showing property lines, unit/roof orientation, north arrow, proposed collector location + method of installation, a sample/depiction of the collector, professionally drawn construction details/elevations/attachments (or one manufacturer's schematic if all units are one typical design), calculations verifying number/area of collectors, photos of proposed location and its visibility from neighbors/street, and any shading landscape. Plus 2 sets of Title 24 energy calculations. 90% · published checklist
• How many copies, and in what format? 2 sets of structural calcs + 2 sets of plans, wet-stamped and wet-signed (not digital signature) by a CA-licensed engineer/architect; solar and patio-cover residential plans may be printed on 11x17 as long as legible (other residential/commercial plans need 24x36). 90% · published checklist
• Is a site plan required, and what must it show? Yes — a dimensioned, wet-stamped site/plot plan showing property lines, structure/unit locations with roof direction and pitch, north arrow, proposed PV location and mounting method, and visibility from neighboring structures/public streets (via required photos), plus any shading landscape material. 90% · published checklist
• Is a one-line / three-line diagram required? Not literally named, but functionally required — the checklist calls for 'professionally drawn construction details drawn to scale...clearly showing all elevations, assemblies, attachments to the roof structures' or a manufacturer's schematic diagram; the term 'one-line diagram' does not appear. 55% · published checklist
• Are string and conductor calculations required? No dedicated string/conductor sizing calculation is named in the published checklist — only structural calculations and 'calculations verifying the number and/or area of solar collector(s) required' are specified. 60% · published checklist
• Is a structural PE stamp required, and at what threshold? Yes, required for every residential PV installation regardless of size — 2 sets of structural calculations wet-stamped/wet-signed by a CA-licensed engineer; no minimum-size threshold is stated. 90% · published checklist
• Is an electrical PE stamp required, and at what threshold? No electrical PE stamp requirement is stated; only the structural calcs/plans require an engineer or architect stamp. 55% · published checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

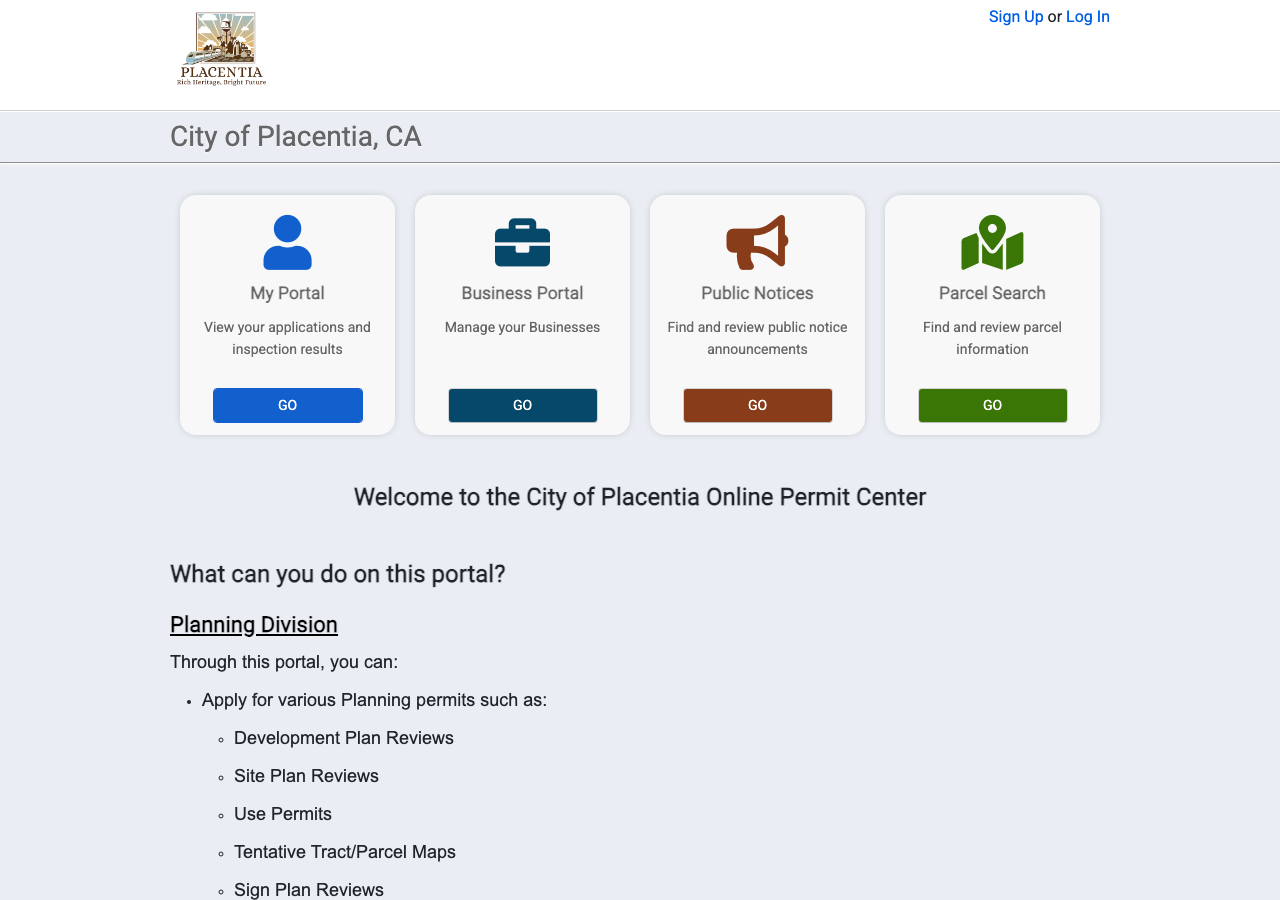

• Which permit portal does this authority use? SmartGov Public Portal by Granicus, at ci-placentia-ca.smartgovcommunity.com/Public/Home 95% · portal landing page
• Can the whole application be completed online? No — the portal is explicitly in beta; the City asks applicants to contact the Development Services Department directly before attempting to submit applications through it, and warns that displayed portal fees are currently wrong (still showing pre-7/1/2026 rates). 80% · portal landing page
• What does a residential solar permit cost? $450 flat for residential solar 15kW (AC) or less; $500 + $15/kW over 15kW for larger residential systems 95% · fee schedule
• How is the fee calculated? Tiered 90% · fee schedule
• Is there a separate plan-check fee? No distinct 'plan check' fee line for solar was found; a separate 'Inspection of Solar Panel System' fee of $115 exists (item 107), but this reads as an inspection fee, not a plan-check fee, and the base Solar Panels permit fee (item 100/101) appears to bundle plan review, permit issuance and inspection the way other simple over-the-counter trades are billed. 55% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days (unamended CBC/IBC default for both permit issuance and gaps between required inspections) 50% · inference from unamended code default
• Which utility handles interconnection here? Southern California Edison (SCE) — no Community Choice Aggregator 80% · department page

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 75% · department page + state code fact

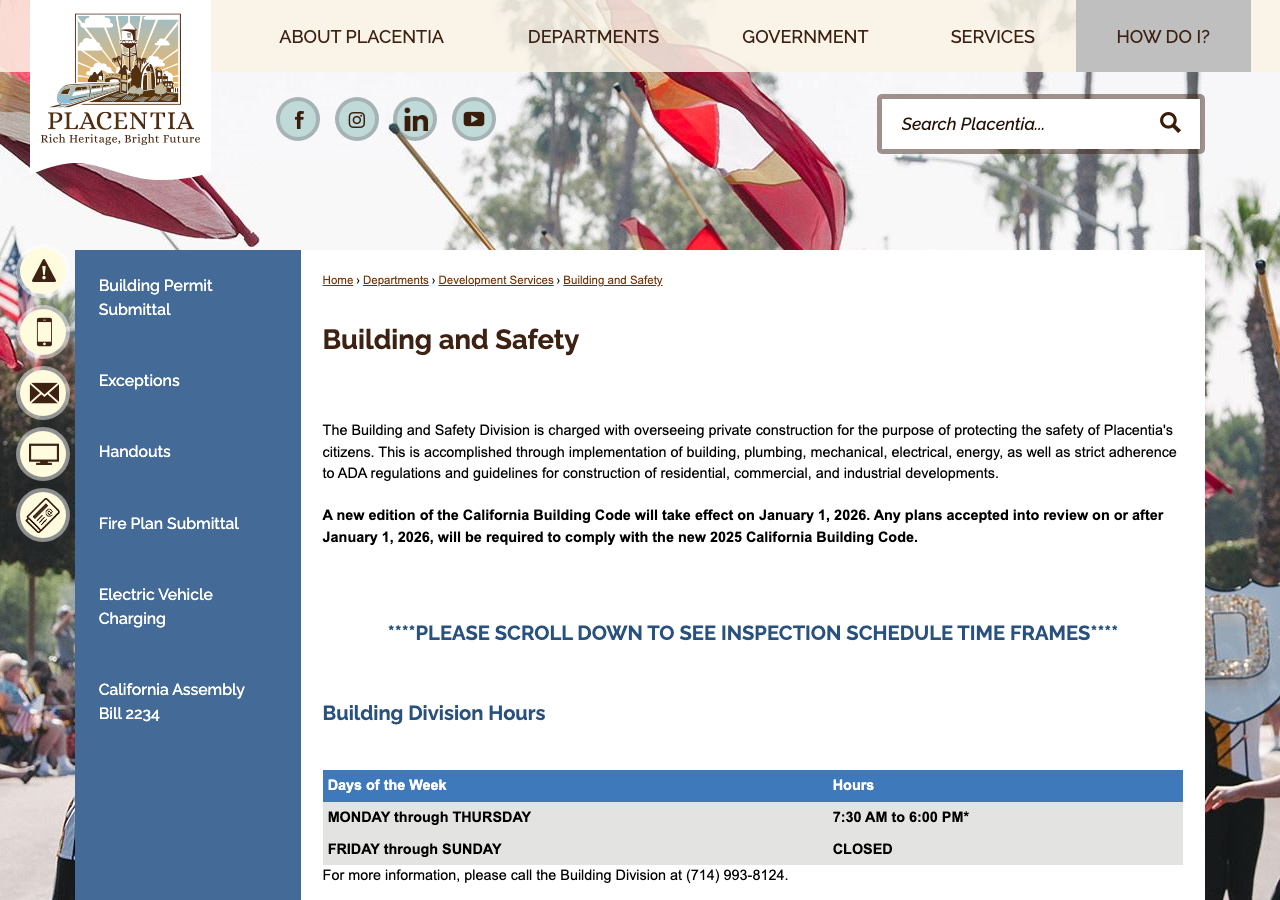

• Which building code edition is in force? 2025 California Building Code — required for any plans accepted into review on/after January 1, 2026 95% · department page
• Which fire code edition is in force? 2025 California Fire Code, based on the 2024 International Fire Code — adopted/amended by Ordinance No. O-2025-11 (Chapter 18.04 of the Placentia Municipal Code) 95% · adopting ordinance
• Are there local amendments to any of the above? Yes for the Fire Code — Ord. O-2025-11 makes numerous chapter-by-chapter local amendments (e.g., added Section 504.5 escape-window ladder-pad setback formula, revised violation penalties, local fee chapter) — but it explicitly leaves Chapter 6 (Building Services and Systems) and Chapter 12 (Energy Systems, which covers solar PV) 'adopted in its entirety as amended by the SFM' with NO Placentia-specific amendment. Whether the Building Code itself carries local amendments could not be verified (ecode360 blocked). 70% · adopting ordinance
• What is the installation judged against? The 2025 California Building Code/California Electrical Code (Title 24), effective 1 Jan 2026, plus PMC 20.48.060 (solar collector siting/aesthetics) and, where triggered, the 2025 California Fire Code Chapter 12 (Energy Systems, adopted without local amendment). 75% · department page + ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No Placentia-specific ridge-setback/pathway figure was found; the City's fire ordinance (O-2025-11) states that Chapter 12 (Energy Systems) of the 2025 CFC is 'adopted in its entirety as amended by the [State Fire Marshal]' with no local amendment identified, so the state-adopted CFC pathway/setback provisions apply unmodified. 55% · adopting ordinance

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Required, per NEC 690.12 as incorporated by the 2023-NEC-based 2025 California Electrical Code (statewide, effective 1 Jan 2026); no local amendment or exemption was found. 60% · department page + state code fact

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? No Placentia-specific placard list is published for PV service equipment; defaults to the state-adopted 2025 CFC Chapter 12 / NEC 690 and 705 marking requirements (unmodified locally). 55% · adopting ordinance (absence) + site search
• Does the authority specify placard wording of its own? No 65% · department page (absence, controlled search)
• Does it specify letter height, colour or material? Not specified by the authority. 45% · department page (absence)
• Is a site plan / facility map placard required, and what must it show? No local supplement found to the default NEC 705.10 / CFC Chapter 12 directory/plaque requirement. 50% · department page (absence)
• Where must the labels be placed? Not specified locally; defaults to standard NEC placement requirements at the service/PV disconnect. 45% · department page (absence)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? No dedicated City-maintained approved-equipment list was found; the general California requirement is CEC/UL-listed equipment via the adopted electrical code. 50% · department page (absence)
• Are batteries permitted, and under what conditions? Yes, batteries are permitted. Fire's own Commercial Plan Submittal Checklist only requires a Special Equipment Plan for 'battery back-up/charging systems' above 50 gal. electrolyte or 1,000 lb. lithium-ion — thresholds well above a typical residential home-battery (e.g. Powerwall-class) installation, implying ordinary residential battery storage does not trigger fire plan review. The Building fee schedule bills backup batteries under a generic electrical line ('Miscellaneous Apparatus, Conduits and Conductors (EV Charger, Backup Batteries)', $87). 65% · department checklist + fee schedule
• Is there a separate ESS permit or inspection? No dedicated residential ESS building permit/inspection distinct from the standard electrical permit was found. The Fire Prevention Fees section of the Master Fee Schedule does carry generic 'Energy Storage Systems' operational ($289) and construction ($481) permit lines under a Chapter-1-style CFC list, but — per the brief's known pattern — these read as generically scoped to any occupancy and their residential applicability is not resolved by the document itself. 60% · fee schedule

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone 85% · department page
• How much notice is required? At least 1 business day — the City does not schedule same-day inspections; separately, a minimum 24 hours' notice is required to CANCEL an already-booked inspection (or a $123 fee applies for same-day cancellations/no-shows). 70% · department page
• Are same-day or AM/PM windows offered? No distinct AM/PM windows are offered; inspections run within a single Monday-Thursday 9:00 AM-5:00 PM block, with estimated time frames published daily and subject to change. 65% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · department page
• If delegated, to whom? N/A — not delegated 80% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? No multi-stage PV-specific inspection sequence is published; the fee schedule's single 'Inspection of Solar Panel System' line item ($115) implies one consolidated inspection event rather than a published rough-in/final sequence. 55% · fee schedule (absence)
• Is a rough-in or mid-roof inspection required? No specific rough-in/mid-roof inspection requirement for PV was found. 50% · fee schedule (absence)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No 60% · site search (absence)
• What must be on site at inspection? For Fire-permitted work specifically, the Fire Plan Examination Submission Requirements state the construction permit card and a hard copy of the accepted plans 'shall remain on the construction site at all times' and be made available to the fire inspector on request (failure results in inspection cancellation). No equivalent explicit statement was found for Building-only PV jobs, though the Building fee schedule's 'Duplicate Job Card' fee ($39) implies a job card is normally posted on site. 60% · department policy + fee schedule

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Is there a re-inspection fee? $123 (Building Division re-inspection/same-day cancellation/no-show); $193 (Fire Prevention re-inspection) 95% · fee schedule
• How are corrections issued and cleared? For Fire-permitted work: a correction letter is emailed to the applicant; on resubmission the contractor must cloud the changes on the plans, mark a delta revision, and provide a written letter of response. No equivalent Building Division corrections process is separately published for standard PV jobs beyond calling the Building Division. 65% · department policy
