A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page + municipal code
• What does this authority permit itself, and what does it delegate? Both (Building and Electrical, one Building Division permit); Fire code is city-adopted but fire safety services/plan review are contracted to El Dorado County Fire Protection District 88% · department page + municipal code
• Is a permit required for a residential rooftop PV system? Yes 97% · department page + municipal code
• Is there a separate electrical permit, or is it combined? Combined 78% · fee schedule
• Is a HOA or architectural approval required first? No 92% · municipal code
• Is there a historic-district review? Yes, a discretionary Historic District design-review mechanism exists in the zoning code, but no solar-specific carve-out (or exemption) for it was found. PMC 10-4-10 creates a mapped 'Historical District' within which 'all buildings which shall be hereinafter constructed or altered as to their exterior appearance ... shall, as to their exterior architecture visible from the street, conform to the historical criteria.' The Planning Division's own fee schedule prices a 'Historic District Review' at $400. This sits in tension with PMC 4-12-6(A)'s own commitment to an 'administrative, nondiscretionary review process' for eligible small residential rooftop solar, and with state law (Gov. Code 65850.5); the city has not published anything reconciling the two. 70% · municipal code (zoning) + fee schedule
• Is a wind or windstorm certification required? No -- there is no California windstorm-certification regime comparable to a coastal-state TDI product-approval system, and no Placerville-specific wind-design certification requirement was found in the Municipal Code amendments (PMC 4-1-5) or PMC Chapter 4-12. 60% · municipal code (absence)
• Is a Specific Use Permit or Council approval ever required? No -- PMC 4-12-6(A) commits the city to 'an administrative, nondiscretionary review process to expedite approval of small residential rooftop solar energy systems,' issuing a permit rather than a discretionary Use Permit or Council approval. The Building Official may only decline the expedited path (appealable to the Development Services Director, not Council) on a written finding of 'a specific, adverse impact upon the public health and safety.' Generic 'Conditional Use Permit -- Major/Minor' fee lines exist in the Planning Division's fee schedule but nothing found ties them to solar. 85% · municipal code
• Is there a system-size cap on residential generation? 10 kW AC nameplate rating or 30 kW thermal -- the AB 2188-era statutory threshold that defines a 'small residential rooftop solar energy system' eligible for the city's expedited/nondiscretionary review path, per PMC 4-12-1. This is a gate on the STREAMLINED path, not an outright prohibition on larger systems: PMC 4-12-7 explicitly contemplates a fee 'above ten (10) kilowatts,' implying larger systems are still permitted, just outside the fast-track/standard-installation definition. 90% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 55% · municipal code (absence) + general CA practice
• Must the contractor be registered with this authority before applying? Yes 90% · department page (quoting municipal code)
• Is a homeowner permitted to self-install and self-permit? Yes 55% · department handout (absence) + general CA practice

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? General Plan Submittal Checklist items applicable to any building permit, including solar: wet-signed cover sheet (property address, APN, owner/contractor/business info, scope of work, WUI requirements, architect/engineer/designer info, sheet index, existing/new floor plan with north arrow, code study, type of construction, square footage, engineer's scale); 2 complete sets of plans plus 1 floor plan; complete electrical plans (main service, sub-panels, lighting, receptacles); elevations; and, per the checklist's own building-plans list, 'Solar equipment and roof layout' as a required plan sheet. No PV-specific supplemental checklist (of the kind other CA cities publish) was found on the live site -- the site's Building Division 'Forms and Handouts' toolbox lists only the general checklist above, plus a separate general Site Plan Requirements handout. 70% · published checklist
• How many copies, and in what format? 2 complete sets of plans plus 1 floor plan (with all rooms labeled) for a counter/paper submittal; drawing sheets 11x17 min. up to 36x42 max, all pages the same size. Electronic submittal is separately authorized by PMC 4-12-5(B): 'electronic submittal of the required permit application and documents by e-mail, the internet, or facsimile shall be made available to all small residential rooftop solar energy system permit applicants.' 68% · published checklist + municipal code
• Is a site plan required, and what must it show? Yes 80% · department handout
• Is a one-line / three-line diagram required? Yes 55% · published checklist (inference)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? OnCamino (Clariti Launch) portal, at app.oncamino.com/placerville_ca -- 'PV Solar' is one of the named quick-link application types alongside Reroof, HVAC and Water Heater. 92% · department page + portal landing page
• Can the whole application be completed online? Yes 70% · municipal code + portal
• What does a residential solar permit cost? $200 flat for a standard installation (per PMC 4-12-7's own cost-of-service figure, which reconciles exactly with the Joint Fee Schedule's $95 Plan Review + $105 Permit = $200 for 'Expedited PV Solar < 10kW'); capped at $500 plus $15/kW for each kW above 10 kW for a system that is 'more than a standard installation.' Payment methods/surcharges not published. 90% · fee schedule + municipal code
• How is the fee calculated? Tiered 88% · fee schedule + municipal code
• Is there a separate plan-check fee? Yes 85% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? 3 business days 92% · municipal code
• Which utility handles interconnection here? PG&E (Pacific Gas & Electric Company) 95% · California Energy Commission GIS, point query
• Where does the utility sit in the sequence? Parallel, with a hard dependency at the end 85% · utility interconnection handbook

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC (embedded in the 2025 California Electrical Code, Title 24 Part 3) 78% · municipal code (adopting ordinance)
• Which building code edition is in force? 2025 California Building Code / California Residential Code (Title 24 Parts 2 and 2.5) 78% · municipal code (adopting ordinance)
• Which fire code edition is in force? 2025 California Fire Code (Title 24 Part 9), adopted by the city (PMC 4-1-4) but plan-reviewed/enforced under contract by El Dorado County Fire Protection District, whose Board ratified its own 2025 CFC amendment ordinance (2025-01/ECF). 78% · municipal code + fire district ordinance
• Are there local amendments to any of the above? Yes 90% · municipal code
• What is the installation judged against? The 2025 CBC/CRC/CEC/CFC as locally amended by PMC 4-1-5 (roof covering, snow load), PMC Chapter 4-12's own solar-specific submittal/review/fee requirements, and -- on the fire-life-safety side -- El Dorado County Fire Protection District's own 'Solar Photovoltaic Installation Standard' (Std. #H-005, effective 8-20-2009) for pathway, setback and marking requirements. 75% · fire district standard + municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? 3-foot-wide clear access pathway(s) from eave to ridge on each roof slope with modules (one pathway for a hip roof, two for a single-ridge roof); modules no closer than 1.5 ft to a hip or valley if placed on both sides of it; modules located no higher than 3 ft below the ridge (for smoke-ventilation access). Ground-mounted, freestanding PV arrays are exempt from these setbacks but require a 10-ft clear brush area instead. 78% · fire district standard

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under NEC 690.12 as part of the currently-adopted CEC (2023 NEC basis, via PMC 4-1-4's evergreen Title 24 Part 3 reference). 82% · fire district standard (gap) + municipal code (edition)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? From El Dorado County FPD's Std. #H-005: a marking on the main service disconnect breaker-panel cover reading 'CAUTION: SOLAR ELECTRIC SYSTEM,' and markings on all interior/exterior DC conduit, raceways, enclosures, cable assemblies and junction boxes reading 'CAUTION: SOLAR CIRCUIT' (placed every 10 ft, at turns, and above/below penetrations). No markings are required on the inverter. These are stated to be 'in addition to those required by the National Electrical Code' (i.e., on top of standard NEC 690/705 labeling). 80% · fire district standard
• Does the authority specify placard wording of its own? Yes 88% · fire district standard
• Does it specify letter height, colour or material? Yes -- minimum 3/8 inch letter height, all capital letters, Arial or similar non-bold font, red background with white lettering, reflective/weather-resistant material suitable for the environment (Std. #H-005 references UL 969 as the weather-rating standard for the marking material, though UL listing of the marking itself is not required). 88% · fire district standard
• Is a site plan / facility map placard required, and what must it show? Yes, but it is utility-driven rather than an AHJ requirement: PG&E's Distribution Interconnection Handbook requires signage AND a site map at the meter panel when the AC disconnect switch is more than 10 feet from the point of interconnection, showing (1) a north-direction arrow, (2) a plan view of the site, and (3) the generator's AC disconnect and PG&E electric meter locations. Neither the city nor EDC FPD's Std. #H-005 publishes a separate facility-map placard requirement of their own. 78% · utility interconnection handbook
• Does the UTILITY specify placards beyond the AHJ's? Yes, PG&E. Beyond the fire district's marking requirements, PG&E's own standards (Distribution Interconnection Handbook) require: PG&E-approved open/closed markings on the AC disconnect switch; the switch lockable in both positions with a standard 5/16-inch-shaft PG&E lock; the switch located 10 feet or less from PG&E's electric meter at the point of interconnection (or, if farther, the site-map/signage requirement in Q41). 85% · utility interconnection handbook
• Where must the labels be placed? Fire-district markings: on the outside cover of the main service breaker panel (main disconnect marking), and on DC conduit/raceways/enclosures/junction boxes at 10-ft intervals, turns, and above/below penetrations (Std. #H-005). Utility markings: on/at the AC disconnect switch itself, located within 10 ft of PG&E's meter or mapped from the meter panel if farther (PG&E DIH). The city's own documents do not add a placement rule beyond these. 78% · fire district standard + utility interconnection handbook

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? 10 feet or less from PG&E's electric meter at the point of interconnection, and easily visible from the meter; if located more than 10 feet away, PG&E requires signage and a map at the meter panel showing the AC disconnect and meter locations. 85% · utility interconnection handbook
• Are batteries permitted, and under what conditions? Permitted, with two consequences tied to the city's contracted fire district. (1) 'Battery storage' is explicitly named as requiring a City permit on the 'Projects that Require a Permit' page. (2) PMC 4-12-1's definition of 'STANDARD SOLAR INSTALLATION' -- the only pathway eligible for the 3-business-day expedited review under 4-12-6(A) -- expressly excludes systems with batteries: 'The system does not contain batteries, power optimizers and generators.' So a battery/ESS installation is routed to standard (non-expedited) building-permit review rather than the fast-track solar process. On the fire side, El Dorado County FPD's ratified 2025 CFC amendment (Ordinance 2025-01/ECF, Section 509.3 'Fire Control Room,' which would otherwise require solar rapid-shutoff switches, fire risers etc. to sit in a dedicated fire control room) carries an express exception for 'One- and two-family dwellings, manufactured homes or similar uses defined as either a Group R-3, R-3.1, or R-4 occupancy' -- i.e., ordinary houses are exempted from that fire-control-room requirement. 85% · municipal code + fire district ordinance
• Is there a separate ESS permit or inspection? No 55% · department page + fee schedule (absence)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

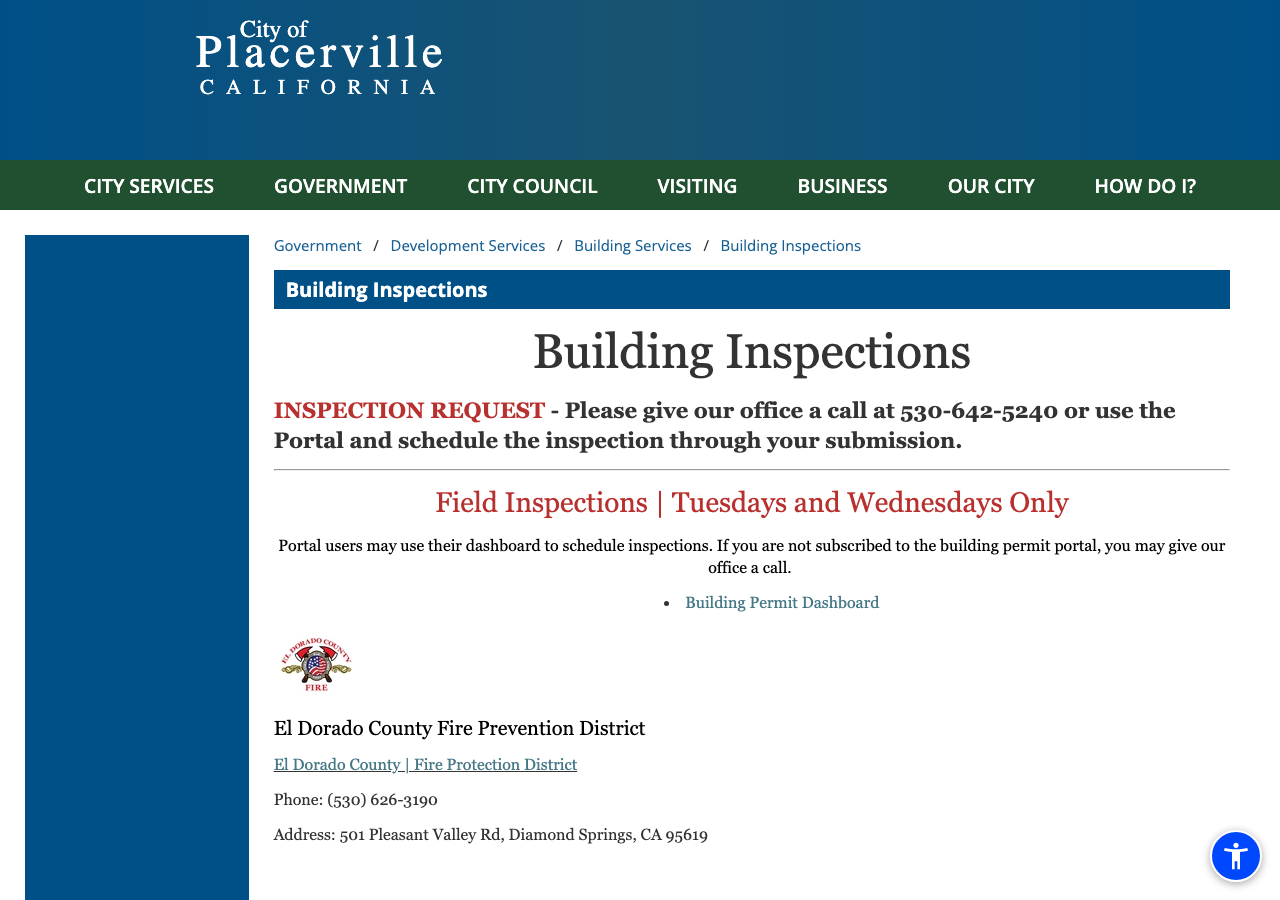

• How is an inspection booked? Portal or Phone 90% · department page
• How much notice is required? 2 business days 85% · municipal code
• Are same-day or AM/PM windows offered? PM window offered (four-hour), for expedited solar inspections 65% · municipal code (partially superseded by later practice -- flagged, not resolved)

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Delegated 72% · municipal code
• If delegated, to whom? El Dorado County Fire Protection District (contracted for fire safety and emergency services; whether its own inspectors separately inspect solar jobs is undetermined -- see Q52). 80% · department page

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For an expedited-eligible small residential rooftop solar system: only ONE inspection, performed by the Building Division. PMC 4-12-6(J): 'Only one inspection shall be required and performed by the building division for small residential rooftop solar energy systems eligible for expedited review.' A non-standard installation (larger than 10 kW, or with batteries -- see Q45/28) falls outside this and would follow the city's ordinary building-permit inspection sequence, which was not separately published. 85% · municipal code
• Is a rough-in or mid-roof inspection required? No 80% · municipal code (absence)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes, by the code's own mandate, though the current document could not be located on the live site. PMC 4-12-5(D)-(F) REQUIRES the Building Division to 'adopt a standard plan and checklist of all requirements with which small residential rooftop solar energy systems shall comply to be eligible for expedited review,' substantially conforming to the California Solar Permitting Guidebook, and requires 'an installation compliance checklist by the building official' to be 'checked and signed by the solar installer.' 65% · municipal code (duty) -- underlying document not independently located
• What must be on site at inspection? General building-inspection practice (not solar-specific): the approved set of plans available on site (physically or digitally); access to the areas where the permitted work is performed; the work fully complete and ready for inspection. The city's Inspection Instructions handout does not separately name a permit card, though PMC 4-12-6(F)/(J) implies an installer/company representative may be required to be present for the final solar inspection. 68% · department handout + municipal code
• Does the inspector verify labels and listings? Not explicitly stated by the city as an inspection-day requirement, but implied. PMC 4-12-5(F): 'An installation compliance checklist by the building official will be checked and signed by the solar installer as having met all the requirements applicable to the installation' -- which would include the marking/labeling requirements imposed by the fire district's Std. #H-005 and the NEC. No city document explicitly says the inspector checks equipment LISTINGS (e.g. UL marks) at final. 55% · municipal code (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (passed final inspection) 55% · department handout (inference)
• Who notifies the utility for PTO? Installer (industry-standard practice, not stated by the city) 50% · utility interconnection handbook (inference)
• Is there a re-inspection fee? $95 90% · fee schedule
• How are corrections issued and cleared? Two distinct mechanisms in Chapter 4-12: (1) for an incomplete APPLICATION, PMC 4-12-6(I) requires 'a written correction notice detailing all deficiencies in the application and any additional information or documentation required ... sent to the applicant for resubmission.' (2) For a FAILED INSPECTION, PMC 4-12-6(L): 'If a small residential rooftop solar energy system fails inspection, a subsequent inspection is authorized but need not conform to the requirements of this chapter' -- i.e., a re-inspection after failure is not bound by the 2-business-day scheduling promise or the single-inspection limit. 78% · municipal code
