City of Pleasant Hill

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

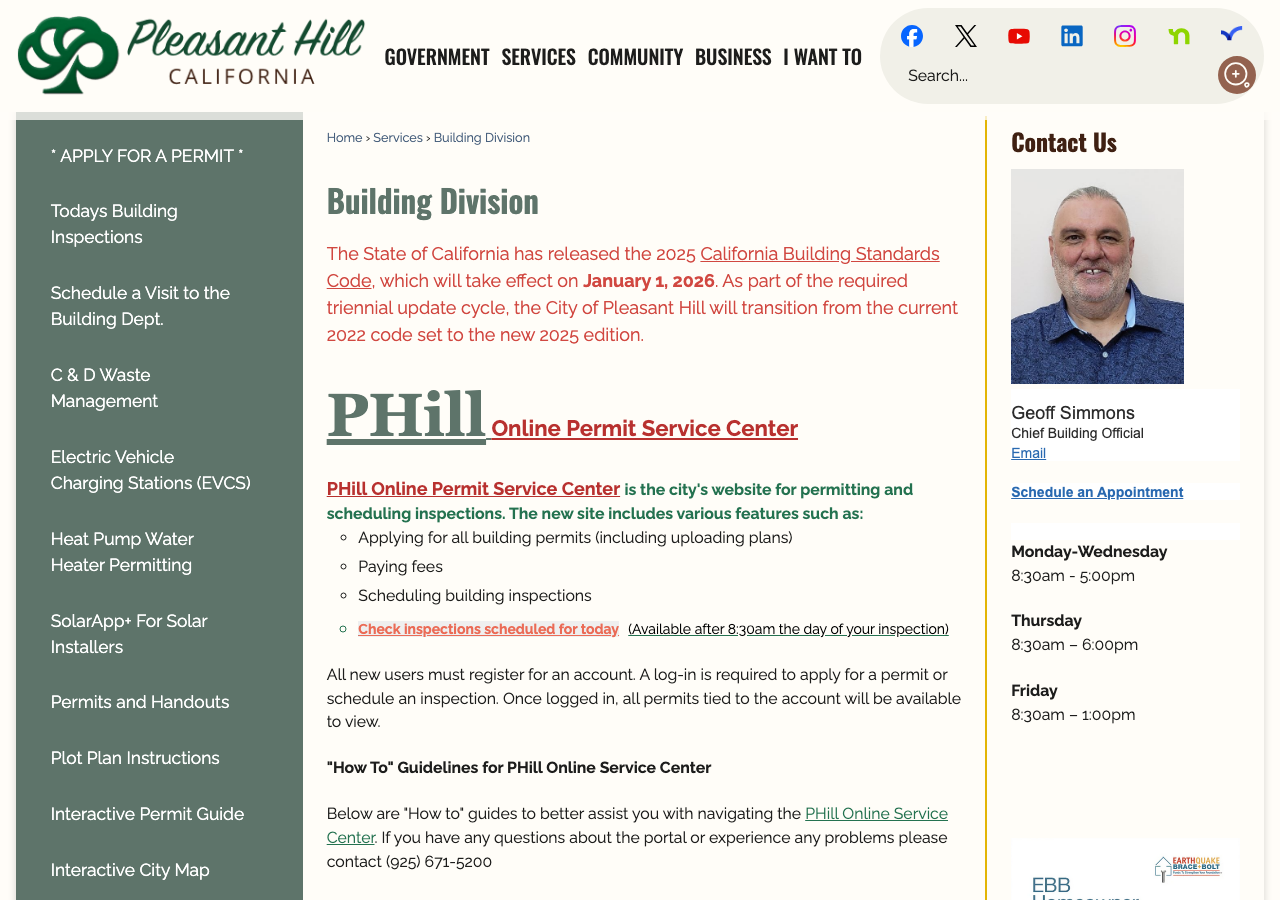

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 88% · fee schedule
• Is a permit required for a residential rooftop PV system? Yes 95% · fee schedule
• Is there a separate electrical permit, or is it combined? Combined 60% · fee schedule
• Is a HOA or architectural approval required first? No 85% · municipal code
• Is there a historic-district review? Conditional — only if the specific parcel is within a mapped Historic District or Cultural Resources overlay (PHMC 18.40.020); not a general requirement for all residential parcels. 70% · municipal code
• Is a wind or windstorm certification required? No 60% · department page (absence)
• Is a Specific Use Permit or Council approval ever required? No 65% · municipal code (absence)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Any contractor 60% · permit application form
• Must the contractor be registered with this authority before applying? Yes 75% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 85% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Site/plot plan showing setbacks and roof plan with drainage arrows; floor/electrical plan; the Residential Building Permit & Zoning Application (or SolarAPP+ automated submittal in lieu of it); contractor CSLB license and PH business license; for non-SolarAPP submittals, Con Fire's own 'Solar Application (PV)' review form is also processed. 75% · department checklist
• How many copies, and in what format? Electronic Plan Check (EPC) accepted in lieu of paper; application can be emailed to building@pleasanthillca.org or uploaded through the PHill Online Service Center; EPC does not expedite review. 70% · department page
• Is a site plan required, and what must it show? Yes — site/plot plan with setbacks, roof plan, and drainage arrows required for building permits generally; for PV specifically, Con Fire's own PV form additionally requires the plan to show pathway/setback compliance (CFC 1205) and DC conductor routing. 78% · department checklist
• Is a one-line / three-line diagram required? Yes 55% · department checklist

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

• Which permit portal does this authority use? PHill Online Permit Service Center (Tyler Technologies EnerGov) 95% · portal landing page
• Can the whole application be completed online? Yes 90% · department page
• What does a residential solar permit cost? $263 flat (listed as 'Residential (SolarAPP)'), OR a tiered schedule of $391 up to 15kW plus $15 per kW above 15kW appears in the immediately adjacent rows of the same table — the schedule's own layout is internally ambiguous about which applies to a standard residential system (see why). 55% · fee schedule
• How is the fee calculated? Tiered (Per kW appears to apply above a base tier) — but see q15 note on ambiguity; could also be read as Flat ($263). 50% · fee schedule
• Is there a separate plan-check fee? Yes 90% · fee schedule

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• How long is an issued permit valid before it expires? 180 days to commence work after issuance / 12 months without an approved inspection, per unamended 2025 CBC §105.5 (no local amendment exists — PHMC 14.05.040 'Amendments to the California Building Code' was repealed by Ord. 958 in 2022 and has not been re-enacted). 65% · municipal code
• Which utility handles interconnection here? PG&E (wires, interconnection, and PTO). MCE (Marin Clean Energy) is the default Community Choice Aggregator for electricity generation/billing only — it does not touch interconnection. 95% · city utility page
• Where does the utility sit in the sequence? After permit (Parallel processing allowed, but PTO is gated on the AHJ's final) 85% · utility tariff

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 85% · adopting ordinance
• Which building code edition is in force? 2025 California Building Code / California Residential Code (Title 24), adopted by PHMC 14.05.010 via Ord. 976, effective with the statewide 1 Jan 2026 triennial cycle start. 95% · adopting ordinance
• Which fire code edition is in force? 2025 California Fire Code, with local amendments per attached exhibits. 95% · adopting ordinance
• Are there local amendments to any of the above? Yes for the fire code (four attachments of CFC amendments plus a WUI code amendment); No current local amendments for the building code or electrical code chapters — both PHMC 14.05.040 (CBC amendments) and Chapter 14.20 (CA Electrical Code) are on the books as 'Repealed' with nothing re-enacted in their place. 90% · municipal code
• What is the installation judged against? 2025 CBC/CRC, 2025 CEC (2023 NEC), and 2025 CFC as adopted by PHMC 14.05, with Con Fire's rooftop-pathway/rapid-shutdown provisions under CFC Chapter 12 (§1205) applied unamended by the city. 85% · adopting ordinance

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Per CFC §1205 (unamended by the city): Group R-3 roofs need two 36-inch pathways from lowest eave to highest ridge on separate planes (one street/driveway side); other occupancies need a 6 ft (or 4 ft for small buildings) perimeter clearance; interior pathways at 150 ft intervals, 4 ft clear to skylights/hatches, and specific smoke-ventilation cutout patterns. 88% · fire district review form

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under NEC 690.12 (2023 NEC as adopted via the 2025 CEC). 85% · fire district review form

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? DC-circuit wiring/enclosure warning markings ('WARNING: PHOTOVOLTAIC POWER SOURCE'); rapid-shutdown permanent label at the service equipment; PG&E-required visible AC disconnect with open/closed position markings. 85% · fire district review form
• Does the authority specify placard wording of its own? Yes 85% · fire district review form
• Does it specify letter height, colour or material? Yes — DC markings: minimum 3/8 inch letters, white on red, weather-resistant reflective material. Rapid-shutdown label: first two lines uppercase, minimum 3/8 inch height, black on yellow. 85% · fire district review form
• Does the UTILITY specify placards beyond the AHJ's? Yes — PG&E requires a visible, manually-operated, lockable AC disconnect near the point of interconnection with markings/signage clearly indicating open and closed positions. 85% · utility tariff
• Where must the labels be placed? DC markings at: exposed raceways/cable trays, pull/junction box covers, unused conduit-body openings, every wiring section separated by enclosures/walls/floors, every 10 feet, and at all DC combiner/junction boxes. Rapid-shutdown label at the service equipment/point specified by NEC 690.56. AC disconnect marking at the visible disconnect near the point of interconnection (PG&E). 80% · fire district review form

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? AC disconnect must be visible, lockable/marked with clear open/closed positions, and reachable by Distribution Provider personnel per PG&E Rule 21 §H.1.d; the specific meter-proximity distance spec (if any) sits in PG&E's gated Greenbook document TD-2306M, which is not publicly downloadable. 55% · utility tariff (partial)
• Must equipment be on a specific approved list? Yes (general) 55% · adopting ordinance (inference)
• Are batteries permitted, and under what conditions? Yes, subject to Con Fire plan review — Battery Systems/Energy Storage plan review at a $944 minimum fee plus a separate $516 minimum UL9540A review fee, per Con Fire's current Engineering/Plan Review Fee Schedule (CCCFPD Ordinance 2026-07, adopted 12 May 2026, effective 13 Jul 2026). 90% · fire district fee ordinance
• Is there a separate ESS permit or inspection? Yes for batteries/ESS (separate Con Fire plan review + UL9540A review, see q45); No separate permit/inspection fee for standard rooftop PV beyond the city's own PV permit — Con Fire's role for standard PV is a no-fee 'Solar Photovoltaic Notification Form' (Eng. 026) that only feeds the dispatch system, plus (where a full plan review is triggered) Con Fire's own separate final PV inspection. 85% · fire district form
• Is a ground mount treated as a structure? Yes (by inference) 60% · municipal code (definitions)
• Is there a local rule on service upgrades or busbar sizing? No 80% · municipal code (absence)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Portal or Phone 85% · department page
• How much notice is required? 1 business day 80% · department page
• Are same-day or AM/PM windows offered? Yes — AM or PM window may be requested. 85% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 85% · department page
• If delegated, to whom? Not delegated for building/electrical (self-performed). Con Fire independently performs its own separate final PV inspection where its review applies, booked directly with Con Fire at 925-941-3300 ext. 3902 (minimum two working days' notice, Monday–Thursday). 80% · fire district review form

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

Nothing recorded for City of Pleasant Hill on this step yet — 2 questions checked and found unpublished. The guidance above is general.

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No dedicated public PV inspection checklist found on the city's own site; Con Fire's 'Solar Application (PV)' document functions as its own internal plan-review/inspection sign-off form (not published as a homeowner/contractor-facing checklist). 40% · department page (absence)
• Does the inspector verify labels and listings? Yes (standard practice) 55% · fire district review form (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final 70% · utility tariff (inference)
• Who notifies the utility for PTO? Installer 60% · utility tariff (inference)
• Is there a re-inspection fee? $206/hour (Building Re-inspections, CBC §108.8) 85% · fee schedule
• How are corrections issued and cleared? Corrections are emailed to the applicant with required changes; applicant uploads revised plans/application through the PHill Online Service Center for re-review. 85% · department page
