City of Plymouth

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · municipal code
• What does this authority permit itself, and what does it delegate? Both 85% · permit application form
• Is a permit required for a residential rooftop PV system? Yes 95% · permit application form
• Is there a separate electrical permit, or is it combined? Combined 78% · permit application form
• Is a HOA or architectural approval required first? No, for solar specifically. A Homeowners Authorization Approval Letter is required for permits in the Zinfandel Ridge development generally, but the Building Dept page states explicitly: 'This does not apply to solar permits.' 88% · department page
• Is there a historic-district review? Yes, conditionally. PMC §19.18.030(A) exempts single-family dwellings in Single-Family Residential zones from Design Review generally, but states: 'Single-family dwelling units located in the Downtown Historic and Scenic Corridor zoning districts are not exempted from this chapter.' Separately, PMC §19.18.060(B) requires at least a Zoning Clearance citywide for 'roof- or ground-mounted equipment visible from public view,' and elevates façade/exterior 'energy upgrades' and exterior painting within the Downtown Historic Overlay / Scenic Corridor to Design Review. 82% · municipal code
• Is a wind or windstorm certification required? No local wind/windstorm certification requirement found. 65% · municipal code (control-checked absence)
• Is a Specific Use Permit or Council approval ever required? Conditionally yes. PMC §15.07.060(A) lets the Building Official require an applicant to obtain a use permit if the system 'could have a specific, adverse impact upon the public health and safety' (appealable to the Planning Commission per §15.07.060(C)). Separately, the zoning use tables (Ch. 19.56) gate 'Solar Power Installation (Large)' behind a CUP or AUP depending on zoning district, with a footnote exception '4. If installed on roof as part of building plan.' 80% · municipal code
• Is there a system-size cap on residential generation? Yes for the ministerial/expedited pathway: PMC §15.07.020 defines 'small residential rooftop solar energy system' as 'no larger than 10 kilowatts alternating current nameplate rating or 30 kilowatts thermal' and 'installed on a single-family or two-family (duplex) dwelling.' Separately, the zoning use tables (Ch. 19.56) list a 'Solar Power Installation (Large)' use category requiring CUP/AUP by district, but no ordinance text found anywhere defines the numeric threshold for 'Large.' 85% · municipal code

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 90% · permit application form
• Must the contractor be registered with this authority before applying? Yes 88% · permit application form
• Is a homeowner permitted to self-install and self-permit? Yes 88% · permit application form

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Building Permit Application Part I & II (with Smoke & Carbon Monoxide Alarm Declaration/Self-Certification Affidavit where applicable); 2 sets of plans conforming to the currently-in-force CBC/CRC/CEC/CPC/CMC/CGC/CFC/Title 24 and the Plymouth Municipal Code; 2 copies of supporting documentation (truss calculations, structural engineering, Title 24/energy compliance reports, product cut sheets) where applicable; the $200 solar submittal-deposit check made out to the City of Plymouth. 85% · department page + permit application form
• How many copies, and in what format? 2 sets of plans (min. 11x17 not specified) plus, if the project includes a structure, one extra floor plan; 2 copies of supporting calculations and product cut sheets where applicable. Submitted in person at 9426 Main Street or by mail to PO Box 429, Plymouth, CA 95669 — the Building Dept page states 'Email submissions are not available at this time.' 85% · department page
• Is a site plan required, and what must it show? Plans (2 sets) must conform to the 2025 editions of the CBC/CRC/CEC/CPC/CMC/CGC/CFC, Title 24 compliance report, and the Plymouth Municipal Code, per the general submittal process; no separately published document enumerates specific SITE-PLAN content items (e.g., setbacks, panel layout, fire pathways) for solar specifically. 55% · department page

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

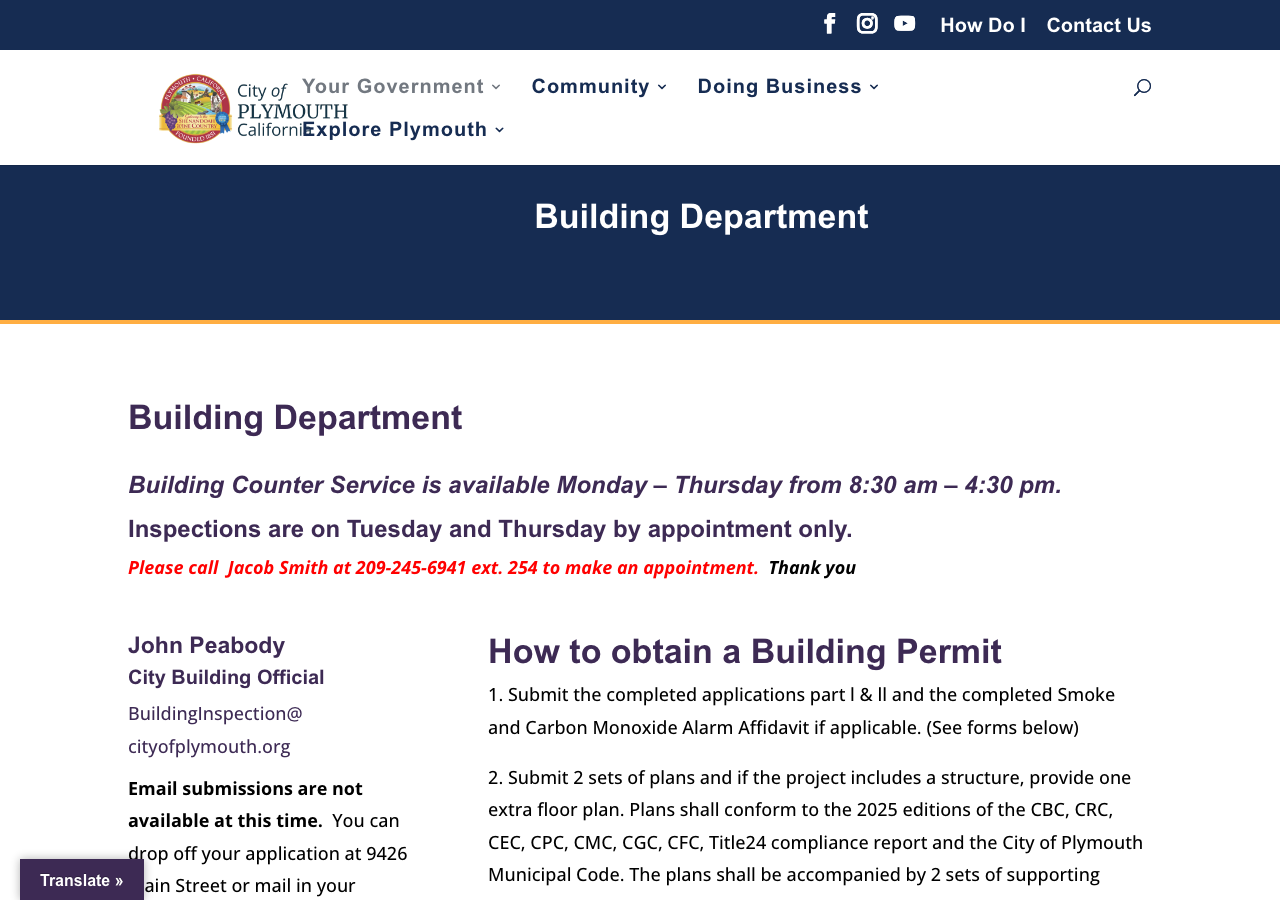

• Which permit portal does this authority use? No dedicated online building-permit portal confirmed. The Building Dept page states applications must be dropped off in person at 9426 Main Street or mailed to PO Box 429 ('Email submissions are not available at this time'). The City separately operates a generic iWorQ 'Citizen Portal' (plymouthca2.portal.iworq.net) reachable from other City pages, but its coverage of building-permit applications specifically was not confirmed (the portal is a JS application whose content could not be enumerated from this network without further tooling). 70% · department page
• Can the whole application be completed online? No 85% · department page
• What does a residential solar permit cost? $200.00 flat 'Solar Permits' submittal deposit (not the final total). The Building Dept page states the final Building Permit fee is separately calculated: permit fee based on project valuation + plan check fee (65% of the permit fee) + SMIP 'earthquake fee' (.00013 or .00028 x valuation) + BSC/SB 1473 fee ($1 per $25,000 of valuation). 82% · department page
• How is the fee calculated? Flat, for the initial $200 submittal deposit specific to solar; the ultimate permit cost is Valuation-based (building permit fee scaled to project valuation, plan check = 65% of that fee, plus SMIP and BSC surcharges) per the City's standard formula, which the Building page does not exempt solar from. 68% · department page
• Is there a separate plan-check fee? Yes — the plan-check fee is 65% of the building permit fee, per the City's standard fee-computation steps, which are not stated to exclude solar. 75% · department page

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? Same day for over-the-counter applications, or within 3 business days for electronic applications, once a complete application is received. 92% · municipal code
• Which utility handles interconnection here? Pacific Gas & Electric (PG&E) 70% · department page (linked utility resources)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 NEC in current practice (via the statewide 2025 Title 24/CEC cycle, effective 1 Jan 2026, which the City's own Building Dept webpage directs applicants to follow: 'Plans shall conform to the 2025 editions of the CBC, CRC, CEC...'). The codified ordinance itself (PMC §15.05.020(B), last amended by Ord. 2022-07) still names 'The 2022 California Electrical Code based on the 2020 National Electrical Code' — the code has not been re-codified to the 2025 cycle; the Ordinance List/Disposition Table shows no ordinance touching §15.05.020 since 2022-07 (through the table's latest entry, Ord. 2025-07, 10/23/2025). 75% · municipal code + department page + ordinance disposition table
• Which building code edition is in force? 2025 California Building Code in current practice, per the City's own Building Dept webpage. The codified ordinance (PMC §15.05.020(A), via Ord. 2022-07) still names 'The 2022 California Building Code based on the 2018 International Building Code' and has not been re-adopted since (confirmed against the Ordinance List/Disposition Table through Ord. 2025-07, 10/23/2025). 78% · municipal code + department page + ordinance disposition table
• Which fire code edition is in force? Three different current citations exist. (1) PMC §15.05.020(G) (Ord. 2022-07) names 'The 2019 California Fire Code' — an apparent drafting artifact, since the same ordinance updated items A–D (Building/Electrical/Mechanical/Plumbing) to the 2022 cycle but left E–L, including Fire, at 2019. (2) The Amador Fire Protection District — the special district that actually enforces the fire code within Plymouth — separately adopted 'the 2022 edition of the California Fire Code' by its own Ordinance No. AFPD 011 (adopted 9 Nov 2022, ratified by Amador County per Health & Safety Code §13869.7(c)). (3) The City's own live Building Dept webpage tells applicants to conform to the '2025 editions of the... CFC.' 75% · fire district ordinance (OCR'd scan)
• Are there local amendments to any of the above? Yes for fire (AFPD Ordinance No. AFPD 011 amends CFC §903 automatic-sprinkler triggers, fire-lane dimensions, unwarranted-alarm fees, and cross-references Amador County's hazardous-vegetation abatement ordinance — none of these amendments touch PV, ESS, rapid shutdown, or ridge setbacks, control-checked). No local amendments to the Building/Electrical/Residential Code beyond adoption-by-reference were found in PMC Ch. 15.05 itself. 80% · fire district ordinance (OCR'd scan)
• What is the installation judged against? The installation is judged against the adopted California Electrical Code (2022 CEC/2020 NEC per the current codified text; 2025 CEC/2023 NEC per current department practice — see Q29), the California Building/Residential Code, and PMC §15.07.040(C): 'Solar energy systems for producing electricity shall meet all applicable safety and performance standards established by the California Electrical Code, the Institute of Electrical and Electronics Engineers, and recognized testing laboratories such as Underwriters Laboratories and, where applicable, rules of the Public Utilities Commission.' 85% · municipal code

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? No local ridge-setback or fire-pathway rule found, at either the City or the fire-district level. PMC Title 15 has zero mentions of 'ridge' or a solar pathway rule, and the Amador Fire Protection District's own locally-amended Fire Code (Ord. AFPD 011) contains sprinkler, fire-lane, and vegetation-abatement amendments but no PV-specific ridge/pathway amendment — the base, unamended 2022 CFC Ch. 12/§605 provisions would apply by reference only. 78% · fire district ordinance (OCR'd scan) + municipal code

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Not independently addressed by local ordinance — no 'rapid shutdown' or '690.12' text anywhere in PMC Title 15 (control-checked, zero hits). Rapid shutdown applies only via whichever CEC edition is in force by reference: NEC 690.12 of the 2020 NEC under the codified 2022 CEC (PMC §15.05.020(B)), or NEC 690.12 of the 2023 NEC under the 2025 CEC cycle the City's webpage says is now in effect (see Q29). 65% · municipal code (control-checked absence)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? None specified locally. No placard, label, or disconnect-marking requirement was found in PMC Title 15 (Ch. 15.05, 15.07) or in the Amador Fire Protection District's Fire Code Ordinance (AFPD 011, read in full). Whatever placarding the base, unamended 2022 CFC/2022 CEC (e.g., CFC §605.11, CEC Art. 690/705) requires would apply only by reference. 72% · municipal code (control-checked absence)
• Does the authority specify placard wording of its own? No 75% · municipal code (control-checked absence)
• Does it specify letter height, colour or material? No local specification of letter height, colour, or material found. 72% · municipal code (control-checked absence)
• Is a site plan / facility map placard required, and what must it show? Not locally elaborated. No Plymouth document (Title 15, Building Dept page, or Application form) describes a site-plan/facility-map placard beyond the general instruction that submitted plans include a plot/site layout as part of the standard plan set; whatever CEC §705.10 requires would apply by reference. 55% · municipal code
• Where must the labels be placed? No local placement instructions beyond whatever the base adopted CEC/CFC would specify by reference; PMC Title 15 and the AFPD Fire Code Ordinance are both silent on label placement. 65% · municipal code (control-checked absence)

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Must equipment be on a specific approved list? Yes — PMC §15.07.040(C) requires solar-electric equipment to meet CEC standards and be tested by 'recognized testing laboratories such as Underwriters Laboratories,' i.e., UL-listed/CEC-compliant equipment, rather than a City-maintained approved-products list. 78% · municipal code
• Are batteries permitted, and under what conditions? Not addressed. Batteries/ESS are not mentioned anywhere in PMC Ch. 15.07's 'solar energy system' definitions or requirements, nor in the Amador Fire Protection District's locally-amended Fire Code (Ord. AFPD 011, read in full — zero 'battery'/'energy storage' hits). Only the base, unamended 2022 CFC's generic ESS provisions (Chapter 12) would apply by reference, with no Plymouth-specific rule found. 78% · municipal code (control-checked absence) + fire district ordinance (OCR'd scan)
• Is there a separate ESS permit or inspection? No dedicated ESS permit/inspection category found. The City's own 'Proposed work' checklist on the Building Permit Application lists 'Roof PV Solar' and 'Ground PV Solar' as distinct work types but has no battery/ESS checkbox, suggesting batteries are not currently a separately tracked permit category. 58% · permit application form (inference from omission)
• Is a ground mount treated as a structure? Not clearly classified either way. PMC's Accessory Structures chapter (Ch. 19.78) never mentions solar at all (zero hits, full-text checked), so ground-mounted solar is not addressed there as an accessory structure. Instead, the zoning use tables (Ch. 19.56) treat 'Solar Power Installation (Large)' as its own gated land-use category (CUP/AUP by district) separate from the Accessory Structures chapter, with footnote 4 exempting roof-mounted installations 'as part of building plan' from the higher-tier review — implying ground-mount is treated more like a distinct land use than a generic accessory structure, though this is not stated explicitly. 55% · municipal code
• Is there a local rule on service upgrades or busbar sizing? No local rule on service upgrades or busbar sizing found. 68% · municipal code (control-checked absence)
• Is a specific mounting system or attachment spacing required? No specific mounting system or attachment spacing requirement found beyond the base adopted CBC/CRC/CEC (adopted by reference, not locally amended for this topic). 68% · municipal code (control-checked absence)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

• How is an inspection booked? Phone — 'Please call Jacob Smith at 209-245-6941 ext. 254 to make an appointment.' 90% · department page
• How much notice is required? Up to 5 business days to get scheduled once requested, per PMC §15.07.060(G): 'an inspection will be scheduled within five business days of a request.' Separately, the Building Dept page states inspections physically occur only 'on Tuesday and Thursday by appointment only,' which further constrains the practical scheduling window beyond the code's 5-day figure. 78% · municipal code + department page
• Are same-day or AM/PM windows offered? Yes — PMC §15.07.060(G): the City's inspection 'will... provide a two-hour inspection window.' 88% · municipal code

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 90% · municipal code
• If delegated, to whom? Not delegated for the routine solar field inspection itself (performed in-house by the City's Building Division per PMC §15.07.060(F)); however, the Building Division's own Building Official function is run through an unnamed contracted individual/firm (per the Master Fee Schedule's note that 'Building permits are issued by the City of Plymouth with a contracted Building Official'), and the fire side is separately delegated to the Amador Fire Protection District, which 'may require a separate inspection' under the same section. 68% · fee schedule

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? (1) Planning Dept review for zoning/setback compliance and, where applicable, a Zoning Clearance or Design Review (PMC Ch. 19.18) if the site is in the Downtown Historic or Scenic Corridor overlay or the equipment is visible from public view; (2) Building Dept plan check and permit issuance — same day over-the-counter or within 3 business days electronically (PMC §15.07.060(A)); (3) a single, consolidated Building Division field inspection, scheduled within 5 business days with a 2-hour window (PMC §15.07.060(F)-(G)); (4) an optional, separate Amador Fire Protection District inspection if AFPD requires one. 75% · department page + municipal code
• Is a rough-in or mid-roof inspection required? No 88% · municipal code

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? No published inspection checklist could be found on the City's site, despite PMC §15.07.050(D) requiring the Building Official to have adopted a 'standard plan and checklist of all requirements... within 30 days of the adoption of the ordinance codified in this chapter' (Ord. 2015-04, 2015) and §15.07.050(A) requiring all such documents to be 'made available on the City's publicly accessible website.' 78% · department page (proven absence)
• Does the inspector verify labels and listings? Not explicitly documented, but reasonably implied. No Plymouth document states in so many words that the inspector checks labels/listings, but PMC §15.07.040(C) requires UL-listed/CEC-compliant equipment and §15.07.060(B) limits the Building Official's review to 'whether the application meets all local, State, and Federal health and safety requirements' — a field inspection under this chapter would naturally include confirming installed equipment matches the approved, code-compliant, listed equipment. 50% · municipal code (inference)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• Who notifies the utility for PTO? Installer (inferred — standard practice under PG&E's Rule 21 interconnection process, where the customer/installer submits the signed permission-to-operate paperwork to PG&E after final inspection). No Plymouth or PG&E document specific to this authority was reviewed to confirm this in this run. 45% · department page (inference — utility process not independently verified)
• How are corrections issued and cleared? At the application stage: PMC §15.07.060(E) — if an application is deemed incomplete, 'the Building Official shall send the applicant a written correction notice detailing all deficiencies.' At the field-inspection stage: PMC §15.07.060(H) — 'If a small residential rooftop solar energy system fails inspection, a subsequent inspection is authorized but need not conform to the requirements of this chapter' (i.e., re-inspection loses the expedited-timing guarantees). 75% · municipal code
