City of Rancho Cucamonga

A city address is usually permitted by the city, not the county — but not always, and some authorities keep building and hand electrical to someone else. Getting this wrong costs the whole submittal, because every requirement below belongs to whoever actually holds jurisdiction. Check the overlays in the same pass: an HOA, a historic district, a windstorm certification or a system-size cap can reshape the design, and all of them are cheaper to find now than after the array is laid out.

• Is this authority the AHJ for residential solar at this address? Yes 95% · department page
• What does this authority permit itself, and what does it delegate? Both 85% · city information bulletin (PDF)
• Is a permit required for a residential rooftop PV system? Yes 95% · city information bulletin (PDF)
• Is there a separate electrical permit, or is it combined? Combined 80% · city information bulletin (PDF)
• Is a HOA or architectural approval required first? No 70% · city information bulletin (PDF) - absence checked against full published checklist
• Is there a historic-district review? Not required for a standard residential PV submittal - not listed anywhere in BSF-0008's comprehensive submittal checklist. It is possible (but not confirmed this run) that City-designated historic overlay districts route through the Historic Preservation Commission for exterior alterations; the Development Code chapter that would state this (Title 17, historic preservation chapter) sits on eCode360, which 403'd on every access route attempted. 50% · city information bulletin (PDF); ecode360.com blocked for corroboration
• Is a wind or windstorm certification required? No separate wind/windstorm certification process (no Texas-DOI-style wind certificate). Wind resistance is folded into the same Structural Criteria checklist used for the PE-stamp threshold: the worksheet checks whether the site falls in Wind Exposure B/C/D, a Special Wind Region, a hillside with excessive slope, etc., and routes to engineer-stamped calculations if any wind-related box fails. 75% · city information bulletin (PDF)
• Is a Specific Use Permit or Council approval ever required? Not for a standard, code-compliant residential rooftop PV system - permit issuance is ministerial once the application/checklist is complete (per the state-law-derived expedited framework the City's own BSF-0008/Chapter 15.36 implement). Council or Planning Commission approval would only be expected for non-qualifying or discretionary cases (e.g., height exceptions, non-conforming structures), which is not documented explicitly in the materials reviewed. 55% · city information bulletin (PDF), inferred
• Is there a system-size cap on residential generation? No hard cap on installed residential system size, but only systems <=10kW AC nameplate (or <=30kW thermal) qualify for the City's expedited/ministerial permitting path; larger systems must go through the standard (non-expedited) building permit process rather than being prohibited outright. 75% · city information bulletin (PDF)

Several authorities require the electrical permit to be pulled by a licensed electrician, or require the contractor to be registered with them BEFORE applying. Registration is not same-day. This is second on the list rather than fourth because it is the step most likely to stop the job before the drawings matter.

• Who is allowed to pull the electrical permit? Either 60% · city standard plan (PDF), cross-referenced with CA contractor licensing law
• Must the contractor be registered with this authority before applying? Yes 60% · city webpage
• Is a homeowner permitted to self-install and self-permit? Yes 55% · city standard plan (PDF), inferred with CA owner-builder law

Almost everywhere wants a site plan, a one-line or three-line electrical diagram, equipment cut sheets with listings, and a structural attachment detail. Build it against the published checklist rather than the last jurisdiction you worked in — the checklist is what the reviewer marks against.

• What documents make up a complete submittal? Online permit application; PV standard-form/eligibility checklist (<=10kW); Solar PV Standard Plan (or full electrical plan with disconnect locations, module/string counts, inverter cut sheets, single-line diagram, grounding/bonding and conductor sizing); roof/site plan showing panel layout, fire access pathways, roof access point and label locations; equipment cut sheets (inverters, modules, disconnects, combiners); Structural Criteria checklist or PE-stamped structural calculations if any criterion fails. 90% · city information bulletin (PDF)
• How many copies, and in what format? Electronic only via the Online Permit Center - no paper plans accepted. Plans must be a single, black-and-white PDF, correctly scaled/oriented, not exceeding 100MB; large sets may be split by discipline (architectural, structural, etc.) but individual sheets must not be uploaded separately. 95% · city process handout (PDF)
• Is a site plan required, and what must it show? Yes - a site/roof diagram is required showing the arrangement of panels on the roof or ground, a north arrow, lot dimensions, distance from property lines to adjacent buildings/structures, the roof access point, fire-code-compliant access pathways, the PV system's fire classification, and the location of all required labels and markings. 90% · city information bulletin (PDF)
• Is a one-line / three-line diagram required? Yes 95% · city standard plan (PDF)
• Are string and conductor calculations required? Yes 95% · city standard plan (PDF)
• Is a structural PE stamp required, and at what threshold? Only if the project fails any item on the City's Structural Criteria checklist (roof type/condition, panel weight <=4 psf PV/5 psf thermal, array coverage <=50% of roof, anchor spacing per Table 1, fastener embedment per Table 2, etc.). If all items pass, no stamp is required; if any fail, project-specific structural drawings/calculations stamped and signed by a California-licensed civil or structural engineer must be submitted. 90% · city information bulletin (PDF)
• Is an electrical PE stamp required, and at what threshold? Not required for systems that fit the Solar PV Standard Plan scope (<=10kW AC, single-phase 120/240V, bus bar <=225A, <=2 inverters, no batteries/trackers/hybrid or bipolar systems); the City's standard plan is designed precisely so a licensed contractor can complete it without an engineer's electrical stamp. No threshold for a mandatory electrical PE stamp is stated for non-qualifying/complex systems. 55% · city standard plan (PDF)

Most authorities now take the whole application through a portal, and several states cap or constrain what a residential solar permit may cost. Check whether plan check is billed separately before you quote the job.

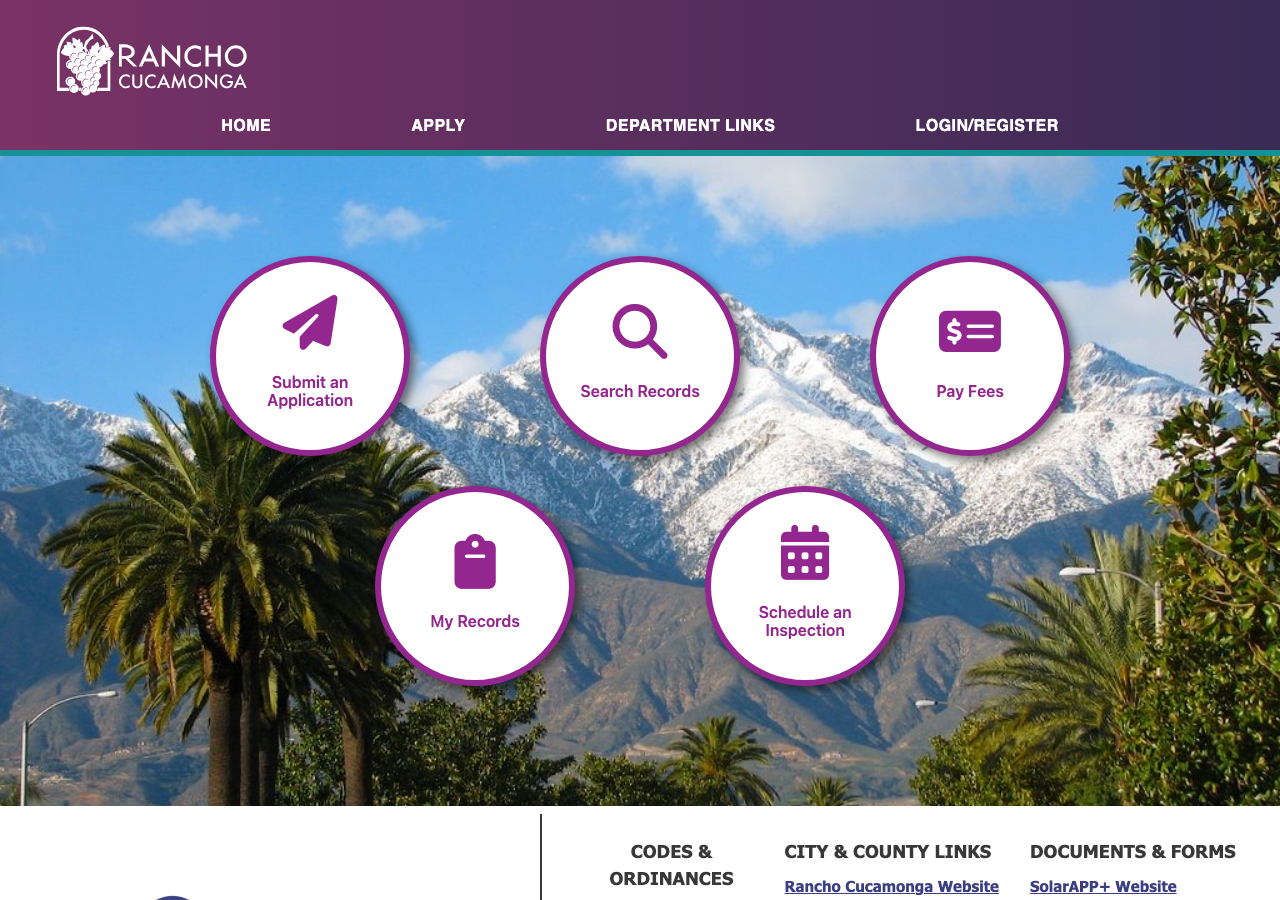

• Which permit portal does this authority use? Online Permit Center (Accela Citizen Access, aca-prod.accela.com/cityofrc) for the general application; SolarAPP+ (solar-app.org) for eligible single-family/duplex rooftop PV installs. 95% · department page
• Can the whole application be completed online? Yes 95% · city process handout (PDF)
• What does a residential solar permit cost? $181 flat for the Solar/Photovoltaic permit up to 15 kW (residential), plus $14 per kW over 15 kW; a separate Energy Storage System permit is $233. 80% · fee schedule (PDF)
• How is the fee calculated? Tiered 85% · fee schedule (PDF)
• Is there a separate plan-check fee? Ambiguous / not clearly broken out for solar specifically. The Building & Safety 'Processing Fees' section lists a generic 'Residential - Non-routed' review fee of $137 and 'Residential - Routed' of $343, plus a $43 'No Plan Check Required Processing' fee, none of which is solar-specific; BSF-0008 does not mention any plan-check fee separate from the permit fee for the <=10kW expedited path. 50% · fee schedule (PDF)

Interconnection is a separate process from the permit and usually the longer pole. Where the utility does not depend on the permit being issued, running both at once is the single biggest saving available on a residential job.

• What is the stated plan-review turnaround? SolarAPP+: instant/same-day issuance for compliant single-family/duplex applications. City's own expedited manual review (non-SolarAPP+, <=10kW): 1 to 3 business days. Standard (non-expedited, e.g. non-qualifying or larger) plan review through the general EDR process: approximately 10-15 working days. 85% · city information bulletin (PDF)
• How long is an issued permit valid before it expires? Likely 180 days from issuance without a required inspection, per the default expiration provision of the adopted 2025 California Building Code (Sec. 105.5), extendable for cause; no solar-specific or City-specific override to this default was found in the documents reviewed. 45% · adopted model code default, inferred from city's applicable-codes bulletin
• Which utility handles interconnection here? Split by address: Rancho Cucamonga Municipal Utility (RCMU), a city-owned utility serving roughly 3,900 metered customers in a defined area in the southeastern part of the city, handles interconnection for its own customers; Southern California Edison (SCE) serves the remainder of the city and handles interconnection there. The specific utility must be confirmed per parcel (RCMU service-area map), not assumed from a ZIP-code lookup. 85% · utility/department webpage
• Where does the utility sit in the sequence? After permit 85% · utility customer handout (PDF)

The NEC edition a jurisdiction enforces is often a cycle behind the newest one published, and local amendments sit on top of it. Rapid shutdown, conductor sizing and labelling all change between editions, so the edition in force is the first thing to establish, not the last.

• Which NEC edition is in force? 2023 65% · adopted-codes bulletin (PDF), with a flagged discrepancy against the known NEC publication cycle
• Which building code edition is in force? 2025 California Building Code (CBC), effective for plans filed on or after 1 January 2026. 90% · adopted-codes bulletin (PDF)
• Which fire code edition is in force? 2025 California Fire Code (CFC). 90% · city standards handout (PDF), dated by its own revision stamp
• Are there local amendments to any of the above? Likely yes in general (California Health & Safety Code Sec. 17958.5 requires cities/fire districts to make express local-necessity findings for any amendments, and the Rancho Cucamonga Fire Protection District has historically adopted its own amendment ordinances each code cycle), but the specific current 2025-cycle amendment ordinance number and text could not be independently verified this run. 55% · inferred from general CA practice; primary amendment ordinance not independently verified
• What is the installation judged against? Installation must comply with Articles 690 and 705 of the 2025 California Electrical Code and Section 1204 of the 2025 California Fire Code, per the approved plans. 95% · city standards handout (PDF)

Ridge setbacks and roof access pathways are fire-service requirements and they constrain the array layout. They are the most common cause of a redesign after the fire department comments on a plan set.

• What ridge setback and access pathways are required? Ridge setbacks and access pathways are governed by Section 1204 of the 2025 California Fire Code (as adopted, per BSF-0007); the City's own guide does not restate the specific pathway dimensions, instead directing applicants to the State Fire Marshal's Solar PV Installation Guideline for worked examples, and requires the roof plan to show the roof access point, access pathways, and fire classification of the array. 70% · city standards handout (PDF)

Which rapid-shutdown rule applies follows directly from the NEC edition in force, and the initiation device has to be at a location the fire service can reach and identify. This is inspected, and it is labelled.

• Is rapid shutdown required, and to which NEC edition? Yes, required under CEC 690.12 (2025 California Electrical Code, aligned with NEC Article 690.12). The Solar PV Standard Plan devotes an entire step (Step 14) to rapid shutdown compliance, accepting module-level, string-level (with meets-2017-listing-requirement provisions), or UL 1741-listed inverter-based rapid-shutdown methods. 90% · city standard plan (PDF)

The NEC sets a baseline for permanent markings at the service equipment and the disconnecting means. On top of that, an authority may specify its own wording, and the utility may specify more again. Where any of them writes its own text, a generic off-the-shelf label set will not pass — this is the detail most often fixed on a return visit.

• Which placards does this authority require at the service equipment? PV Power Source warning label (CEC 690.5(C)); Electric Shock Hazard warning at DC disconnect terminals (CEC 690.17(E)); PV System DC Disconnect rating placard (max power-point current/voltage, max circuit current, max system voltage); Multiple-Sources/total-OCPD-rating warning where a new load center is used (CEC 705.12(D)(2)(3)(c)); Rapid Shutdown placard (CEC 690.56(C)); permanent power-source directory/plaque (CEC 705.12); and junction/combiner-box conduit labeling every 10 feet (CEC 690.31(G)(3)). 95% · city information bulletin (PDF)
• Does the authority specify placard wording of its own? Yes, to the extent it reproduces the exact CEC-mandated placard templates and required text (PV Power Source, Electric Shock Hazard, DC Disconnect ratings, Rapid Shutdown, multi-source directory) as ready-to-use exhibits in its own PDF, rather than only citing the code sections; it does not add wording beyond what the CEC itself requires. 85% · city information bulletin (PDF)
• Does it specify letter height, colour or material? Yes. The City's guide recommends a phenolic plaque with contrasting colors between text and background, and states '20 point (3/8 inch) should be considered the minimum' letter height, citing ANSI Z535.4-2011 for safety-sign design. 90% · city information bulletin (PDF)
• Is a site plan / facility map placard required, and what must it show? A roof/site plan (submitted with the application, not a placard) must show panel layout, access pathways, roof access point and PV fire classification. At the service equipment itself, CEC 705.12 requires a permanent directory/plaque denoting all electric power sources or rapid-shutdown equipment on the premises; the documents reviewed do not separately name a distinct 'facility map' placard beyond this directory requirement and the submitted roof plan. 65% · city information bulletin (PDF)
• Does the UTILITY specify placards beyond the AHJ's? Yes, for RCMU customers: RCMU's Generating Facility Interconnection Rule requires a ganged, manually-operated, lockable visible-disconnect switch near the point of interconnection that must 'include markings or signage that clearly indicate open and closed positions,' and if that disconnect is not adjacent to the point of common coupling, 'permanent signage must be installed at an RCMU-approved location providing a clear description of the location of the device' - both requirements independent of, and in addition to, the City's own CEC-based placards. SCE's NEM Interconnection Handbook similarly requires a marked, visible-open, lockable AC disconnect, though its specific signage wording was not directly quoted this run. 85% · utility interconnection rule (PDF)
• Where must the labels be placed? At the PV DC disconnect and at junction/combiner boxes and conduit (labeled every 10 feet); at the AC point of connection/inverter output; at the main service panel or new load center (CEC 705.12 directory); and, for RCMU customers, at or adjacent to the visible AC disconnect near the point of interconnection (with remote signage required if the disconnect cannot be placed adjacent to the point of common coupling). For SCE, the visible AC disconnect is required directly adjacent to the point of common coupling (or within 10 feet with engineering approval). 90% · city information bulletin (PDF) + utility interconnection rules

Where the AC disconnect must sit relative to the meter is usually the utility's rule, not the building department's. Battery storage frequently carries its own permit, its own inspection and its own fire conditions.

• Where must the AC disconnect be, relative to the meter? Utility- and connection-dependent, not a single city-wide rule. RCMU territory: a ganged, manually-operated, lockable, visible-open disconnect switch must be installed 'near the Point of Interconnection', reachable 24/7 by RCMU personnel without keys/special access, and marked with open/closed signage; if not adjacent to the point of common coupling, separate permanent signage describing its location is required. SCE territory: for line-side connections the single visible-open lockable AC disconnect must be located directly adjacent to the point of common coupling (or up to 10 feet away with prior utility engineering approval); for load-side connections it must be located near the point of common coupling, with utility approval needed if not adjacent. 85% · utility interconnection rule (PDF) + utility NEM handbook (PDF)
• Must equipment be on a specific approved list? Yes. CEC 110.3 requires listed/labeled equipment to be installed per its listing instructions, and CEC 690.4(B) requires equipment used with PV systems to be listed for that application; RCMU's interconnection rule separately requires inverters and meters to be on the CEC (California Energy Commission)-verified equipment list. 90% · city standard plan (PDF) + utility interconnection rule
• Are batteries permitted, and under what conditions? Yes, batteries/ESS are permitted, but a battery-equipped system is explicitly disqualified from the City's expedited/SolarAPP+ path (eligibility checklist requires the system be 'without battery storage' and 'does not utilize storage batteries, charge controllers, or trackers'); battery systems must go through the standard (non-expedited) plan-review process and incur a separate Energy Storage System permit fee. 80% · city information bulletin (PDF) + fee schedule (PDF)
• Is there a separate ESS permit or inspection? Yes 85% · fee schedule (PDF)
• Is there a local rule on service upgrades or busbar sizing? Yes. The expedited path caps the service at single-phase 120/240V with a bus bar rating of 225A or less, and requires that the sum of the main OCPD and the inverter OCPD not exceed 120% of the bus bar rating (the CEC 705.12(D)(2)(3) 120% rule); a new load center triggers an additional required placard. 95% · city standards handout (PDF)
• Is a specific mounting system or attachment spacing required? Yes. The Structural Criteria worksheet specifies maximum anchor horizontal spacing (Table 1), minimum lag-screw/hanger-bolt diameter and rafter embedment depth (5/16in diameter, 2.5in embedment as the baseline, or per manufacturer's guidelines), a 2-10 inch standoff gap between module underside and roof surface, and a maximum array weight of 4 psf (PV) / 5 psf (thermal). 90% · city information bulletin (PDF)

Booking is a portal, a phone call or an email depending on the authority, and the notice required is rarely zero. Book before the work is finished rather than after — the lead time, not the work, is usually what sets the date.

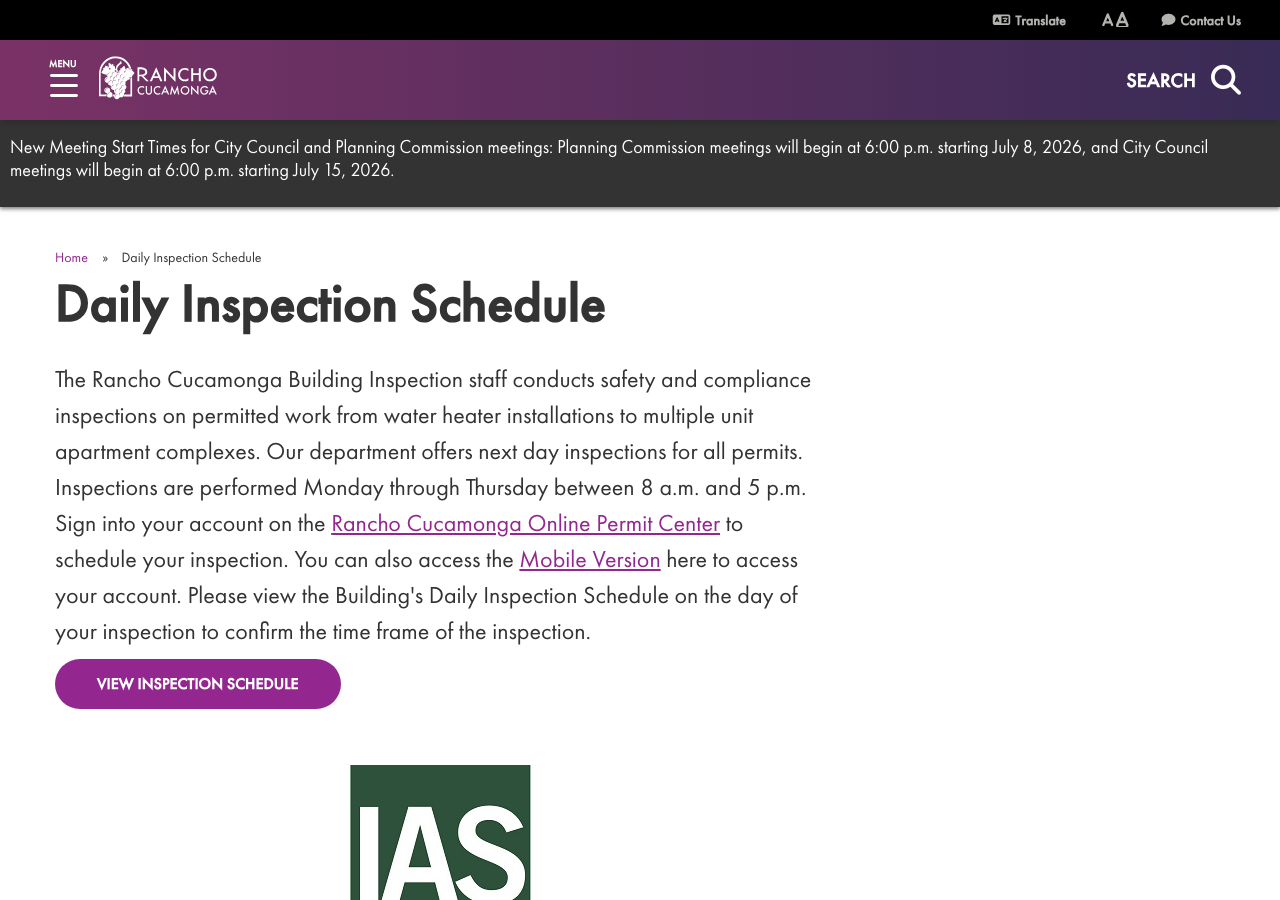

• How is an inspection booked? Portal 90% · department page
• How much notice is required? Effectively about 1 business day - inspection requests received within business hours are typically scheduled for the next business day; if next-day is unavailable, within a five-day window. 75% · city information bulletin (PDF)
• Are same-day or AM/PM windows offered? Next-day inspection is offered as standard; inspections occur Monday-Thursday between 8am-5pm. No published AM/PM window-selection feature was found in the materials reviewed. 65% · department page

Some authorities inspect their own solar work; some delegate it, and a few do not inspect the PV equipment itself at all. Who is coming determines what they will look at.

• Does this AHJ perform its own final solar inspection? Yes 90% · city standards handout (PDF)
• If delegated, to whom? Not delegated - the City performs its own final building/electrical inspection. (Separately, RCMU-served customers must also pass a distinct RCMU-conducted inspection before Permission to Operate is granted, but this is an additional utility-level inspection layered on top of the City's inspection, not a delegation of it.) 70% · utility customer handout (PDF)

A rough-in or mid-roof inspection, where one is required, has to happen before the work it covers is closed up. Missing a stage means opening something back up, and it is the most expensive kind of correction.

• Which inspections are required, and in what order? For a qualifying rooftop PV system, the published checklist describes a single Solar PV final field inspection (no separate rough-in stage documented) verifying installed conductors, grounding, racking/attachment, signage and equipment ratings against the approved plans. If served by RCMU, a separate RCMU inspection follows the City's final, required before Permission to Operate. The Master Fee Schedule also lists a distinct 'Utility Release (Utility Connection) inspection' fee, suggesting the City's own process includes or coordinates a utility-release step. 70% · city standards handout (PDF) + fee schedule (PDF) + utility handout (PDF)
• Is a rough-in or mid-roof inspection required? No - the published checklist for a qualifying (<=10kW, no battery) system describes only a single final field inspection; no separate rough-in or mid-roof inspection stage is documented for this permit type. 65% · city standards handout (PDF)

The approved plan set, the permit, and the equipment listings should be on site and reachable. Inspectors routinely verify that installed equipment matches what was approved, and that the labels are the ones the plan set promised.

• Is there a published inspection checklist? Yes 95% · city standards handout (PDF)
• What must be on site at inspection? Approved plans matching the as-built installation and complying with the codes cited on the plans; an OSHA-approved ladder (long enough to project 3 feet above the roof) provided by the contractor before the inspector arrives; and equipment specification sheets available to cross-check module/inverter model numbers and ratings against the plans and installed signage. 95% · city standards handout (PDF)
• Does the inspector verify labels and listings? Yes 95% · city standards handout (PDF)

Passing gives you a final or an equivalent sign-off. That is not the same as permission to operate: PTO comes from the utility, and who tells the utility the inspection passed varies. A system left switched off for weeks is usually waiting on this handover.

• What is issued on pass? Final (the permit record is marked 'Finaled'/approved in the Online Permit Center); no standalone Certificate of Occupancy is issued for a PV retrofit permit on an existing single-family residence. 65% · city process handout (PDF), inferred
• Who notifies the utility for PTO? Installer 80% · utility customer handout (PDF)
• Is there a re-inspection fee? $172-$174 per hour (Building & Safety hourly rate is $172; the Fire District's own fee schedule section lists its re-inspection rate at $174 per hour). 80% · fee schedule (PDF)
• How are corrections issued and cleared? Corrections from plan review are posted as a 'Corrections List' in the Online Permit Center under Attachments/Record Info; the applicant uploads a corrected FULL set of plans plus a written response list to clear them, which the Plans Examiner then re-reviews. Field-inspection corrections would similarly be cleared by requesting re-inspection through the same portal once the noted item is fixed. 80% · city process handout (PDF)
